6090 Transfer Film UV Flatbed Printer 6 Color XP600 Digital Inkjet Plotter LED Printing Machine for Ceramic Phone Case Glass Wood

Customization: Available
After-sales Service: Online Technical Support
Warranty: 1 Year

Product Description

● Product Overview
A1 60*90 UV Flatbed Printing Machine Digital Bottle Glass Acrylic Printing Machine
UV Flatbed Printer Overview Digital Inkjet Plotter LED Printing Machine
● Basic Information
Model NO. GS6090 MAX Plate Flat-Bed Cylinder Press
Structure Platen Press Color & Page Multi-Colour Printing Press
Usage Phone Case, Acrylic, Signage, Glass, Stainless Steel Automatic Grade Automatic
Printing Interface Gigabit Ethernet Port Printing Speed 8-20 Sqm/H
System Supported Win7/Win10/Win11 Print Head XP600 / Tx800 / I3200 / I1600
Printing Thickness 0-200mm Print Ink UV Ink
Ink Color CMYK + W + V Working Temp 20 - 30℃, 45-65% RH
Voltage AC110V/220V, 50Hz/60Hz Rated Power 250W
Gross Weight 255kg Certification CE/RoHS
● Advanced Machine Configuration
Motherboard HOSON motherboard
Servo Motor Leadshine Servo Motor
Guide Rail HIWIN imported guide rail
Safety Printhead anti-collision device
Ink System Automatic alarm for ink shortage & White ink circulation
Cooling System Water Cooling UV Lamp
Platform High precision vacuum suction platform with scale line
Feature 1
Feature 2
Feature 3
Feature 4
Feature 5
Feature 6
Feature 7

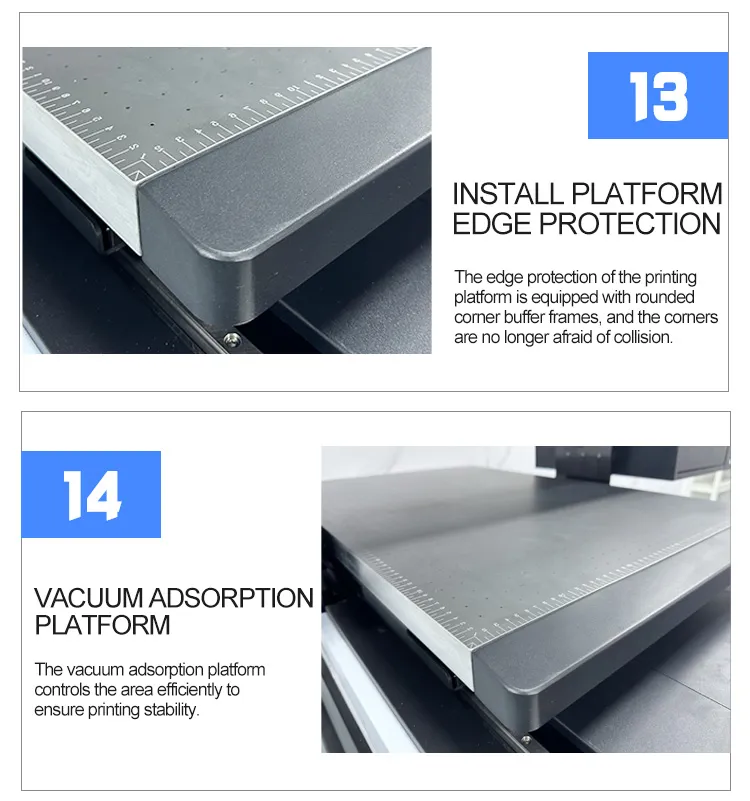

Feature 8

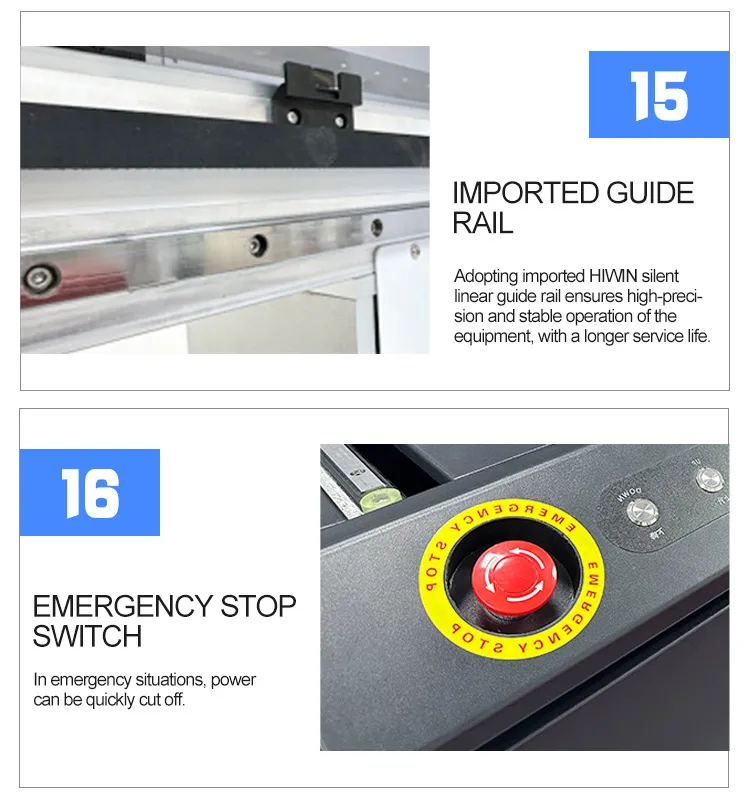

Feature 9

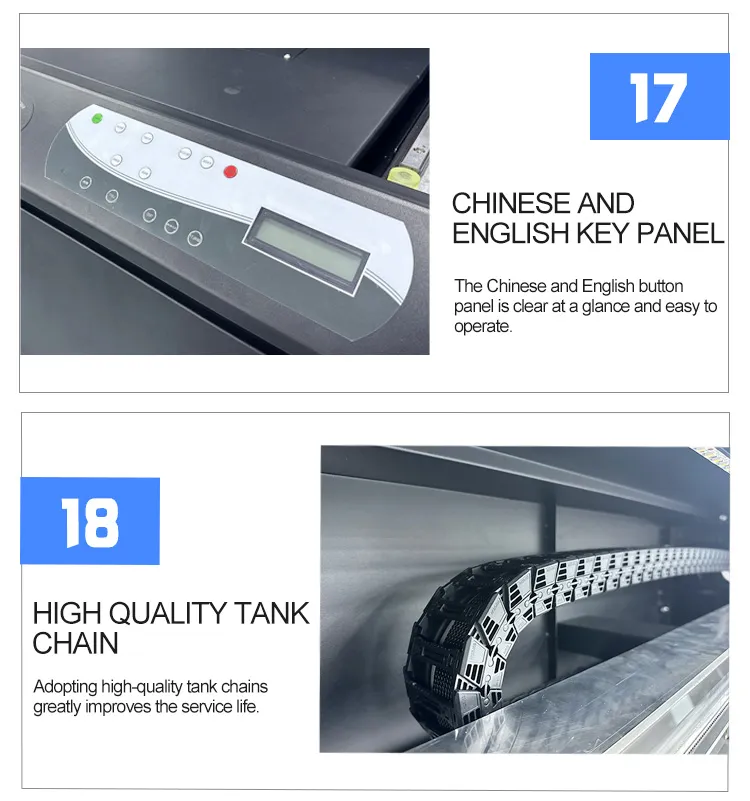

● Applications & Final Results
Printing Results UV Printing Samples Material Compatibility
Machine Detail 1
Machine Detail 2
Frequently Asked Questions
What materials can this 6090 UV printer print on?
The machine is highly versatile and can print on phone cases, acrylic, signage, glass, stainless steel, ceramic tiles, KT boards, leather, handicrafts, and even wine bottles.
What is the maximum thickness of the material allowed?
This printer supports a wide printing thickness range from 0mm up to 200mm, making it suitable for both flat media and thicker objects.
Which print heads are supported by the GS6090 MAX?
The machine is compatible with several industrial-grade print heads, including XP600, TX800, I3200, and I1600, depending on your precision and speed requirements.
Does the printer have a white ink maintenance system?
Yes, it features a white ink circulation and stirring system along with an automatic ink shortage alarm to prevent precipitation and ensure stable printing quality.
What RIP software can I use with this machine?
The printer supports professional RIP software such as Maintop, PhotoPrint (PP), and RIIN for accurate color management.
What are the power requirements?
The machine is compatible with AC 110V/220V (50Hz/60Hz) and has a rated power consumption of 250W.
