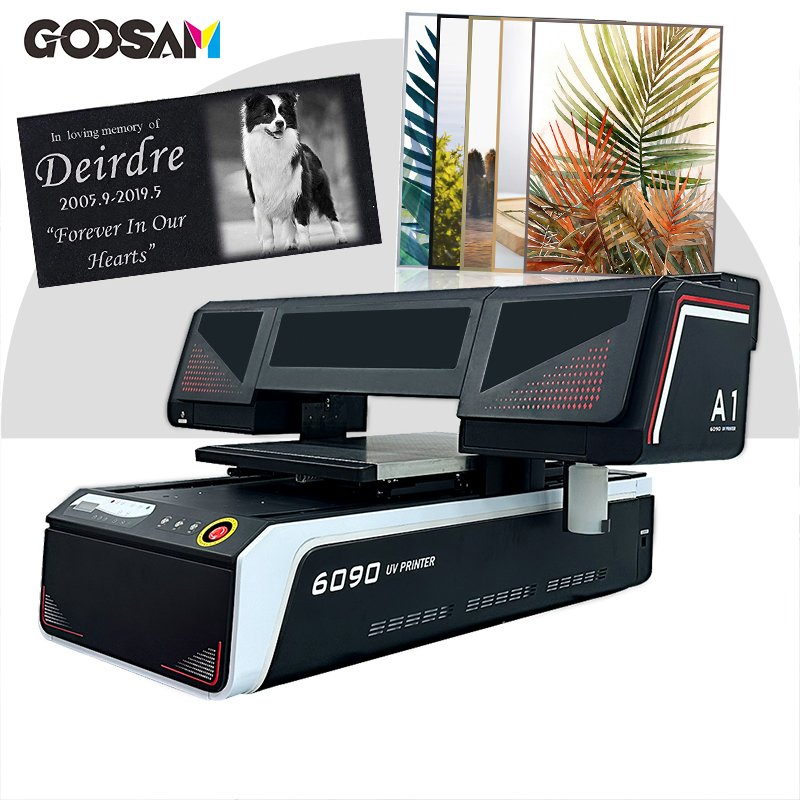

6090 Transfer Film UV Flatbed Printer 6 Color XP600 Digital Inkjet Plotter LED Printing Machine for Ceramic Phone Case Glass Wood

Customization: Available
After-sales Service: Online Technical Support
Warranty: 1 Year

Product Description

GS6090 MAX UV Flatbed Printing Machine
Basic Information
Model NO. GS6090 MAX Specification 60*90cm
Print Head XP600 / Tx800 / I3200 / I1600 Automatic Grade Automatic
Printing Speed 8-20 Sqm/H Printing Thickness 0-200mm
Ink Type UV Ink (Cmyk + W + V) Voltage AC110V/220V, 50Hz/60Hz
System Support Win7 / Win10 / Win11 Gross Weight 255kg

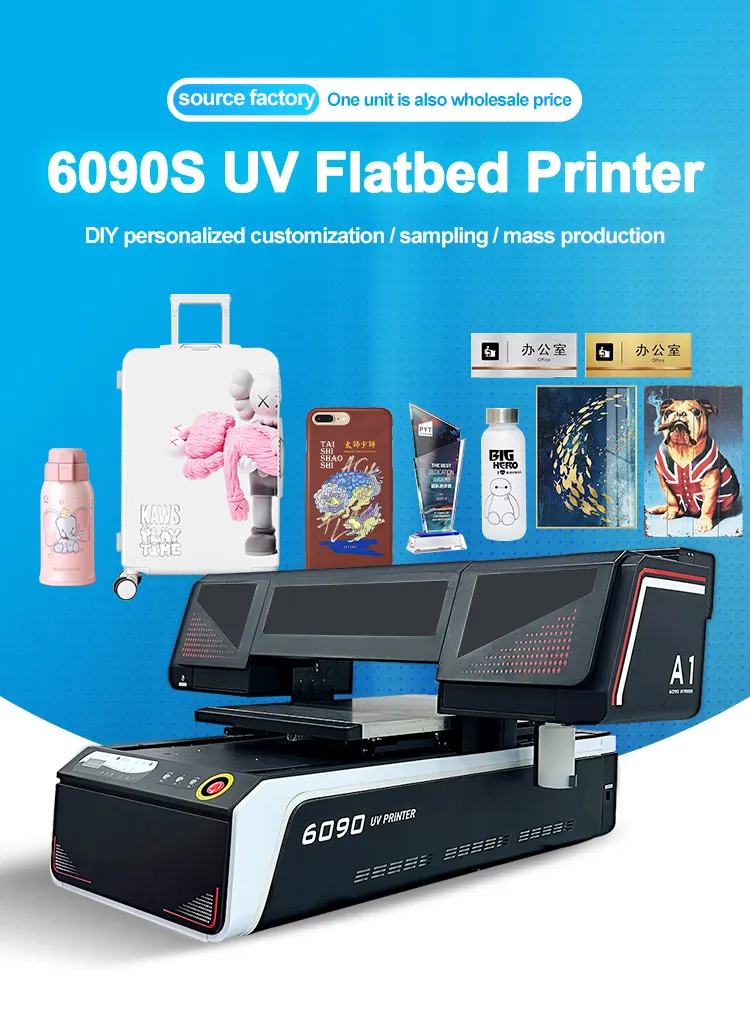

UV Flatbed Printer Overview
UV Printing Details
Detailed Product Information
Print Media Phone case, Acrylic, Signage, Glass, Stainless steel, Ceramic tiles, KT board, Leather, Handicrafts, Wine bottle
RIP Software Maintop / PP / RIIN Interface Gigabit Ethernet Port
Working Environment 20 - 30℃, 45-65% Humidity Rated Power 250W
Machine Configuration & Features
⚙️
High-End Components: HOSON motherboard, Original print heads, and Leadshine Servo Motor.
📏
Precision Engineering: HIWIN imported guide rails and IGUS Drag Chain for stable movement.
🛡️
Safety Protection: Equipped with a printhead anti-collision device to prevent damage.
🌪️

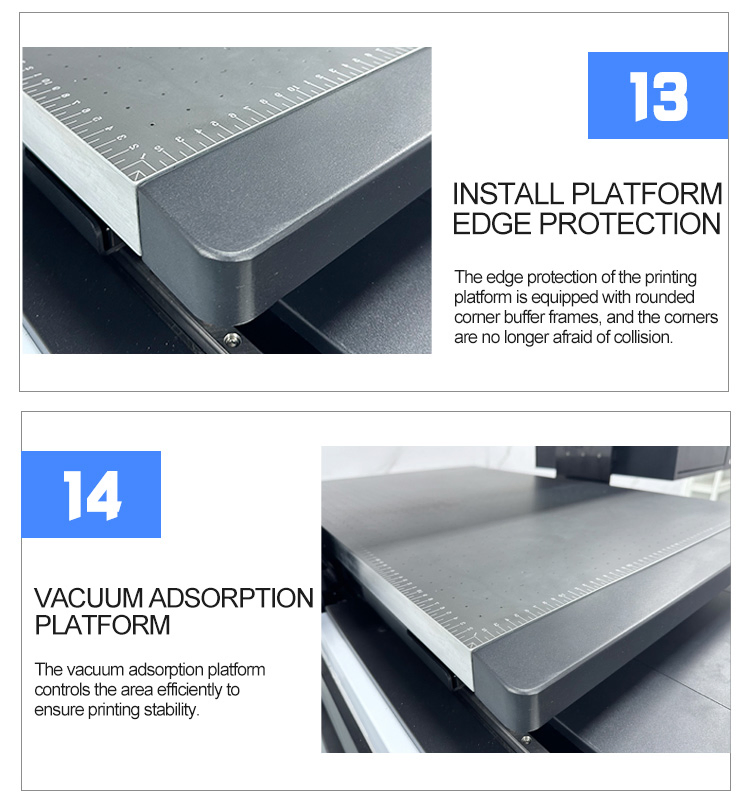

Vacuum Platform: High precision suction platform with scale lines for easy media positioning.
💧
Ink Management: White ink circulation, stirring, and automatic ink shortage alarms.
🌡️

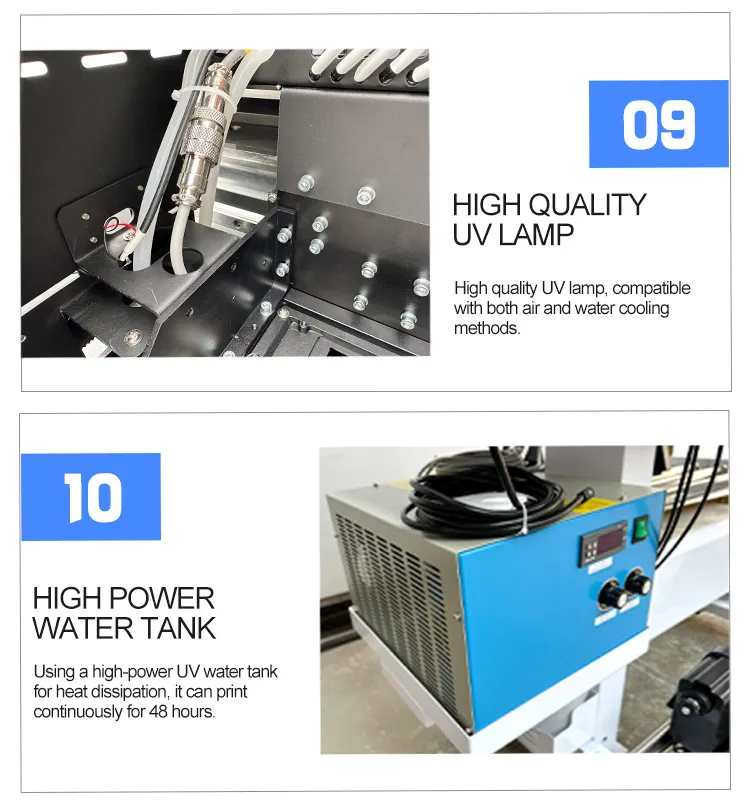

Stable Temperature: Integrated heating system for the trolley base plate and water cooling for UV lamps.
Product Gallery

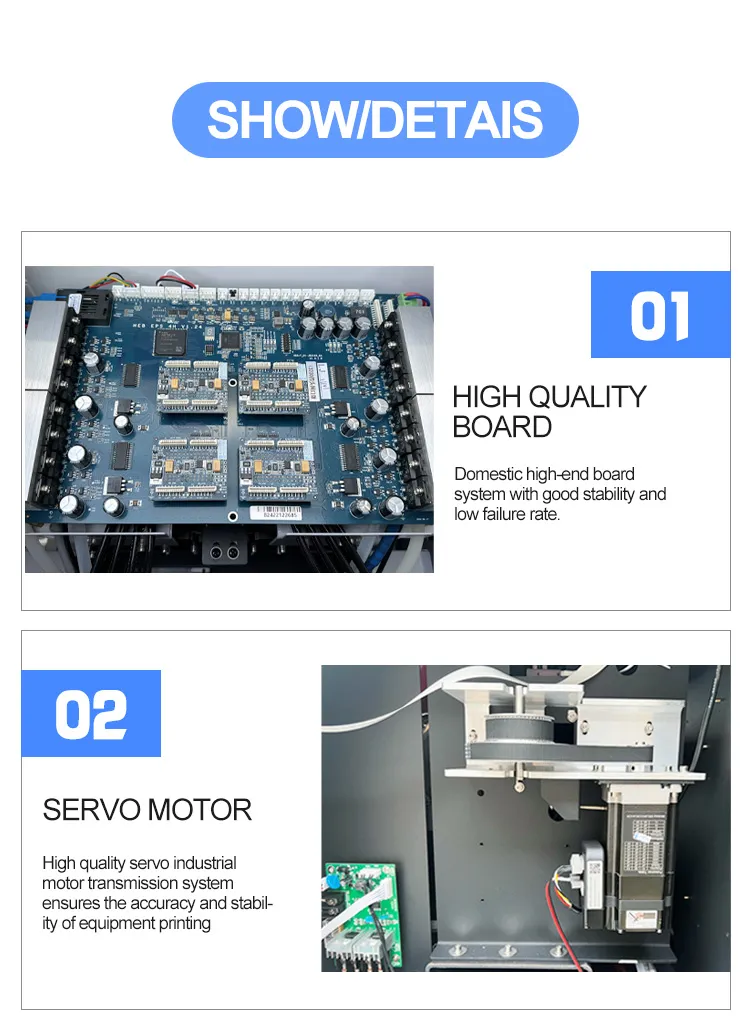

Feature 1

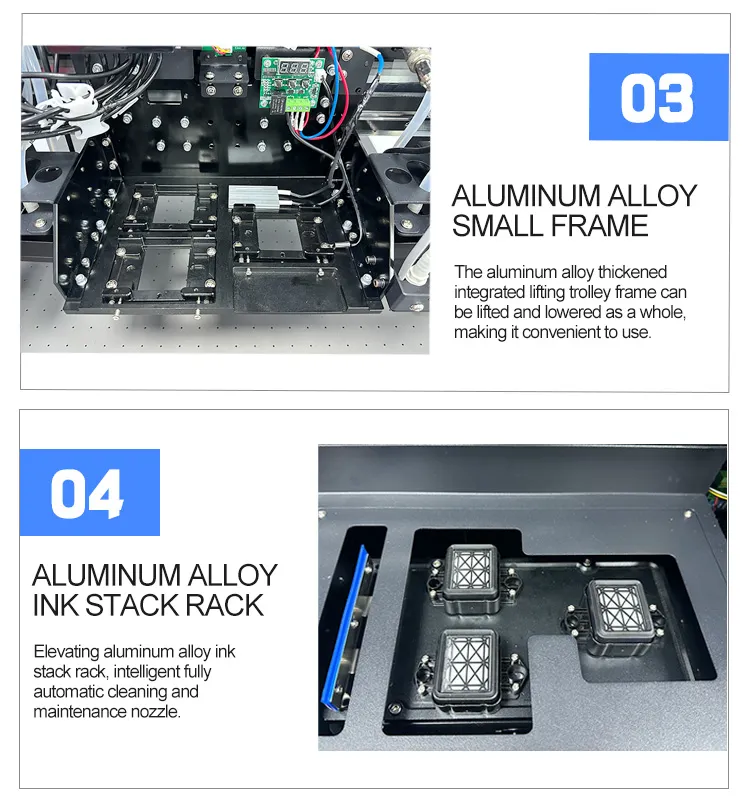

Feature 2

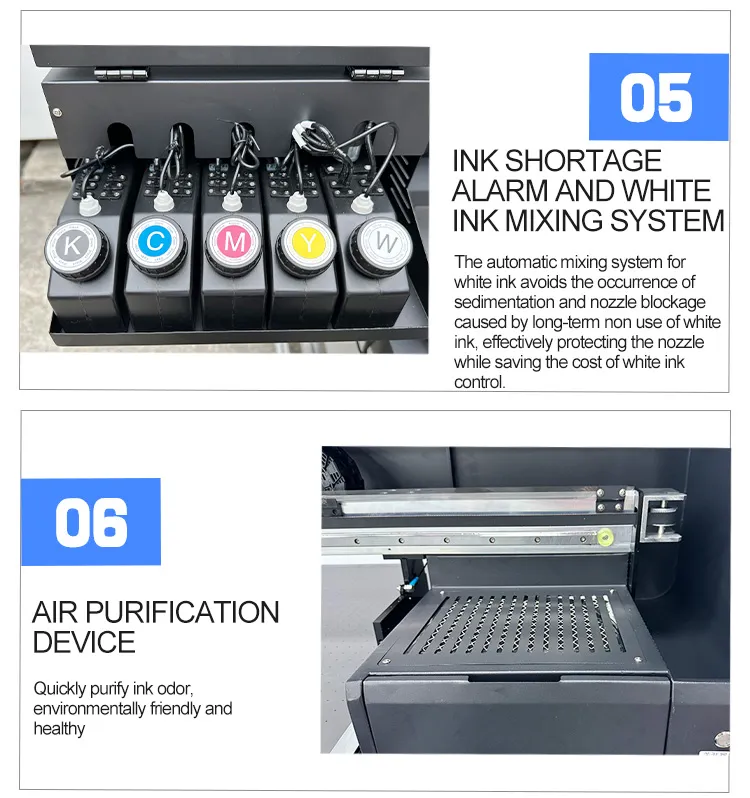

Feature 3

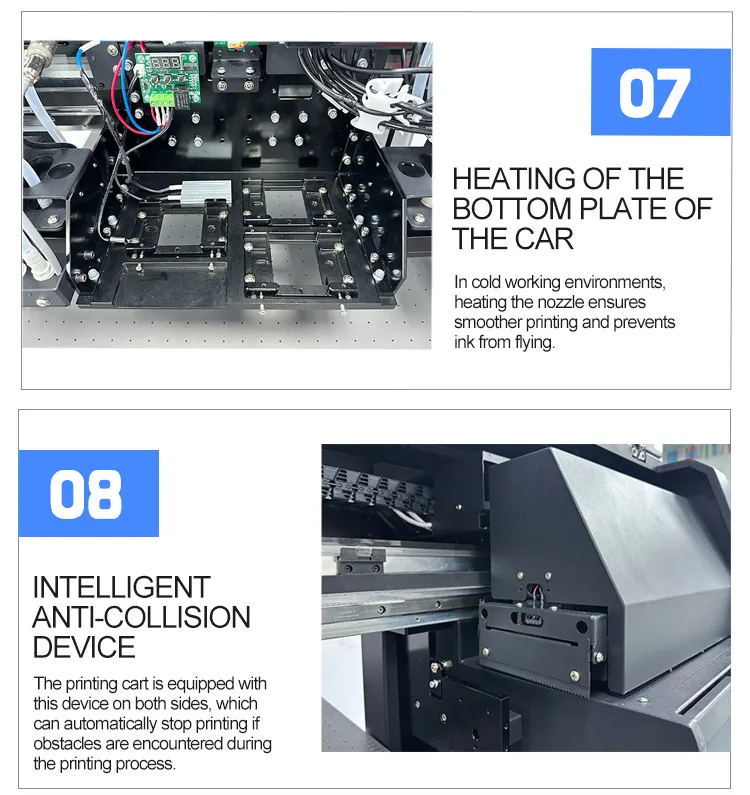

Feature 4
Feature 5

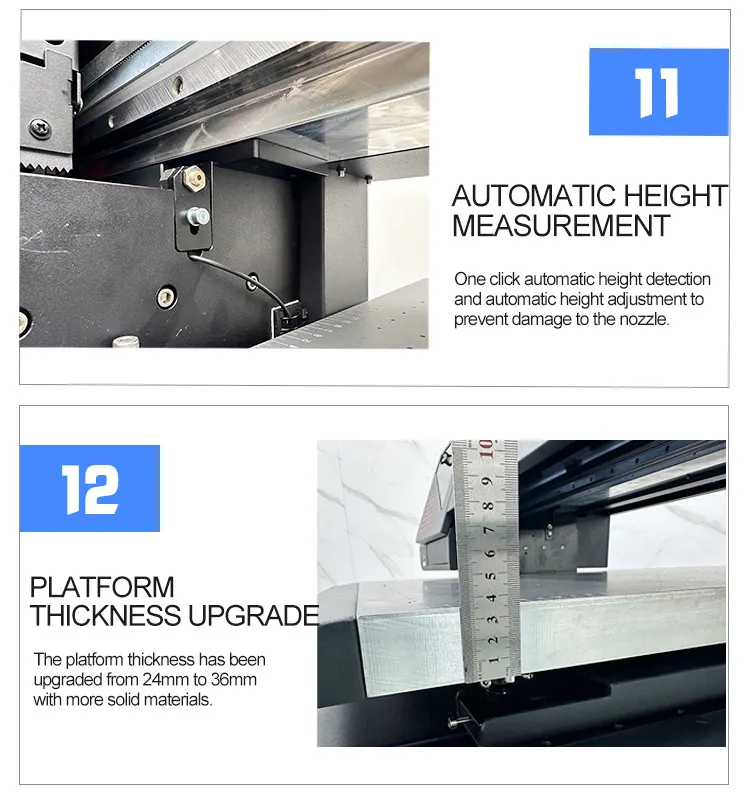

Feature 6
Usage Showcase
Technical Drawing
Frequently Asked Questions
What materials can this UV printer handle?
The GS6090 MAX can print on a wide range of surfaces including acrylic, glass, stainless steel, ceramic tiles, phone cases, leather, KT board, and even wine bottles.
Which print heads are compatible with this machine?
This model supports various high-performance print heads including Epson XP600, TX800, I3200, and I1600 options to suit different speed and resolution needs.
What is the maximum printing size and thickness?
The machine features a large 60*90cm printing area and supports a media thickness of up to 200mm, allowing for printing on bulky items.
How does the white ink system work?
It includes a white ink circulation and stirring system which prevents ink precipitation, combined with an automatic alarm for ink shortage to ensure continuous, high-quality output.
Is the machine easy to clean and maintain?
Yes, it features a one-key automatic cleaning function and an integrated auto-lifting ink station, making maintenance simple, efficient, and user-friendly.
What operating systems are supported?
The printer is compatible with Windows 7, Windows 10, and Windows 11 using professional RIP software like Maintop, PP, or RIIN.
