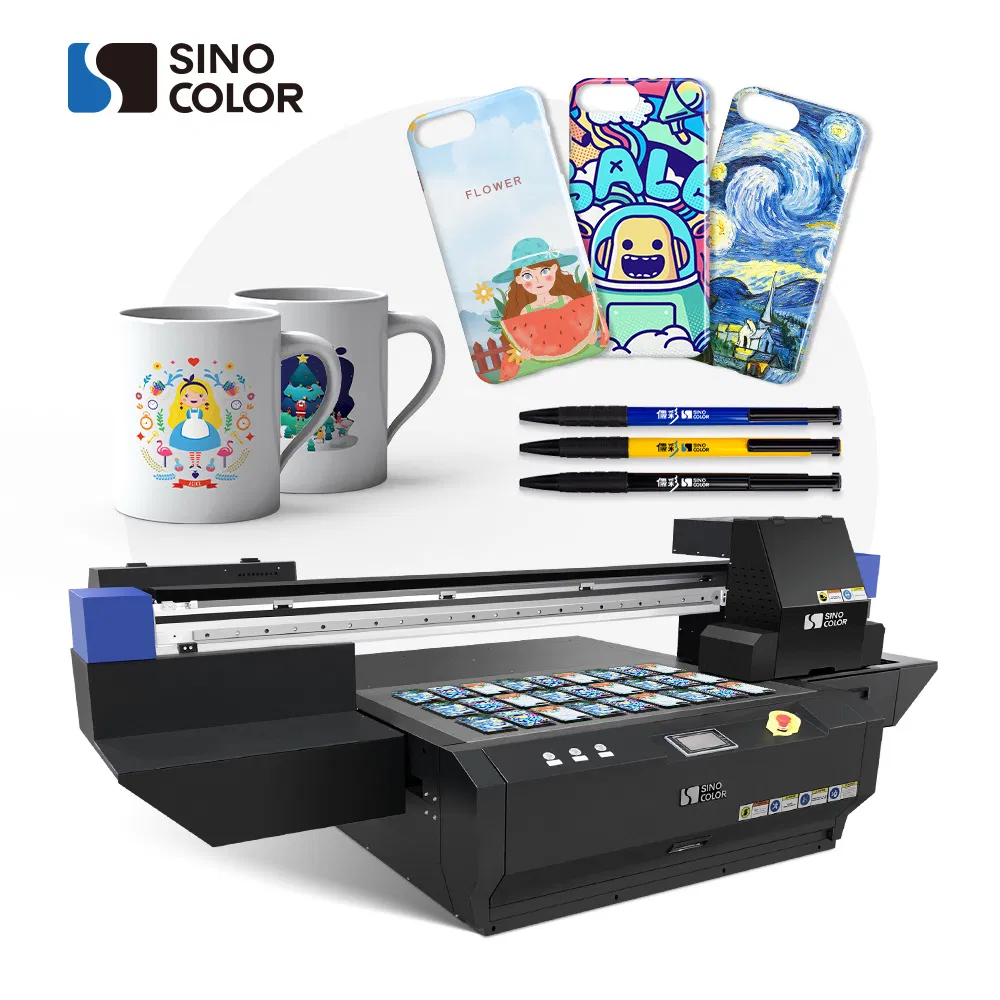

Best Selling A1 90X60cm Digital Ceramic Tile UV Varnish Printing Machine for Aluminum

Still deciding? Get samples of $ !
Order Sample

Product Description

!

Basic Info.

Plate
Lithography Printing
Structure
Flat-Bed Cylinder Press
Color & Page
Multi-Colour Printing Press
Usage
Paper, Label, Card, Cloths Printer
Automatic Grade
Automatic
Printing Interface
USB 2.0
Printing Speed
18sqm/Hour
System Supported
Windowsxp64
Print Head
Epson Dx5/Dx8/L1440

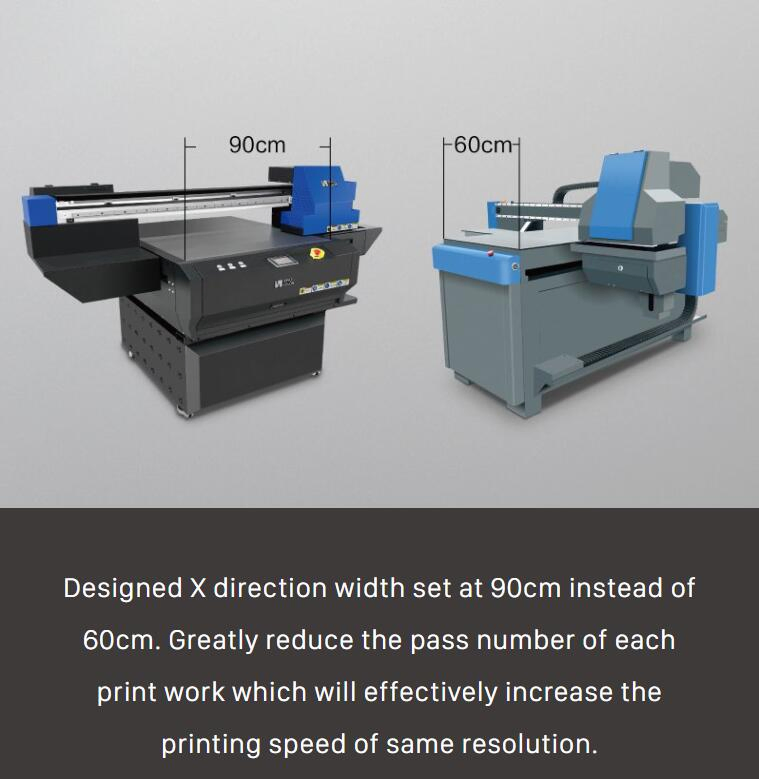

Media Size
90 X 60 Cm
Ink Dry System
UV LED Light System
Resolution
1440, 2160, 2880 Dpi
📦

Packaging & Delivery

Package Size
224.00cm * 145.00cm * 107.00cm
Gross Weight
480.000kg
Lead Time
15 days (1 Set); Negotiable (> 1 Set)

Product Description

Digital Ceramic Tile UV Printing Machine

Digital Ceramic Tile UV Varnish Printing Machine for Aluminum

With the capability to print onto rigid substrates, it offers the ability to produce a diverse range of prints for both indoor and outdoor use. FB-0906 & FB-1313 & FB-2513 UV flatbed printers are ideal for applications such as backlit displays and signage, signs and posters, interior décor, glass and metal decorative panels, promotion products, gift products, and more.

Product Specifications Overview

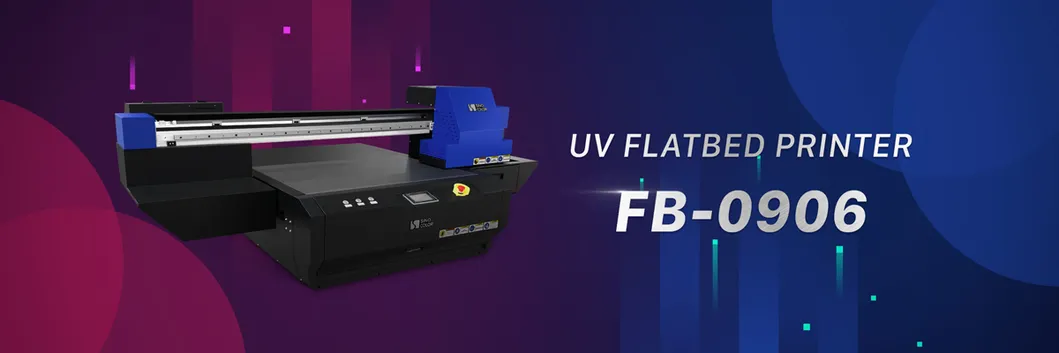

Model No. FB-0906 FB-1313 FB-2513
Printhead Piezoelectric Printhead DX5/8/L1440/i3200-U
Printhead Height 12 cm MAX
Media Size 900 x 600 (mm) 1300 x 1300 (mm) 2500 x 1300 (mm)
Speed Normal 11 sqm/h 11 sqm/h 15 sqm/h
Standard 9 sqm/h 9 sqm/h 11 sqm/h
Photo 7 sqm/h 7 sqm/h 8 sqm/h
Ink Type UV Ink (CMYK / LcLm / White / Varnish)
Dry System UV_LED light system
Resolution 1440, 2160, 2880 dpi
Final Product Quality
?

Frequently Asked Questions

What materials can this UV printer print on?
The machine is highly versatile and can print on Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC, PP, PE, and PTFE.
What is the maximum printing height?
The printer supports a maximum media height of up to 12cm, allowing for printing on various thick substrates.
What kind of ink does the machine use?
It uses professional UV Ink with a color configuration of CMYK, Lc, Lm, plus White or Varnish options for special effects.
Does the machine support high-resolution printing?
Yes, it supports multiple resolution settings including 1440, 2160, and 2880 dpi for photographic quality results.
What is the ink drying system?
The machine is equipped with an advanced UV LED light system, which ensures the ink dries instantly during the printing process.
What RIP software is compatible with this printer?
The standard software provided is Maintop, but it also optionally supports PhotoPrint and Onyx.
