Magly Printer
1 / 5
| Model NO. | DS-1070U | Plate | Flatbed Printer |
| Structure | Flat-Bed Cylinder Press | Color & Page | Multi-Colour Printing Press |
| Usage | Paper Printer, Label Printer, Card Printer | Automatic Grade | Automatic |
| Printing Interface | USB2.0 | Printing Speed | 12sqm/Hour |
| System Supported | Windowsxp64 | Printing Type | LED UV Digital Flatbed Printer |
| Ink | UV Curing Ink | Color | Cmyk LC Lm White and Varnish |
| Printing Size | 100*70cm(39.37*27.55inch) | Table Type | Vacuum Down Platform |

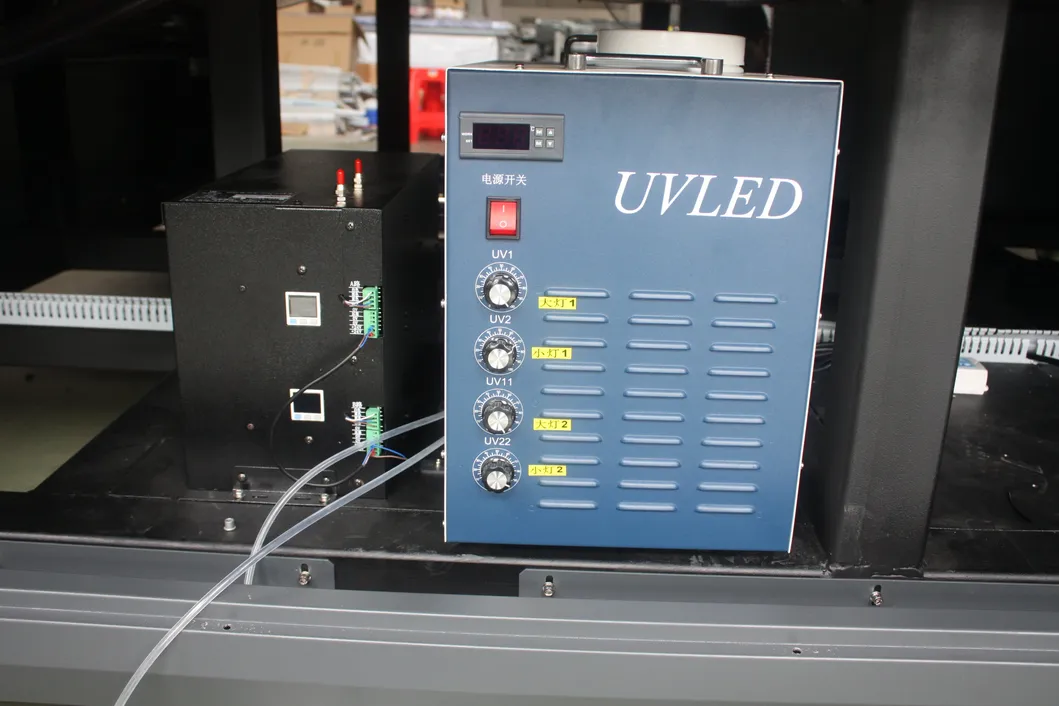

| Lamp | LED UV Lamps | Cooling Type | Water Circulation Cooling System |
| Printhead | I1600, I3200, Gen5I, Tx800, XP600 | Application | Promotion Items Printing |
| RIP Software | Maintop / Photoprint | HS Code | 8443322100 |

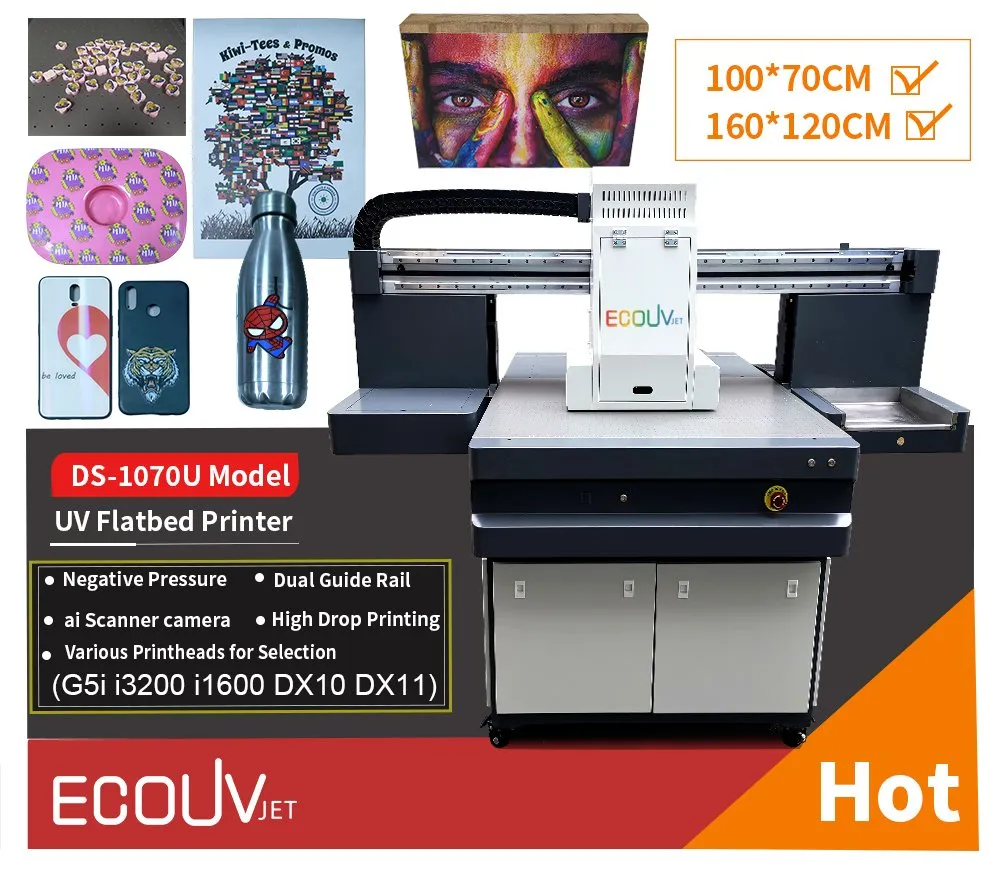

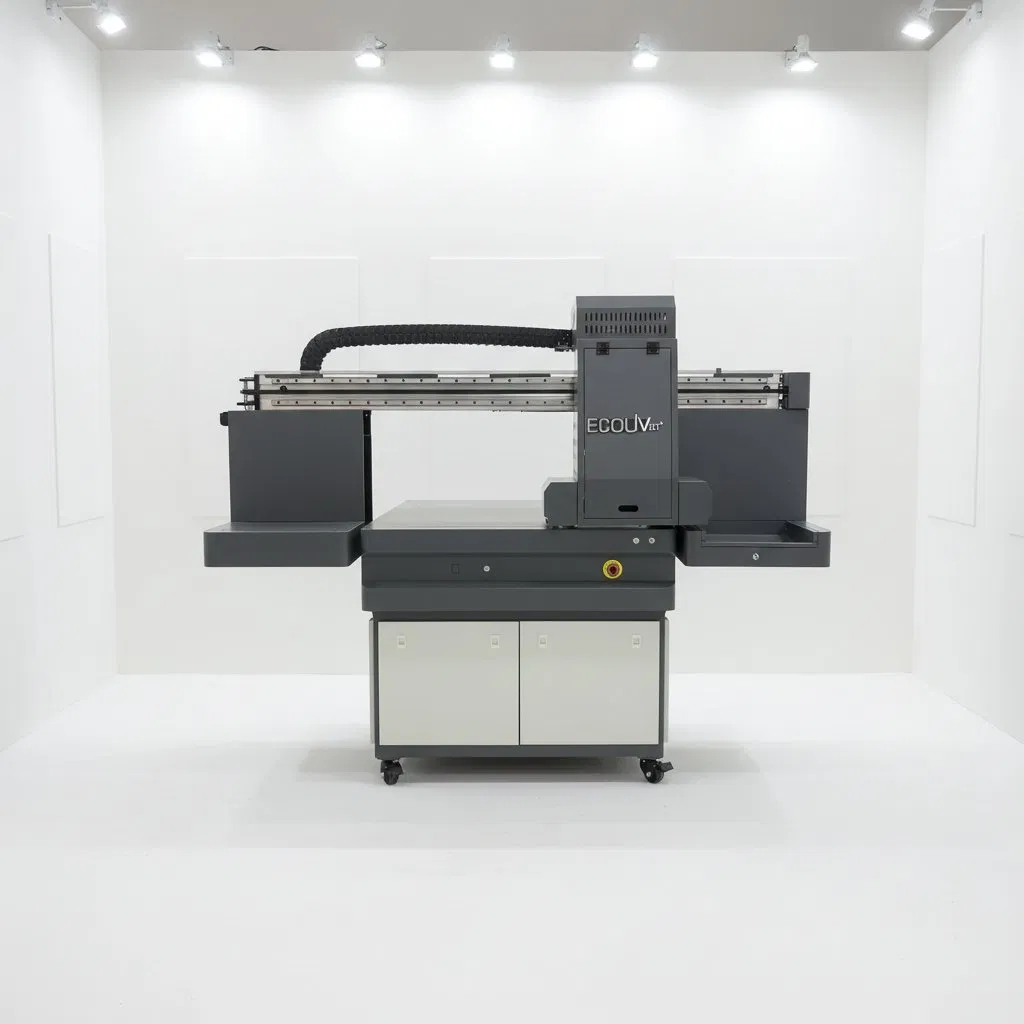

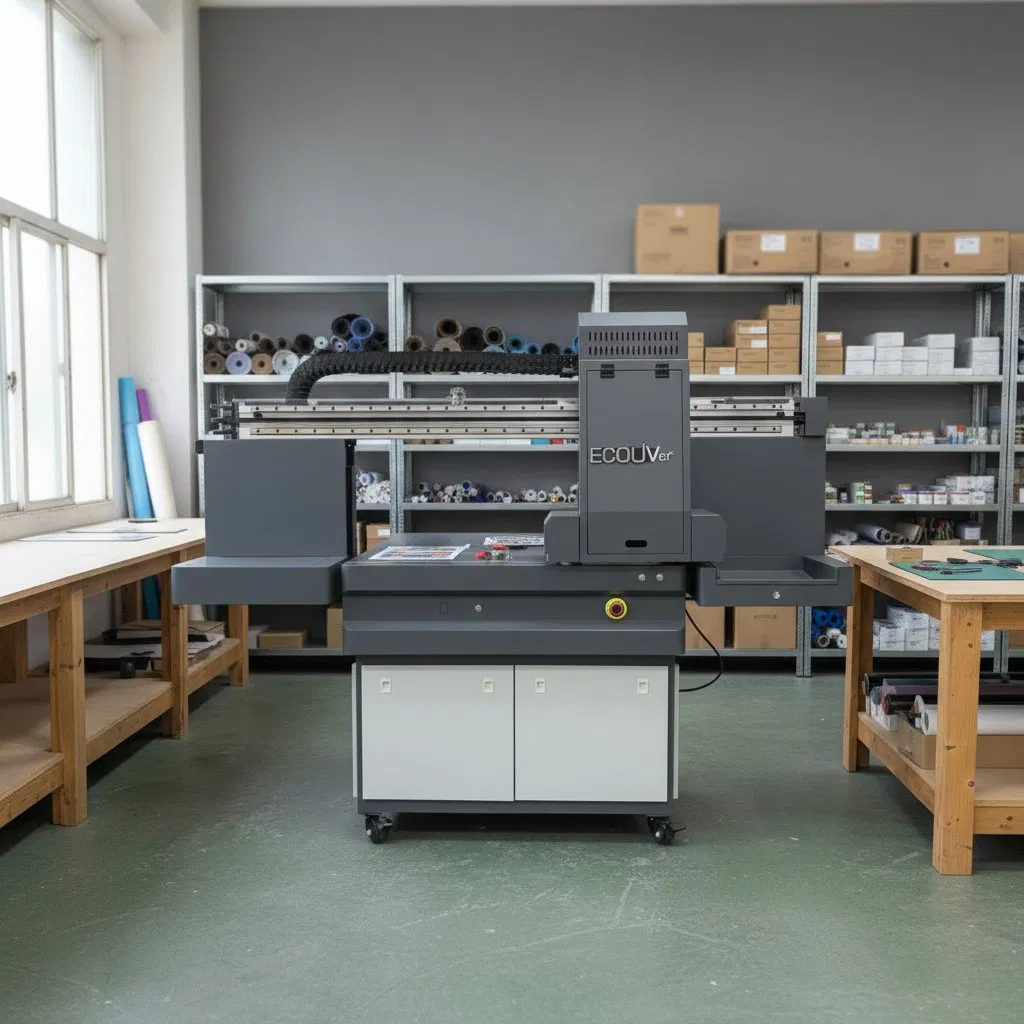

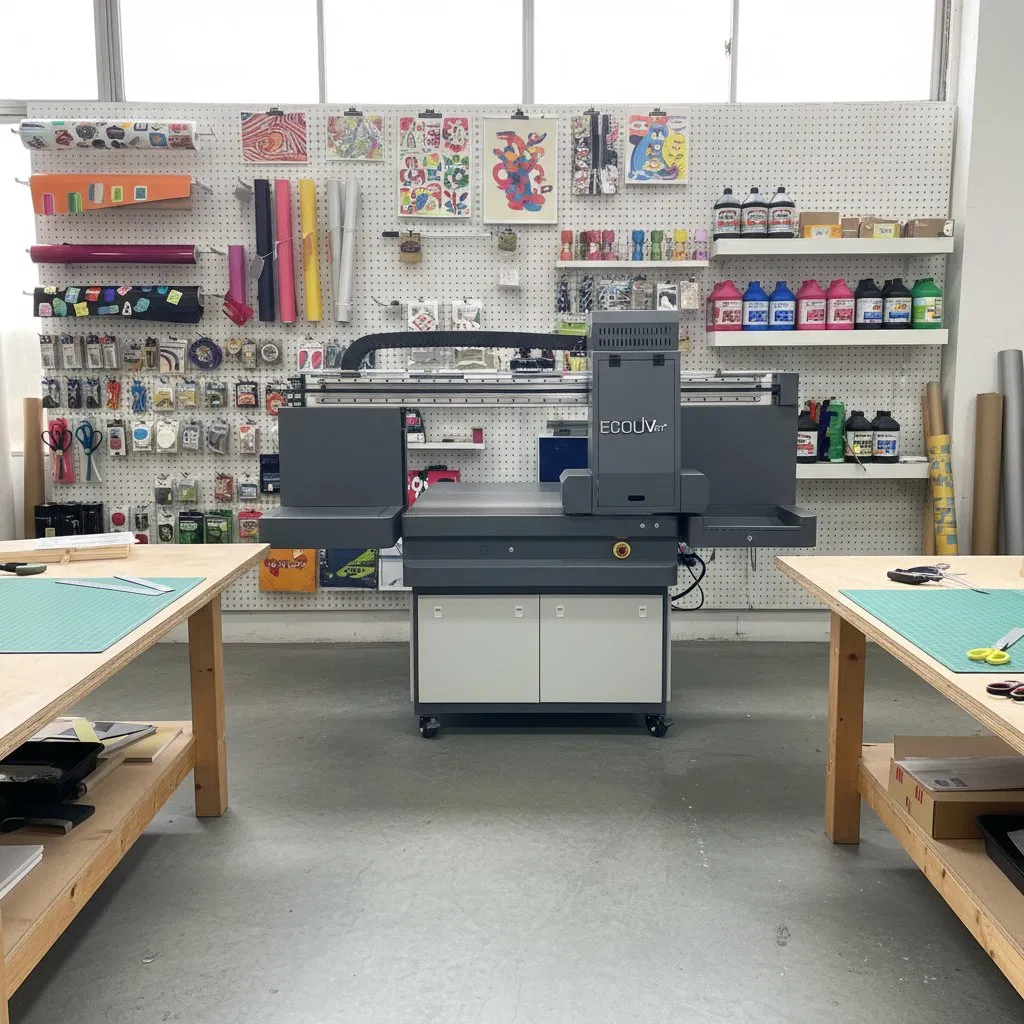

A1 70cmx100cm automatic and multicolored UV flatbed printer designed for professional printing on pens, mobile phone shells, disks, golf balls, and various promotional items. This digital UV Flatbed Printer is engineered for industrial bulk production with high printing speed and the capability to print on almost any material directly.
Industrial Performance: With UV light irradiating during the printing procedure, images on the object surface dry instantly and offer superior scratch resistance. It is the ideal choice for starting or expanding a medium-scale printing business.
The DS-1070U can print white ink continuously without blockages and works seamlessly on both rigid and flexible materials including wood, PVC, acrylics, leather, glass, crystal, ceramics, rubber, aluminum, and copper.
| Parameter | Specifications |
|---|---|
| Model | DS-1070U |

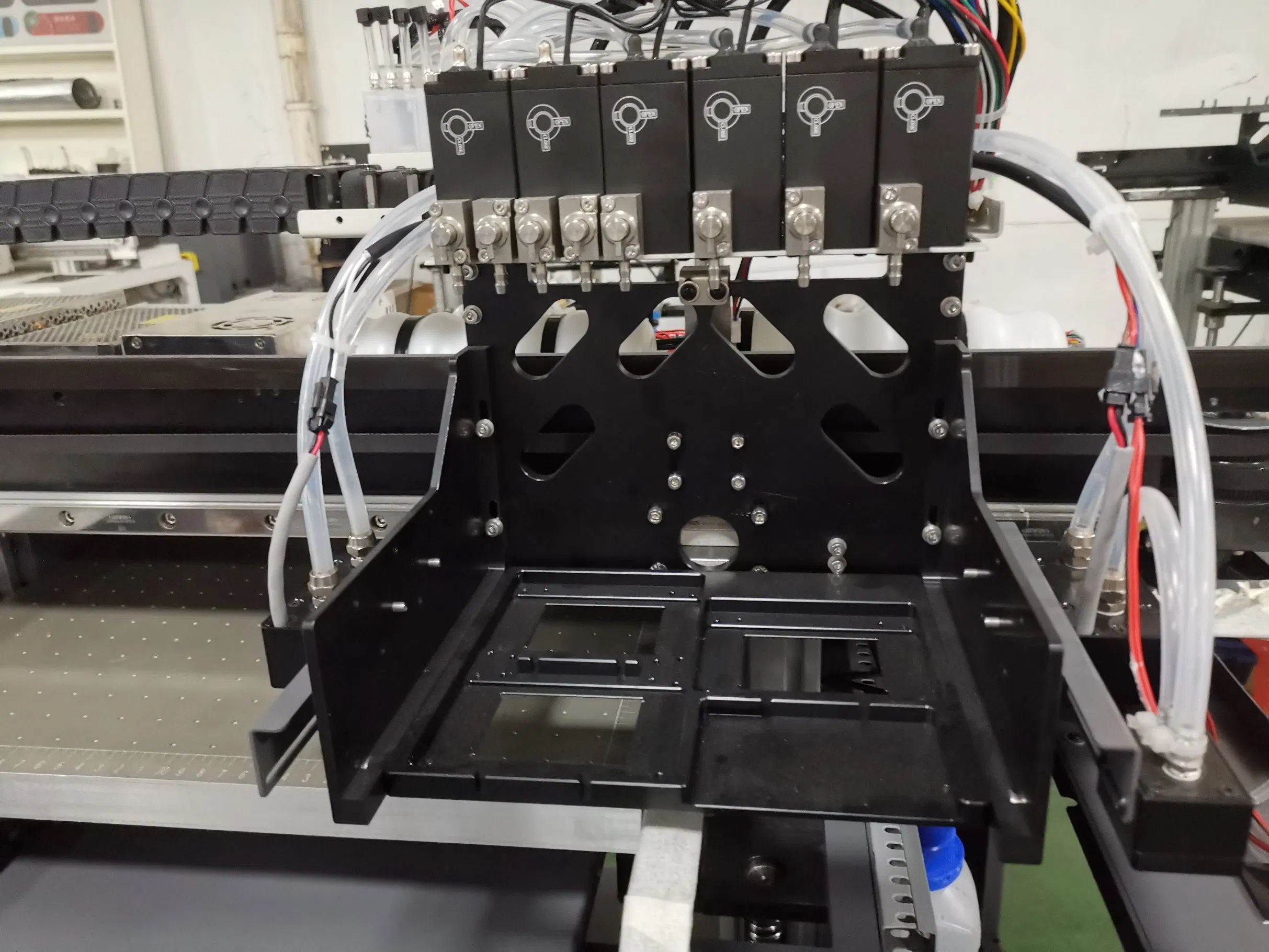

| Head Type | 3 Pieces Printheads (G5i / I1600 / I3200 / XP600 / TX800) |

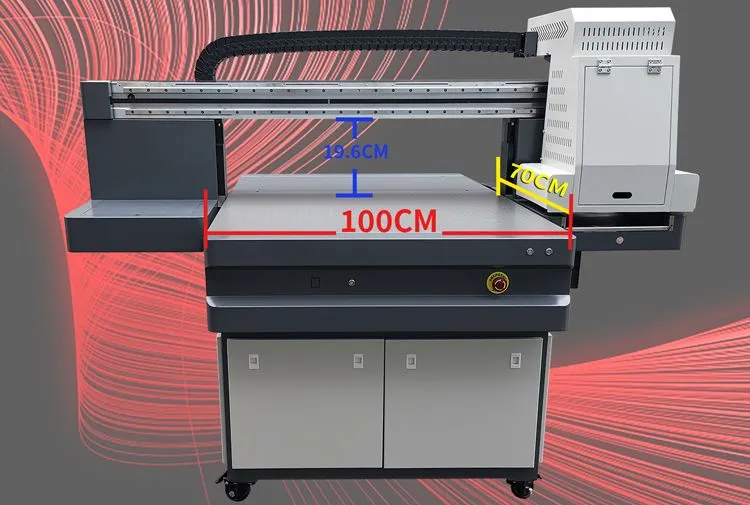

| Printing Size | 1000mm x 700mm |

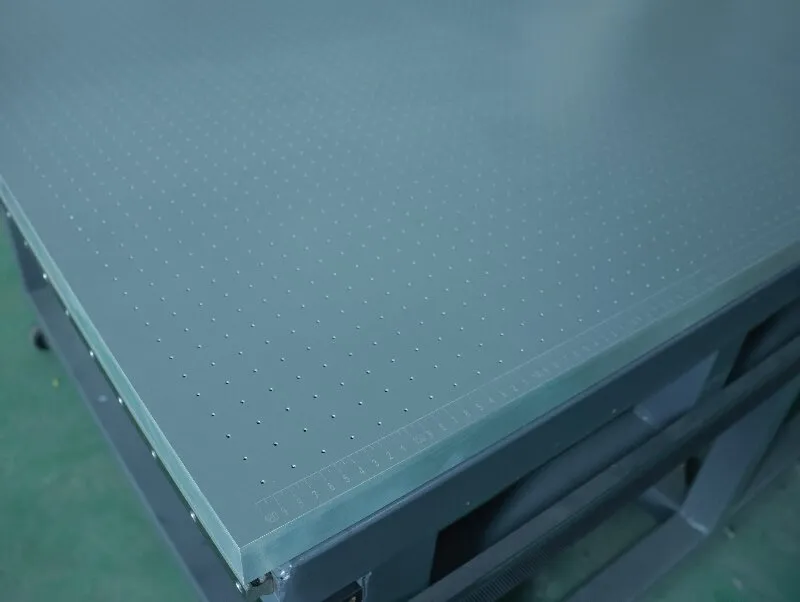

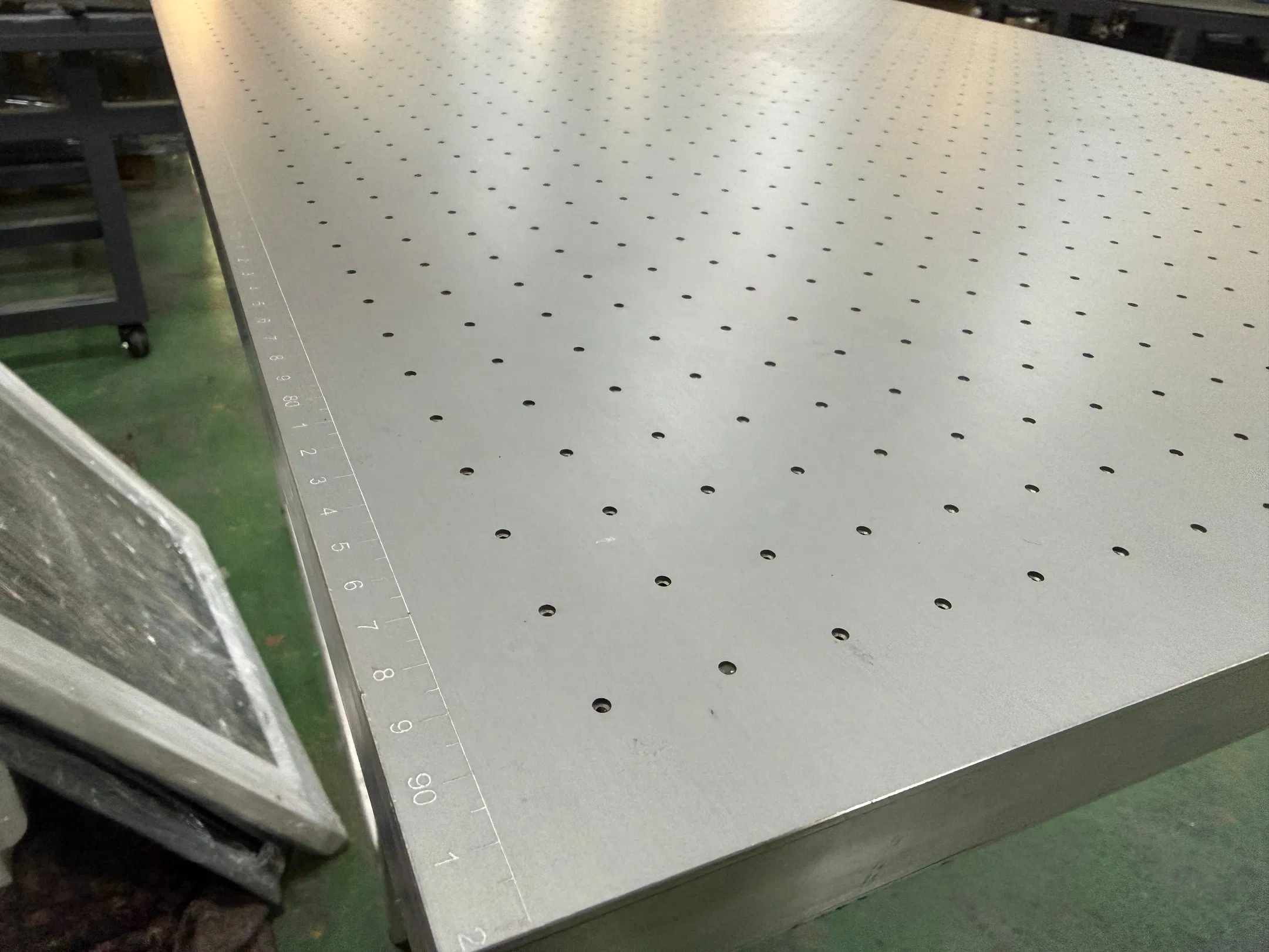

| Printing Table | Sinkable Vacuum Platform |
| Resolution/Speed | 4M2/H (4 pass), 3.5M2/H (6 pass), 2.5M2/H (8 pass) |
| Media Thickness | 0-19cm |

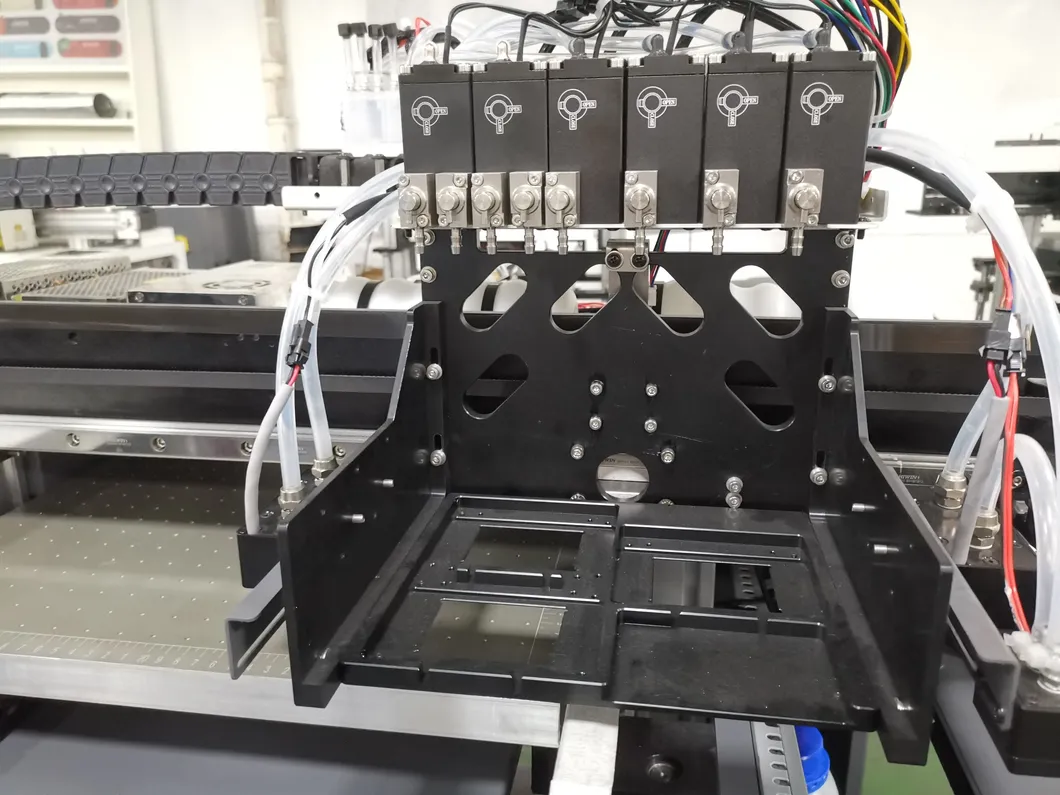

| Ink System | Closed cycle ink system, White ink cycle system |
| Dimension Size | L1665mm * W1560mm * H720mm |
| Net Weight | 500KG |

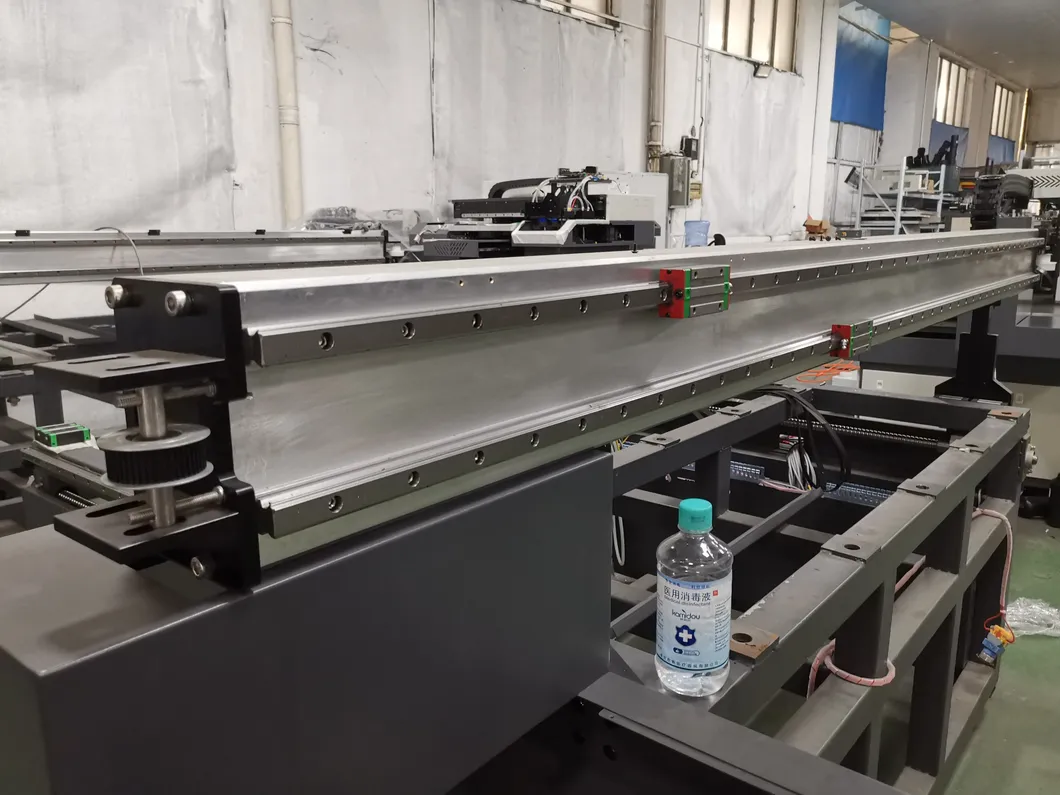

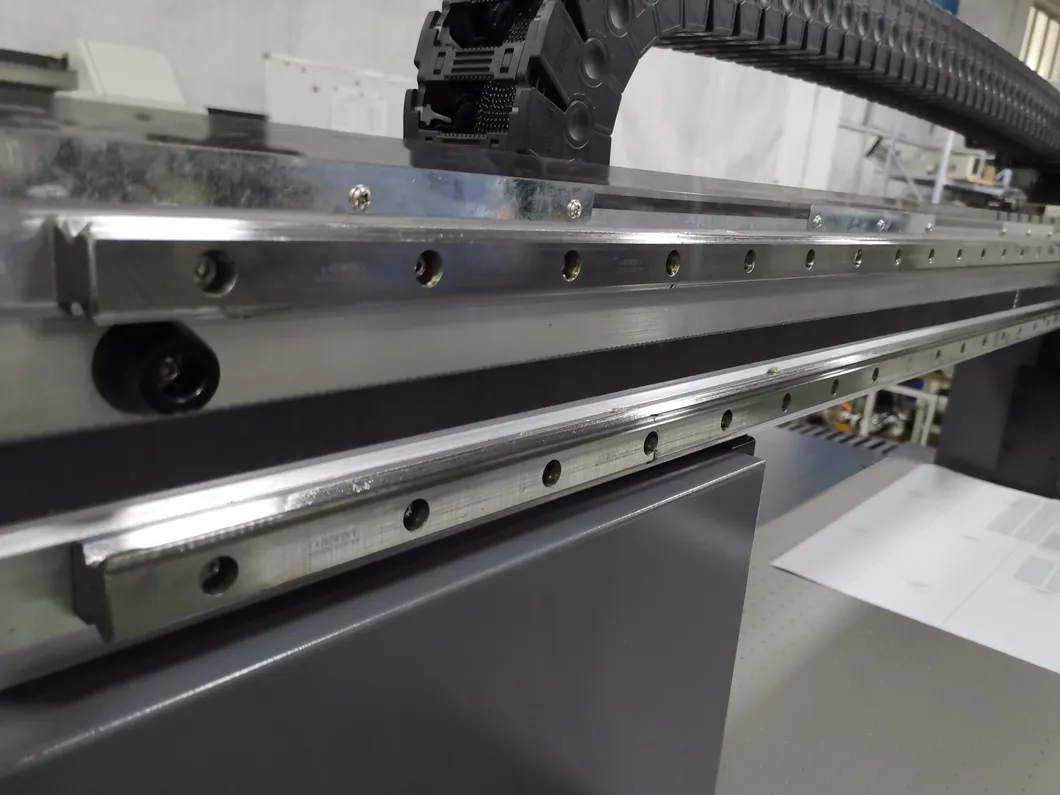

HIWIN Mute Guide Rail: Supports high-resolution printing and long-term durability.

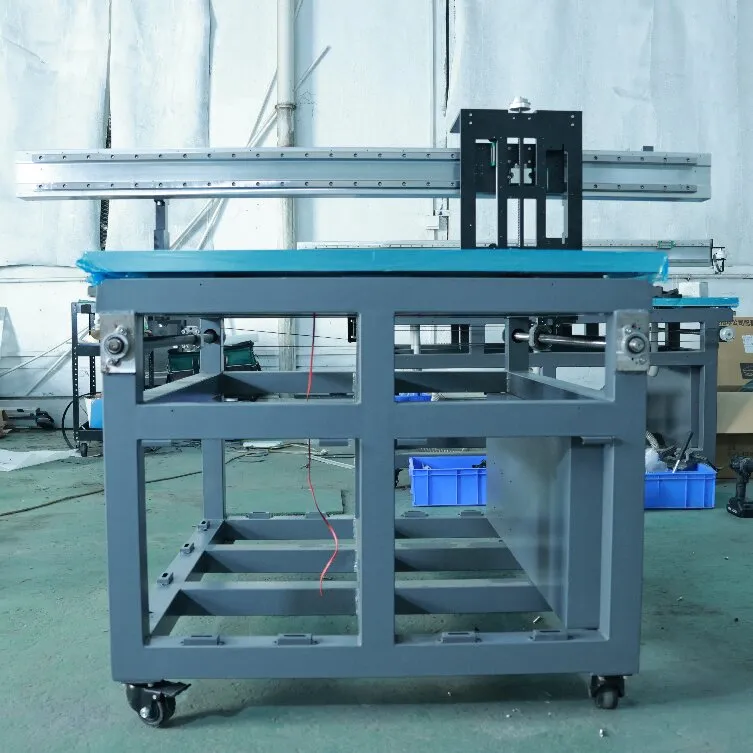

Thicken Steel Structure: Ensures a stable printing body and divisional suction design.
