Basic Information
| Model |
GS6090 MAX |
Print Size |
60*90cm |
| Print Head |
XP600 / TX800 / I3200 / I1600 |
Printing Speed |
8-20 Sqm/H |
| Structure |
Platen Press / Flat-Bed |
Printing Thickness |
0-200mm |
| Ink Type |
UV Ink (CMYK + W + V) |
Interface |
Gigabit Ethernet Port |
| System Supported |
Win7 / Win10 / Win11 |
Power |
250W |
| Gross Weight |
255kg |
Certification |
CE / RoHS |

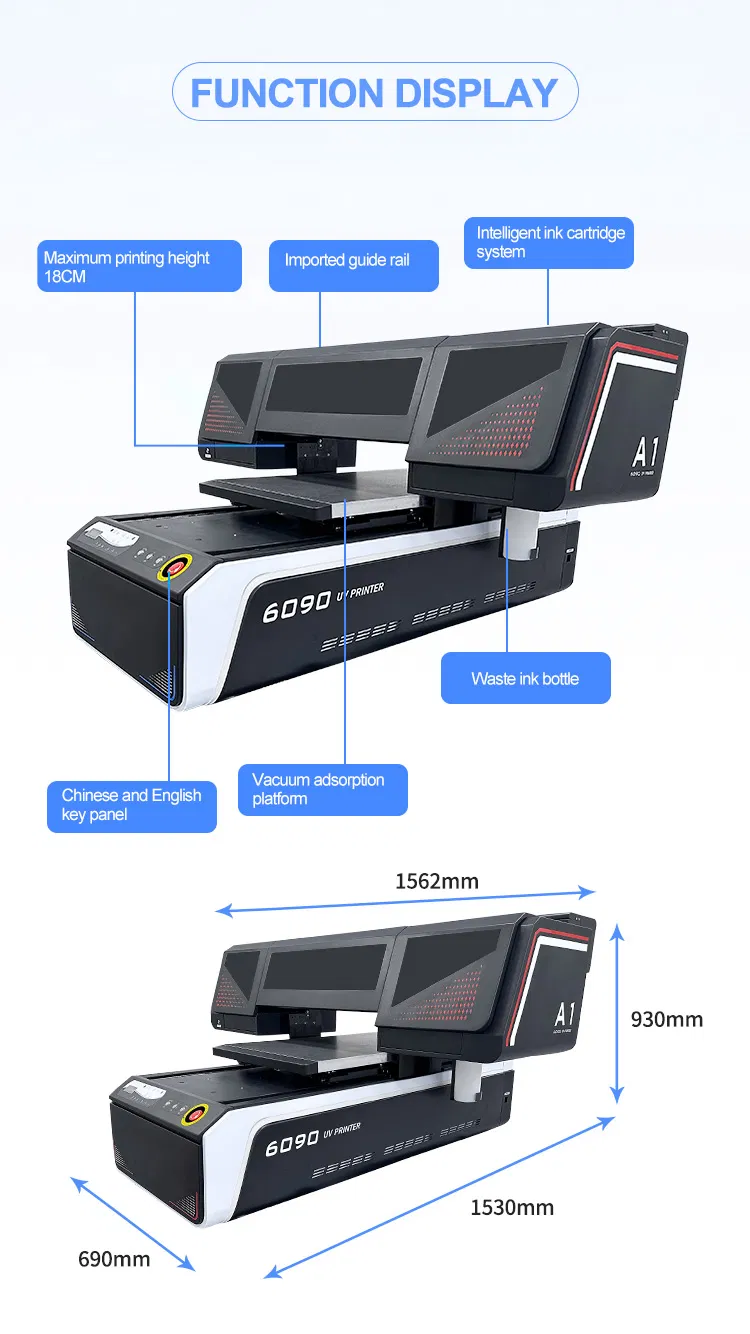

Product Overview
Key Machine Configurations

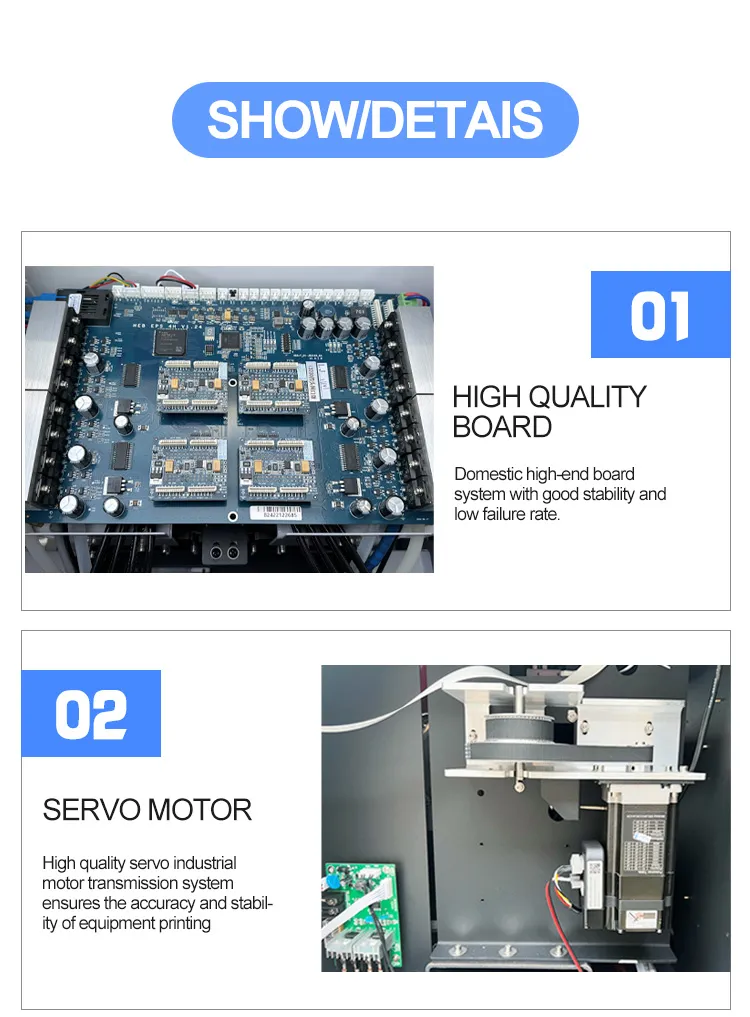

✅ HOSON Motherboard
✅ Original Print Heads
✅ Leadshine Servo Motor

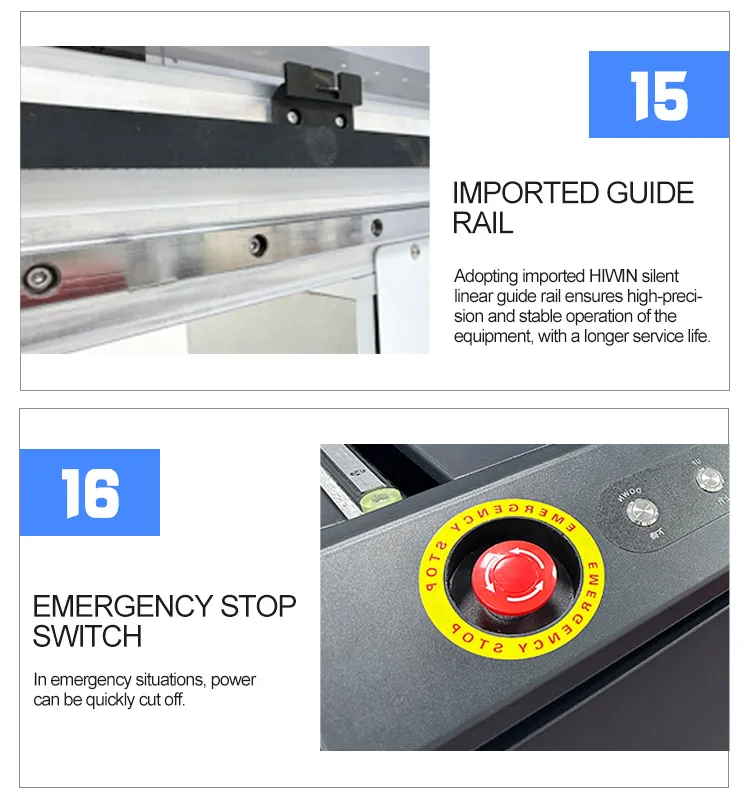

✅ HIWIN Imported Guide Rail

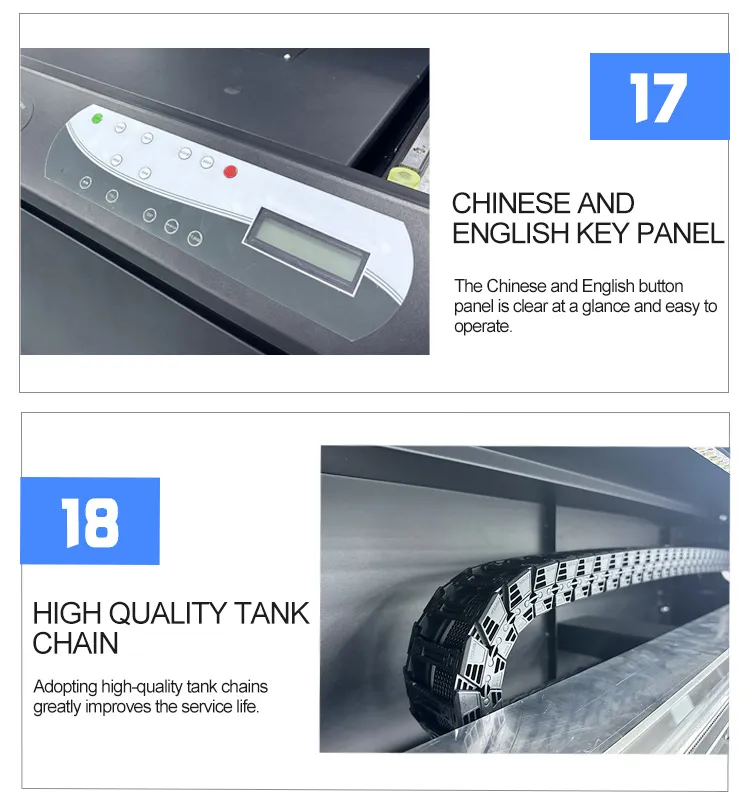

✅ IGUS Drag Chain
✅ CNC Integrated Aluminum Beam

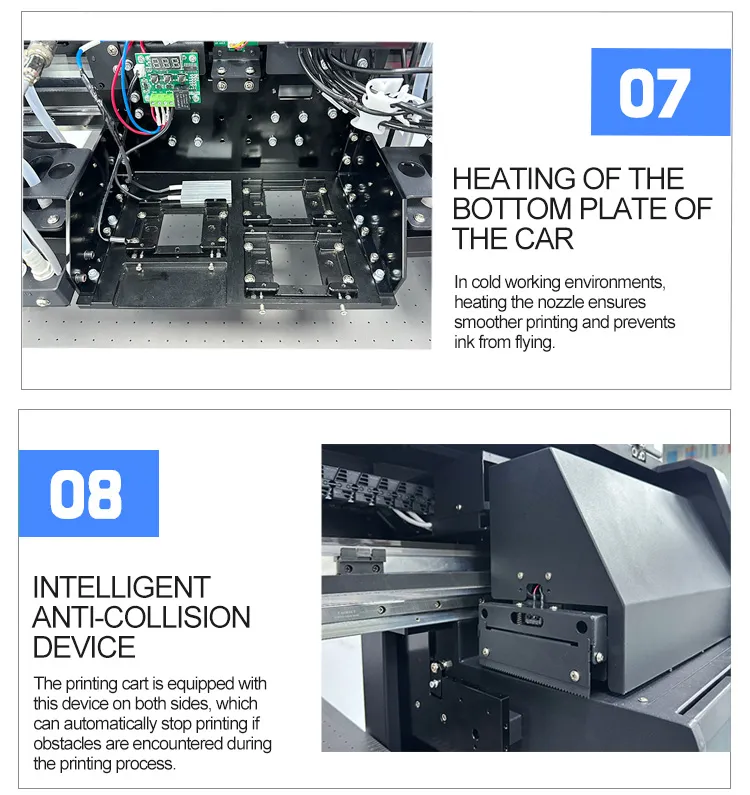

✅ Anti-collision Device

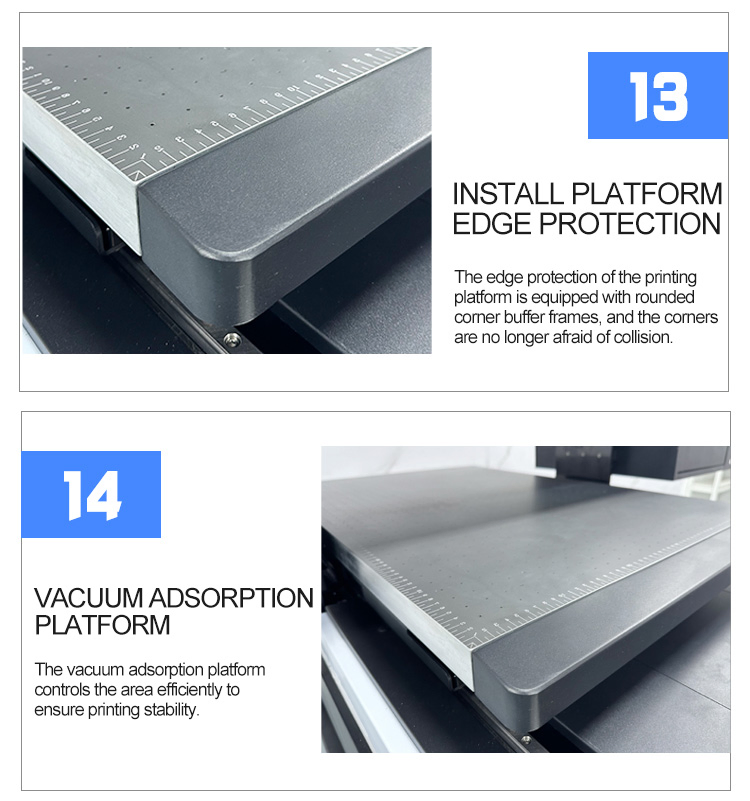

✅ Platform Suction System

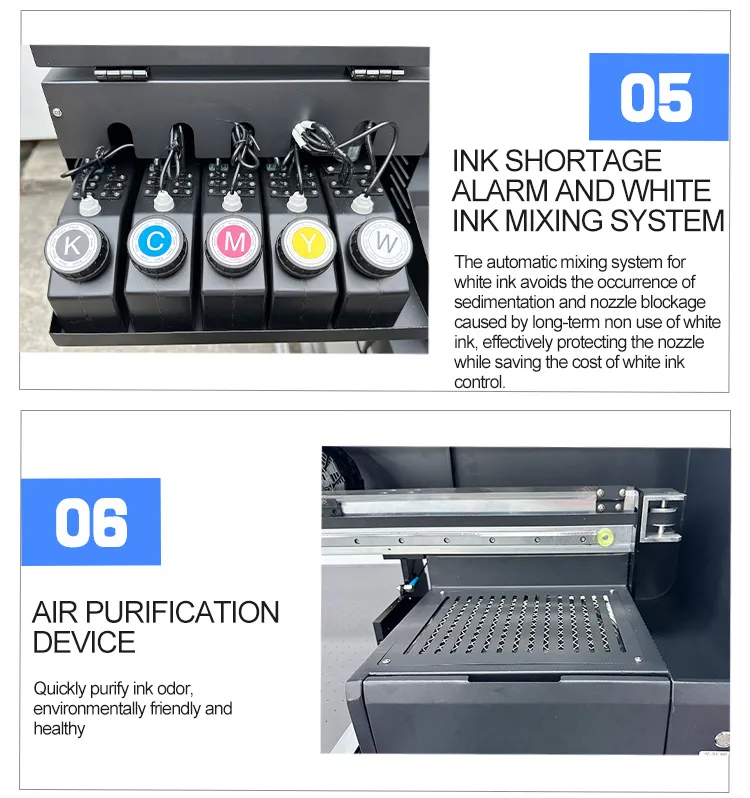

✅ Auto Ink Shortage Alarm
✅ Air Purification Device

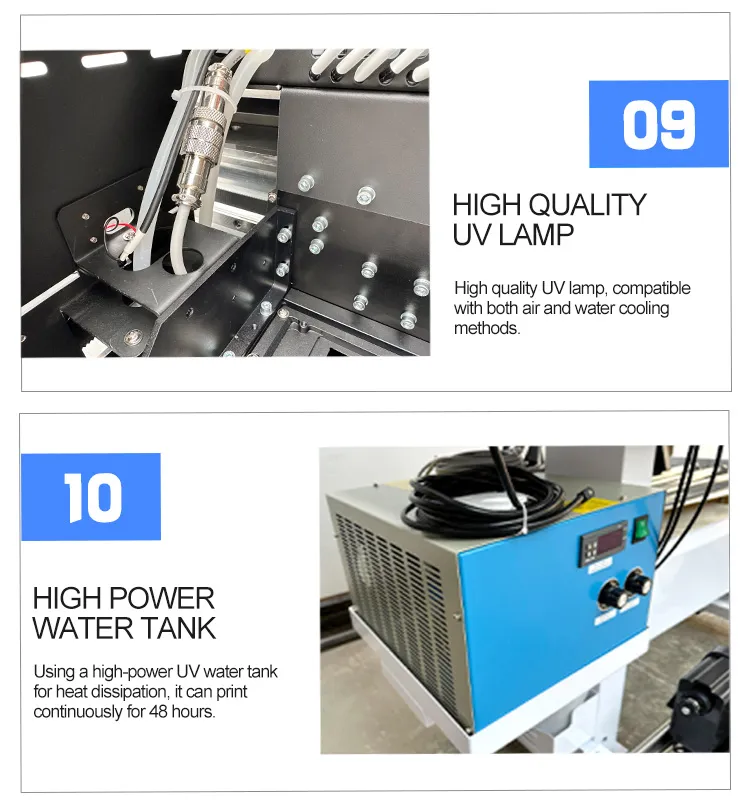

✅ Water Cooling UV Lamp

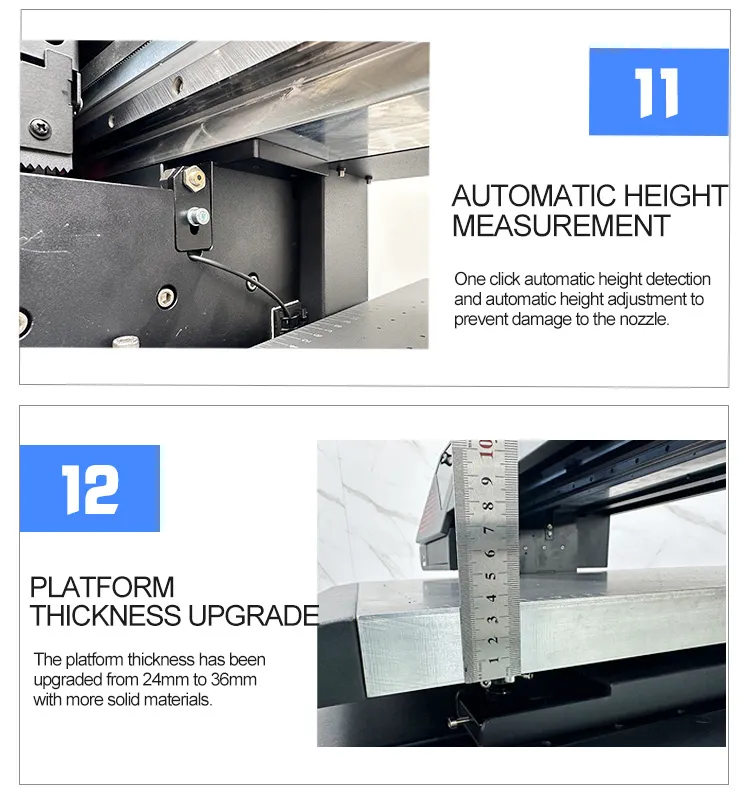

✅ Auto Height Measurement
Application Media
FAQ
Q1: What materials can the GS6090 MAX print on?

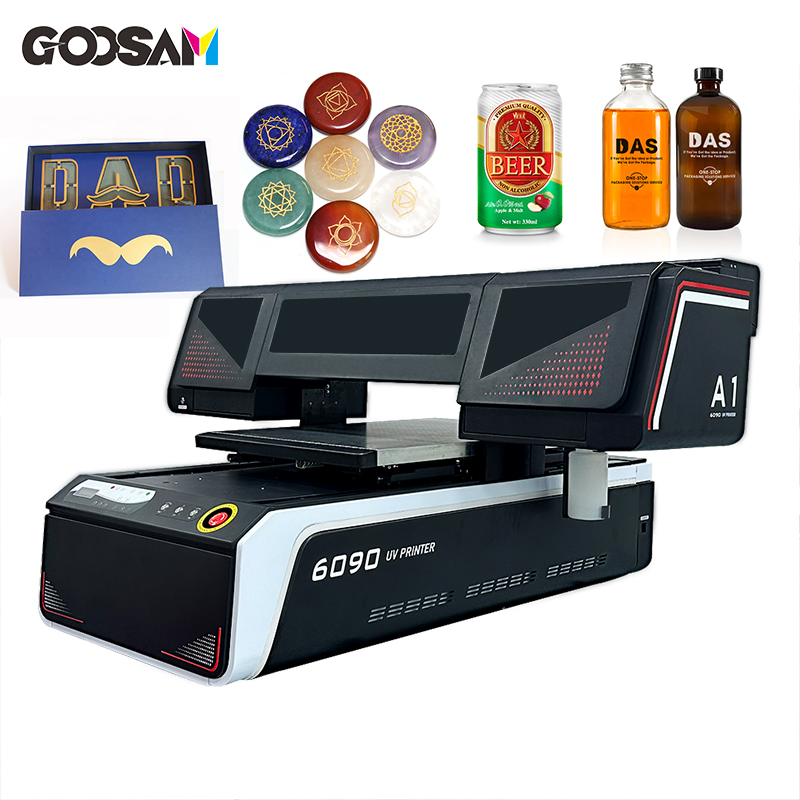

The machine is highly versatile and can print on phone cases, acrylic, signage, glass, stainless steel, ceramic tiles, KT board, leather, handicrafts, and even wine bottles.
Q2: What is the maximum printing thickness supported?
The printer supports a media thickness range from 0mm up to 200mm, allowing for printing on both flat sheets and thicker objects.
Q3: Which print heads are available for this model?
You can choose from several industrial print heads including Epson XP600, TX800, I3200, and I1600 depending on your speed and quality requirements.
Q4: Does the machine include automated maintenance features?

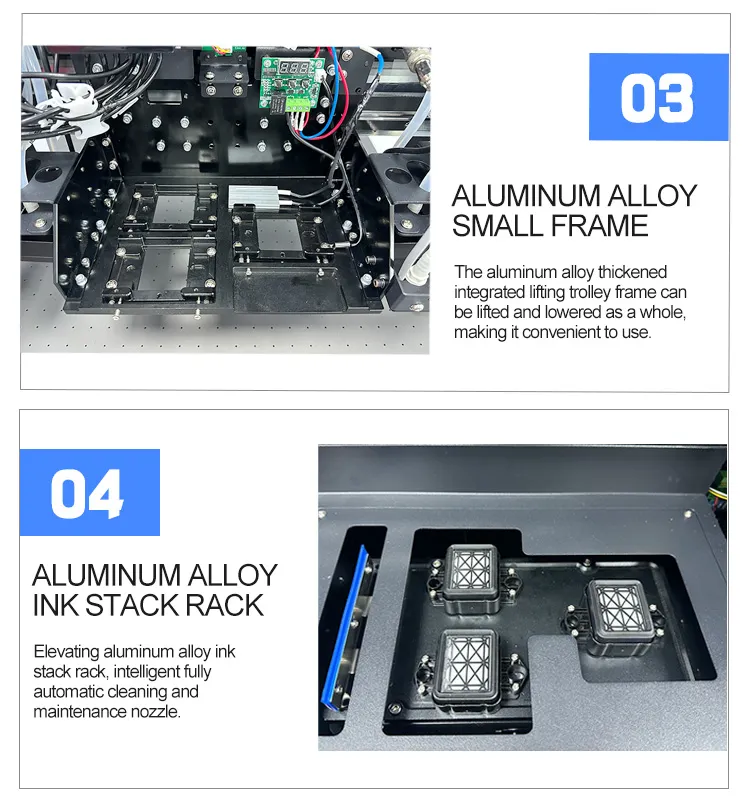

Yes, it features one-key automatic cleaning, an integrated auto-lifting ink station, white ink circulation, and an automatic ink shortage alarm system.
Q5: What RIP software is compatible with this UV printer?
The printer is compatible with popular RIP software such as Maintop, PhotoPrint (PP), and RIIN, supporting Windows 7, 10, and 11 operating systems.
Q6: How stable is the machine structure for high-precision printing?
The printer utilizes a precision CNC machined integrated aluminum alloy beam and HIWIN imported guide rails to ensure the structure remains stable and does not deform during high-speed operation.
