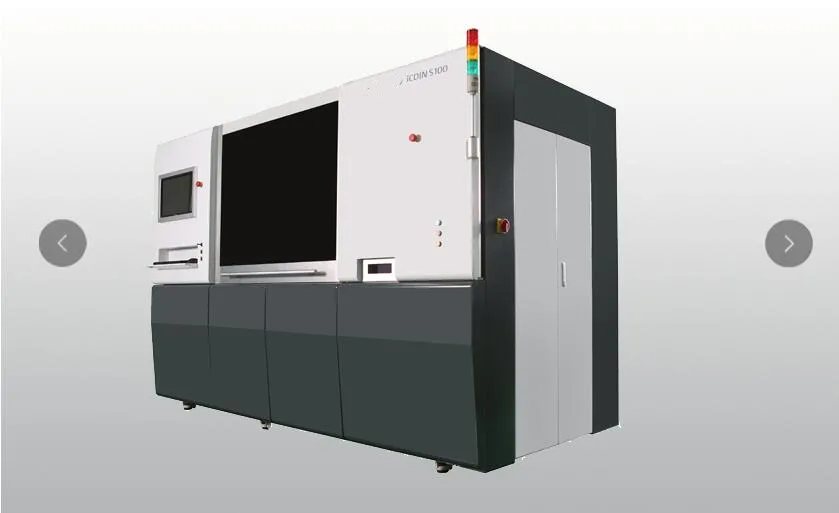

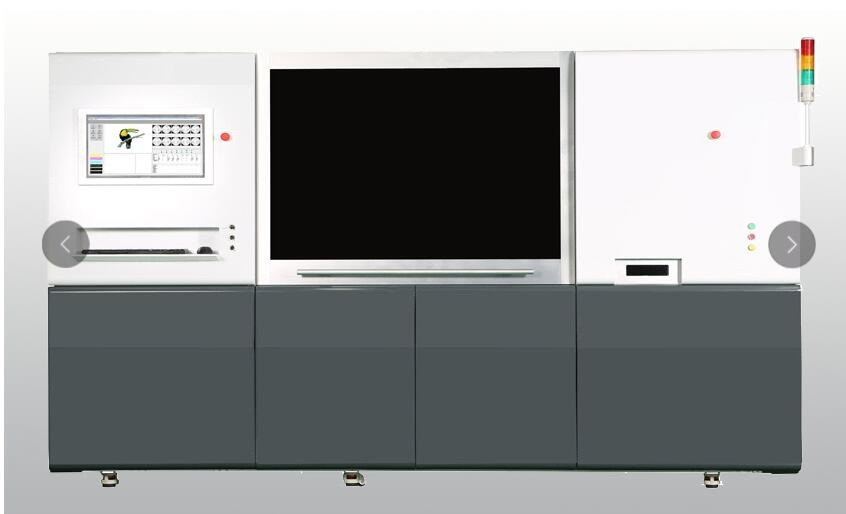

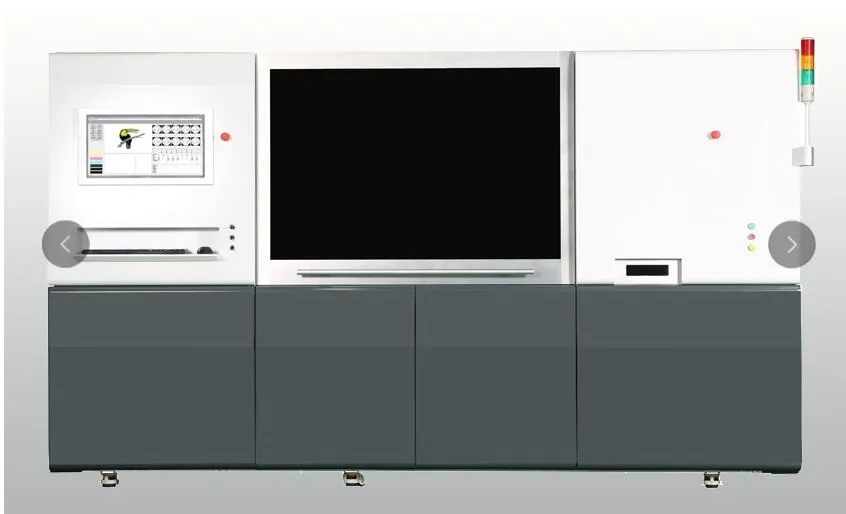

Digital printing machine for Metals, resin, glass, ceramic and other hard surfaces VKD100
iCON VKD100 is the singly innovative inkjet printing system specially designed for printing on substrate of metals, resin, glass, ceramic and other hard surfaces.
iCON 100 has been originally designed to achieve operator friendliness by simplifying control interface. Advanced VISION AI© image processing and RIGID PRINT© printing control software further streamlines otherwise challenging printing operations. One touch is all you need to produce rich and vivid inkjet printing products of colors and textures with highest quality and marketable value.
Flat Mode UV Printing
Satisfies flexible printing of small objects, especially suitable for allotype signs of various materials.
Automatic Bottom Coat
The bottom coat is automatically coated as needed, improving production efficiency compared to manual spraying.
Machine Vision Positioning
Visual technology calculates workpiece position and angle at high speed and in real time.
Variable Data Printing
Adjusts printed images in real time based on location data.
LED Curing Technology
High efficiency LED with long service life and environmental protection, requiring no drying after printing.
Line Printing Method
Improves production efficiency and realizes automation of flat printing.
Applicable for printing on the surface of metal, resin, glass, ceramic and leather.
Print heads: piezoelectric nozzle
Print size: maximum 100mm × 300mm
Print resolution: maximum 1440dpi
Gray level: maximum 8
Print model: plane printing directly / UV-LED curing
Ink: standard 7 color (bottom, white, cyan, magenta, yellow, black, cover), and can choose 2 spot color.
Alignment precision: less than ±1°
Daily output: 2600 (size 30mm, resolution 1440dpi)
Image processing software: COASO VISION AI
Printing control software: RIGID COASO PRINT
