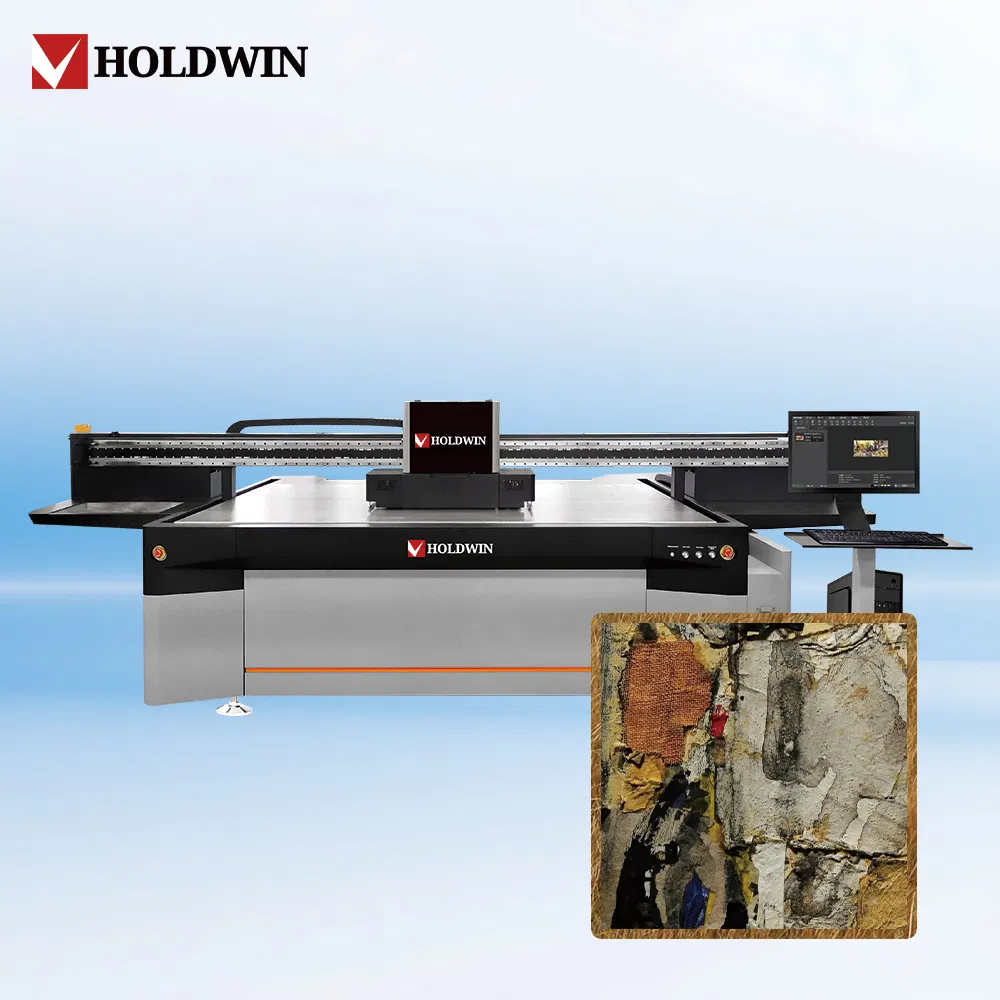

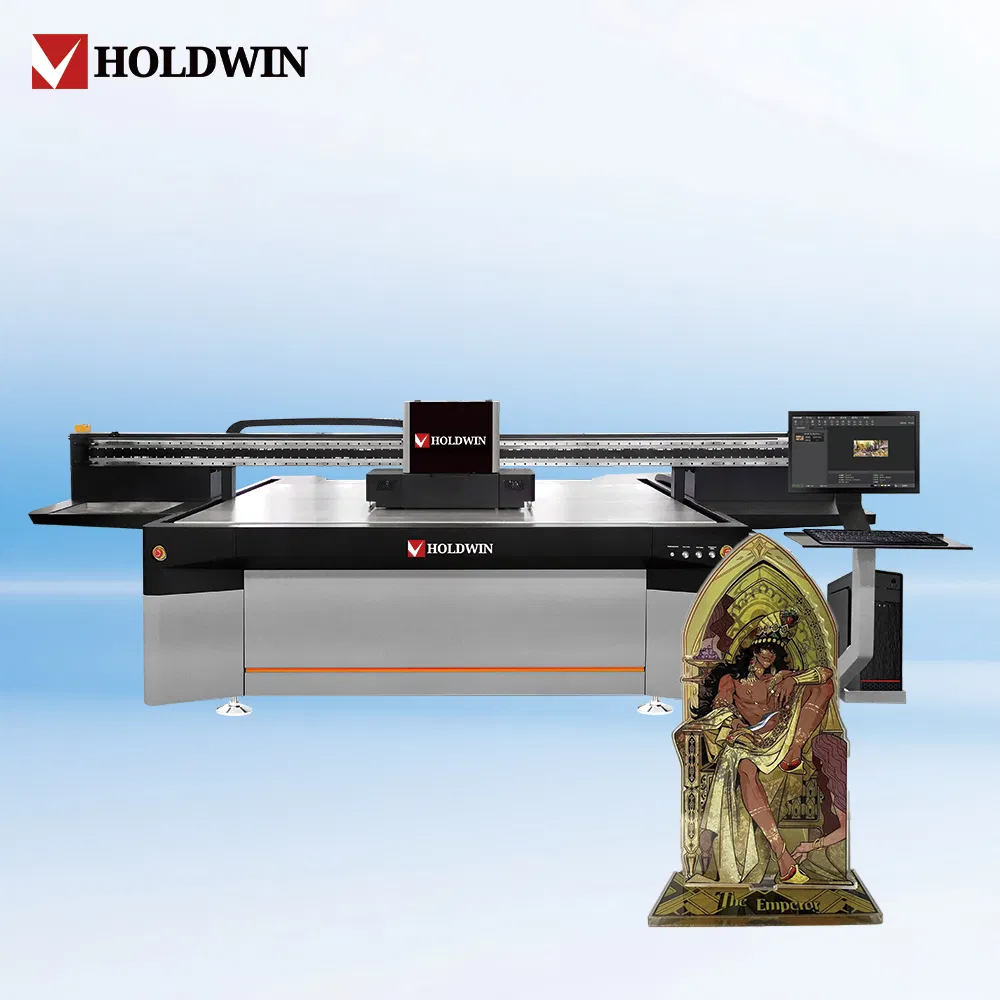

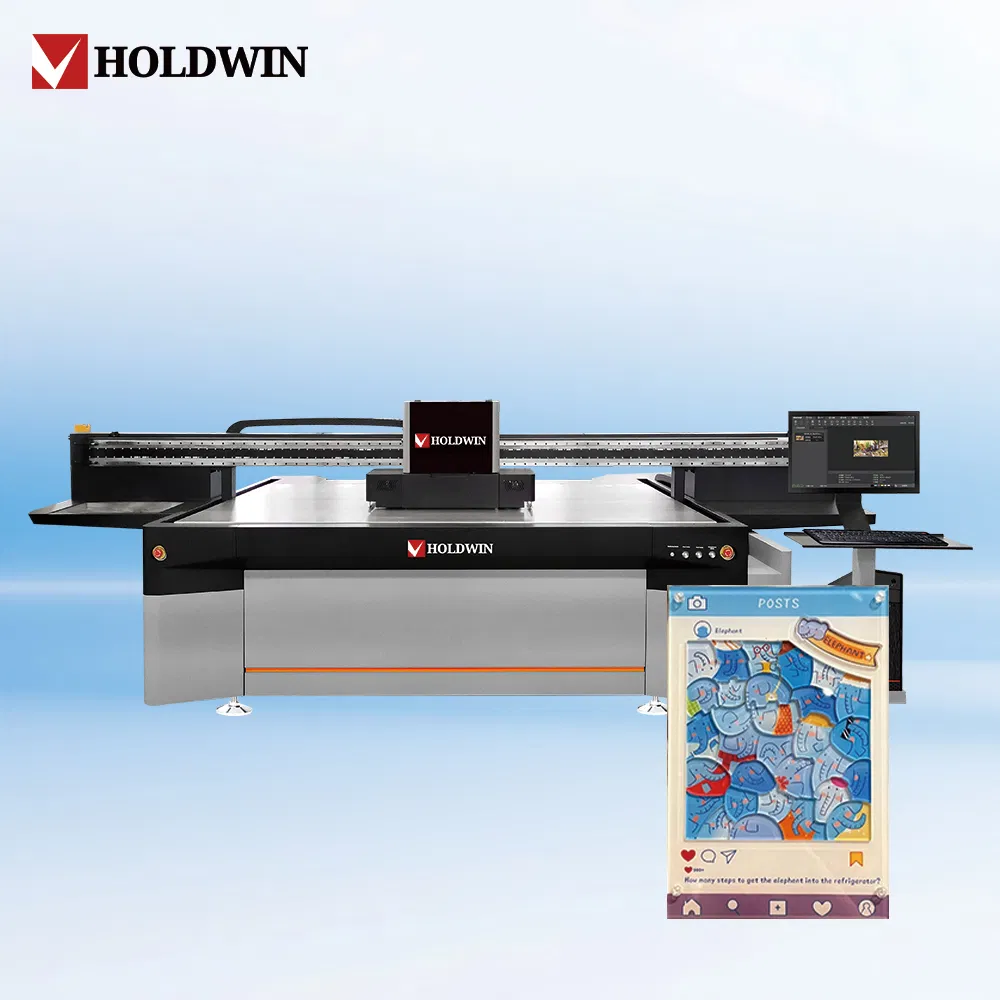

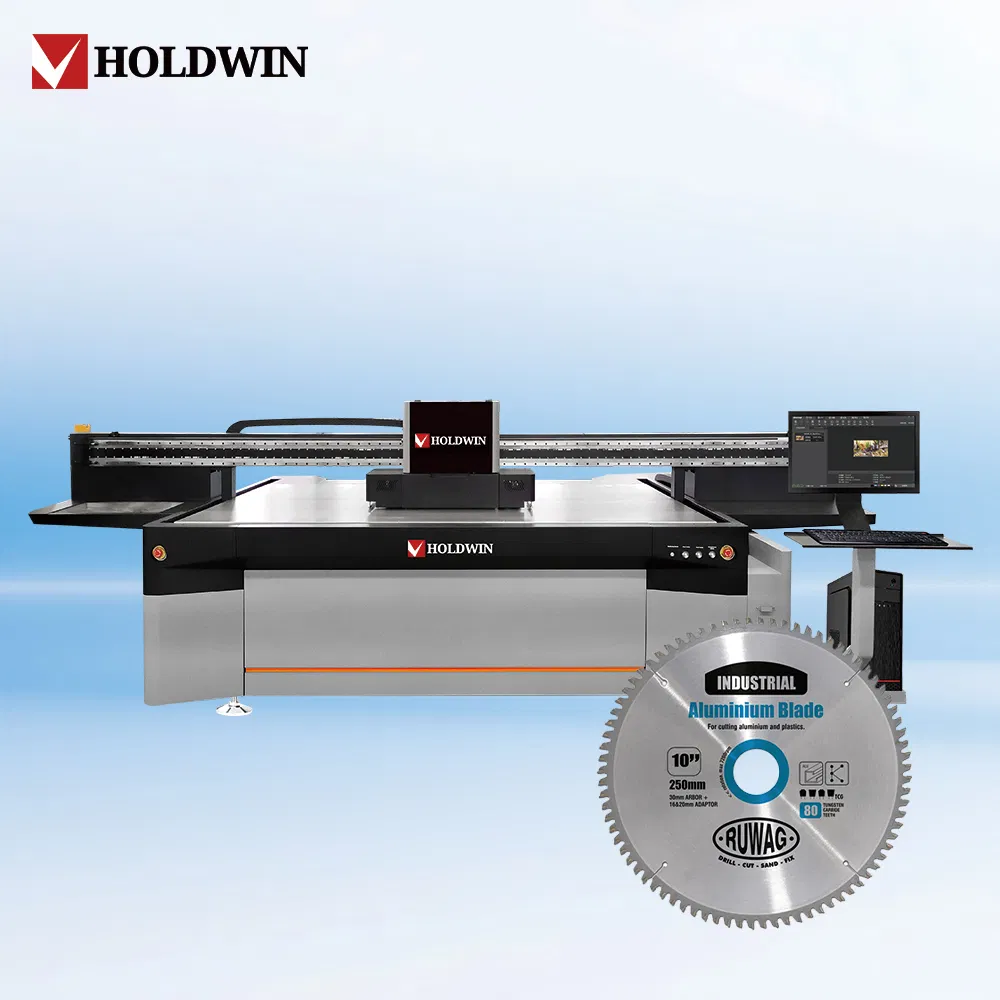

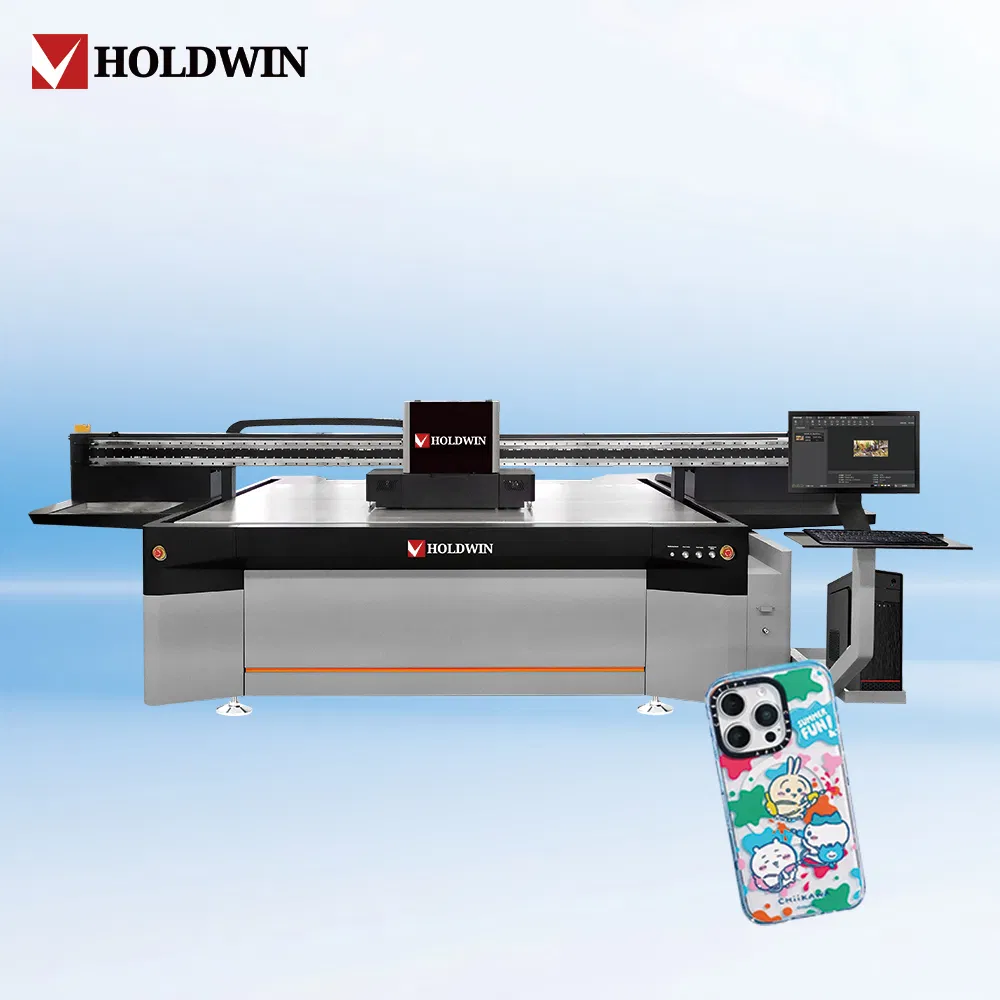

Holdwin-2513 Digital Inkjet Large Format Printer LED UV Flatbed Printer for Ceramic Tile Printing

Still deciding? Get samples of $ !
Order Sample

Product Description

Digital Inkjet Large Format Printer
ℹ️

Basic Specifications

Model NO.
HOLDWIN-2513
Structure
Flatbed Printing
Color & Page
Multi-Colour Printing
Automatic Grade
Automatic
Printing Interface
USB 3.0
Ink Type
LED Environmental UV Ink
Print Head
Gen5 / Gen6
Ink Color
W+CMYK+Lc+Lm+Varnish
📊

Technical Parameters

Feature G5 Specification G6 Specification
Printing Technology Gray scale micro piezo electric inkjet technology
Printing Format 2500 x 1300 mm
Printing Accuracy Up to 2400 dpi
Print Heads Optional 3-16 print heads
Printing Thickness 1 - 150 mm
4 Pass Speed 18 sqm/h 24 sqm/h
6 Pass Speed 12 sqm/h 16 sqm/h
Color Control ICC standard, curve and density adjustment
Environment Temp: 18ºC-29ºC | Humidity: 50%-80%
📜

Certifications

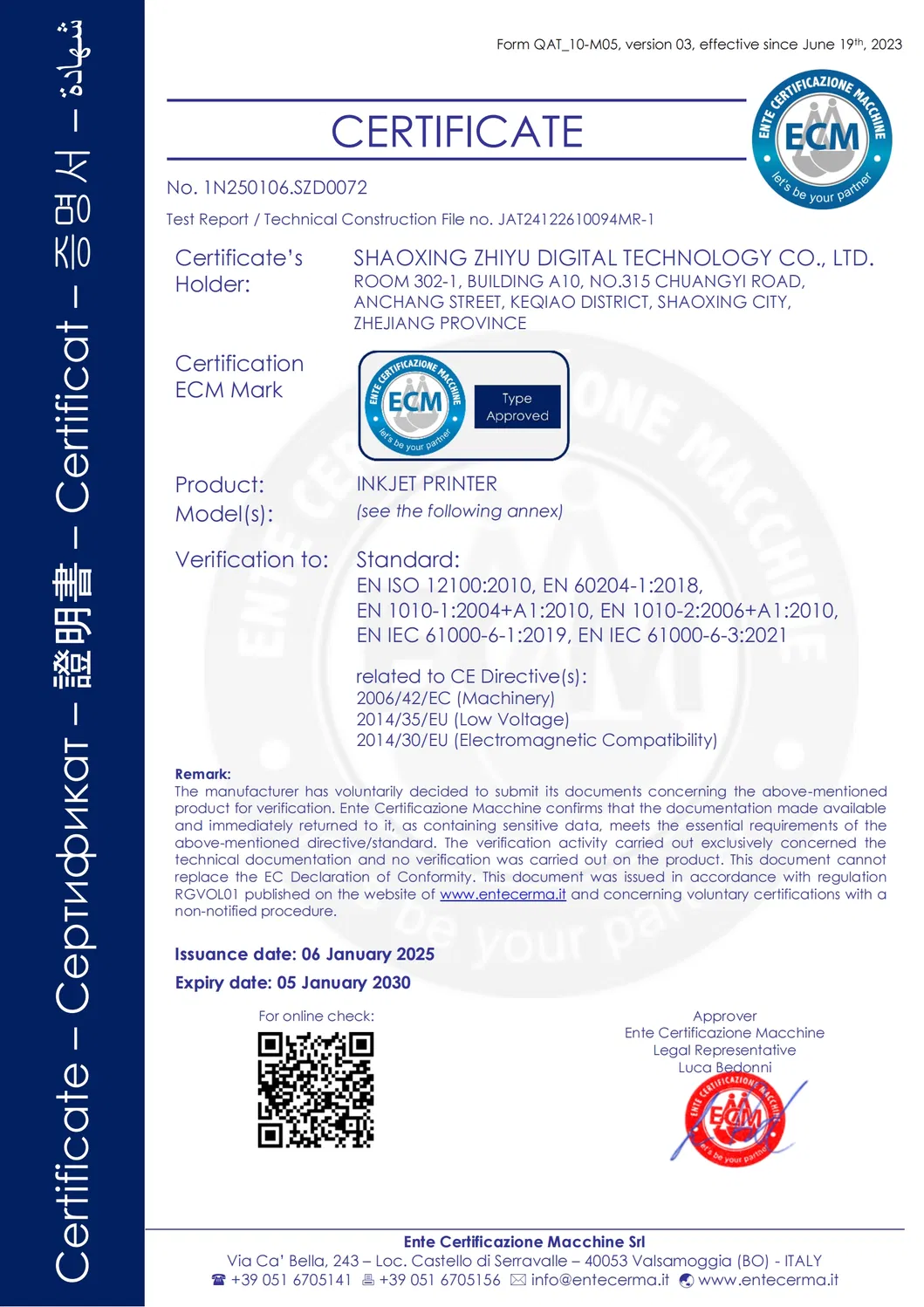

Certification 1

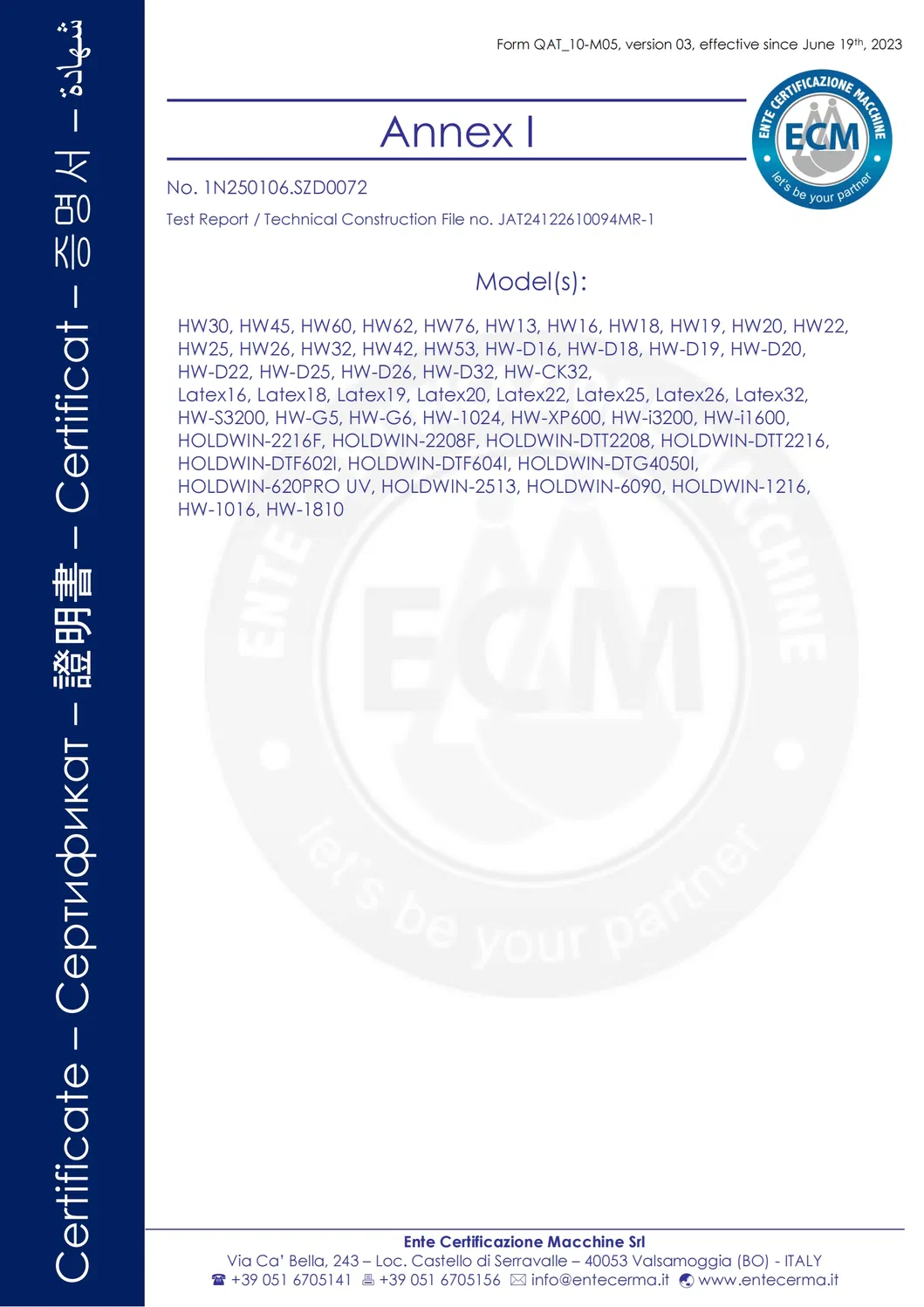

Certification 2
📦

Packaging & After-Sales

Shipping Services

Machines are professionally packed in wooden boxes to ensure safety during transit. Standard lead time is approximately 20 days for single units.

After-Sales Commitment

  • Insurance Support: Assistance with claims if the machine arrives damaged.
  • Warranty: One-year full warranty provided (excluding consumables like ink systems and print heads).
  • Technical Support: Dedicated service personnel available for guidance and troubleshooting.
  • Maintenance: Buyers are encouraged to follow technician instructions to maintain optimal performance.
Product Display 1
Product Display 2
Product Display 3
Product Display 4

Frequently Asked Questions

Q1: What materials can this UV flatbed printer handle? The HOLDWIN-2513 is versatile and can print on ceramic tiles, glass, acrylic, wood, phone cases, PVC, metal, and various other flat substrates.
Q2: What is the maximum thickness of the material allowed? This model supports a printing thickness ranging from 1mm up to 150mm, allowing for a wide variety of industrial applications.
Q3: Does the printer support white ink and varnish? Yes, the machine supports a configuration of W + CMYK + Lc + Lm + Varnish, enabling high-quality textured and glossy finishes.
Q4: What is the difference between Gen5 and Gen6 print heads? While both offer excellent durability, the Gen6 print head provides higher precision and faster printing speeds (up to 24 sqm/h at 4pass) compared to the Gen5.
Q5: How is the machine protected during international shipping? The printer is securely packed in a robust wooden box to prevent movement and damage during sea or air transport.
Q6: What software is compatible with this printer? The system supports professional RIP software such as Photoprint and Riin, running on Windows-based operating systems via a high-speed USB 3.0 interface.
