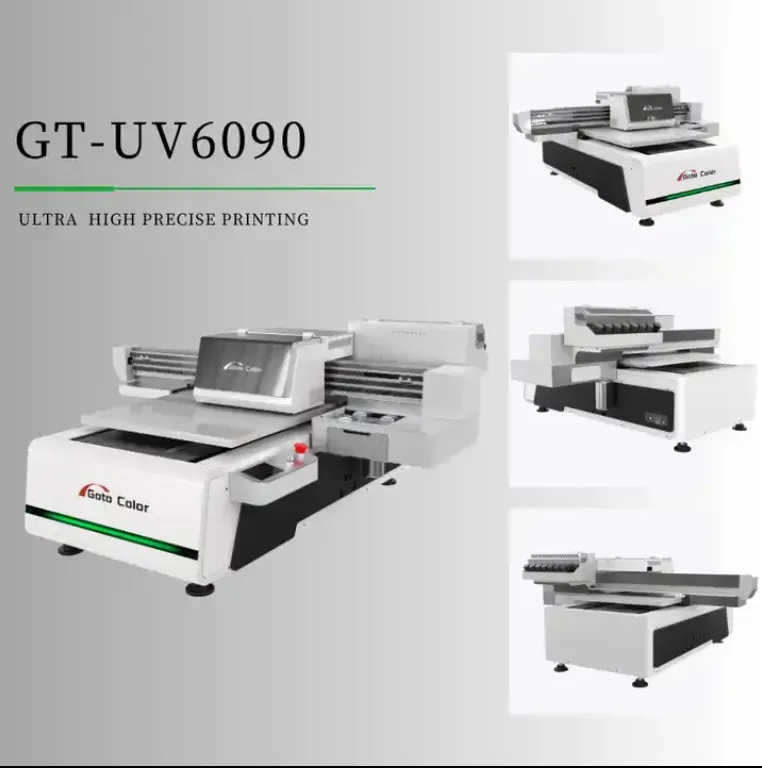

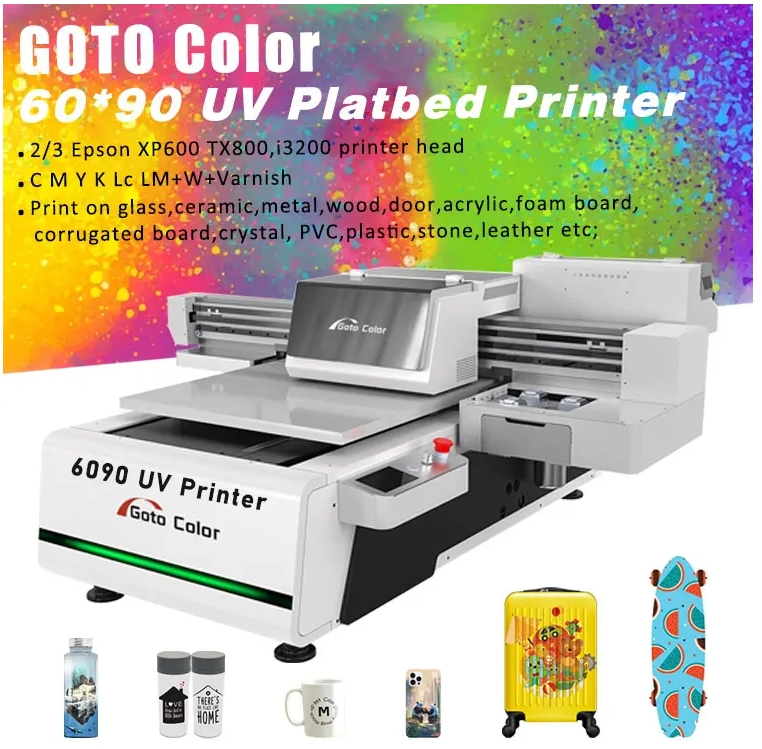

The working area of GT-6090 is 60X90CM. This flatbed printer is equipped with 2 or 3 DX8 print heads, enabling high-quality printing on almost all materials, such as wood, PVC, acrylic, foam board, glass, ceramic tile, metal, and carton. It is widely utilized in advertising signage, customization, decoration, and electrical industries.
We provide total solutions with an R&D and production team. Printers can be customized, and multi-head configurations provide overall solutions for various industries and different production needs.

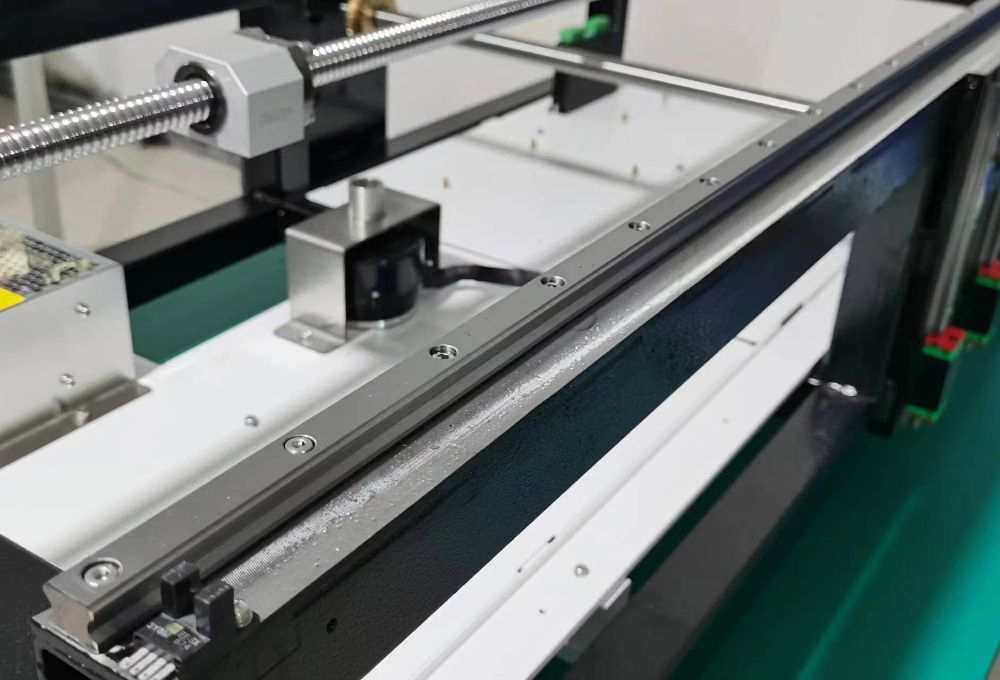

Adopting CNC gantry milling technology ensures long-term stability of the frame. The flatness of the mounting surface of the guide rail is controlled within 0.01mm.

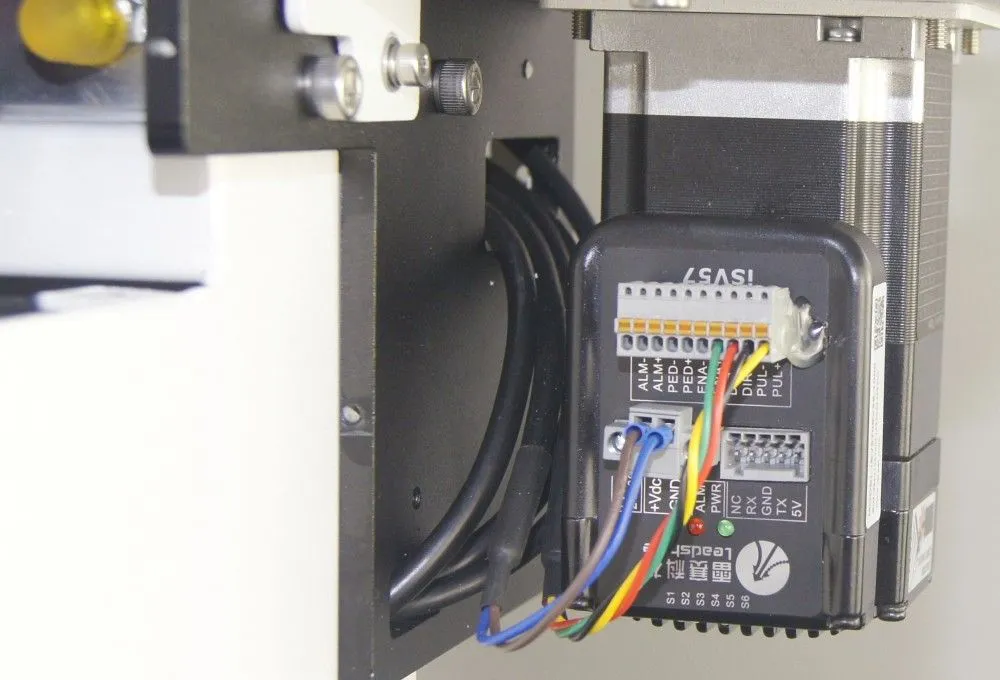

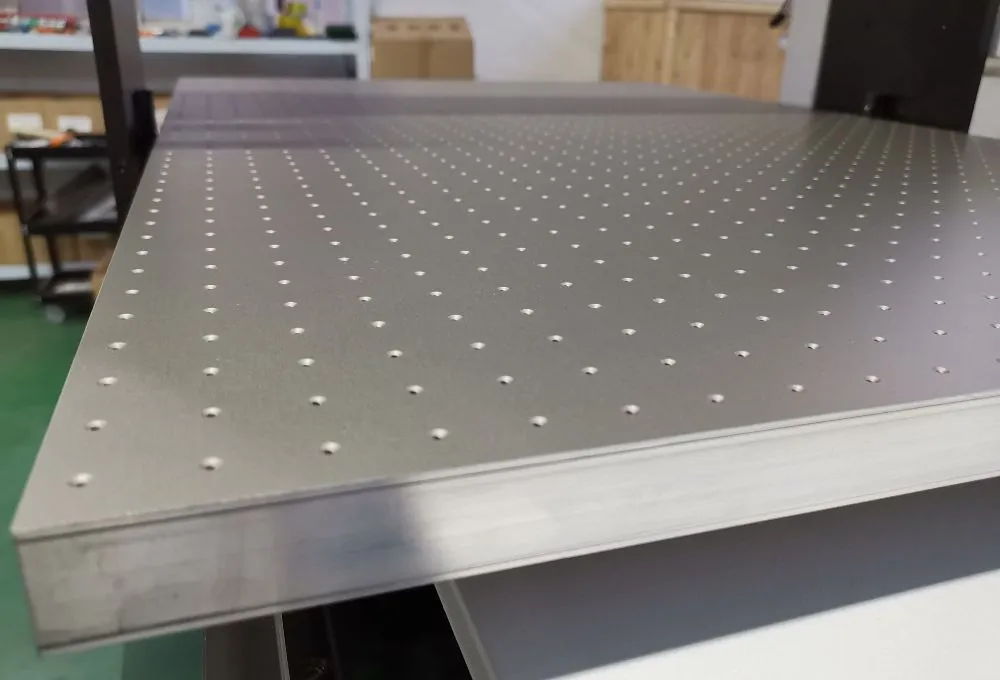

Leadshine servo motors ensure high precision and enhanced stability. Equipped with an aluminum honeycomb suction platform, the machine enjoys excellent absorption capacity for various media.

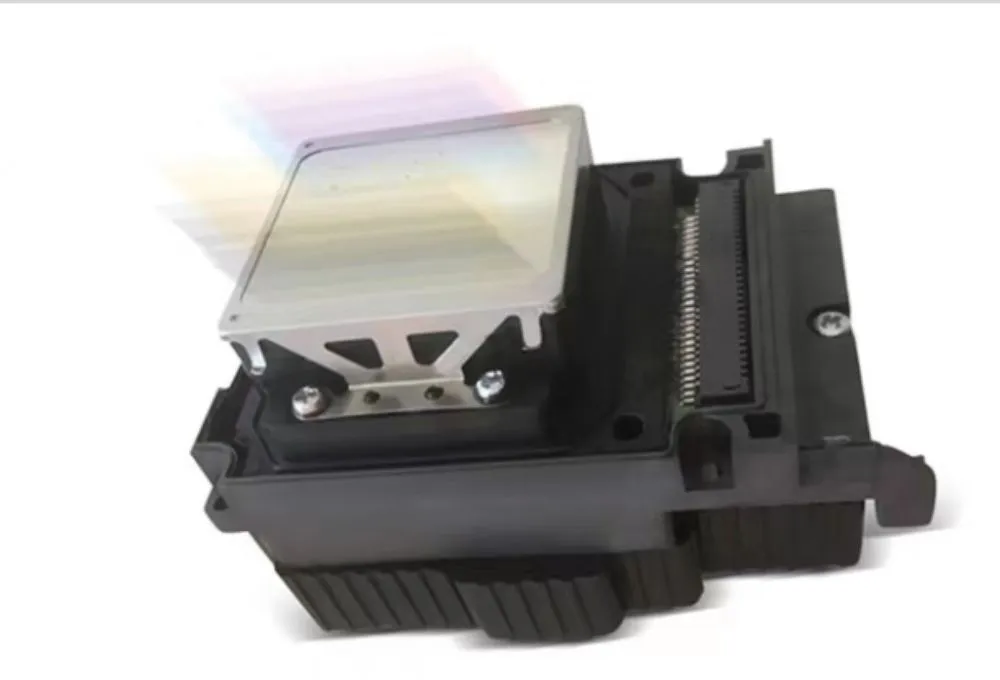

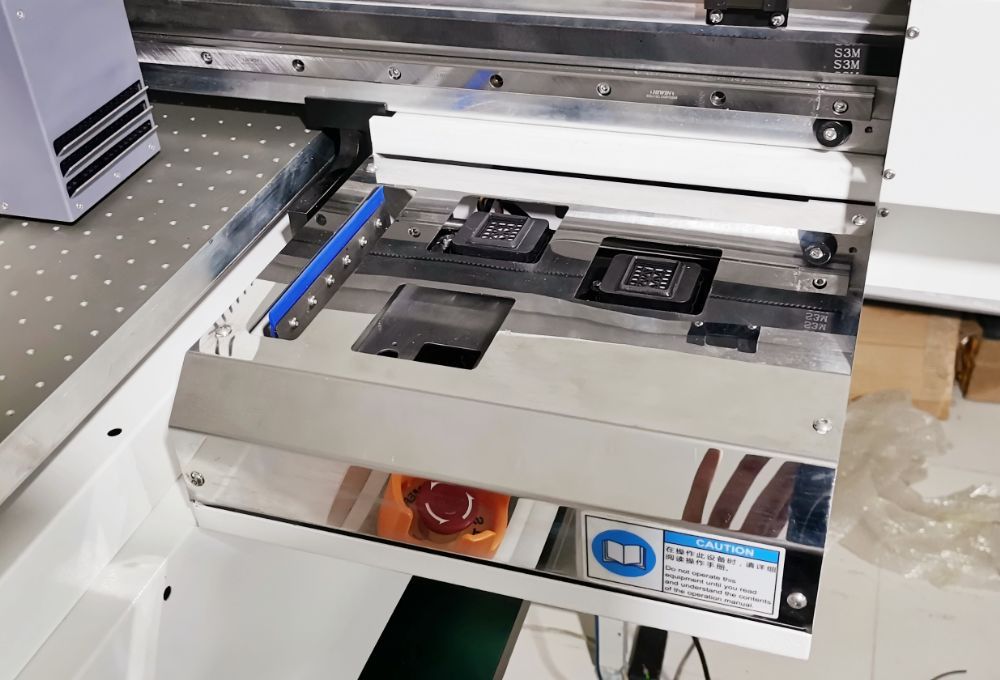

Equipped with an automatic cleaning function, users can set regular flash spray to effectively prevent nozzle blockage and extend printhead service life. The screw drive system offers superior printing efficiency and accuracy.

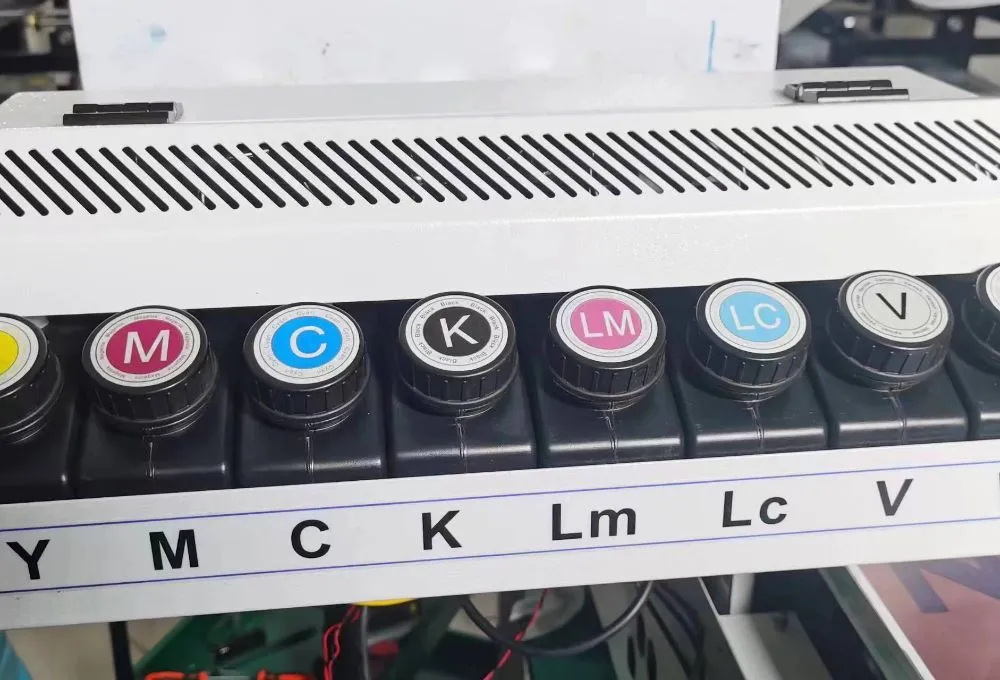

The intelligent ink supply system includes white ink stirring and circulation to prevent sediment. An automatic ink-alarm system notifies users when ink levels are low, ensuring smooth, uninterrupted production.
| Specification Item | Details | |
| Model | GT-6090UV | |
| Printheads | 2-3 pcs Epson XP600 / TX800 | |
| Printing Dimension | 600 * 900mm | |
| Resolution | 1440 * 1440dpi | |
| UV Cure | UV LED Lamp | |
| Ink Details | Type & Color | UV Ink / CMYKLmLc+W+V |
| Supply System | CISS Built-Inside / 500ML Tank | |
| Consumption | 9-15 / sqm | |
| Media | Compatible Types | Plastic, Metal, Glass, Leather, Wood, Acrylic, PVC, etc |
| Max Thickness | 15 CM | |
| Software / RIP | Photoprint12 (TIFF, JPG, EPS, PDF) | |
| OS Compatibility | Windows XP / 7 / 8 / 10 / 11 | |
| Power Requirement | AC220V/110V 50/60Hz (1000W) | |
The GT-6090UV is applicable to various fields including mobile phone cases, decorative materials, glass ceramic tiles, handicrafts, advertisements, toys, shoe materials, metal, PVC, and wood.
