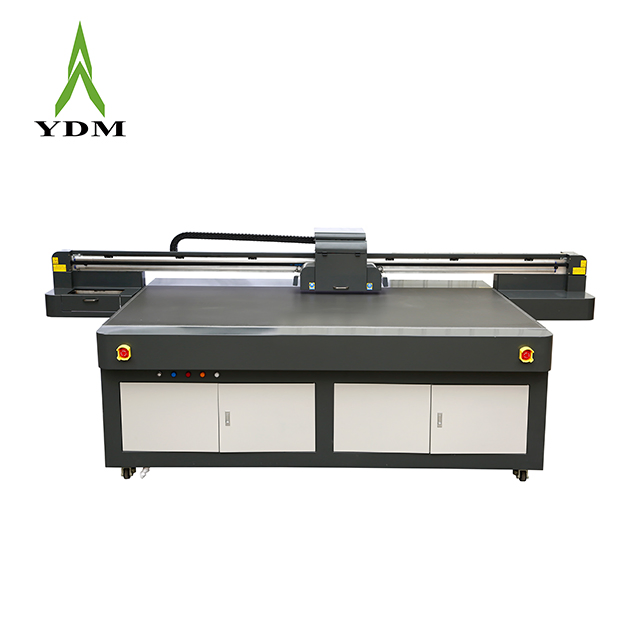

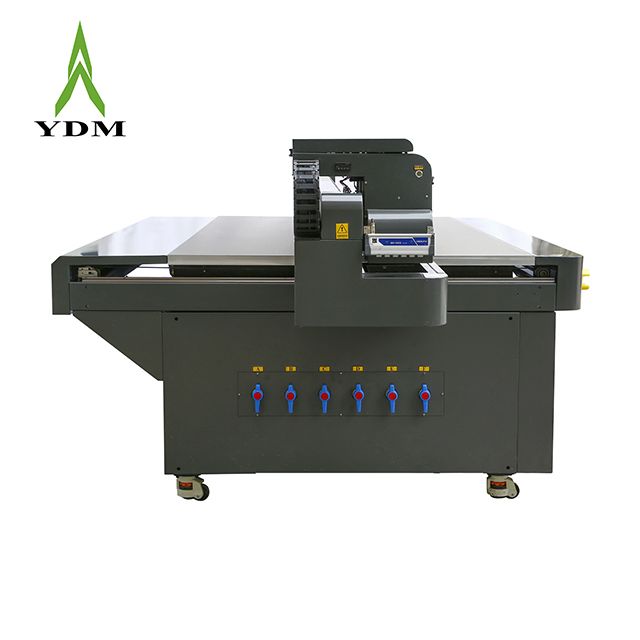

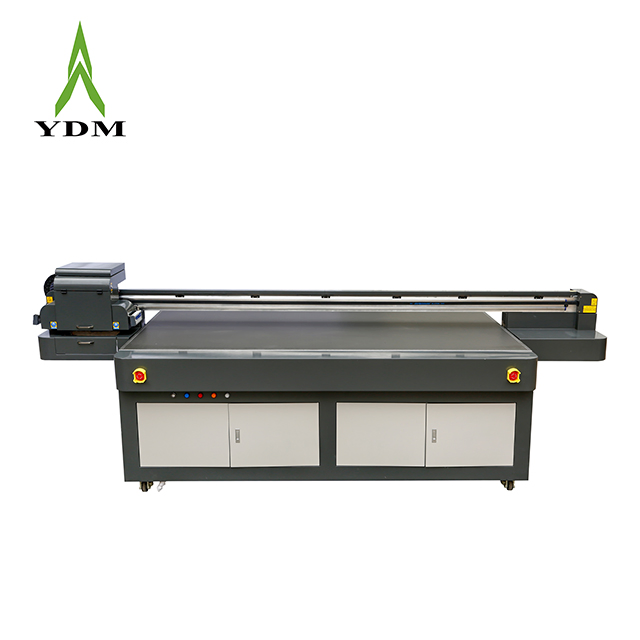

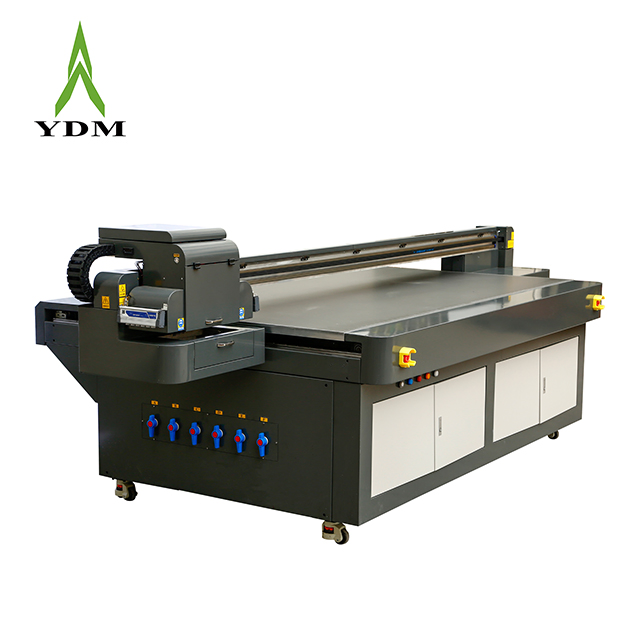

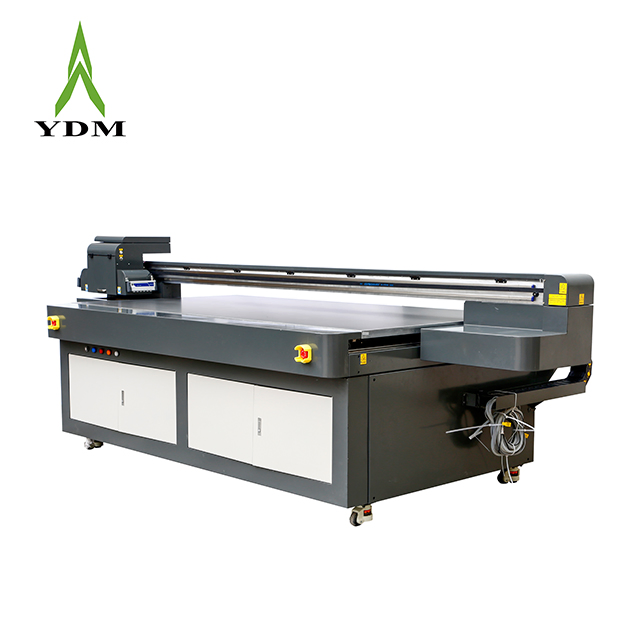

Ydm Acrylic Metal Wood Large Format 2513 UV Flatbed Printer with Varnish

Customization: Available
After-sales Service: Online or Others
Warranty: 1 Years

Product Description

Basic Specifications
Model NO.
2513
Plate
Flatbed
Structure
Flatbed
Color & Page
Multi-Colour Printing Press
Usage
Paper, Label, Card, Cloths, Decoration
Automatic Grade
Automatic
Printing Interface
USB3.0
Printing Speed
15-24 Sqm/H
System Supported
Win 7/ 10, 32/64
Printer No.
UV2513-D
Print Size
2.5*1.3 M
Print Height
10 Cm
Print Head
Toshiba CE4m/ Ricoh G5/Epson Serires
Head Quantity
1-4 PCS
Color
Cmyk+W+V / LC+Lm
Ink Type
UV Curable Ink
Rip Software
Unitedfancy/ Printfactory/Riprint
Print Media
Glass, Ceramic, Acrylic, Metal, Leather, Plastic
Certificate
CE, SGS, ISO9001, BV
Specification
3900*2000*1450mm
Product Description
Large Format UV Flatbed Printer

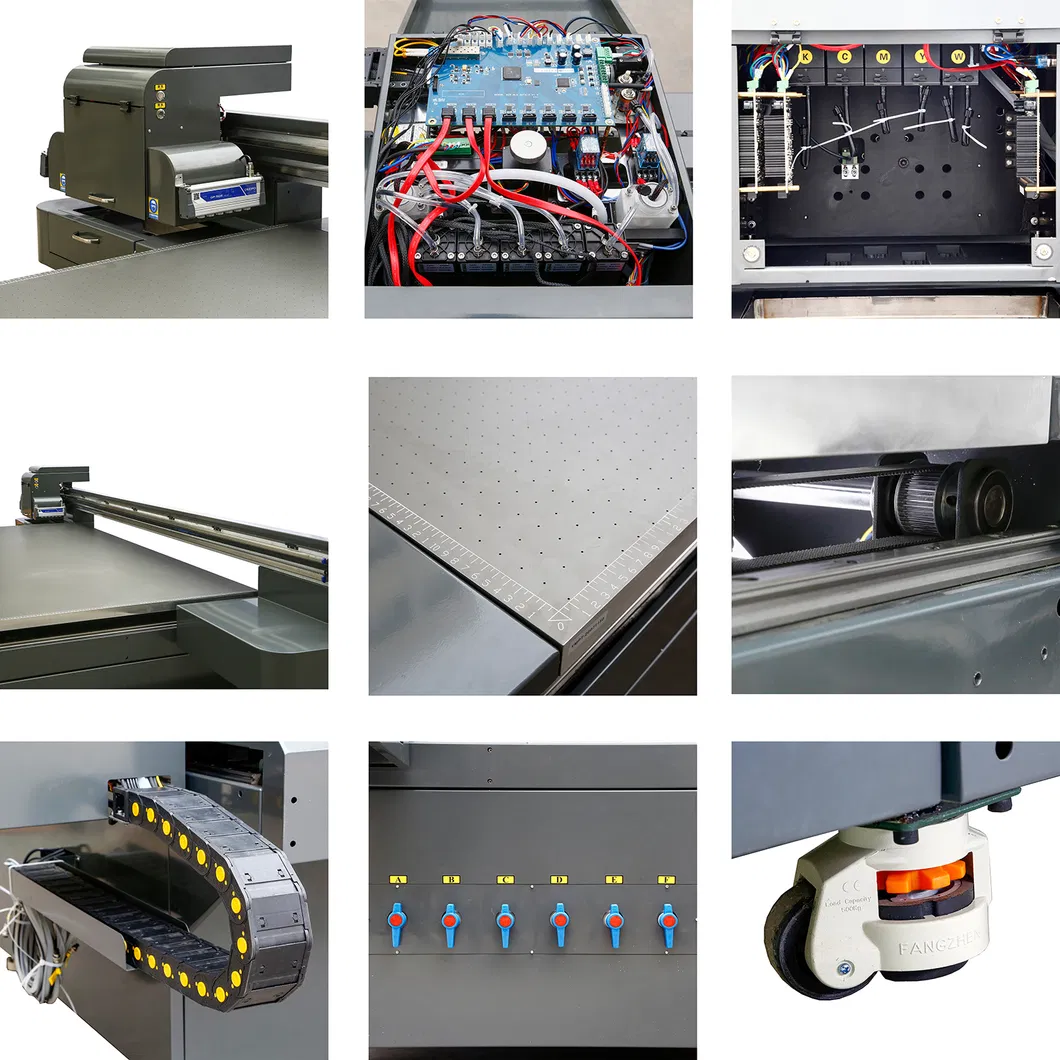

Technical Highlights
Technical Highlights

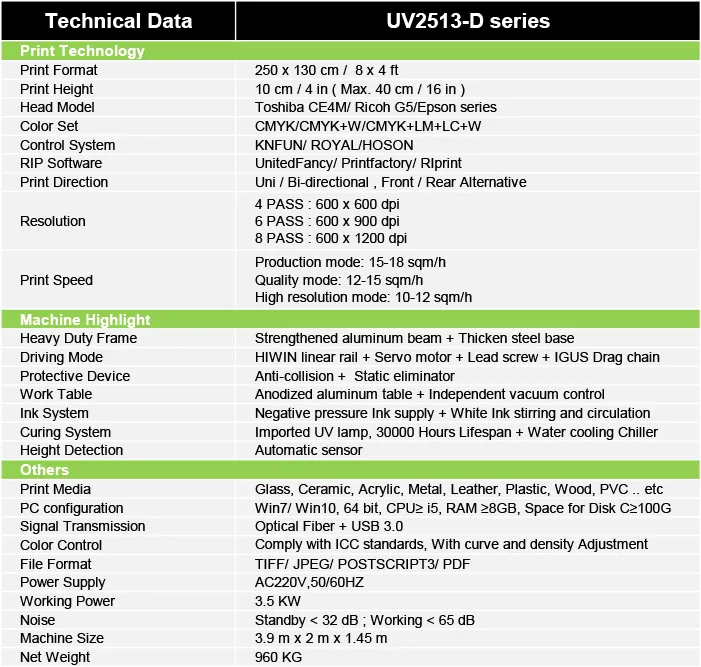

Technical Parameters
Technical Parameters
Product Application
Product Application
Industry Performance
Detailed Parameters

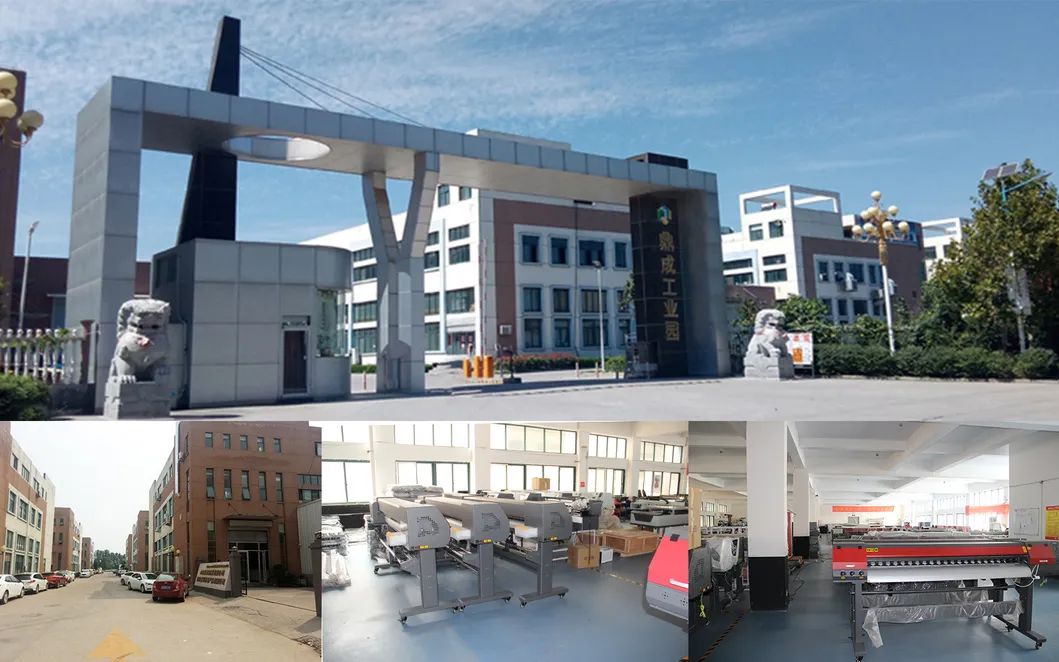

About Our Printing Solutions
Established in 2005, we are a professional manufacturer of digital printing machinery in China, officially verified by CE/SGE/BV. To meet customers' demands, we are committed to machine innovation, optimizing printing solutions, and improving service.

Our machinery has been exported to more than 50 countries, including the USA, Russia, India, France, Turkey, and Malaysia. We have helped more than 1000 customers succeed in the high-end digital printing industry. "Precision, Efficiency, Stability" is the core of our equipment, ensuring the best printing experience and profitability for our partners.
Exhibition
Work Process
Frequently Asked Questions
1. What materials can the 2513 UV flatbed printer print on?
The printer is highly versatile and can print on Glass, Ceramic, Acrylic, Metal, Leather, Plastic, Wood, and more.
2. What is the maximum printing size and height supported?
The maximum printing area is 2.5 x 1.3 meters, with a maximum material thickness (height) of 10 cm.
3. Which print heads are compatible with this model?
This model supports professional-grade print heads including Toshiba CE4m, Ricoh G5, and Epson Series heads.
4. What is the typical printing speed for production?
Depending on the configuration and resolution settings, the printing speed ranges from 15 to 24 square meters per hour.
5. Does the printer support special effects like white ink and varnish?
Yes, it supports multiple color configurations including CMYK + White + Varnish for embossed and glossy finishes.
6. What operating systems are required to run the software?
The system is compatible with Windows 7 and Windows 10, supporting both 32-bit and 64-bit architectures.

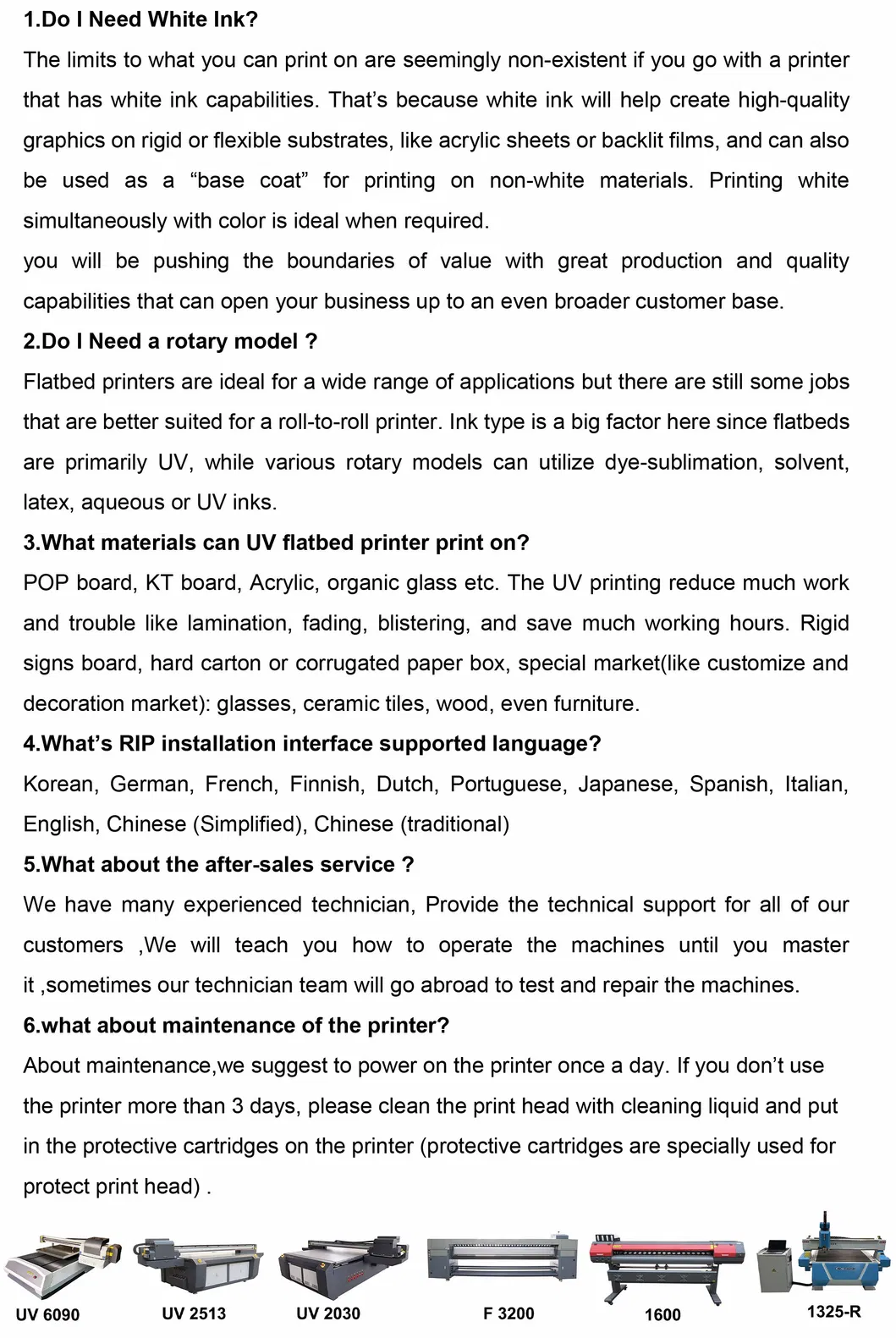

FAQ Reference
