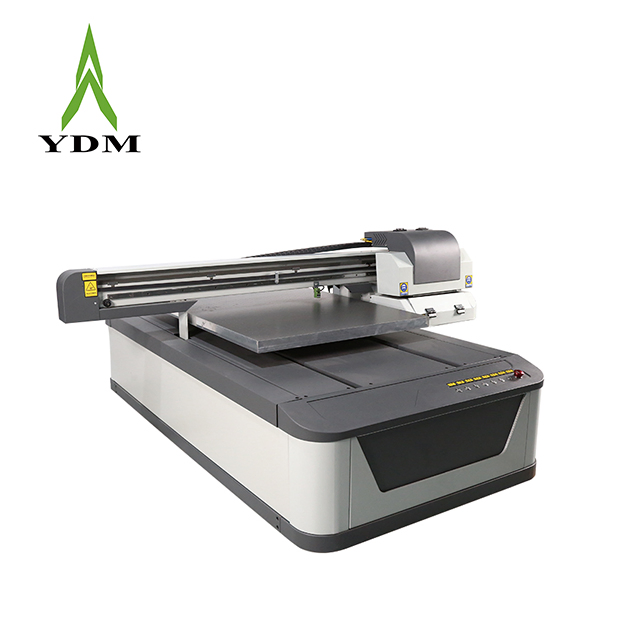

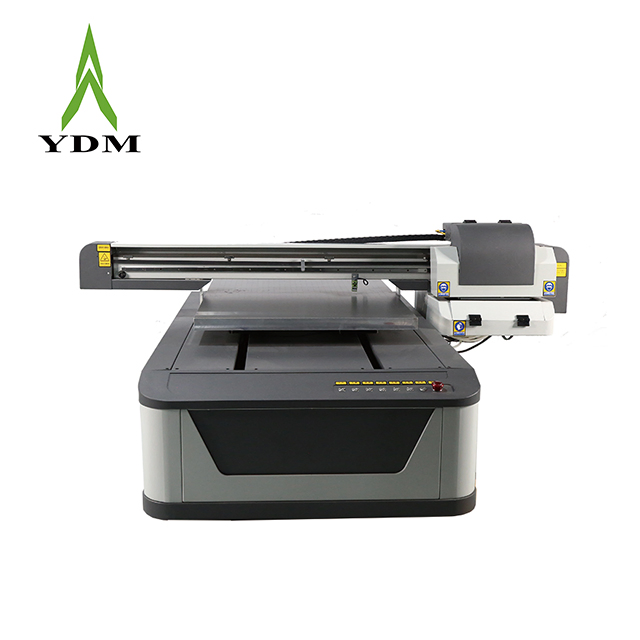

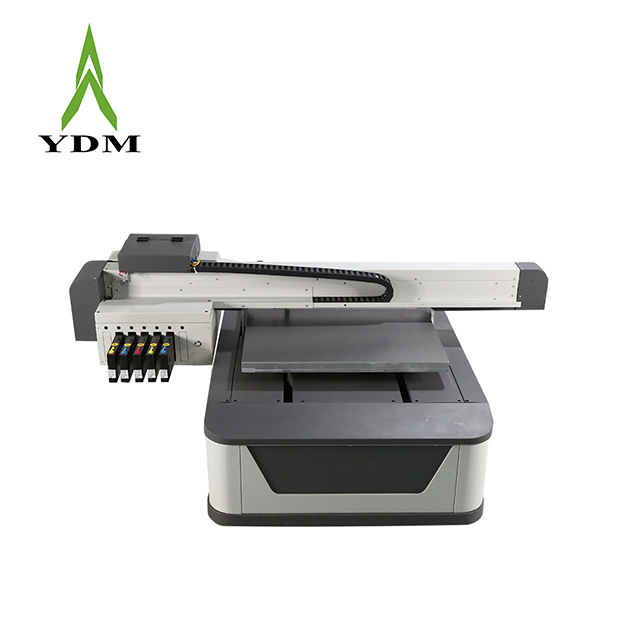

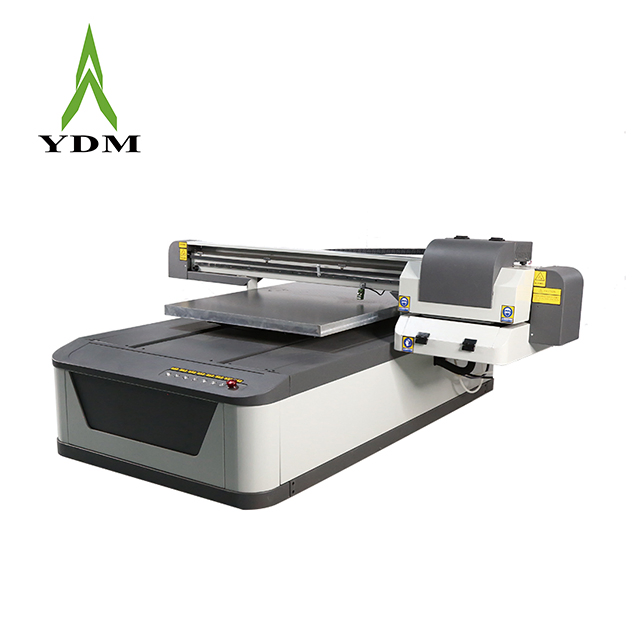

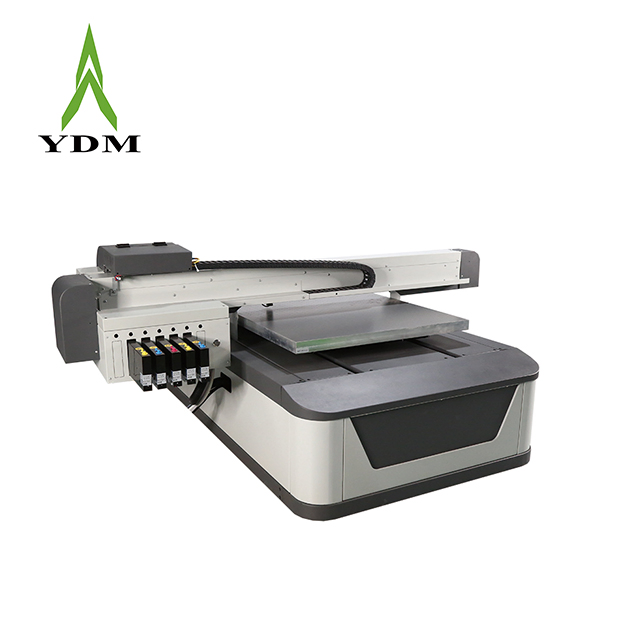

Ydm Ceramic Tile Glass Wood LED A1 Size UV Flatbed Printer

Customization: Available
After-sales Service: Online or Others
Warranty: 1 Years

Product Description

🔹 Basic Specifications
Model NO.
6090
Plate
Flatbed
Structure
Flatbed
Color & Page
Multi-Colour Printing Press
Usage
Paper, Label, Card, Cloths, Decoration
Automatic Grade
Automatic
Printing Interface
USB3.0
Printing Speed
1-5 Sq.M/H
System Supported
Win 7/ 10, 32/64
Print Size
60*90cm
Print Height
20 Cm
Print Head
Toshiba CE4m/ Ricoh G5/Epson Serires
Head Quantity
1-4 PCS
Color
Cmyk/Cmyk+W/Cmyk+LC+Lm+W+V
Ink Type
UV Curable Ink
Rip Software
Unitedfancy/ Printfactory/Riprint
Work Table
Anodized Aluminum Table + Vacuum
Print Media
Glass, Ceramic, Acrylic, Metal, Leather, Plastic
Certificate
CE, SGS, ISO9001, BV
Net Weight
280 Kg
🚀 Technical Highlights

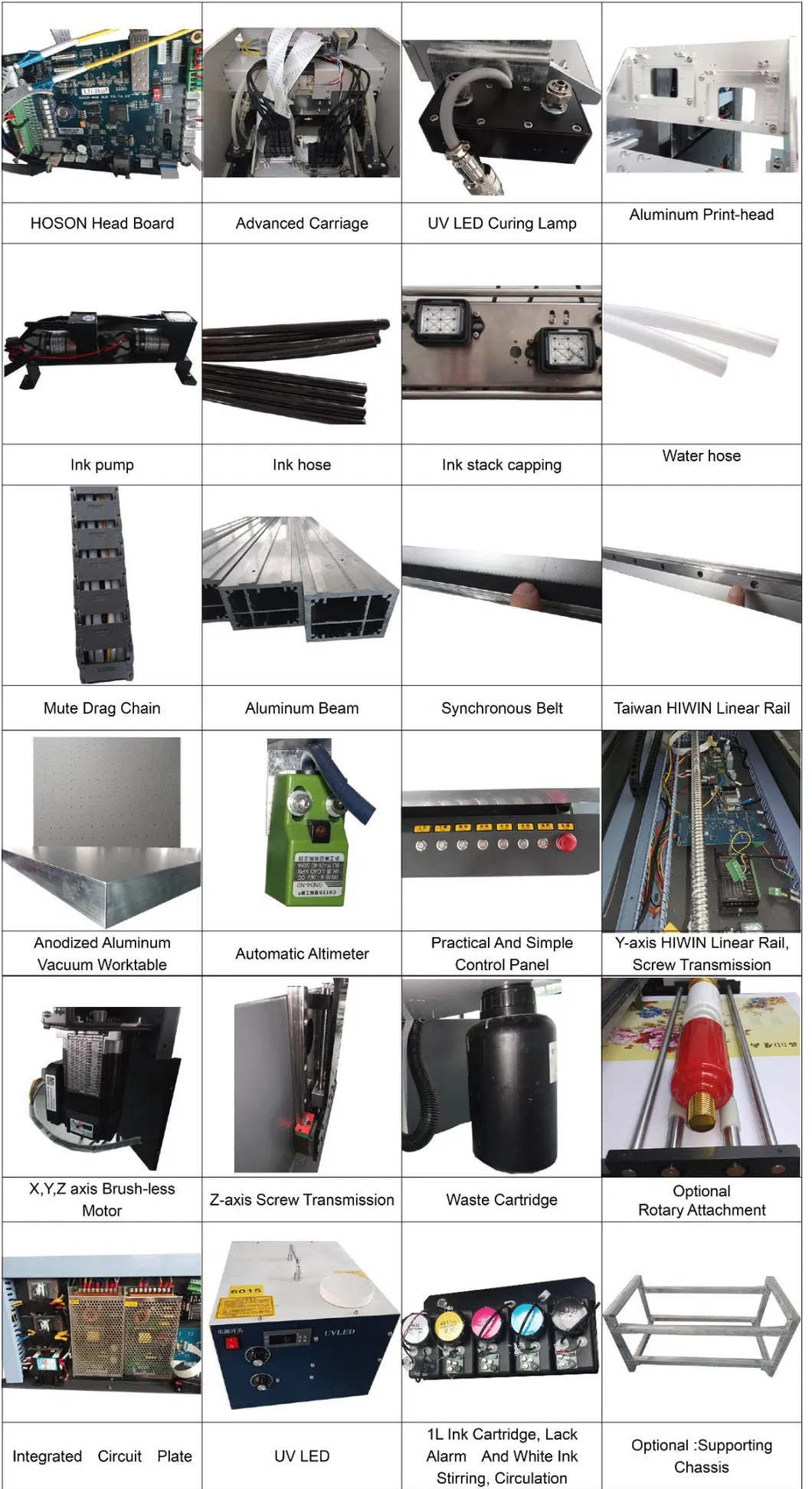

UV Flatbed Printer Overview Technical Highlights
📊 Technical Parameters

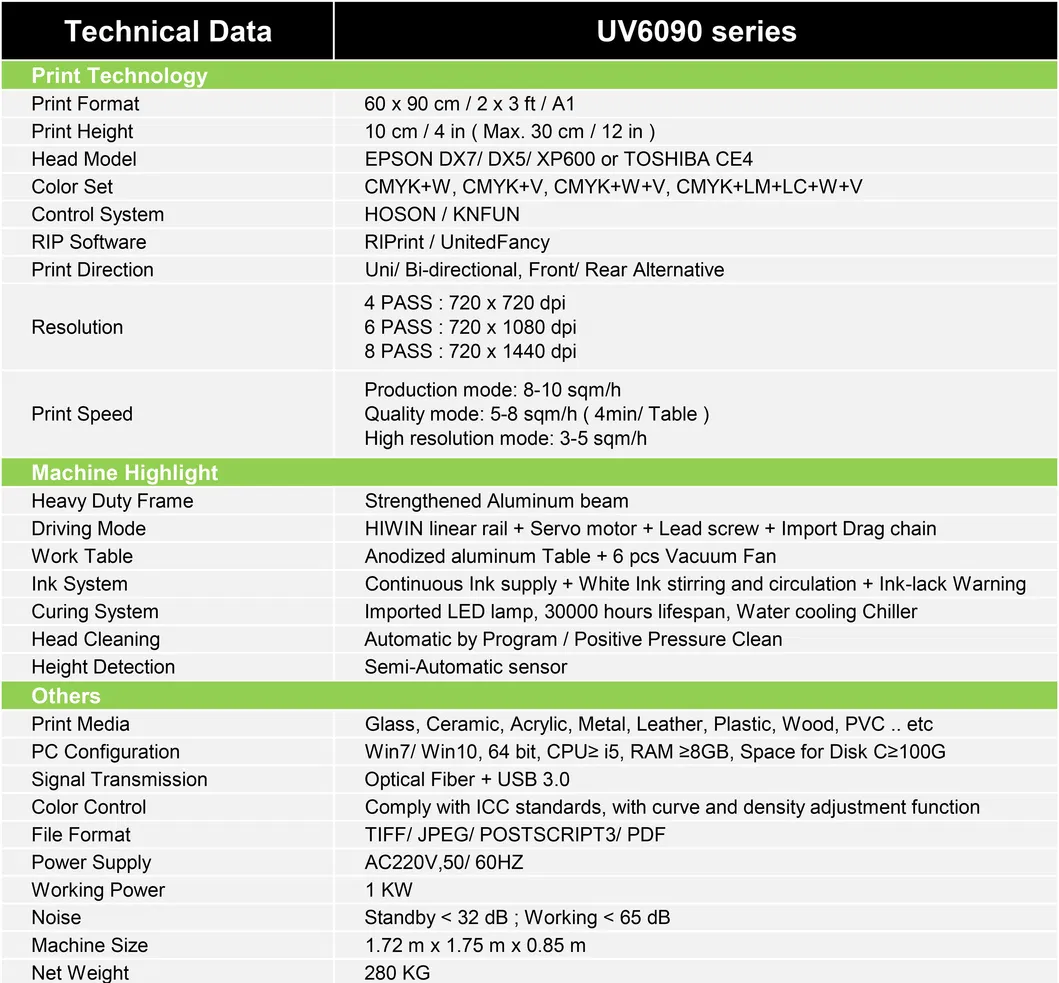

Technical Parameters
🎨 Product Application
Product Application
📦 Packing & Main Products

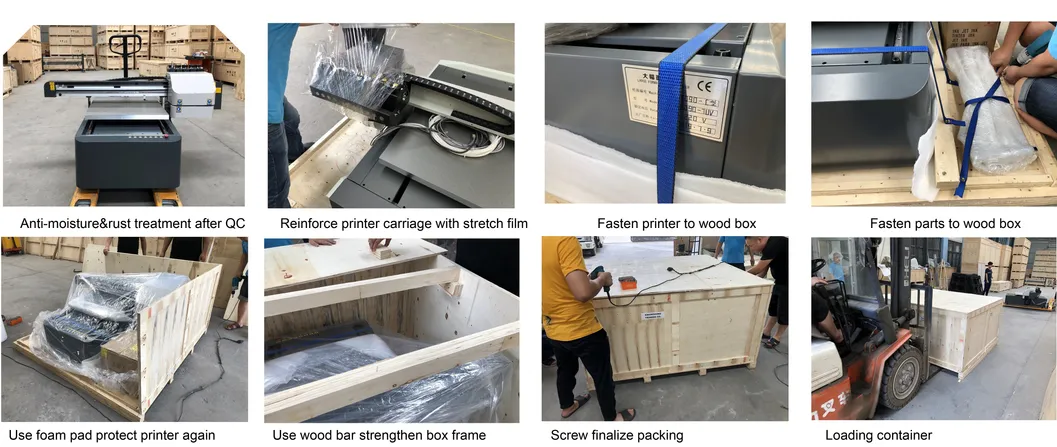

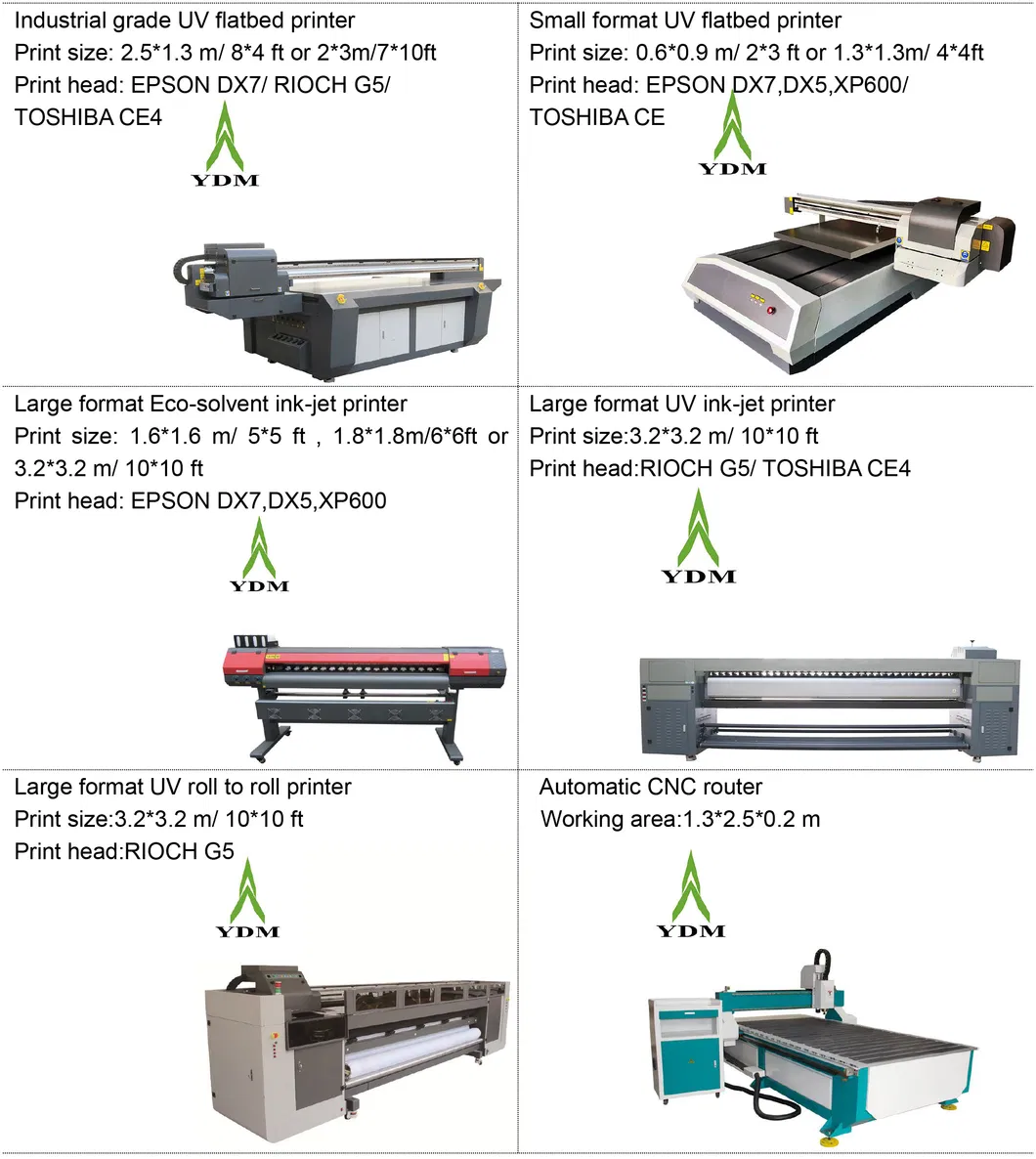

Product Packing Main Products
Product Details
📜 Certificates & Shipping
Certificates Logistics
💡 Frequently Asked Questions
What is the maximum printing size and height for this model?
The model 6090 offers a maximum print size of 60*90cm and can accommodate materials with a height of up to 20 cm.
Which print heads are supported by the 6090 UV printer?
This printer is compatible with high-quality industrial print heads including Toshiba CE4m, Ricoh G5, and the Epson Series.
What materials can I print on using this UV flatbed printer?
It is highly versatile and can print on various media such as glass, ceramic tiles, acrylic, metal, leather, and various plastics.
Does the machine support white ink and varnish printing?
Yes, the printer supports multiple color configurations including CMYK + White and CMYK + LC + Lm + White + Varnish for textured and glossy effects.
What type of ink does this printer use?
The machine uses UV Curable Ink, which dries instantly under LED UV lamps, providing durable and vibrant results.
What software and systems are required to operate the printer?
The printer supports Windows 7 and Windows 10 (32/64 bit) and is compatible with professional RIP software like Unitedfancy, Printfactory, and Riprint.

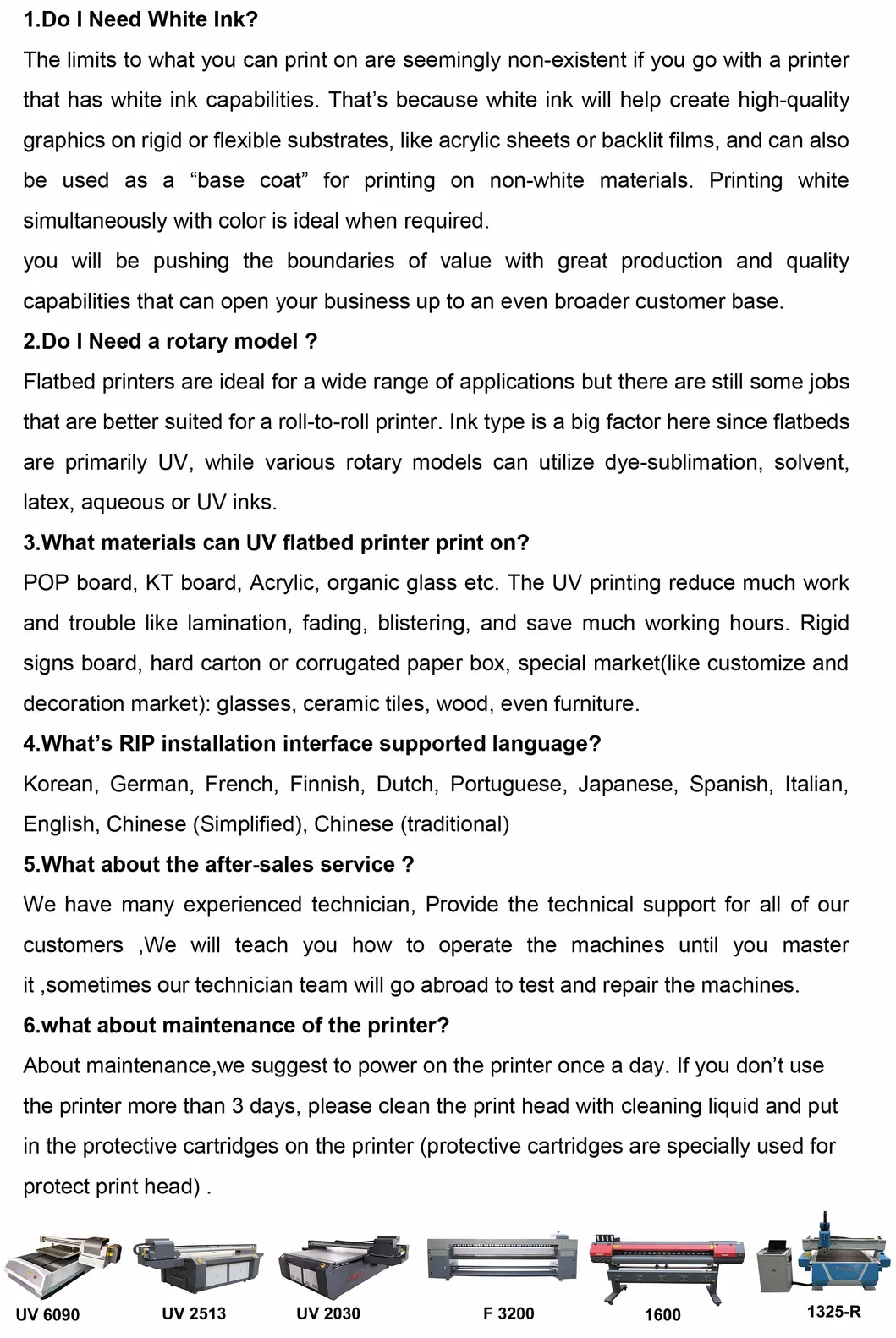

FAQ Guide
