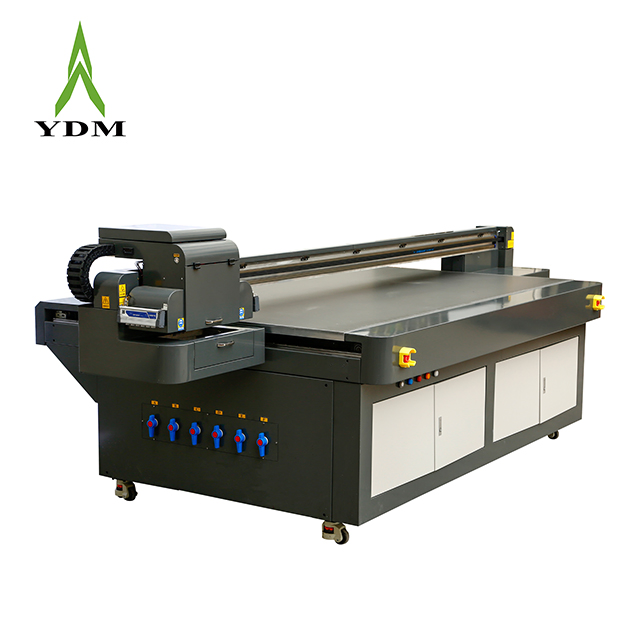

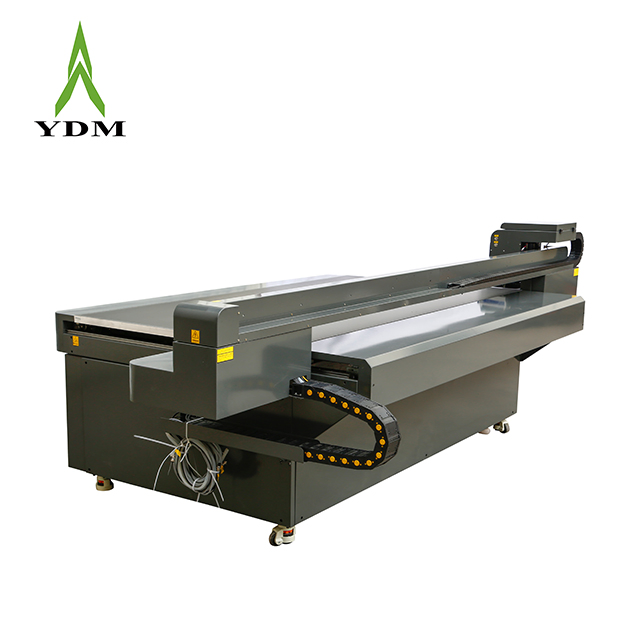

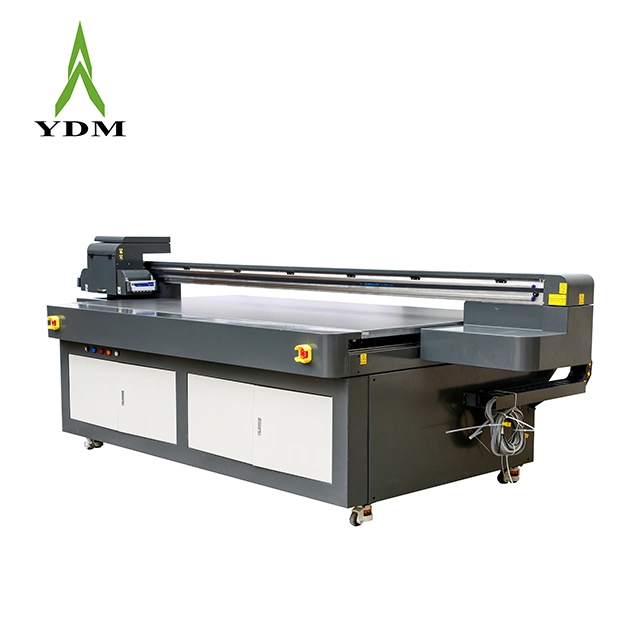

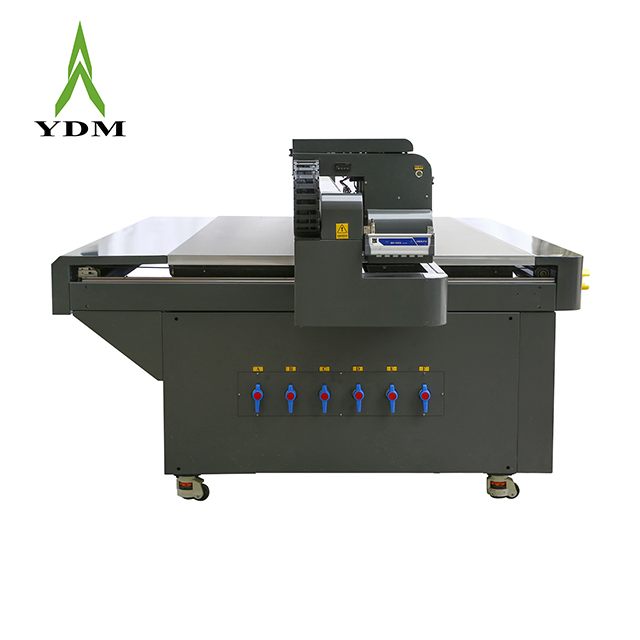

Ydm Good Inkjet Manufacturer LED Lamp Digital Ceramic Tiles Printing Machinery UV Inkjet Printer

Customization: Available
After-sales Service: Online or Others
Warranty: 1 Years

Product Description

Basic Information
Model NO.
2513
Plate
Flatbed
Structure
Flatbed
Color & Page
Multi-Colour Printing Press
Usage
Paper, Label, Card, Cloths, Decoration Industry
Automatic Grade
Automatic
Printing Interface
USB3.0
Printing Speed
15-24 Sqm/H
System Supported
Win 7/ 10, 32/64
Print Size
2.5*1.3 M
Print Height
10 Cm
Print Head
Toshiba CE4m/ Ricoh G5/Epson Serires
Head Quantity
1-4 PCS
Color
Cmyk/Cmyk+W/Cmyk+LC+Lm+W+V
Ink Type
UV Curable Ink
Rip Software
Unitedfancy/ Printfactory/Riprint
Work Table
Anodized Aluminum Table + Independent Vacuum
Print Media
Glass, Ceramic, Acrylic, Metal, Leather, Plastic
Certificate
CE, SGS, ISO9001, BV
Net Weight
900 Kg
Product Description

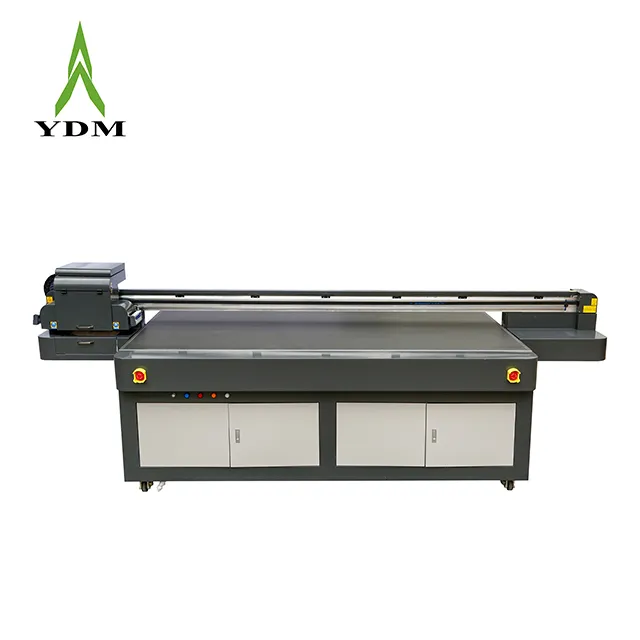

Technical Highlights

Technical Highlights

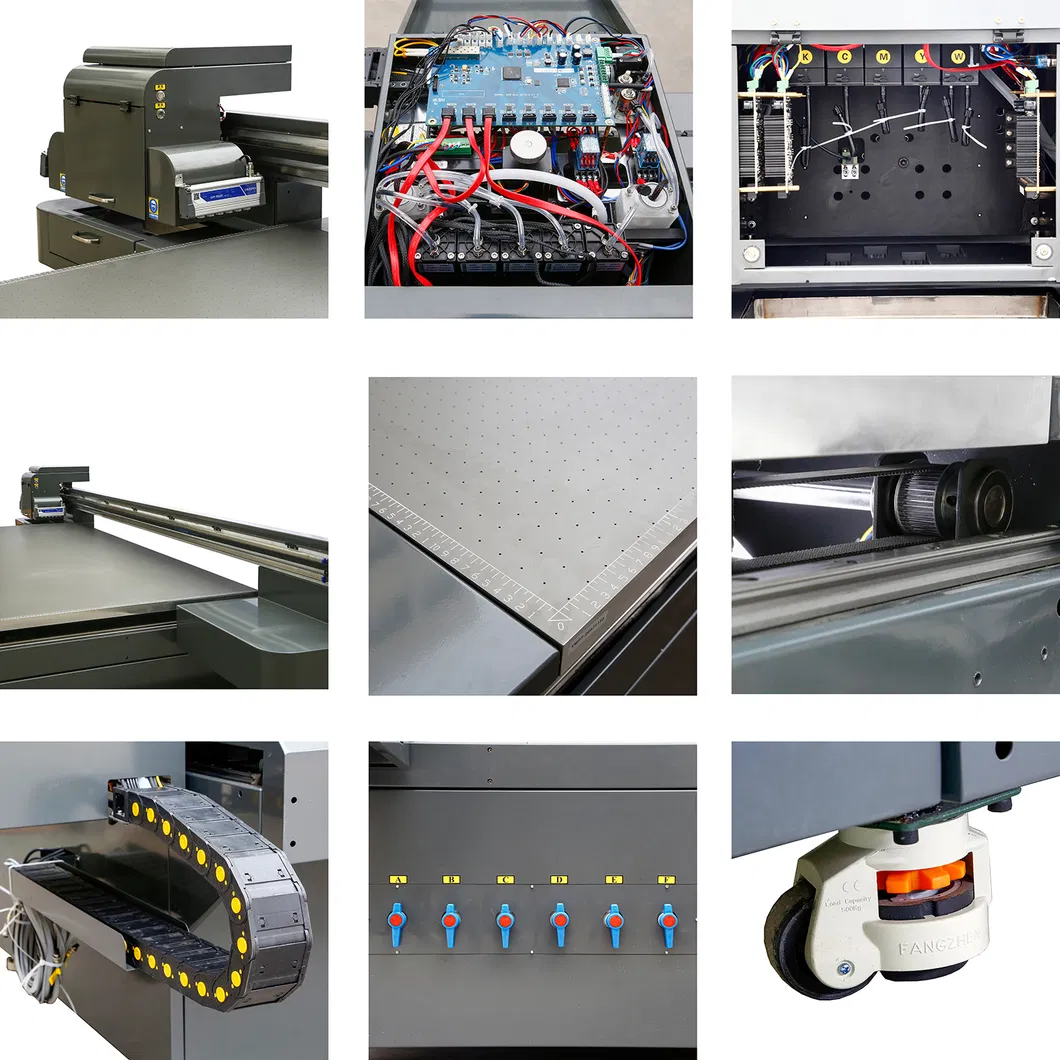

Technical Details

Technical Parameters

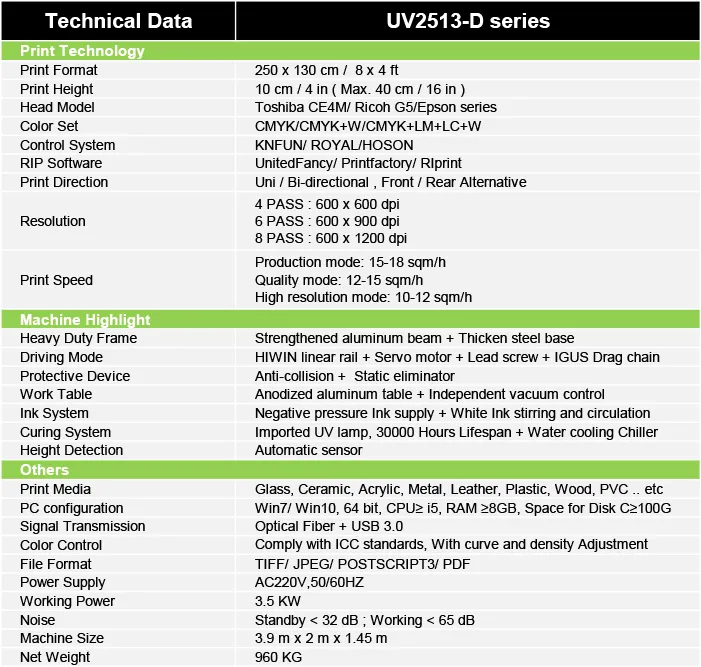

Parameters Chart

Product Application

Applications

Main Products

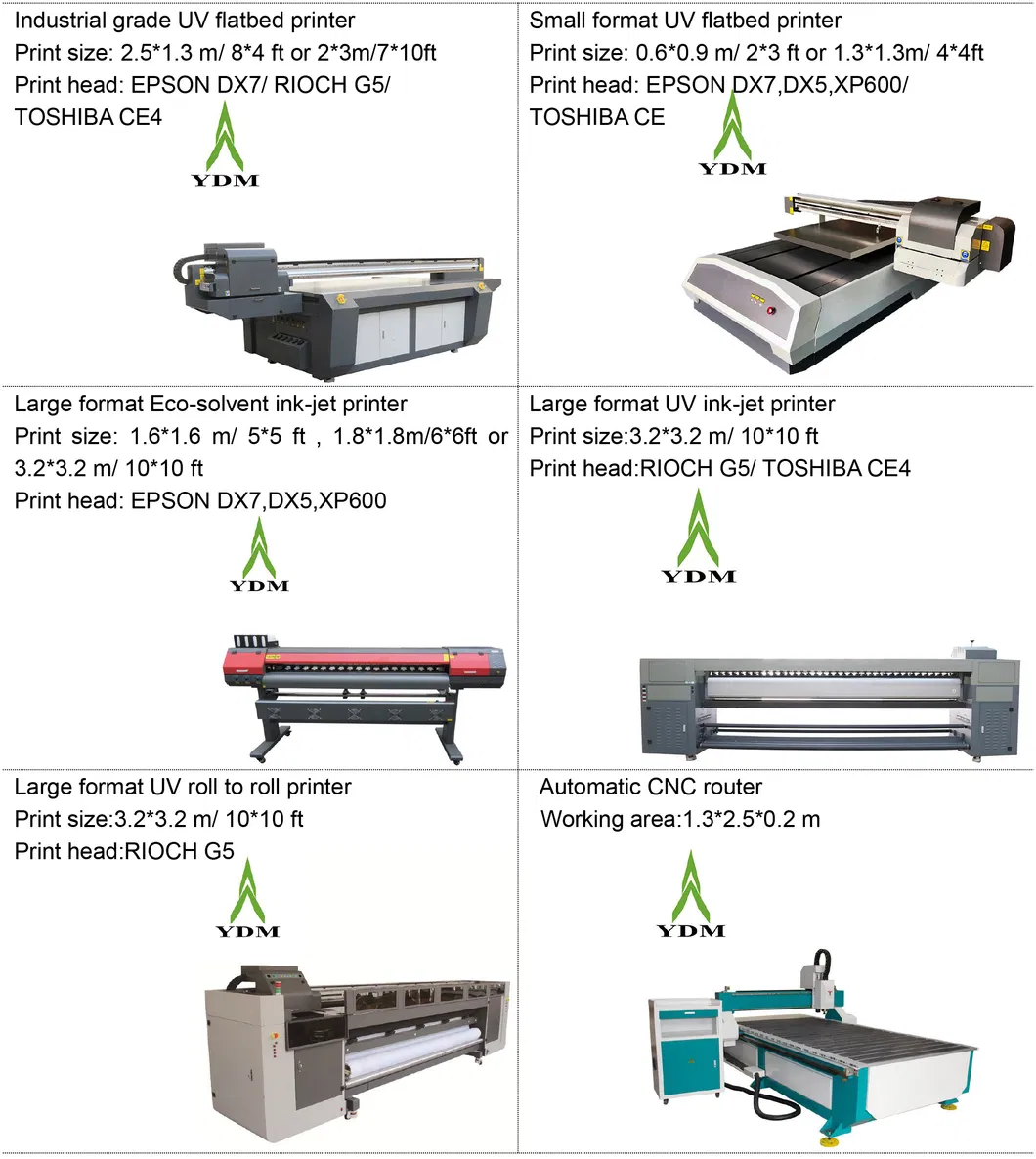

Product Range Product Details
About Manufacturer

Established in 2005, this professional manufacturer of digital printing machinery in China is officially verified by CE/SGE/BV. To meet customers' demands, the company has always been committed to machine innovation, optimizing printing solutions, and improving service.

With a focus on global competition, the machinery has been exported to the USA, RUSSIA, INDIA, FRANCE, TURKEY, MALAYSIA, and more than 50 countries. The manufacturer has helped more than 1000 customers engaged in the high-end digital printing industry.

"Precision, Efficiency, Stability" is the best praise from customers, ensuring a superior printing experience and profitable results. The company continues to work for the upgrade of the global printing industry.

Company Show

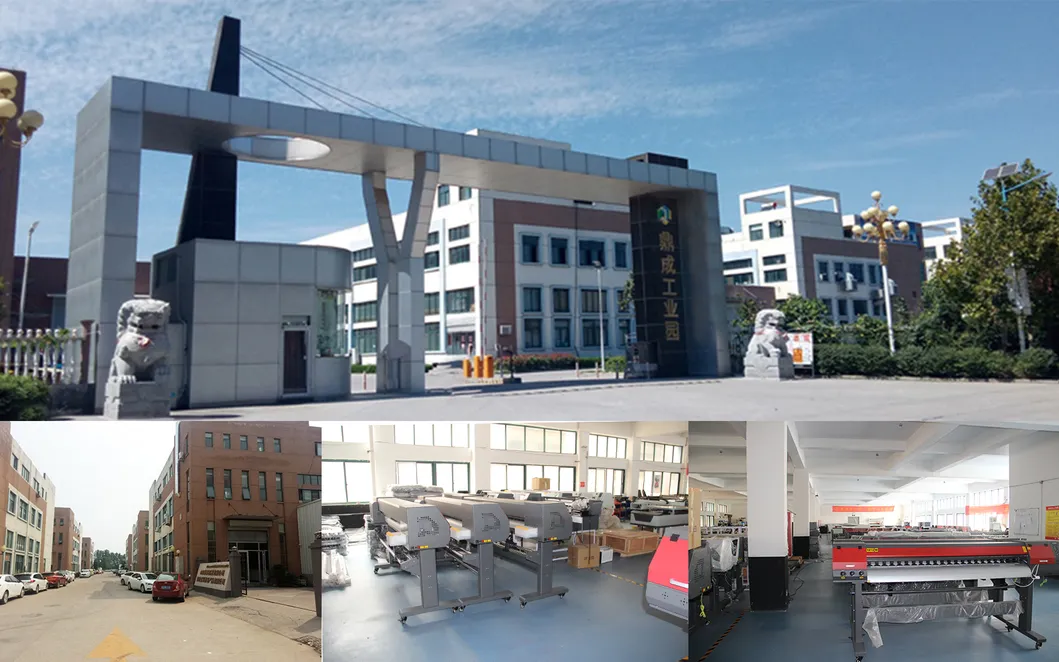

Factory Show

Certificates

Certificates

Exhibition

Exhibition 1 Exhibition 2
Frequently Asked Questions
What materials can this UV printer print on?
This flatbed printer is versatile and can print on Glass, Ceramic, Acrylic, Metal, Leather, Plastic, and more.
What is the maximum printing size and height?
The maximum print size is 2.5m x 1.3m (Model 2513), with a maximum material height of 10cm.
Which print heads are supported?
The system is compatible with Toshiba CE4m, Ricoh G5, and Epson series print heads.
What kind of ink does it use?
It uses UV Curable Ink, supporting CMYK, White ink, and Varnish for high-quality, durable results.
What are the technical requirements for the operating system?
The printer supports Windows 7 and Windows 10 (both 32 and 64-bit systems) via a USB 3.0 interface.
What is the production capacity and speed?
The printing speed ranges from 15-24 Sqm/H depending on the configuration and resolution settings.
