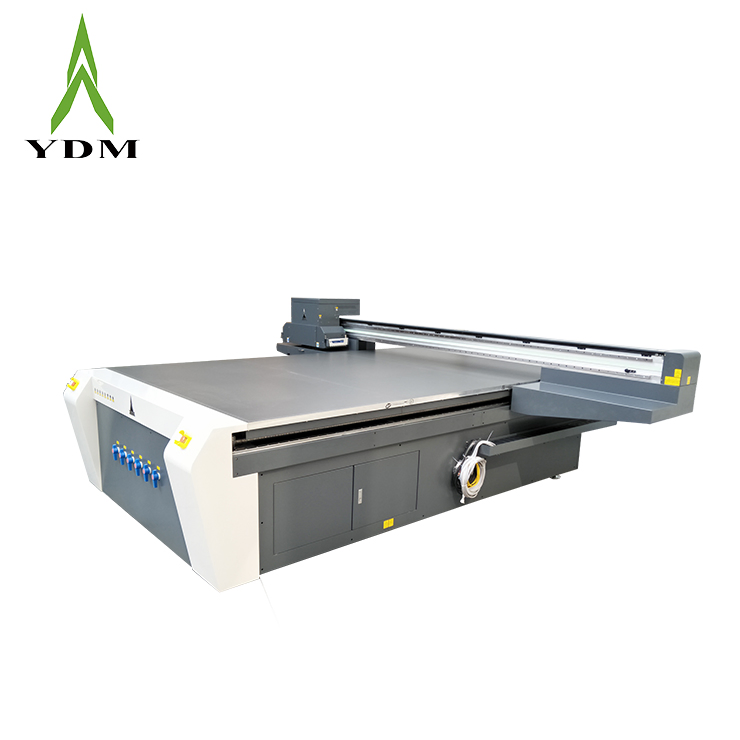

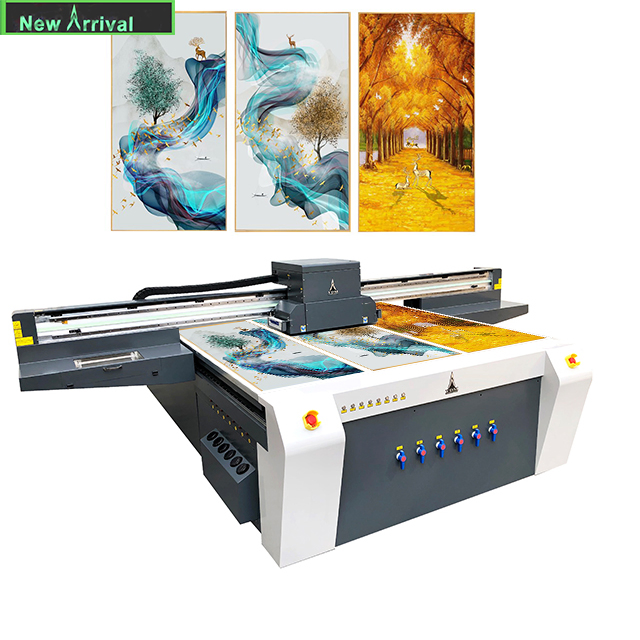

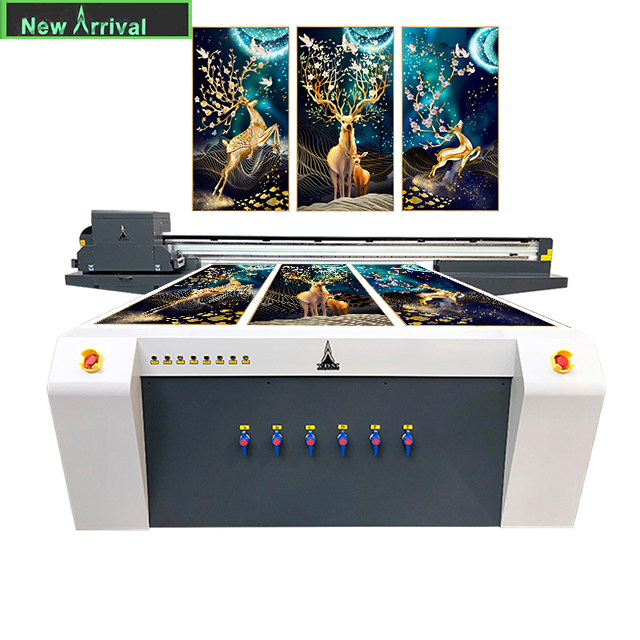

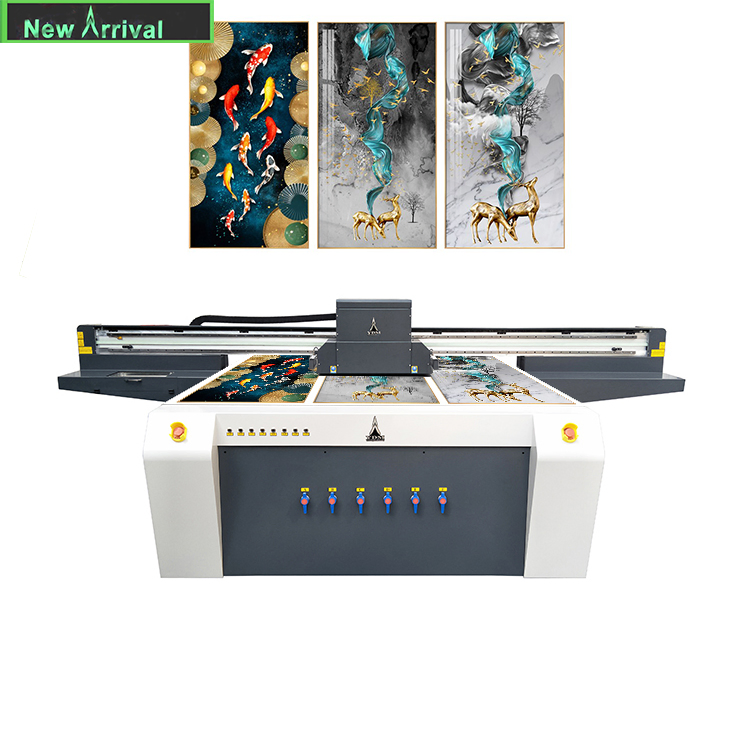

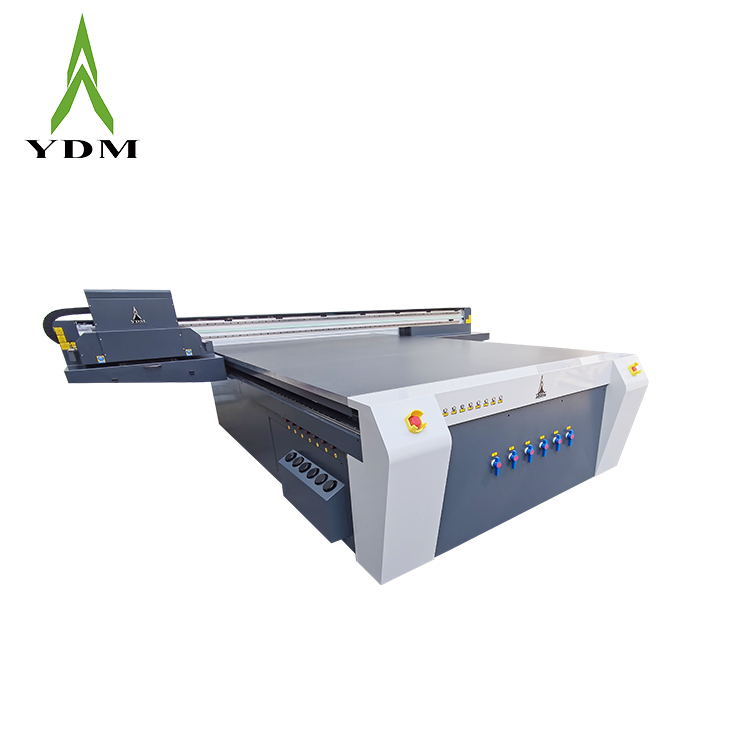

Ydm Ricoh Gen5 Printhead Digital 2030 UV Flatbed Printer

Customization: Available
After-sales Service: Online or Others
Warranty: 1 Years

Product Description

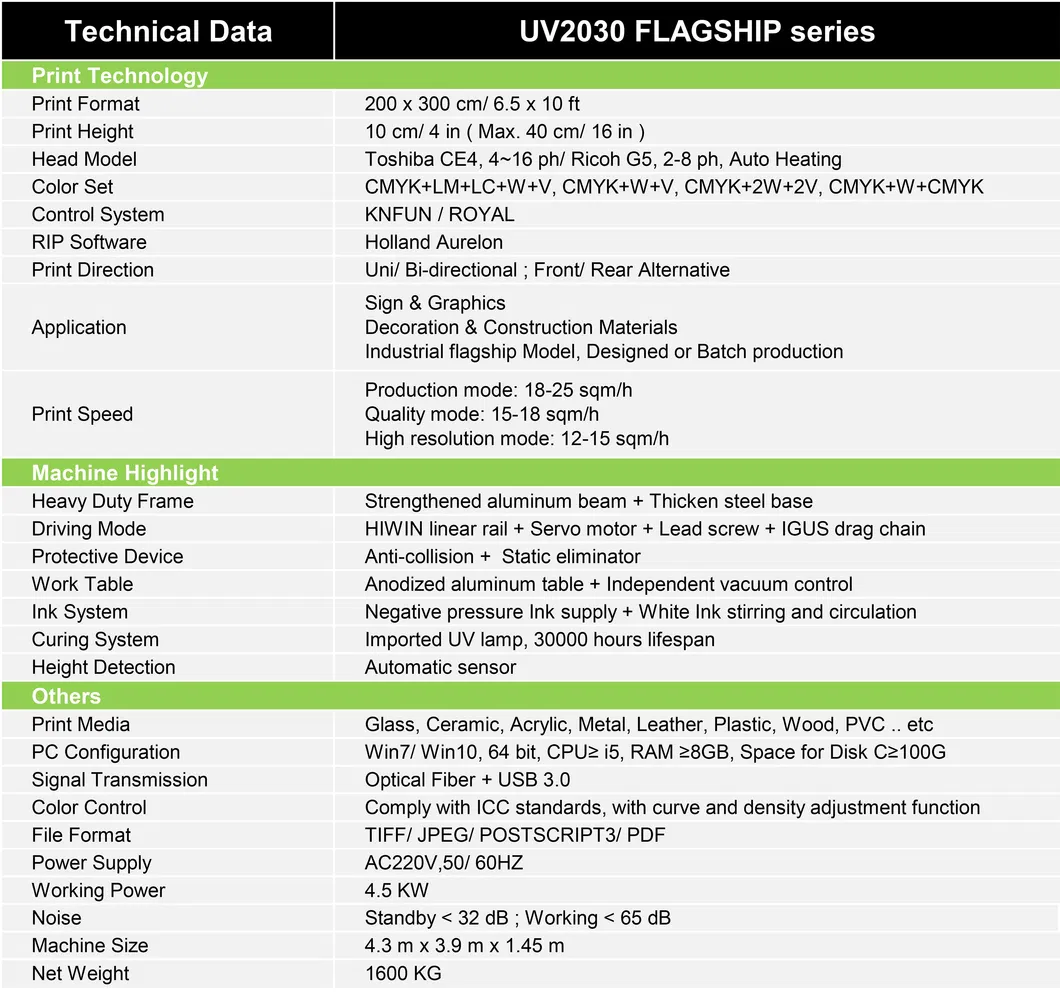

Technical Specifications

Model NO.
2030
Plate
Lithography Printing
Structure
Flat-Bed Cylinder Press
Color & Page
Multi-Colour Printing Press
Usage
Paper, Label, Card, Cloths, Decoration Industry
Automatic Grade
Automatic
Printing Interface
USB3.0
Printing Speed
15-35 Sqm/H
System Supported
Windowsxp64
Print Head
2-8 PCS Ricoh G5
Resolution
720*1200 Dpi
Max.Print Size
2*3 M
Ink Type
UV Curable Ink
Certificate
CE, ISO9001

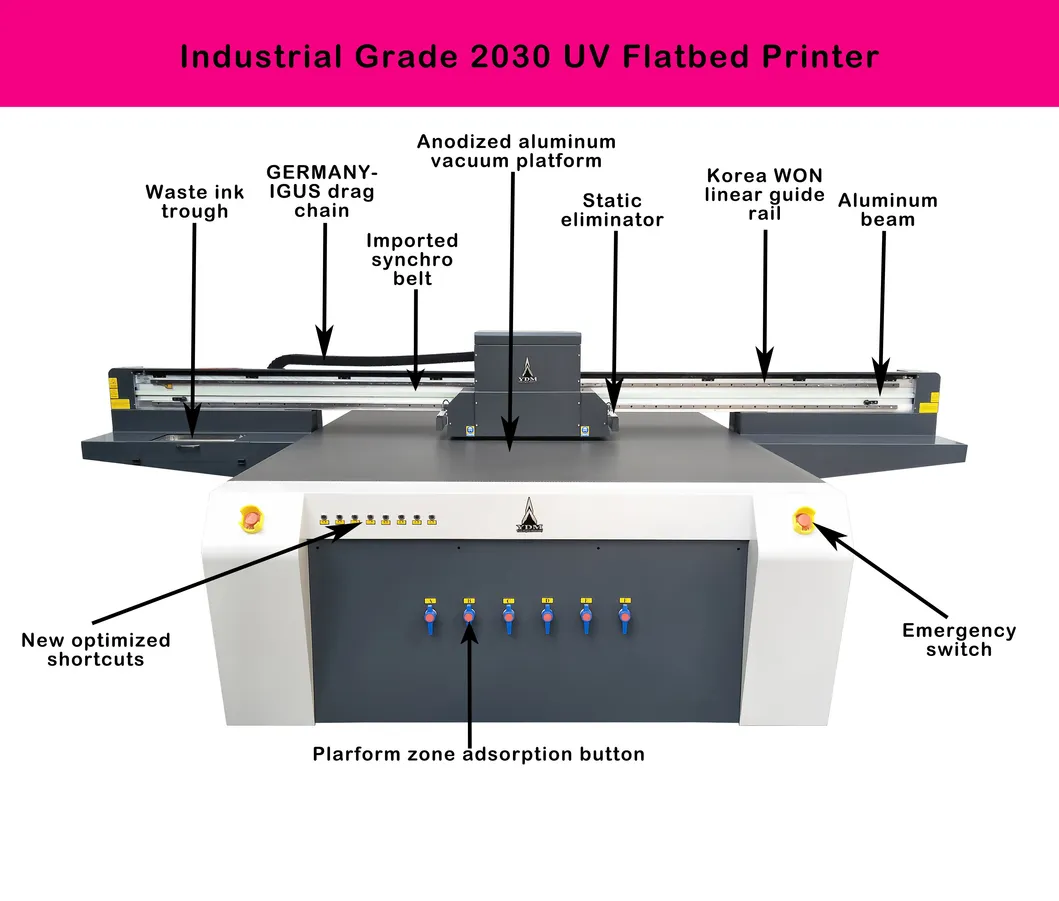

Industrial UV Flatbed Printer Features

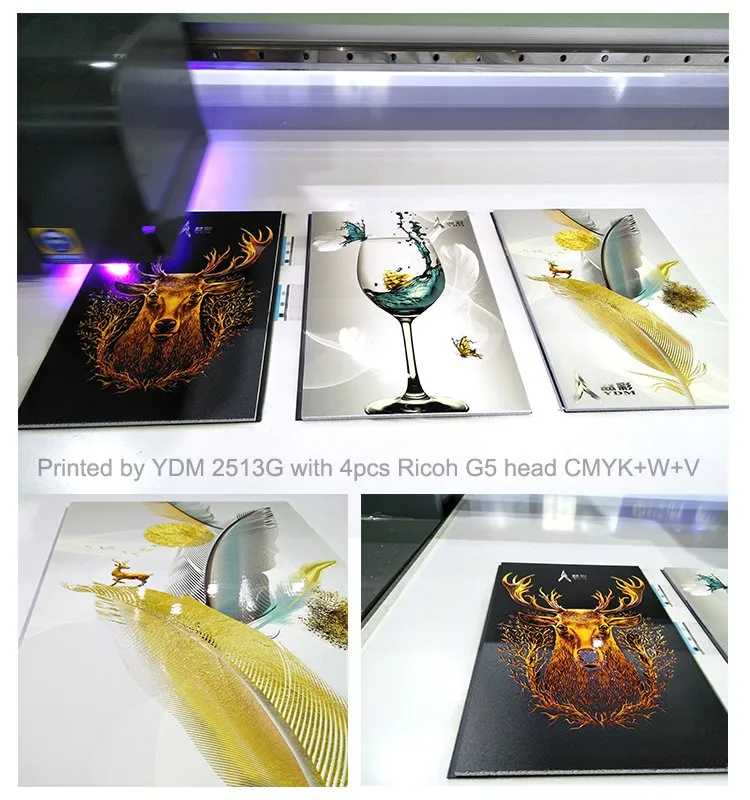

Ricoh Gen5 Printhead Digital 2030 UV Flatbed Printer provides high-speed, personalized, and high-resolution printing solutions for a wide range of flat materials. This versatile system is ideal for industrial applications including Acrylic, Metal, Glass, PVC/PP board, Wood, and Phone cases. For cylindrical objects like bottles, a rotary attachment can be easily integrated.

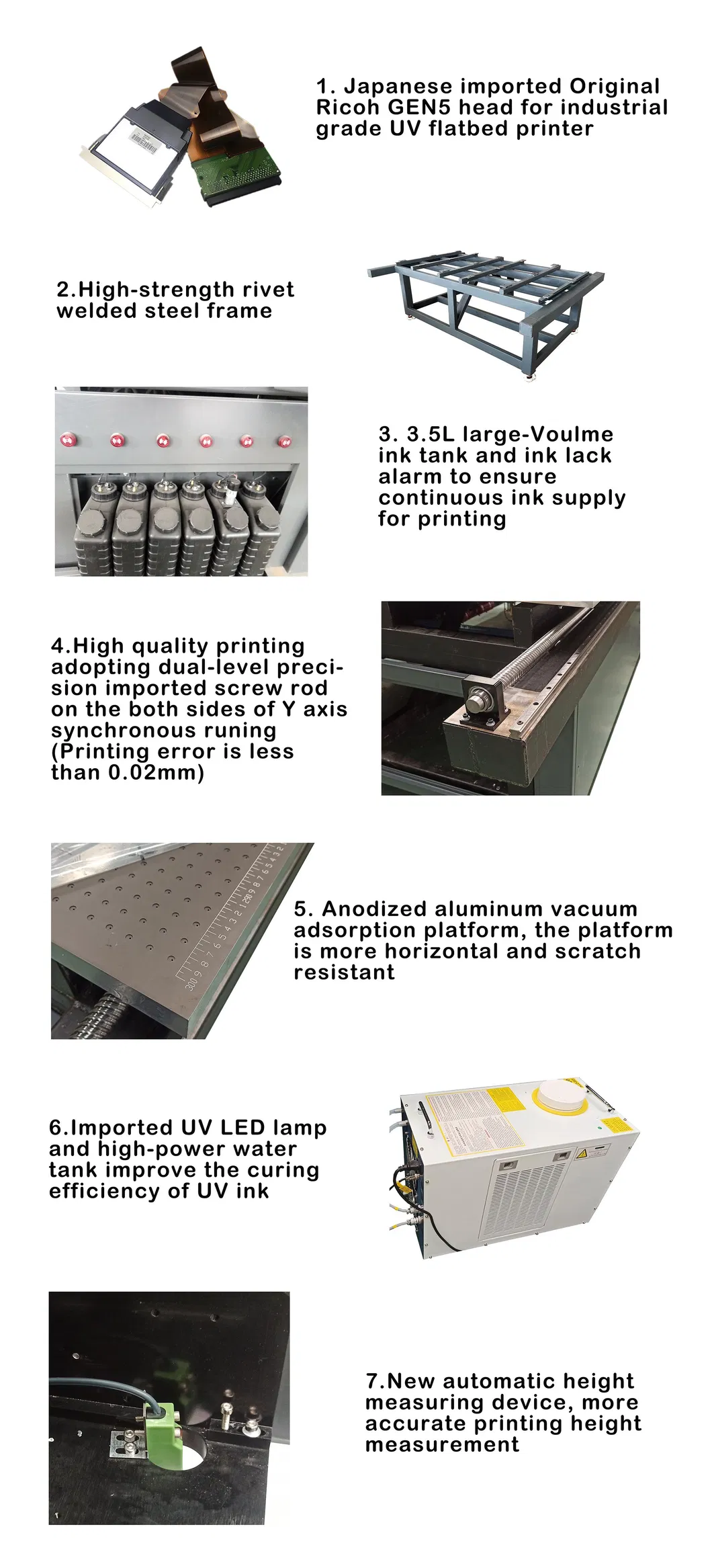

  • Japanese imported Original Ricoh GEN5 head for industrial-grade durability.
  • CMYK, W, LC, LM, and Varnish options for superior surface finishing.
  • High precision dual-level screw rod on Y-axis (error less than 0.02 mm).
  • Auto height detection technology for seamless media thickness adjustment.
  • Automatic anti-static design to prevent dust and ink drop deviation.
  • Advanced print head anti-crash system to protect against material collision.
  • Rigorous 48-hour continuous printing fatigue test ensuring 24/7 reliability.

Professional Printing Solutions

With a focus on "Precision, Efficiency, and Stability," our machinery has been exported to over 50 countries including the USA, Russia, India, France, and Turkey. We are committed to digital printing innovation and helping customers succeed in the high-end printing industry.

Main Business Scope:

  • Industrial UV flatbed printers
  • Small format UV flatbed printers
  • Eco-solvent Inkjet printers
  • Large format UV Inkjet printers
  • Heavy duty Roll to Roll UV printers
  • Automatic CNC routers

Frequently Asked Questions

What materials can this UV flatbed printer work with?
The printer is designed for various flat materials including Acrylic, Metal, Glass, PVC, Wood, and Phone cases. It can also print on bottles with an optional rotary attachment.
What is the maximum print size and speed?
The maximum print size is 2*3 meters. The printing speed ranges from 12 to 83 Sqm/H depending on the resolution and pass settings.
Which print head technology does it use?
It utilizes 2-8 pieces of Japanese imported Original Ricoh GEN5 print heads, known for industrial-grade stability and precision.
Does the machine support white ink and varnish?
Yes, it supports CMYK + White + Varnish, as well as LC and LM options to achieve high-quality embossed effects and glossy finishes.
How does the machine ensure printing accuracy?
It adopts a dual-level precision screw rod system on the Y-axis, ensuring a printing error of less than 0.02 mm for synchronous running.
What kind of maintenance support is provided?
We offer free online guidance and installation support. The machine is also equipped with anti-static and anti-crash systems to minimize maintenance risks.
