24 Inch Flat Panel Whiteboard Interactive Touch Screen Smart White Board for LCD Display Digital

1 / 5

24 Inch Flat Panel Whiteboard Interactive Touch Screen Smart White Board for LCD Display Digital

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

CIN240AP-3K1-CNA6

Application

Public Information Inquiry System

Screen Type

Infrared

Resistive Type

Digital

Customized

Available

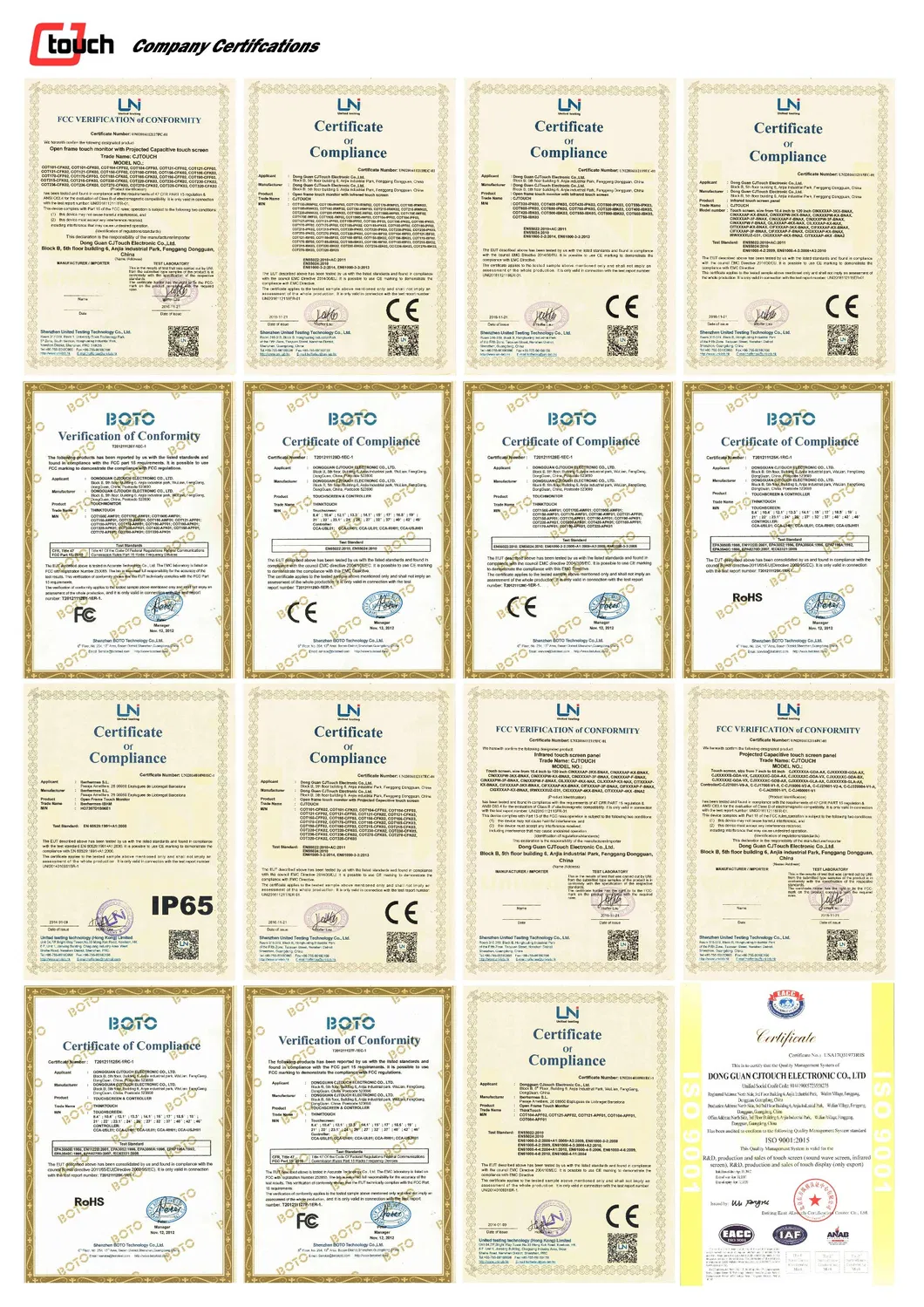

Certifications

CE, FCC

Glass

4mm Tempered Glass

Warranty

1 Year

Operate System

Windows 7, 8, 10, Android, Linux

Touch Points

6 Touch Points

Origin

China

HS Code

8471609000

Packaging & Delivery

Package Size

68.00cm * 35.00cm * 17.00cm

Gross Weight

10.000kg

Capacity

200 units/Week

Product Description

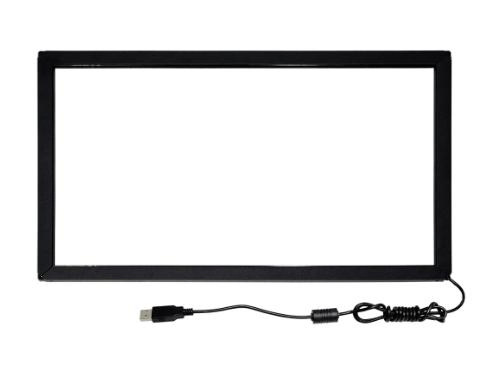

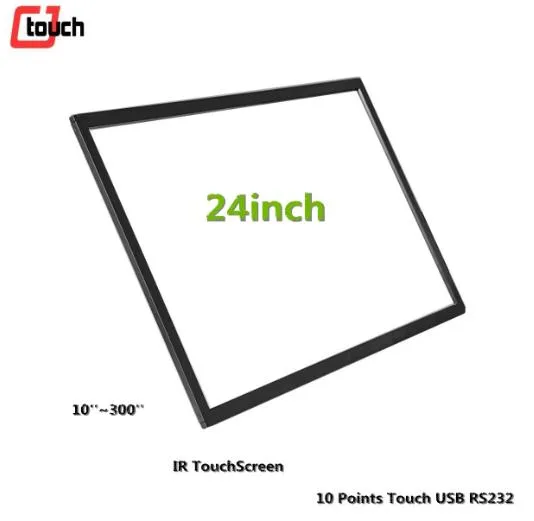

24" Infrared Touch Multi Touch Screen with Vandal Proof Glass

Supports 10 Touch Points for high-performance interactive displays.

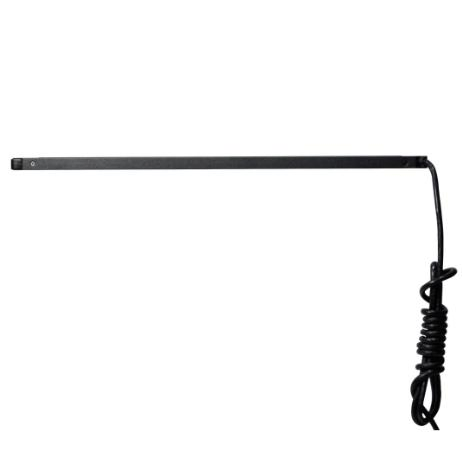

MECHANICAL SPECIFICATIONS
P/N	CIN Slim series
Overlay Thickness	7.9 mm
Overlay Frame Width	18.5 mm
Housing	Aluminum frame / Plastic frame

TOUCH CHARACTERISTICS
Input Method	Finger or touch pen
Touch Points	NA2=2, NA4=4, NA6=6 Points
Position Accuracy	1mm
Resolution	4096(W) × 4096(D)
Response Time	Touch: 6ms / Drawing: 6ms
Glass	3mm glass Transparency: 92%
Touch Intensity	Over 60 millions single touch

ENVIRONMENT & ELECTRICAL
Operating Voltage	DC 4.5V ~ DC 5.5V
Power	1.0W (100mA at DC 5V)
Temperature	Operating: -10 °C ~ 60 °C / Storage: -30°C ~ 70 °C
Humidity	Operating: 20% ~ 85% / Storage: 0% ~ 95%

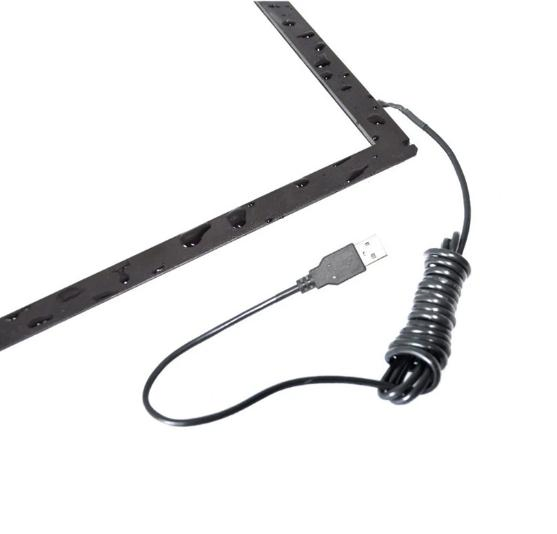

Seal Ability	IP64 Anti-Spill (Customizable to IP65 Waterproof)
Interface	USB 2.0 full speed

Frequently Asked Questions

What touch technology does this 24" screen use?

It utilizes advanced Infrared (IR) touch technology, which allows for highly accurate and responsive interactions without needing a specific pressure-sensitive overlay.

Is the screen compatible with multiple operating systems?

Yes, the touch screen is fully compatible with Windows 7, Windows 8, Windows 10, Android, and Linux systems.

How durable is the glass surface?

The product is equipped with 4mm Vandal-proof Tempered Glass, making it highly resistant to impacts and suitable for public inquiry systems.

Can this touch screen be used in outdoor environments?

Yes, it is designed to work directly under sunlight and features an IP64 anti-spill rating, which can be customized to IP65 waterproof standards for outdoor use.

Does it support multi-touch gestures?

The screen supports up to 6 to 10 touch points (depending on the specific configuration), allowing for gestures like pinching, zooming, and multi-user interaction.

What is the response time for touch input?

The response time is a swift 6ms for both initial touch detection and drawing, ensuring a smooth and lag-free user experience.
