3D UV Wall Floor Inkjet Printer HD Wall Clear Image & High Resolution

1 / 5

3D UV Wall Floor Inkjet Printer HD Wall Clear Image & High Resolution

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info & Technical Data

Model NO.

LC-WF Printer

Interface Type

USB

Ink Type

UV Ink

Technics

Continuous Inkjet

Printing Size

2500mm * 6000mm

Ink Color

CMYKWW

Printing Speed

5-15 M²/Hour

Printhead Model

Dx10/Dx7/I1600/I3200

Operating Mode

Liquid Piezoelectric

Trademark

LINCJET

Product Description

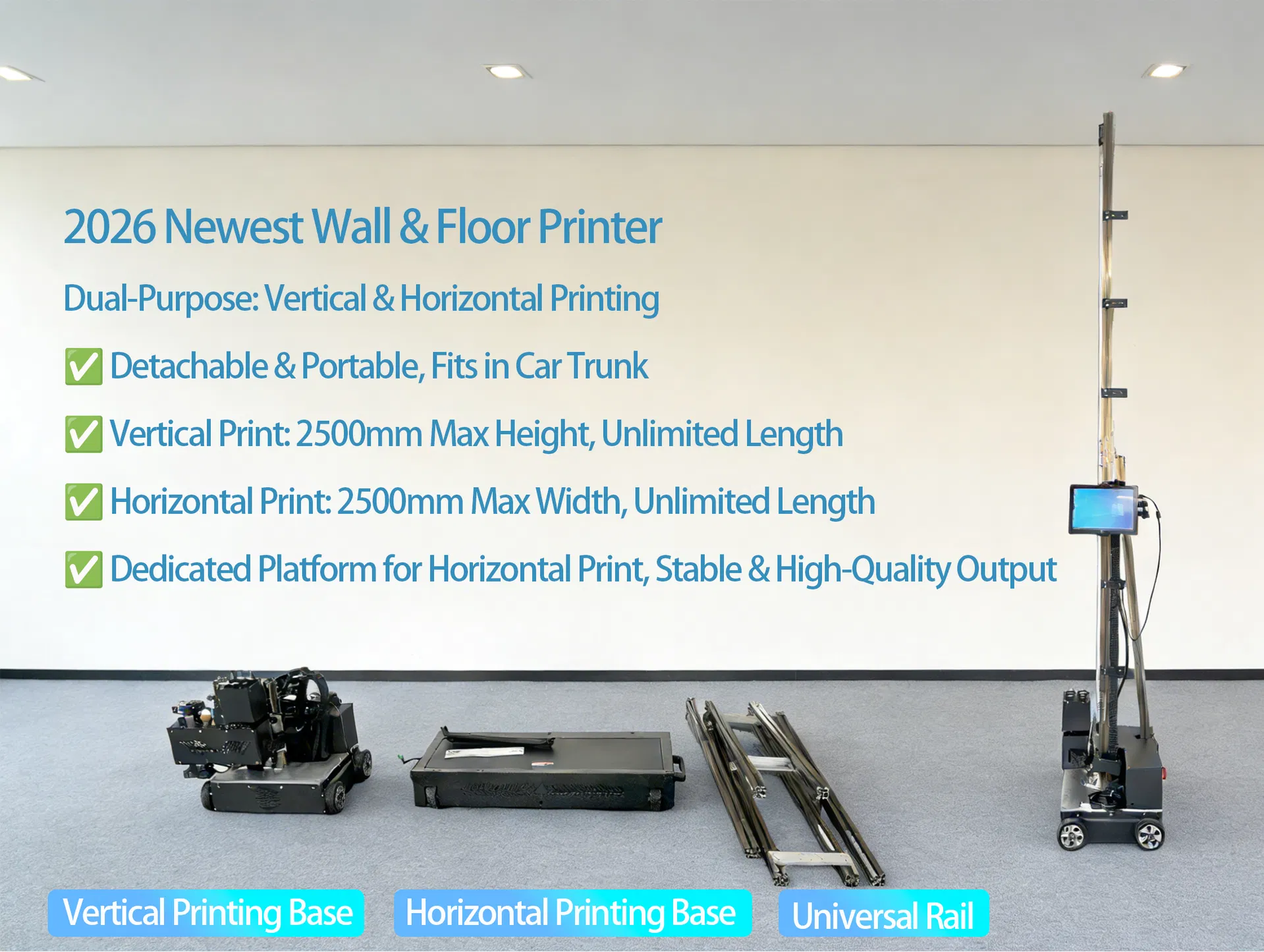

Core Advantages

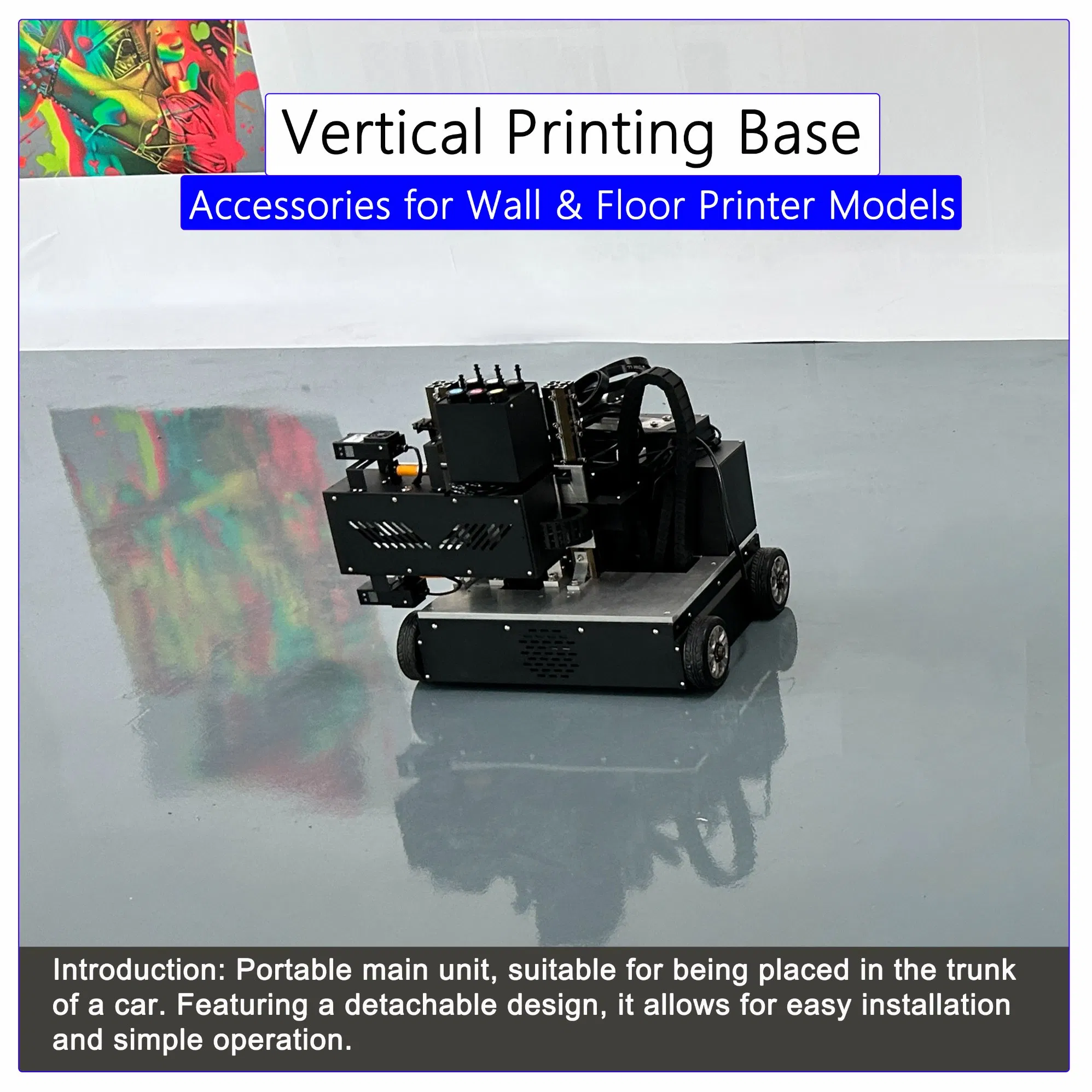

1. Detachable & Ultra-Portable: Features a user-friendly detachable structure for quick assembly and disassembly. Its compact size after dismantling fits easily in a car trunk, ideal for on-site mobile tasks.

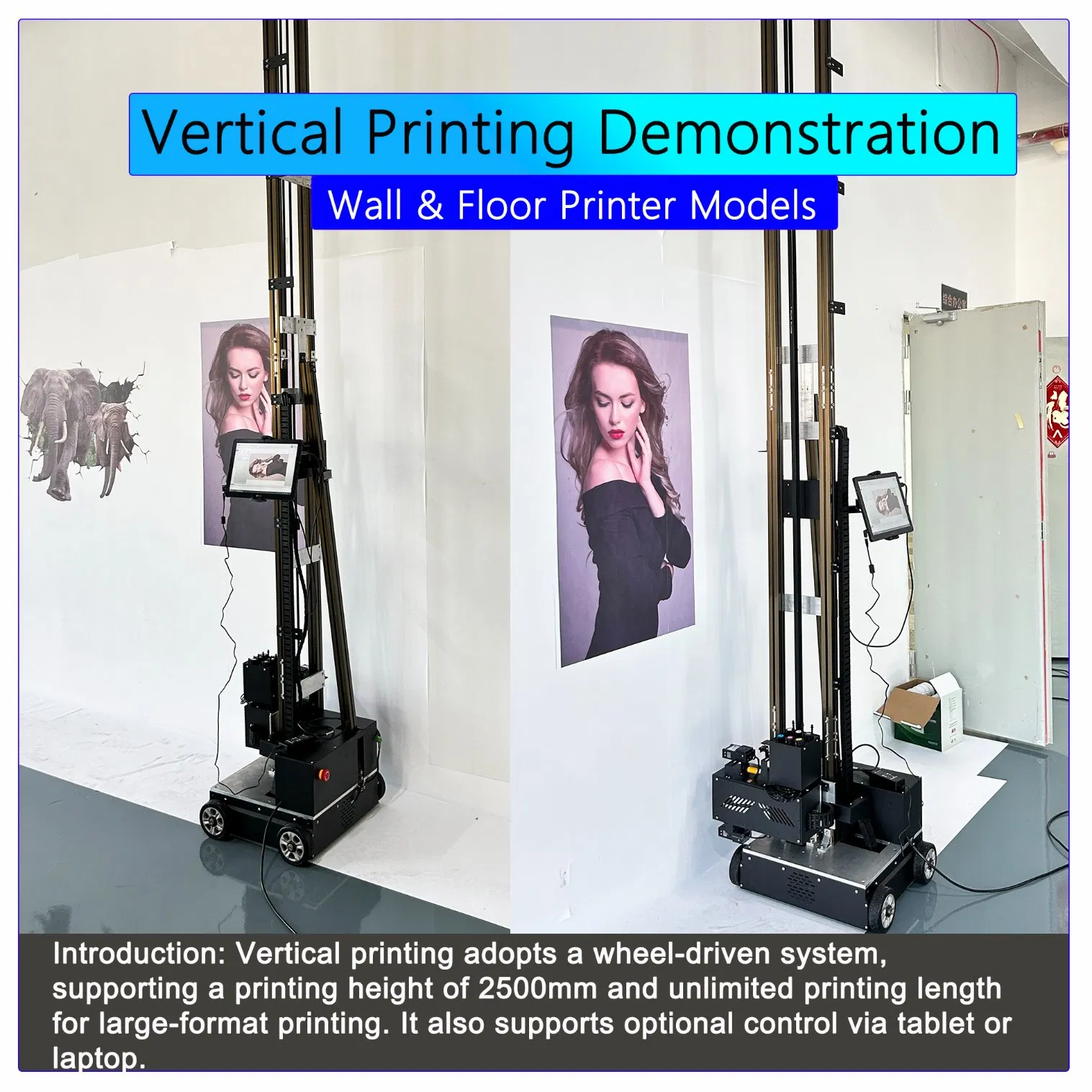

2. Vertical Printing: Max Single-Pass Printing Height 2500mm, Unlimited Length. Supports splicing printing to break height limitations.

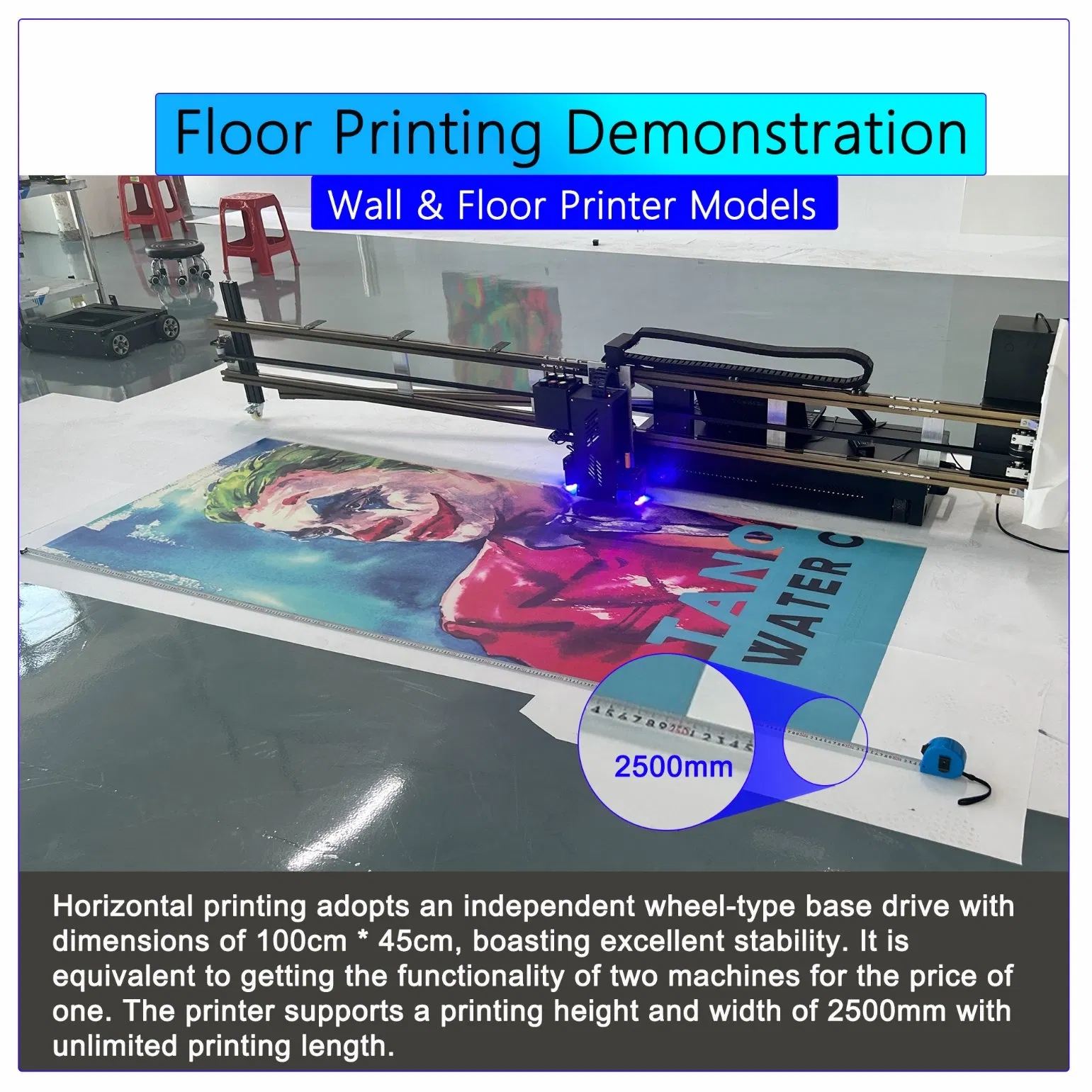

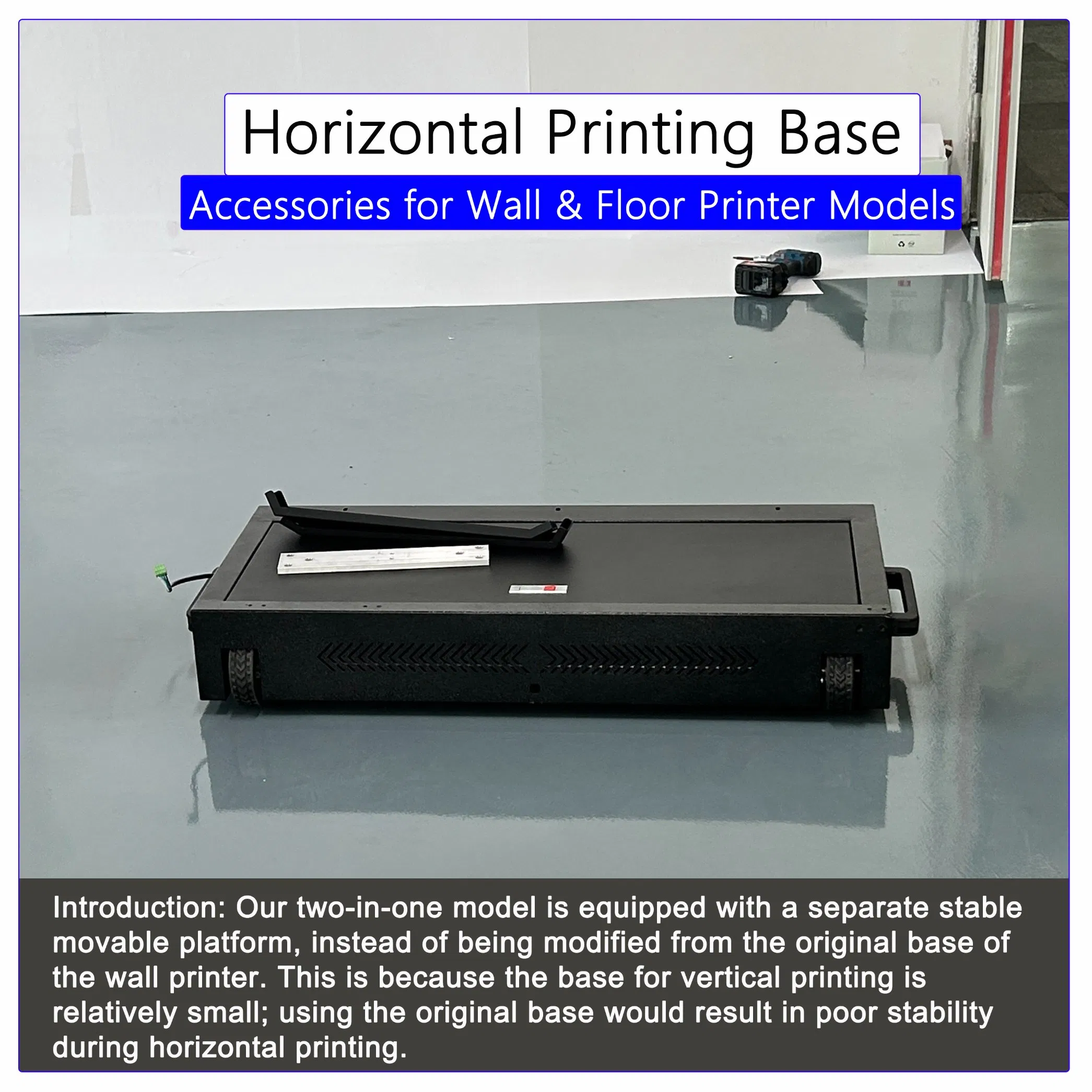

3. Horizontal Printing: Max Single-Pass Printing Width 2500mm, Unlimited Length. Seamlessly adapts to large-area projects like floors and parking lot markings.

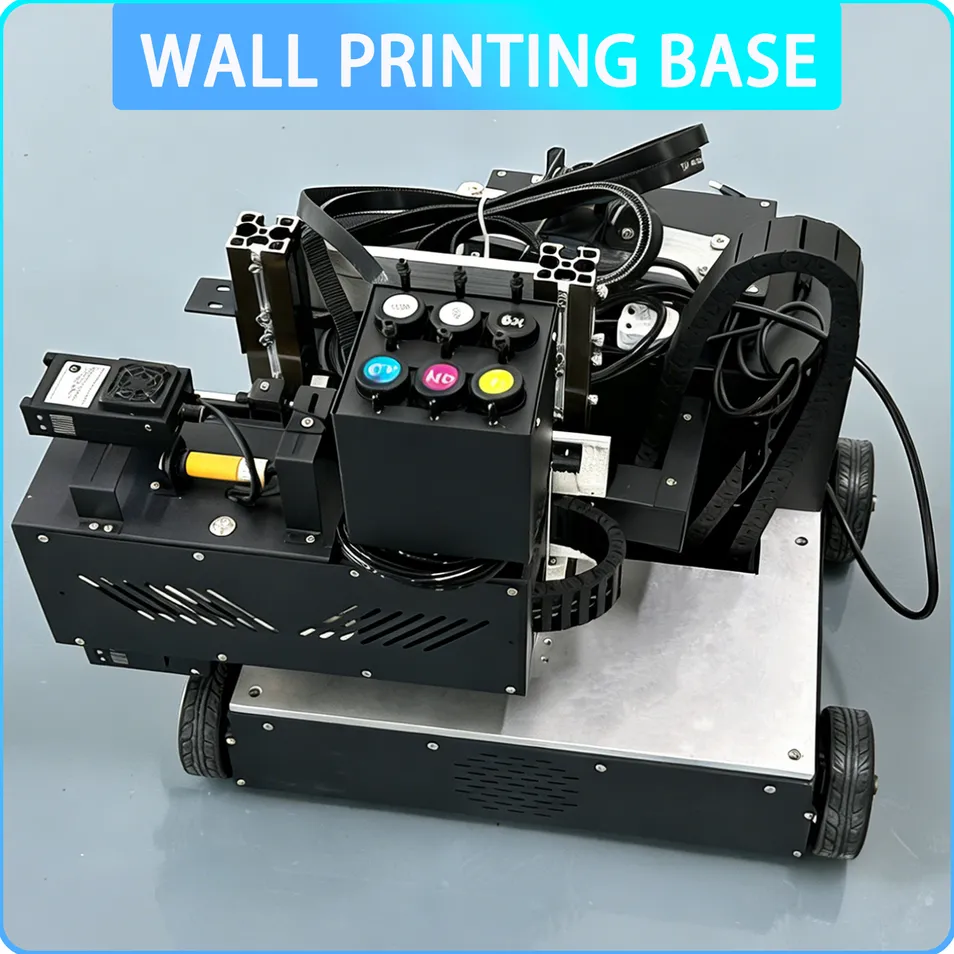

4. Dedicated Mobile Platform: Provides stable support and smooth movement, reducing vibration to ensure precise alignment and clear details.

Specifications

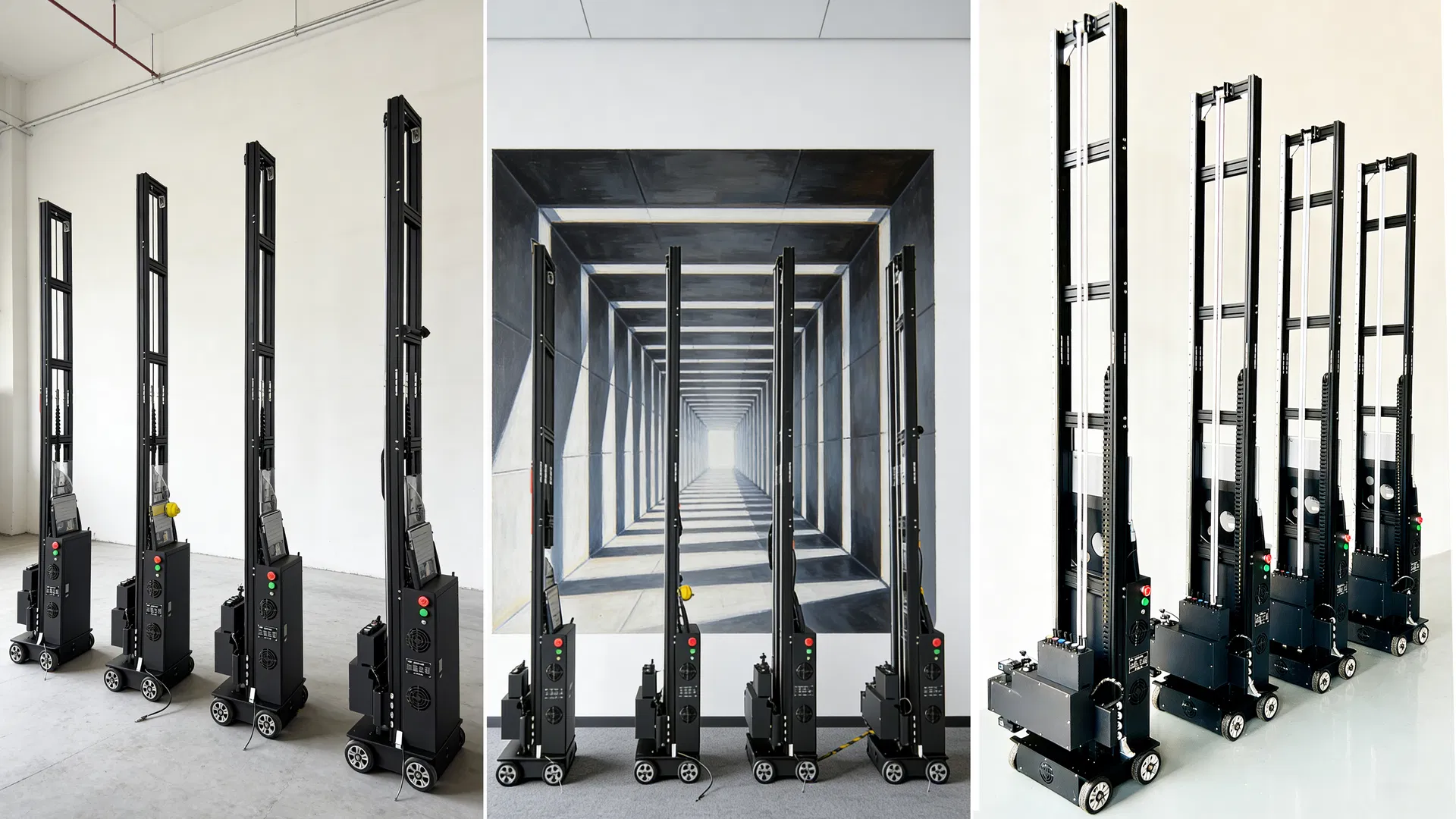

LC-WF Series Wall Floor Printer Models
Machine model	LC-WF-TX800	LC-WF-DX7	LC-WF-1600S
Printhead Model	TX800	DX7-196	i1600-U1*2Pcs
Printing Speed	3-8 m²/h	5-10 m²/h	6-15 m²/h
Machine Ink	UV CMYKW	UV CMYKW	UV CMYK-WWWW
Printing Materials	Any wall surface, tiles, glass, wood boards, PVC, metal, etc.
Warranty Service	2-year warranty for the entire machine

Key Parts & Components

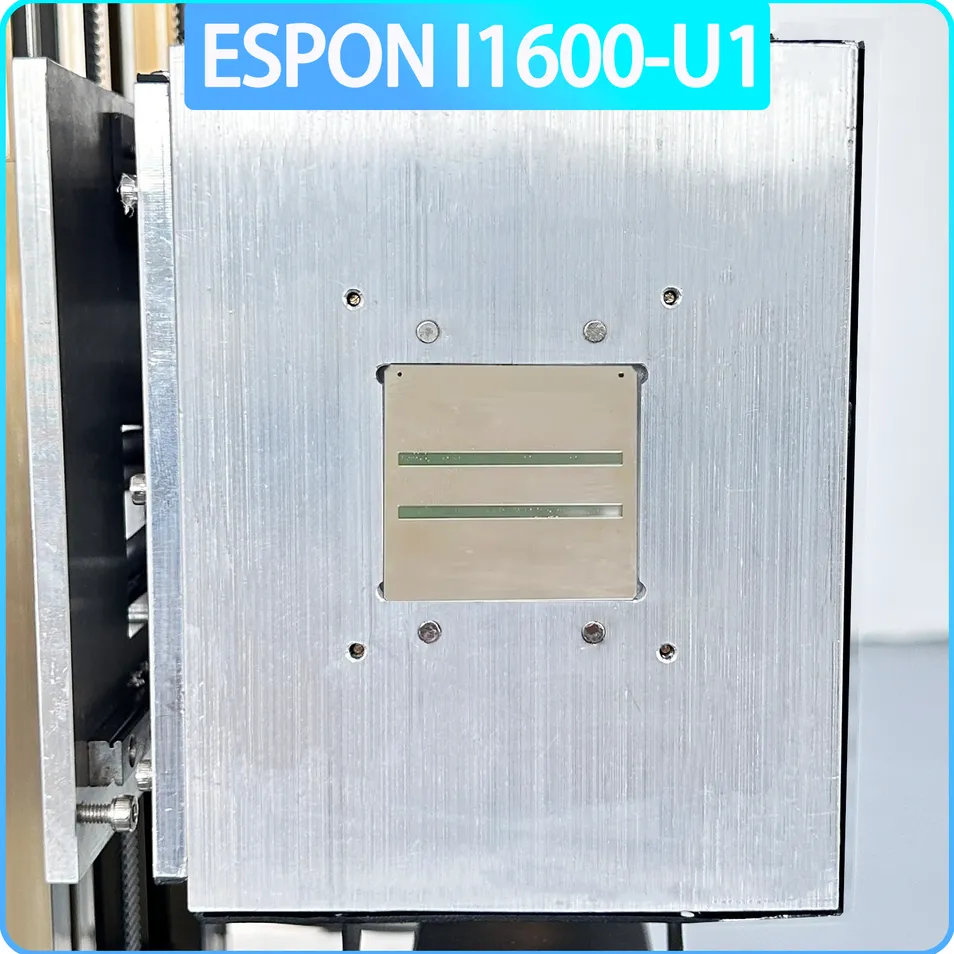

I1600-U1 Printhead

Precision nozzle and ink path design ensures that ink droplets are nearly perfectly round. Supports VSDT Variable Sized Droplet Technology (3.8 to 12pl) for smooth color transitions.

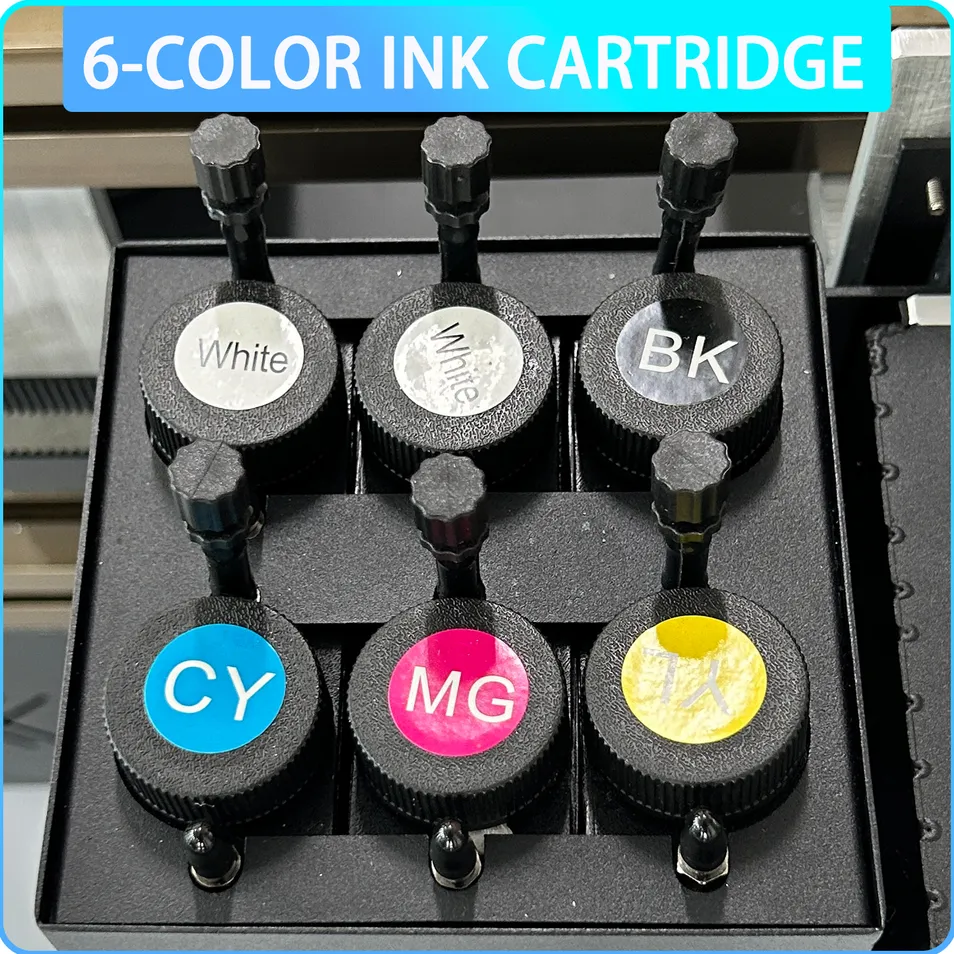

CMYKWW Ink System

Standard CMKYW 5-color combined printing with Continuous Ink Supply System (CISS). Features White Ink Circulation to avoid sedimentation and stable spraying results.

Superior Practical Performance

UV ink enables rapid curing, ensuring printed works are waterproof, sunproof, and wear-resistant. Suitable for transparent or dark substrates.

X-Axis Guide Rail Drive

High-precision guide rail design achieves precise guidance and reduces operational jitter. Extended service life up to 5 years compared to standard rubber wheels.

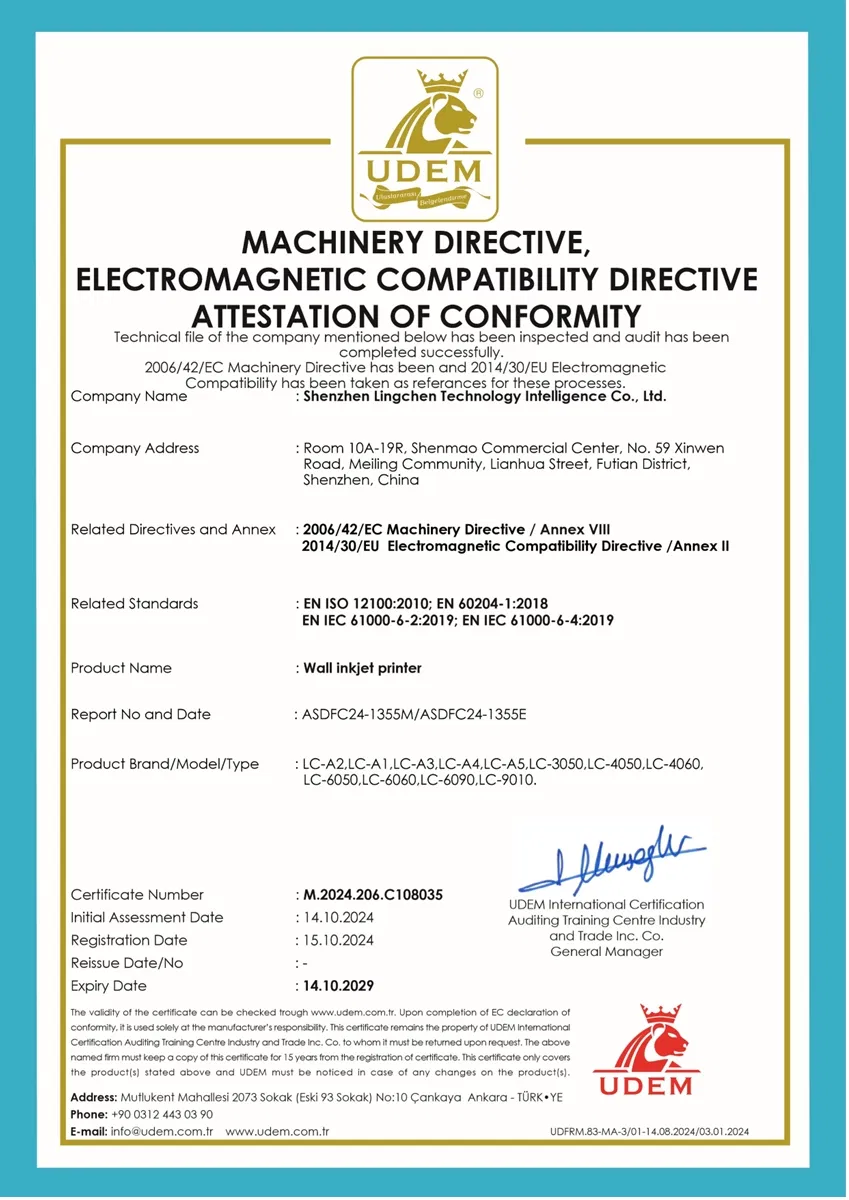

Certifications

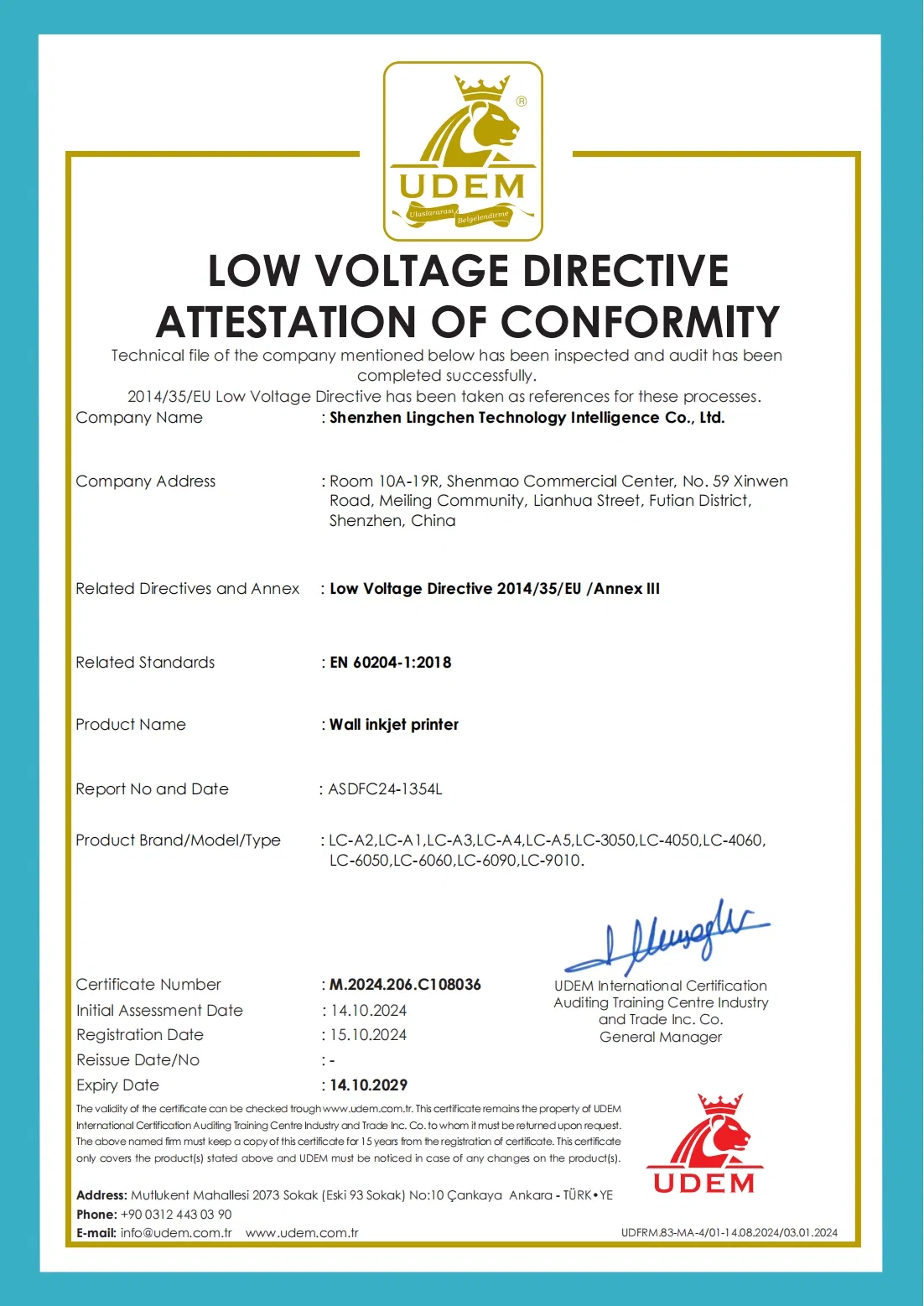

CE-LVD

CE-MD-EMC

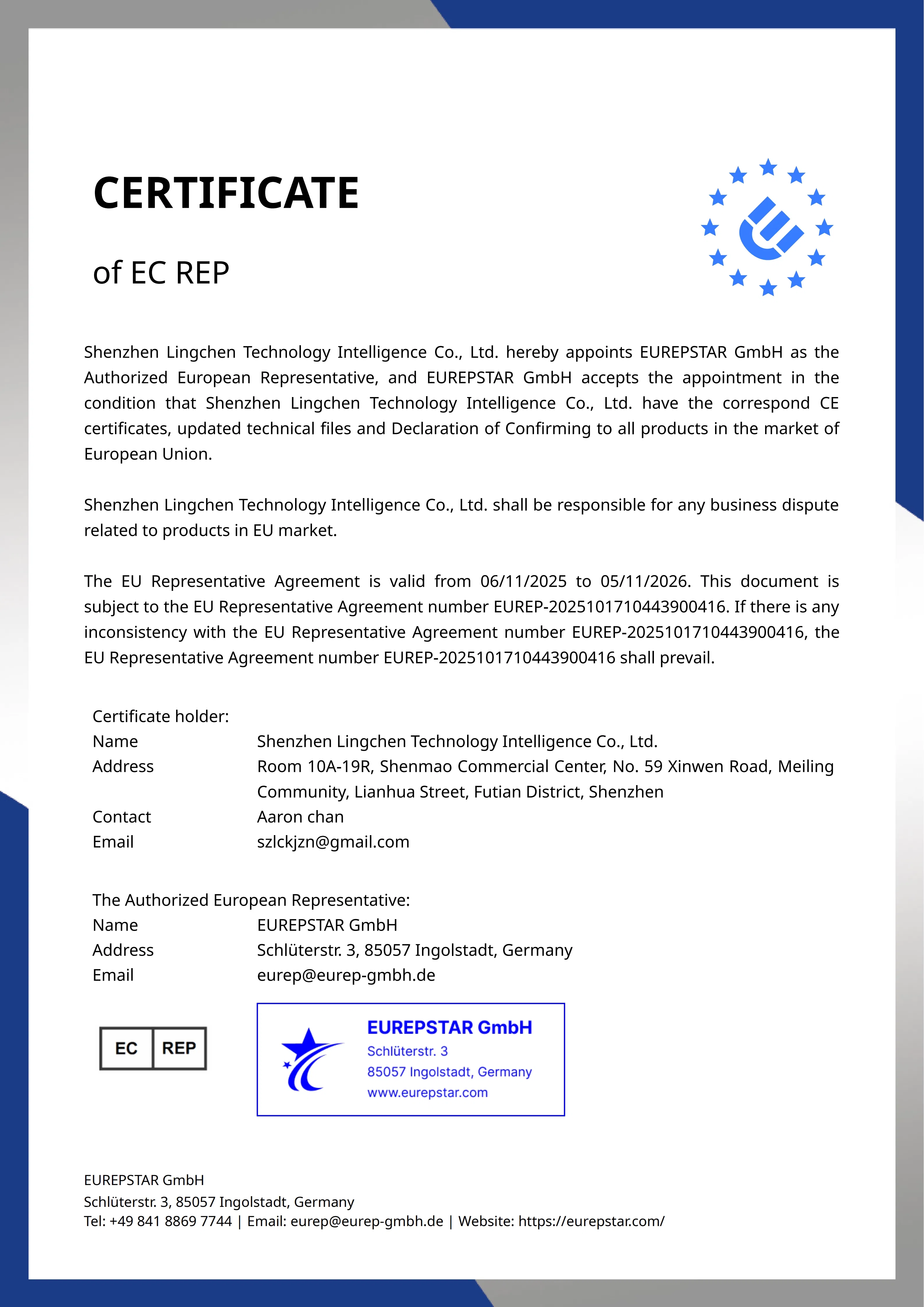

GPSR

Global Product Adaptability

• Global Wide Voltage: Supports 110V-240V input, matching power grid standards worldwide without extra transformers.

• Multi-language System: Operation interface supports over 10 mainstream languages including English, Spanish, German, French, and Arabic.

• Extreme Environment Stability: Specially optimized heat dissipation and protective structure for high temperature or high humidity regions.

Packing & Delivery

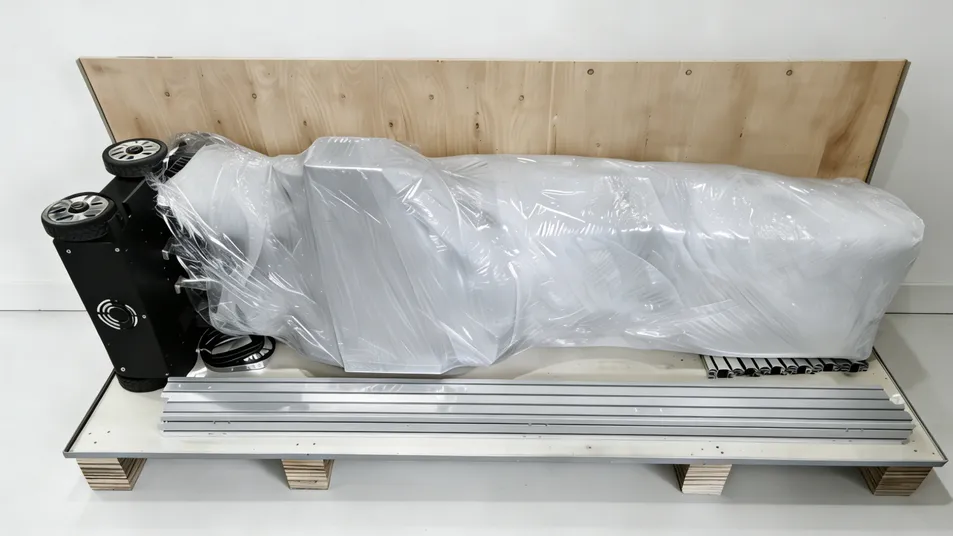

Packaging: High-strength reinforced wooden case with multi-layer shock absorption.

Dimensions: 173 × 63 × 73cm | Weight: 150KG | Volume: 0.8m³

Support: We provide operation test videos and complete packaging process videos before shipment.

Frequently Asked Questions

What is the printing precision and color reproduction quality?

The resolution reaches 1200dpi, supporting pixel-level printing. With CMYK + White ink and PANTONE calibration, the color reproduction rate is ≥ 95%.

What wall materials are supported for printing?

It is compatible with cement walls, latex paint walls, wallpaper, tiles, glass, wood boards, PVC, and metal. We provide preprocessing fluid to improve adhesion on smooth surfaces.

Can the machine handle uneven walls?

Yes. The built-in radar detection system identifies 1-20cm unevenness and adjusts the printhead distance in real-time with 0.1mm precision to prevent collisions.

Is the UV ink environmentally friendly?

Our UV ink is CE and ROHS certified, non-toxic, and odorless. It offers an indoor shelf life of ≥ 20 years and outdoor shelf life of ≥ 3 years.

Is special training required to operate the printer?

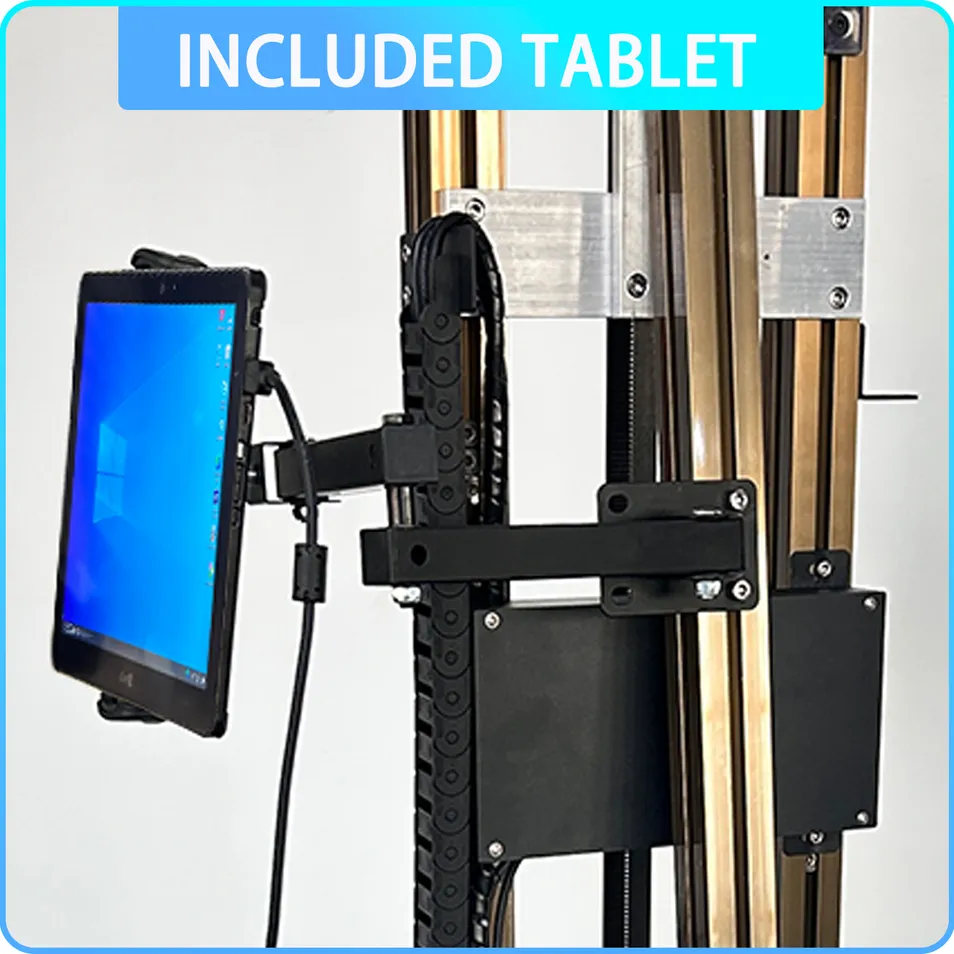

The operation is simple with a visual touch control system. Non-professionals can usually learn to operate the machine within 1-2 hours via our manuals and video tutorials.

What is your warranty and after-sales policy?

We offer a 2-year warranty for the whole machine (excluding consumables like ink and printheads). We provide 7x24h online technical support and remote video guidance.
