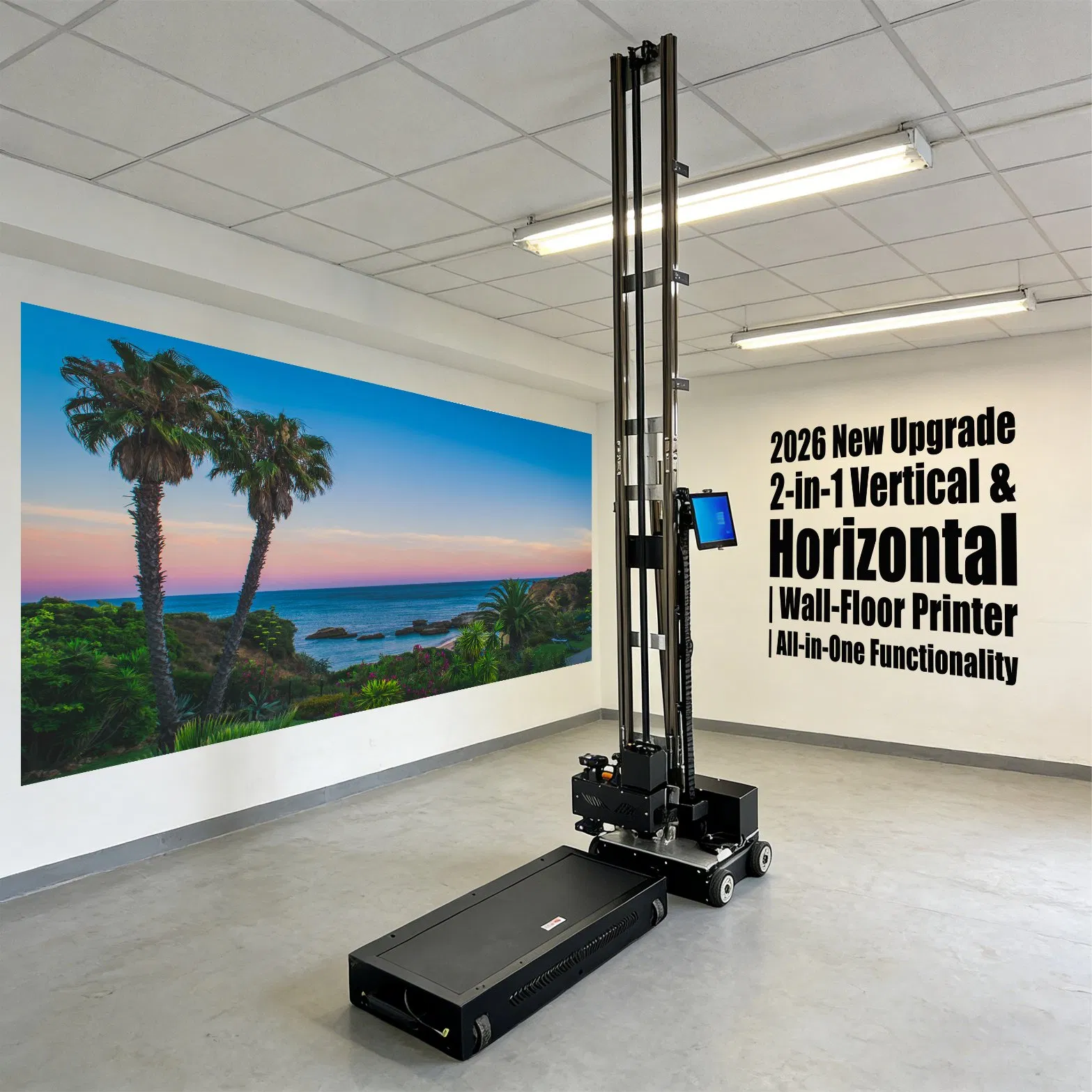

High Resolution Smart Control Accurate Wall and Floor Printer

📋

Basic Specifications

Model

LC-WF Printer

Interface Type

USB

Ink Type

UV Ink (CMYKWW)

Printhead

Dx10 / Dx7 / I1600 / I3200

Printing Size

2500mm * 6000mm

Printing Speed

5-15 M²/Hour

Materials

Wall, Ceramic Tile, Glass, Wood Board, etc.

Operating System

Windows Control

🚀

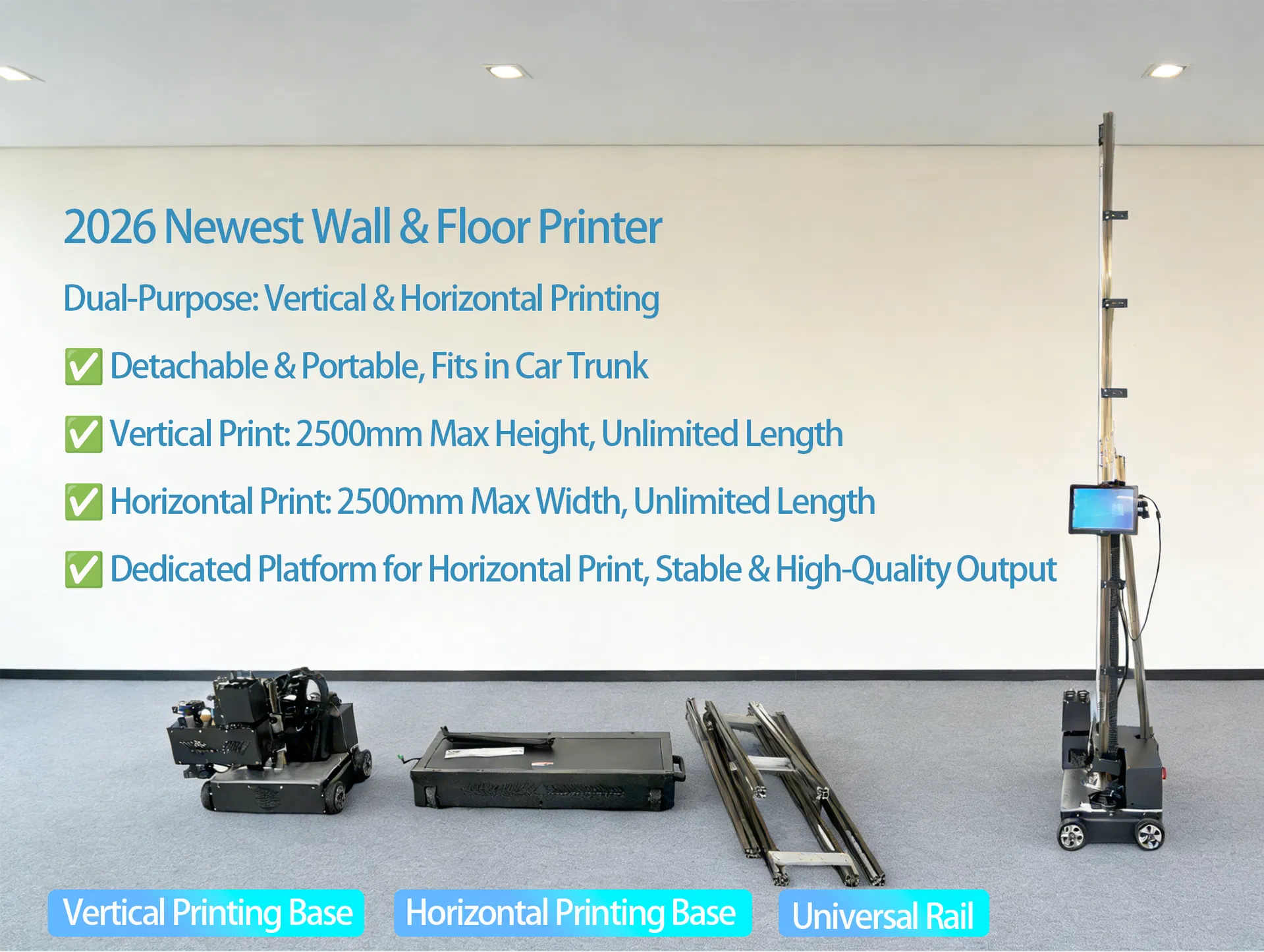

Product Description

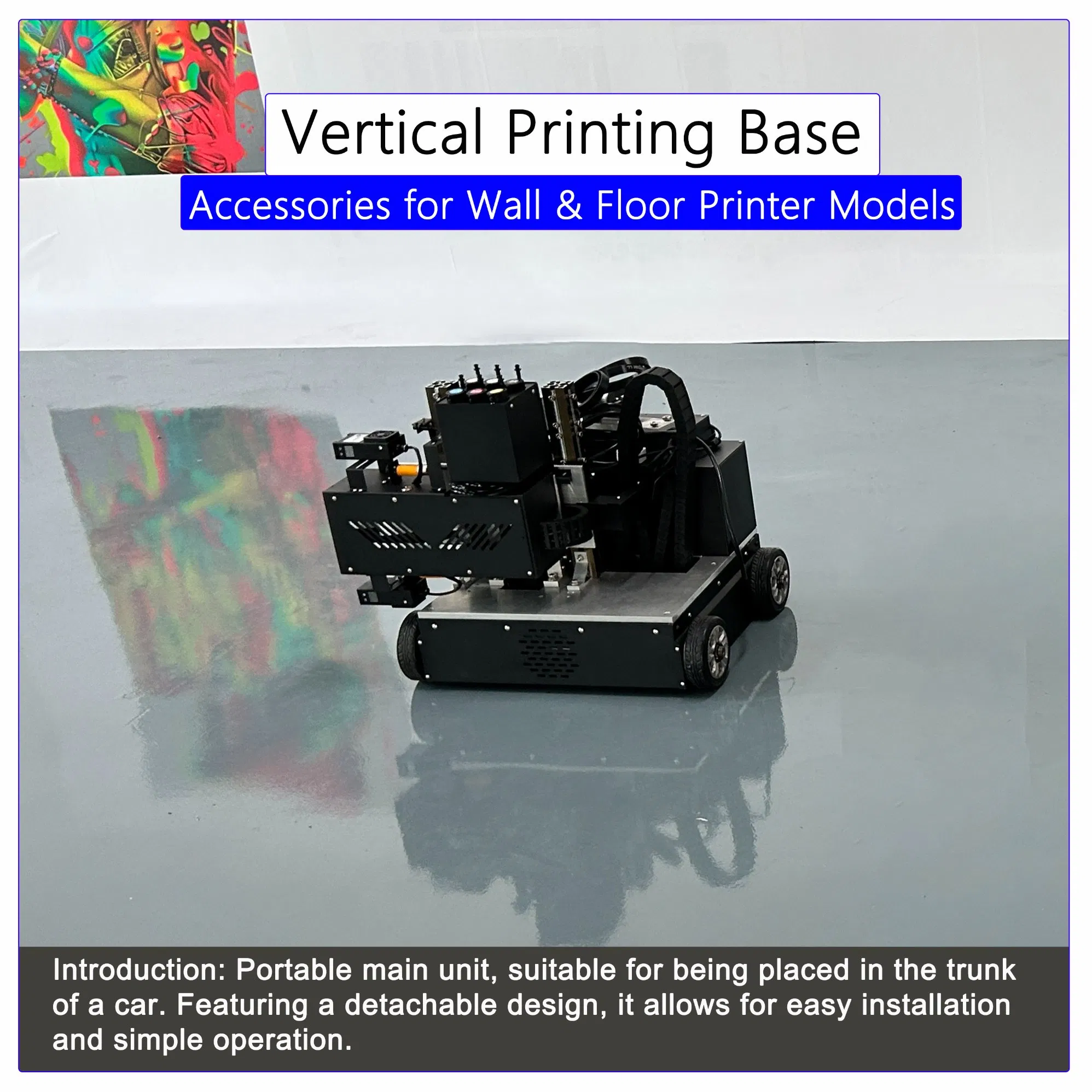

1. Detachable & Ultra-Portable: Features a user-friendly detachable structure for quick assembly. Compact size after dismantling fits easily in a car trunk, ideal for on-site operations.

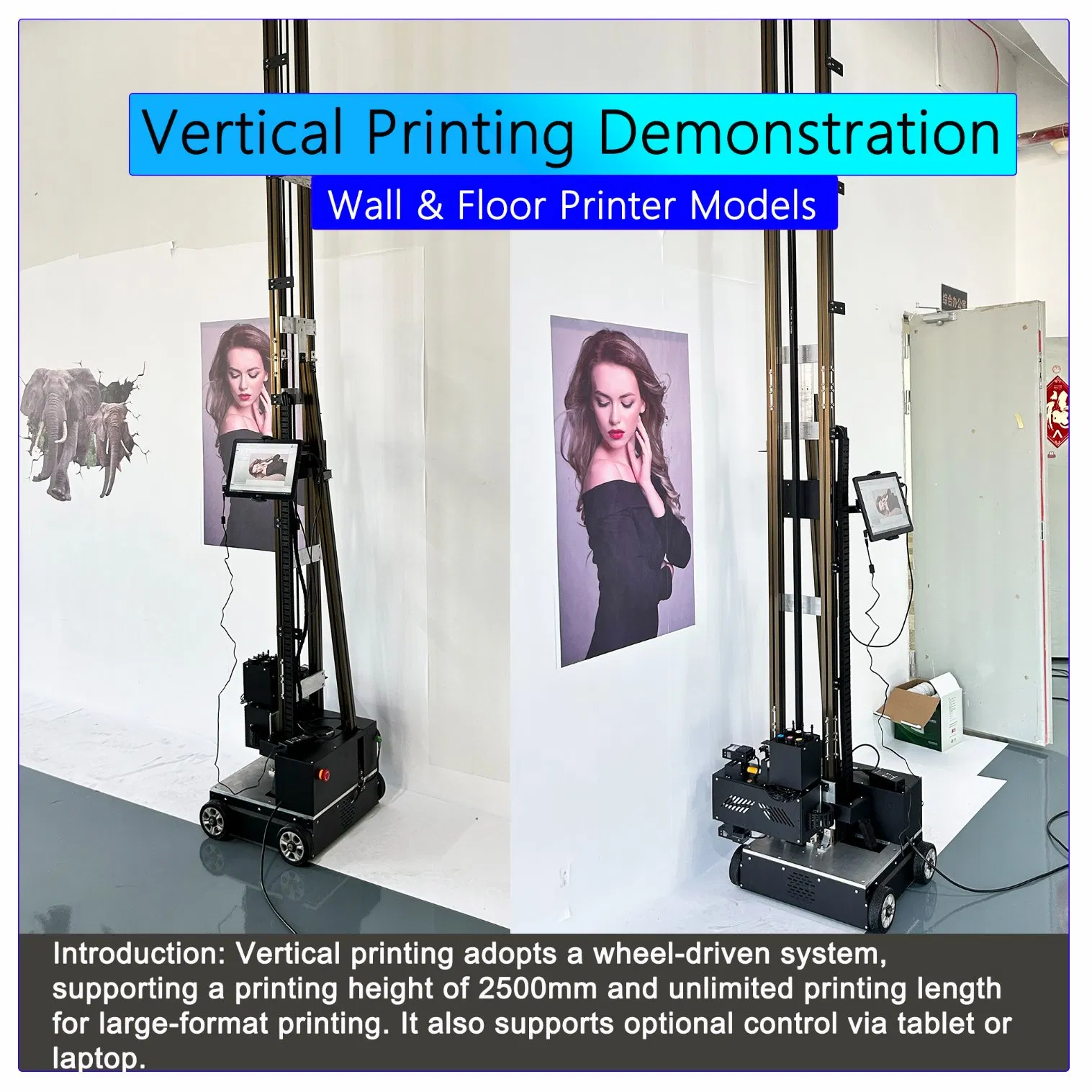

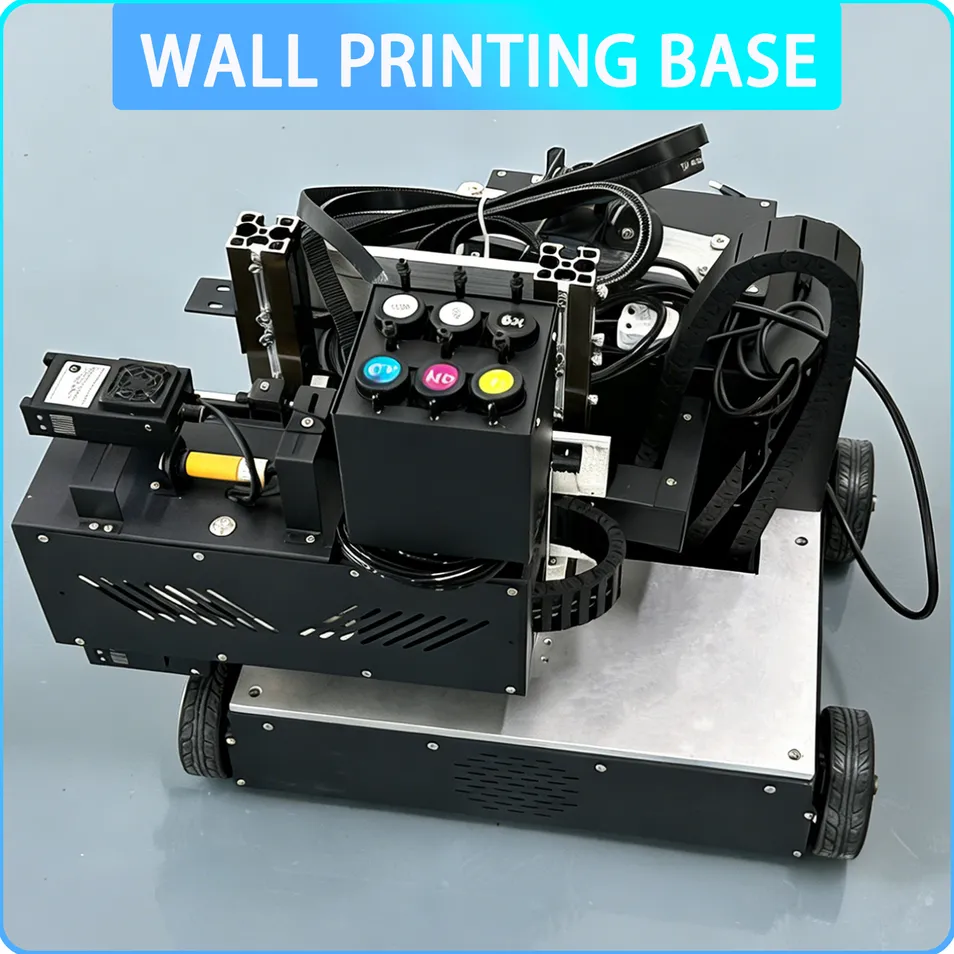

2. Vertical Printing: Max single-pass height 2500mm with unlimited length. Supports splicing to break height limitations for large-scale murals.

3. Horizontal Printing: Max single-pass width 2500mm with unlimited length. Perfect for indoor/outdoor floors, parking lots, and exhibition halls.

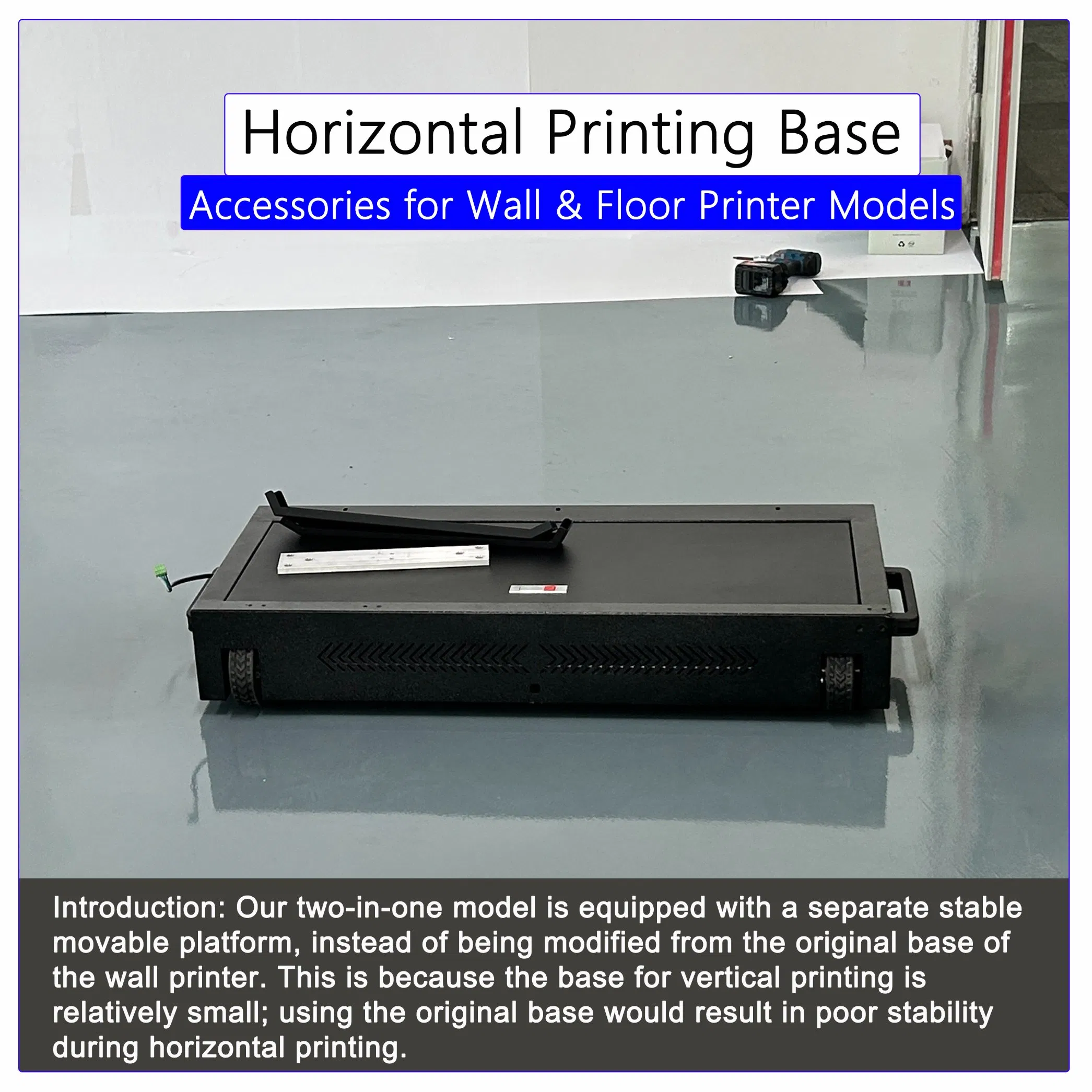

4. Dedicated Mobile Platform: Customized platform provides stable support and smooth movement, ensuring precise alignment and high-definition output.

📊

Technical Specifications

Machine Model	LC-WF-TX800	LC-WF-DX7	LC-WF-1600S
Printhead Model	TX800	DX7-196	i1600-U1*2Pcs
Number of Heads	1	1	2
Printing Speed	3-8 m²/h	5-10 m²/h	6-15 m²/h
Ink System	UV CMYKW	UV CMYKW	UV CMYK-WWWW
Max Size	2000mm*6000mm	2000mm*6000mm	2500mm*6000mm
Resolution	720x720dpi to 1440x2880dpi
Warranty	2-year warranty for the entire machine

🛠️

Key Components

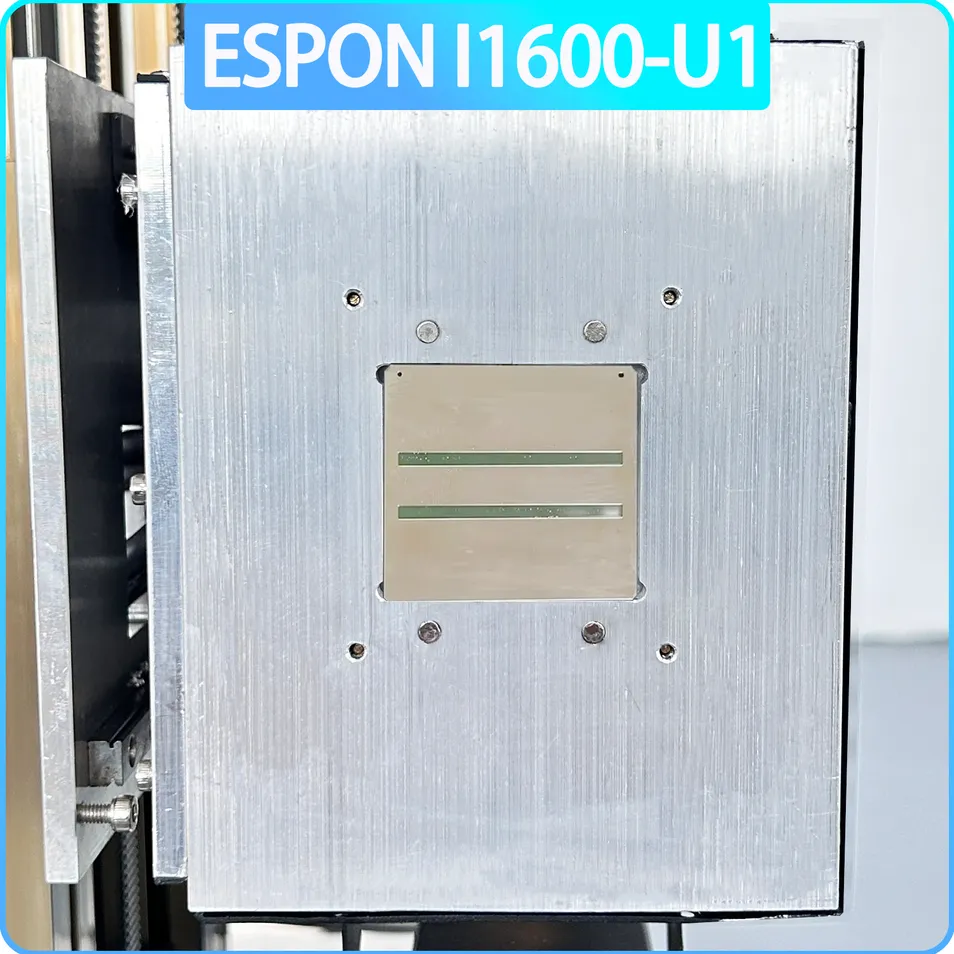

I1600-U1 Industrial Printhead: High-speed jet frequency (43.2kHz) with VSDT Variable Sized Droplet Technology for smooth transitions and delicate detail rendering.

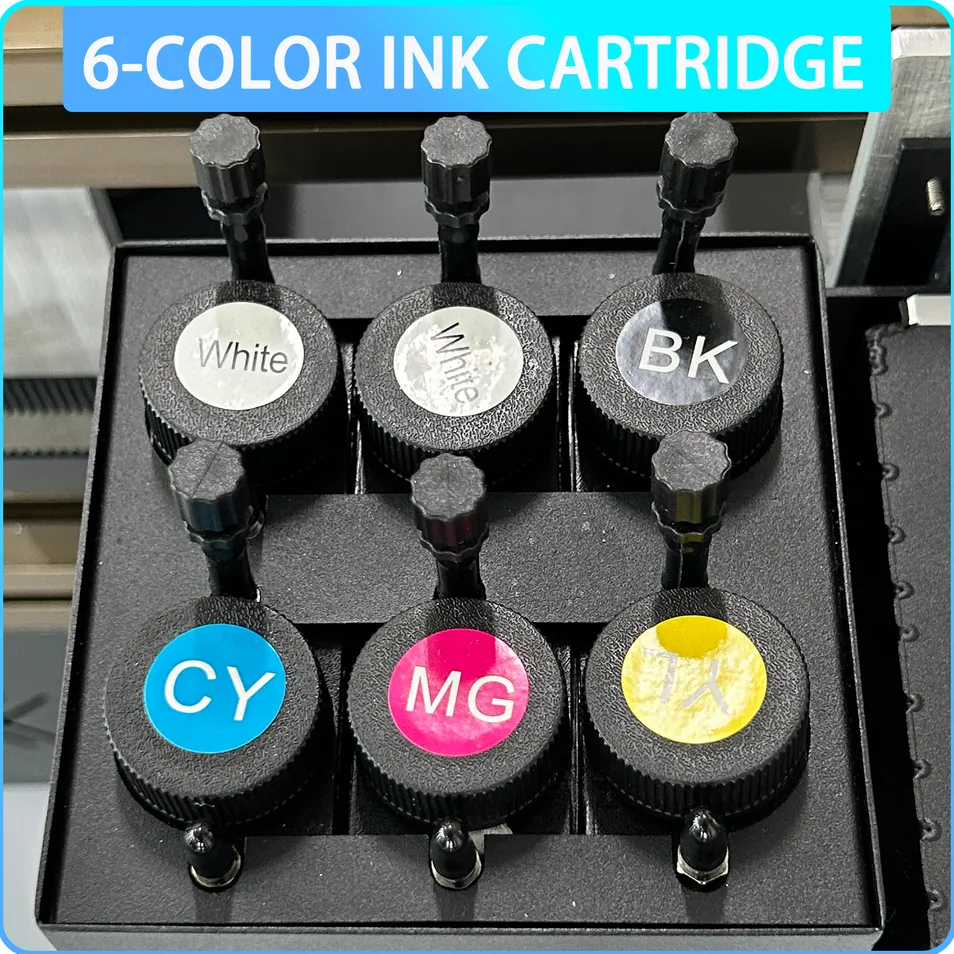

Advanced Ink System: Features White Ink Circulation to prevent sedimentation and Ink Level Detection with low-ink alarms for consistent production.

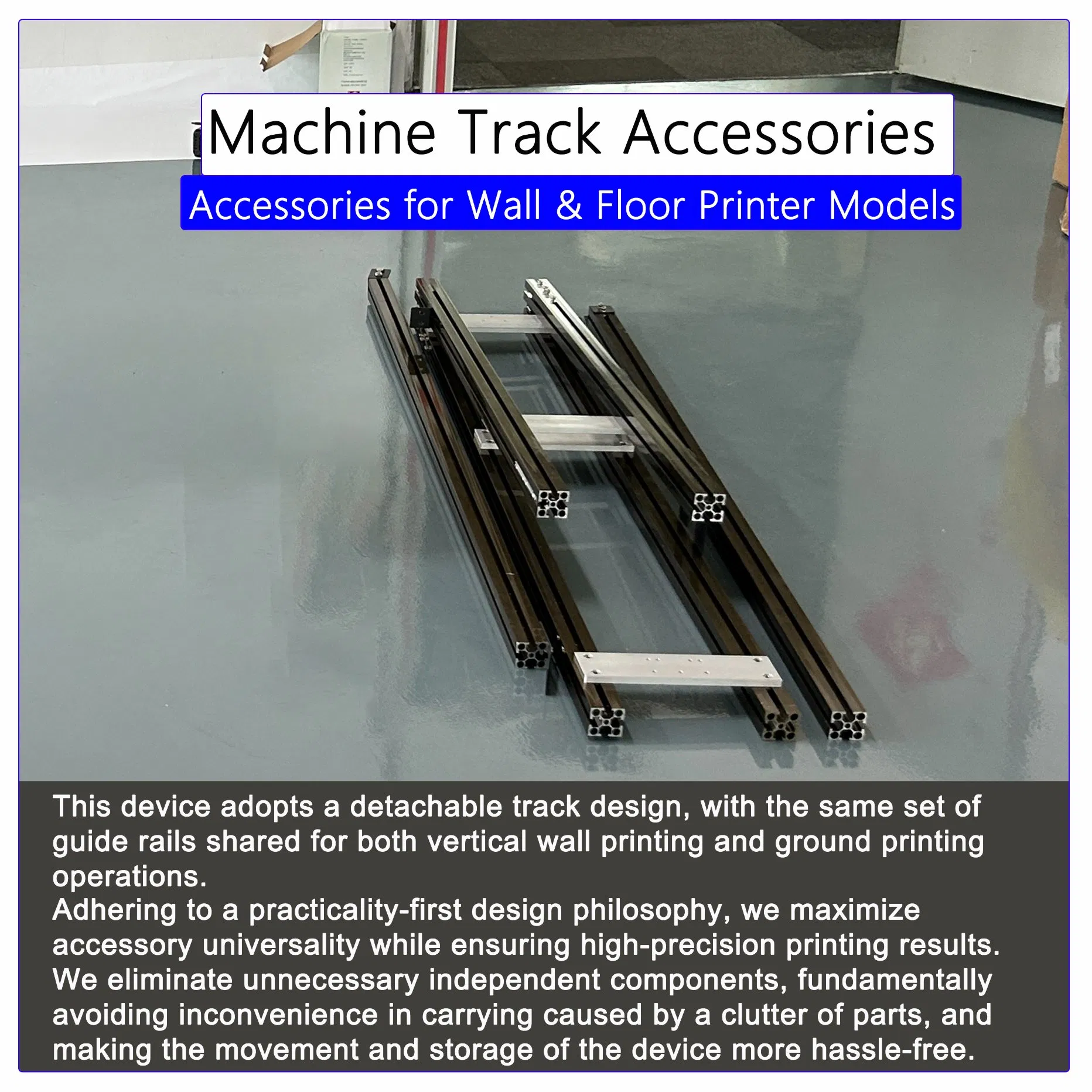

X-Axis Guide Rail: High-precision rail design significantly reduces operational jitter compared to rubber wheel alternatives, ensuring a 5-year service life.

🛡️

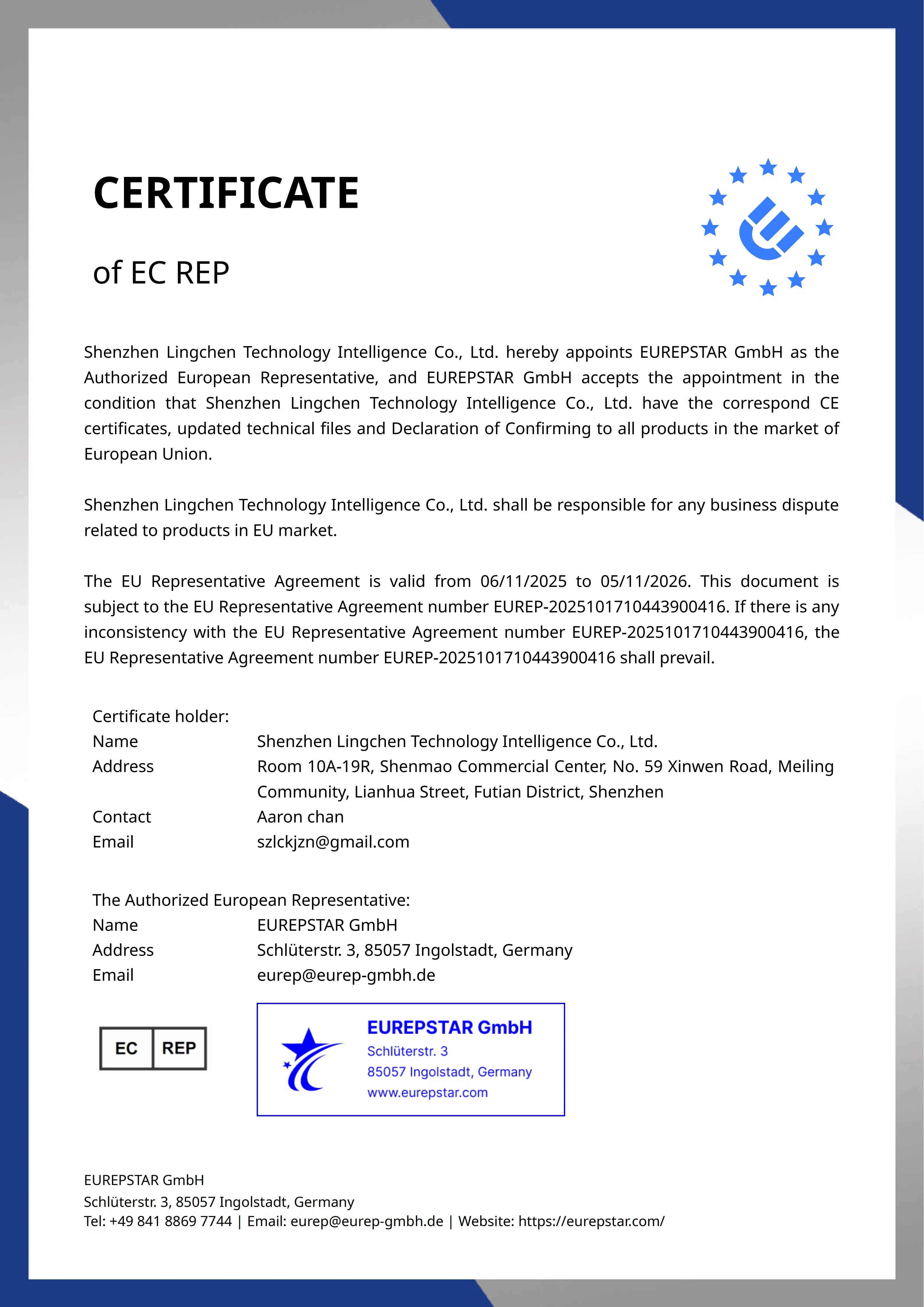

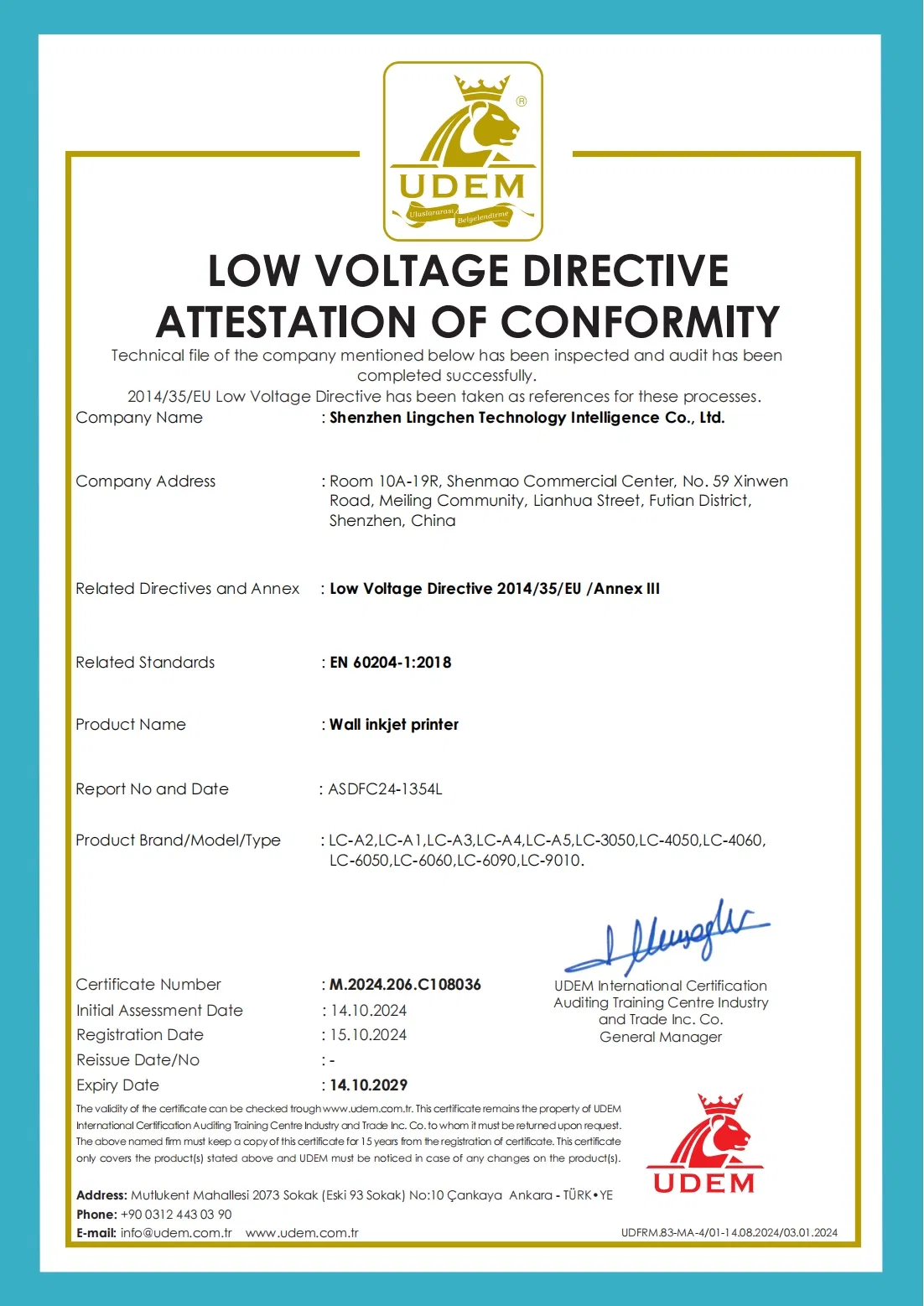

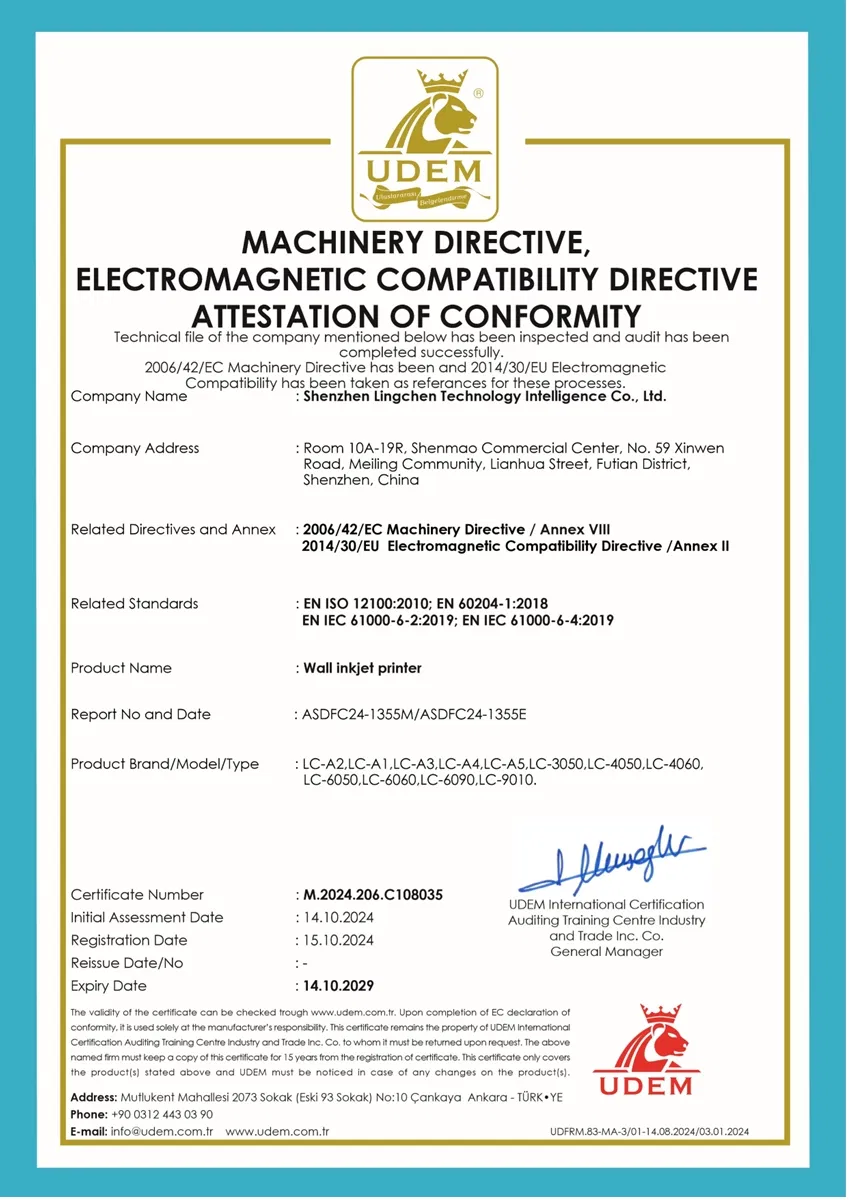

International Certifications

🏢

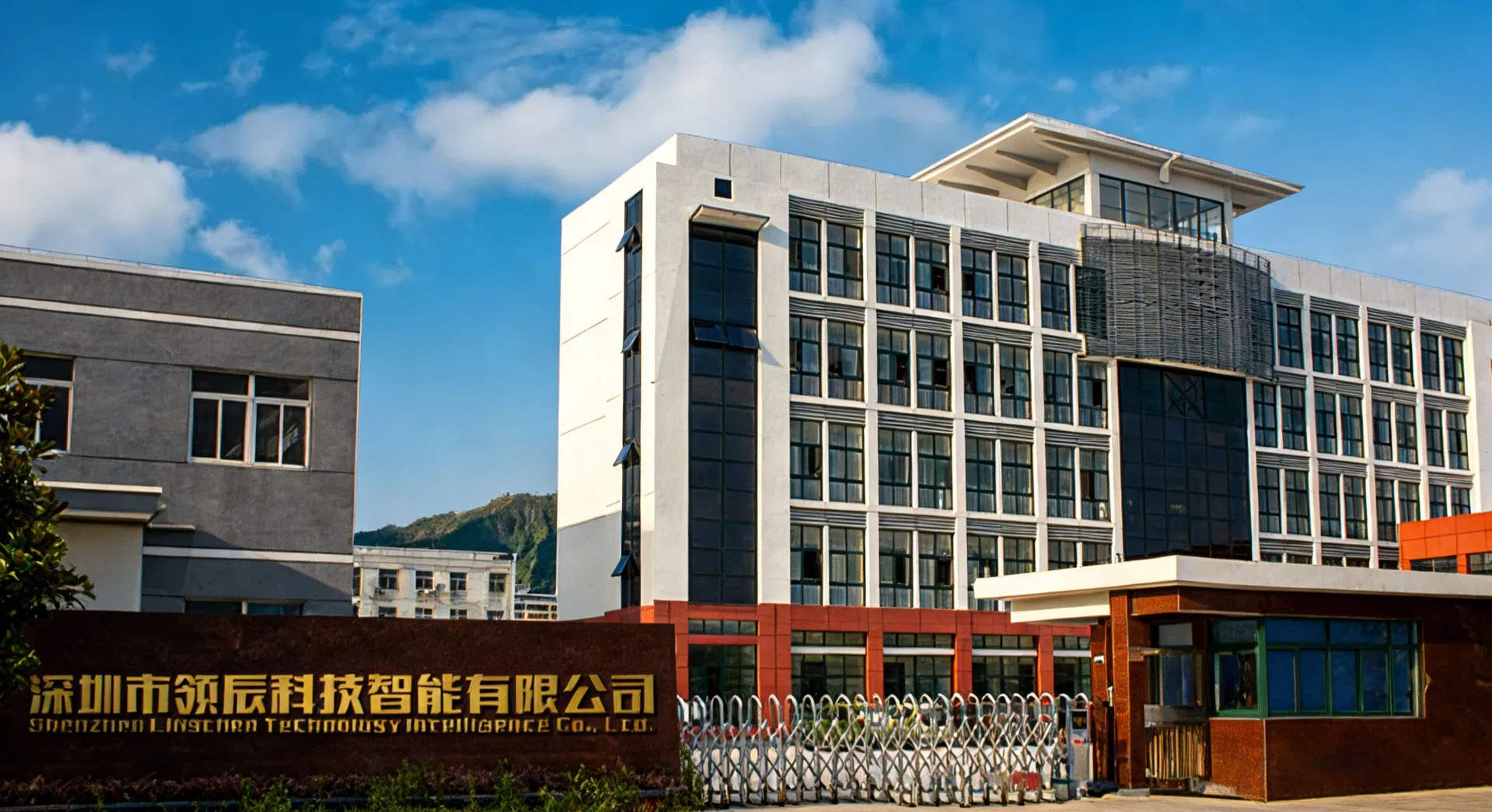

Manufacturing Excellence

Equipped with a modern production base and a strict quality control system from component procurement to finished delivery. Our products integrate technological advancement with global market adaptability, meeting technical standards of EU, North America, and Southeast Asia.

🔹 Global Adaptability: Supports 110V-240V wide voltage input.
🔹 Multi-language: Software interface covers English, Spanish, French, Russian, etc.
🔹 Remote Support: 24/7 online technical consultation and remote video guidance.

📦

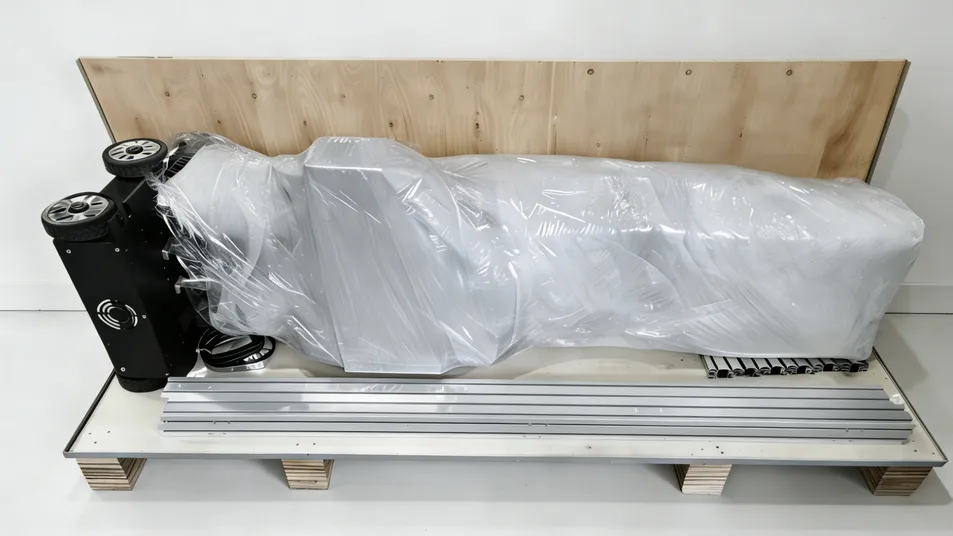

Packing & Delivery

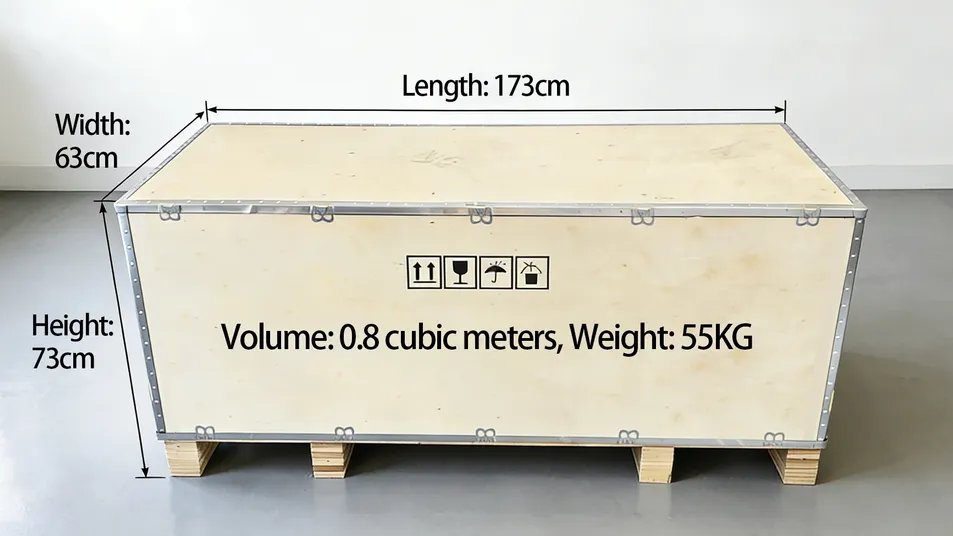

Protection: High-strength reinforced wooden case with multi-layer shock absorption for core precision components like printheads and mainboards.

Shipping: Support air freight, sea freight, and international couriers. DDP (Delivered Duty Paid) service available for select regions.

❓

Frequently Asked Questions

1. What is the printing precision and color reproduction rate?

The physical resolution reaches 1200dpi for pixel-level printing. With CMYK + White ink, the color reproduction rate is ≥ 95%, accurately matching design drawings via built-in color compensation algorithms.

2. What are the maximum printing dimensions?

Conventional max height is 3.2 meters (customizable up to 4.5m), and width is unlimited. Wheel-type models support continuous printing of 10m+ walls with laser positioning splicing errors ≤ 1mm.

3. Can it print on uneven surfaces?

Yes. The radar detection system identifies 1-20cm unevenness and adjusts the printhead distance in real-time (0.1mm precision). For floors, laying tracks ensures stable printing on rough terrain.

4. Is the equipment difficult to operate for non-professionals?

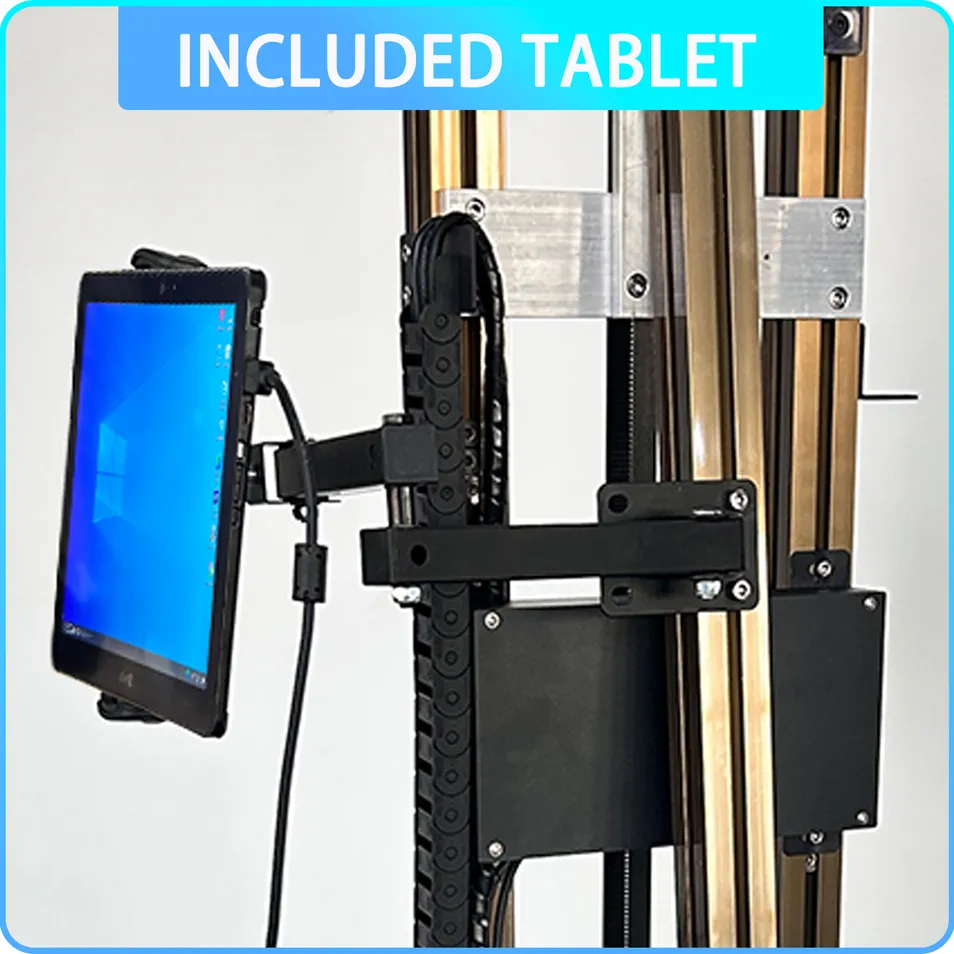

Not at all. The visual touch control system and 3-step wizard allow beginners to get started after only 1-2 hours of training. Complete video tutorials and manuals are provided.

5. What is the cost and lifespan of the UV ink?

Consumable cost is approximately $0.4 to $0.6 per square meter. The ink is CE/ROHS certified, non-toxic, and odorless, with an indoor shelf life of ≥ 20 years and outdoor life of ≥ 3 years.

6. What is the warranty and after-sales policy?

We provide a 2-year whole-machine warranty and lifelong maintenance. After-sales response is 7×24 hours online, with fast delivery for any required spare parts.
