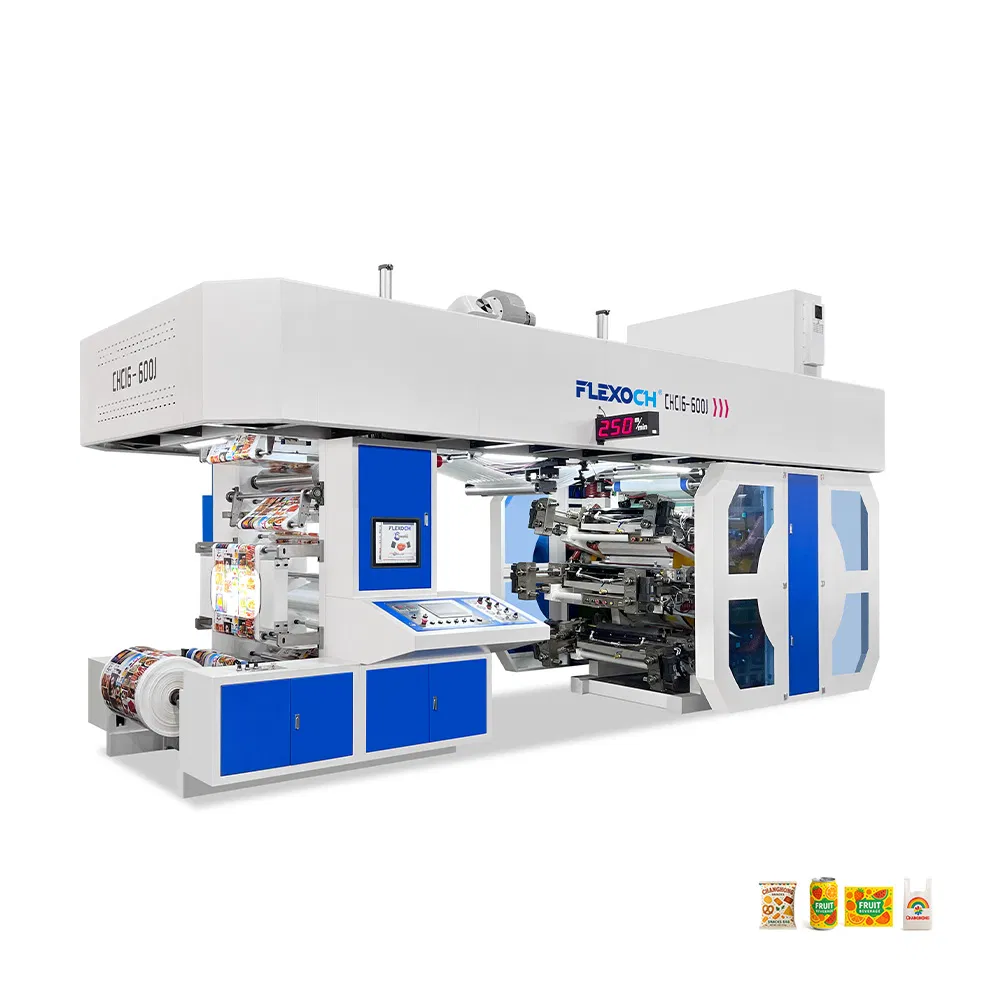

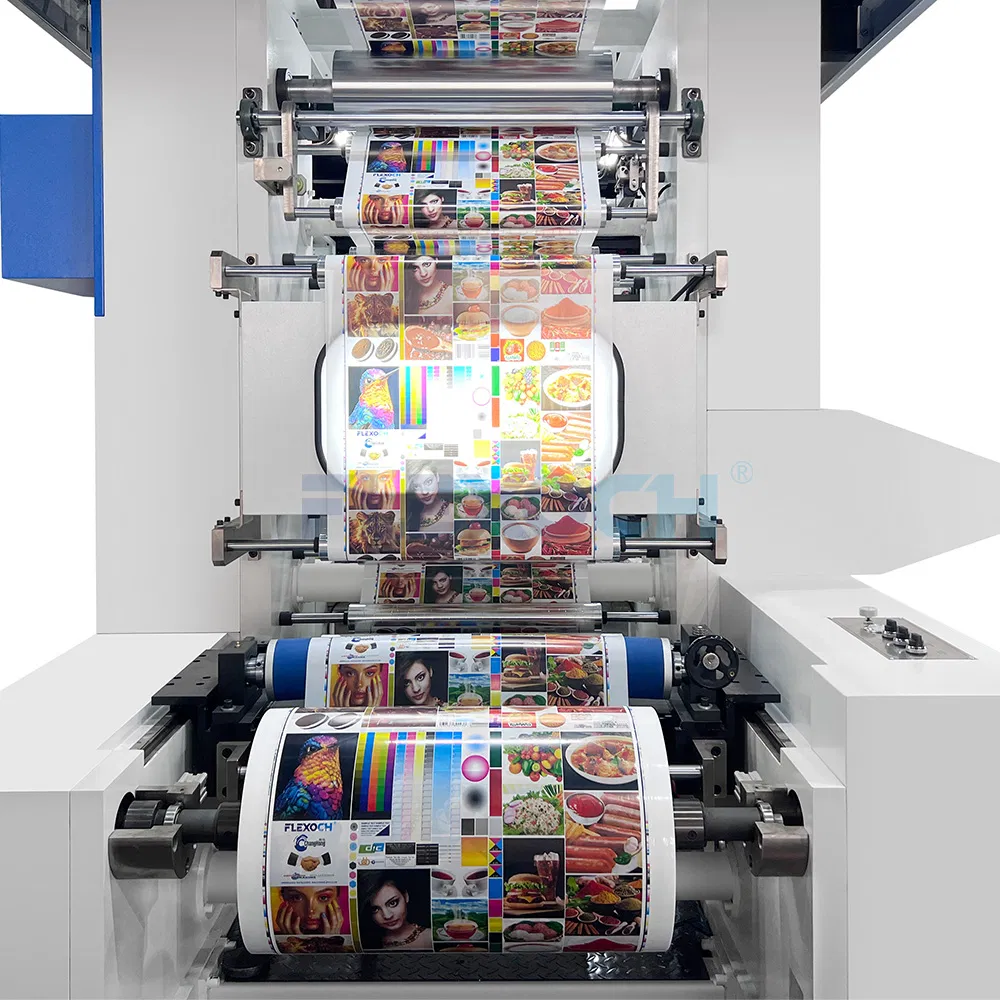

6 Colors Central Drum Ci Flex Printing Machine for Paper Printing
6 Colors Central Drum Ci Flex Printing Machine for Paper Printing
6 Colors Central Drum Ci Flex Printing Machine for Paper Printing
6 Colors Central Drum Ci Flex Printing Machine for Paper Printing
6 Colors Central Drum Ci Flex Printing Machine for Paper Printing
1 / 5
6 Colors Central Drum Ci Flex Printing Machine for Paper Printing
6 Colors Central Drum Ci Flex Printing Machine for Paper Printing
6 Colors Central Drum Ci Flex Printing Machine for Paper Printing
6 Colors Central Drum Ci Flex Printing Machine for Paper Printing
6 Colors Central Drum Ci Flex Printing Machine for Paper Printing

6 Colors Central Drum Ci Flex Printing Machine for Paper Printing

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

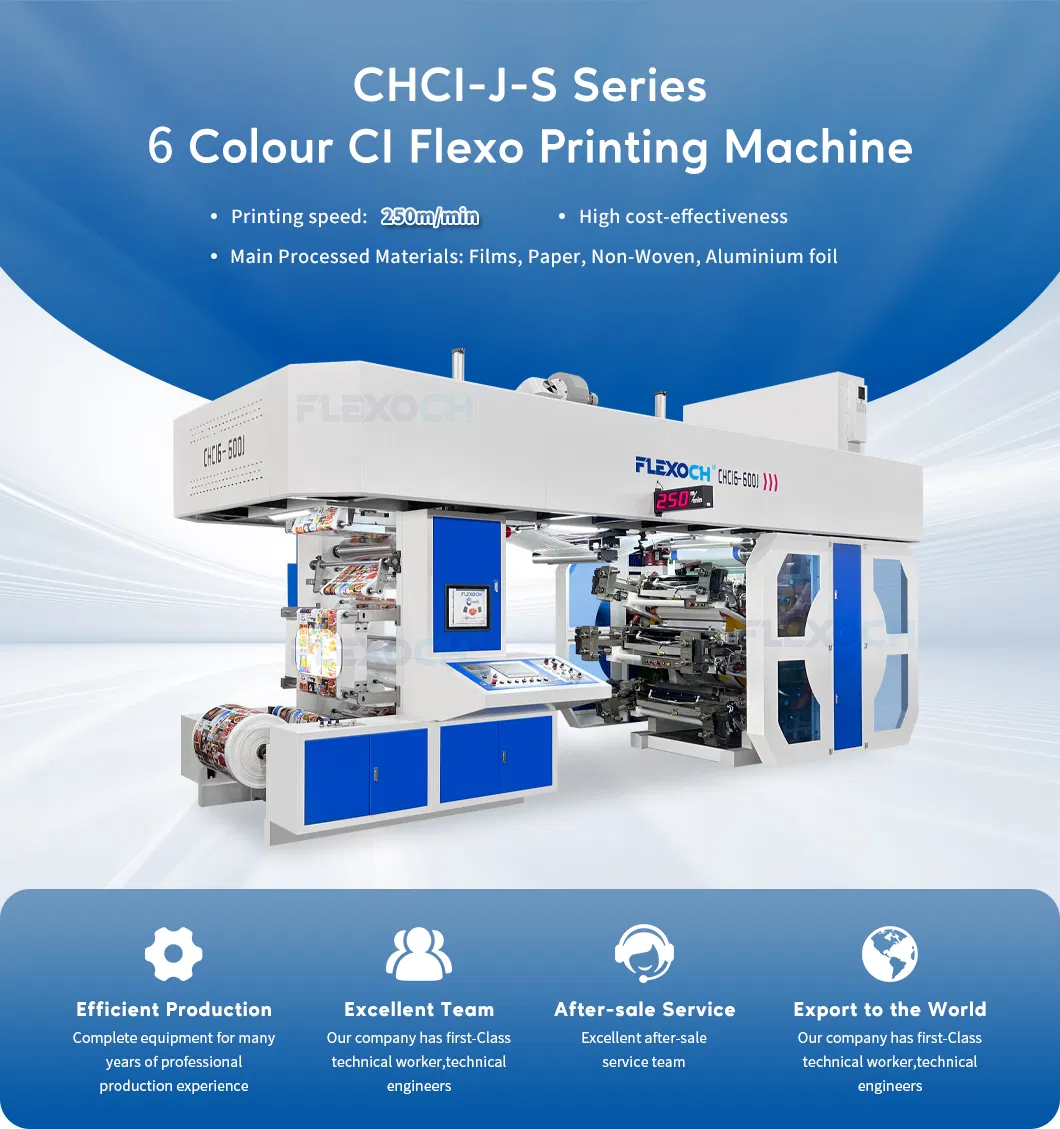

CI Flex Printing Machine Overview

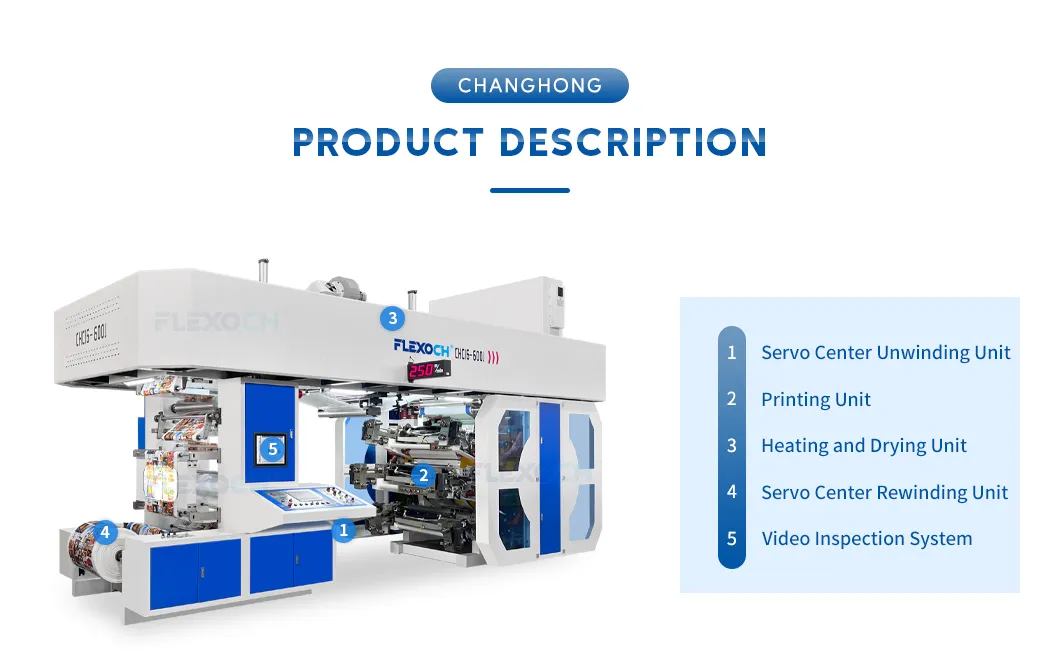

CI Flex Printing Machine Detail

Basic Specifications

Model NO.
CH-J-S
Anilox Roller
Ceramic Anilox Roller
Dryer
Electric Drying
Type
Roller to Roller
Structure
Satellite CI
Application
Pre Printed Carton / Film
Automatic Grade
Automatic
Printing Speed
200m/min
Power
45kw
EPC System
Edge Position Control
Shaft
Air Shaft
HS Code
8443160090

Key Features

01
Central Drum Design: Ensures accurate color registration and minimizes deviation during high-speed printing.
02
Compact Structure: Space-saving design without compromising industrial performance.
03
Substrate Versatility: Compatible with PE, BOPP, CPP, PET, and flexible substrates.
04
Ceramic Anilox: Ensures uniform ink transfer and enhances print clarity and efficiency.
05
Closed Doctor Blade: Prevents ink splashing and ensures clean, consistent results.
06
PLC Interface: Features a touchscreen HMI for intuitive operation and control.
Separator

Technical Specifications

TECHNICAL SPECIFICATIONS
Model CHCI6-600J-S CHCI6-800J-S CHCI6-1000J-S CHCI6-1200J-S
Max. Web Width 650mm 850mm 1050mm 1250mm
Max. Printing Speed 200m/min
Drive Type Central drum with Gear drive
Ink Type Water base ink or solvent ink
Substrates LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon

Product Details

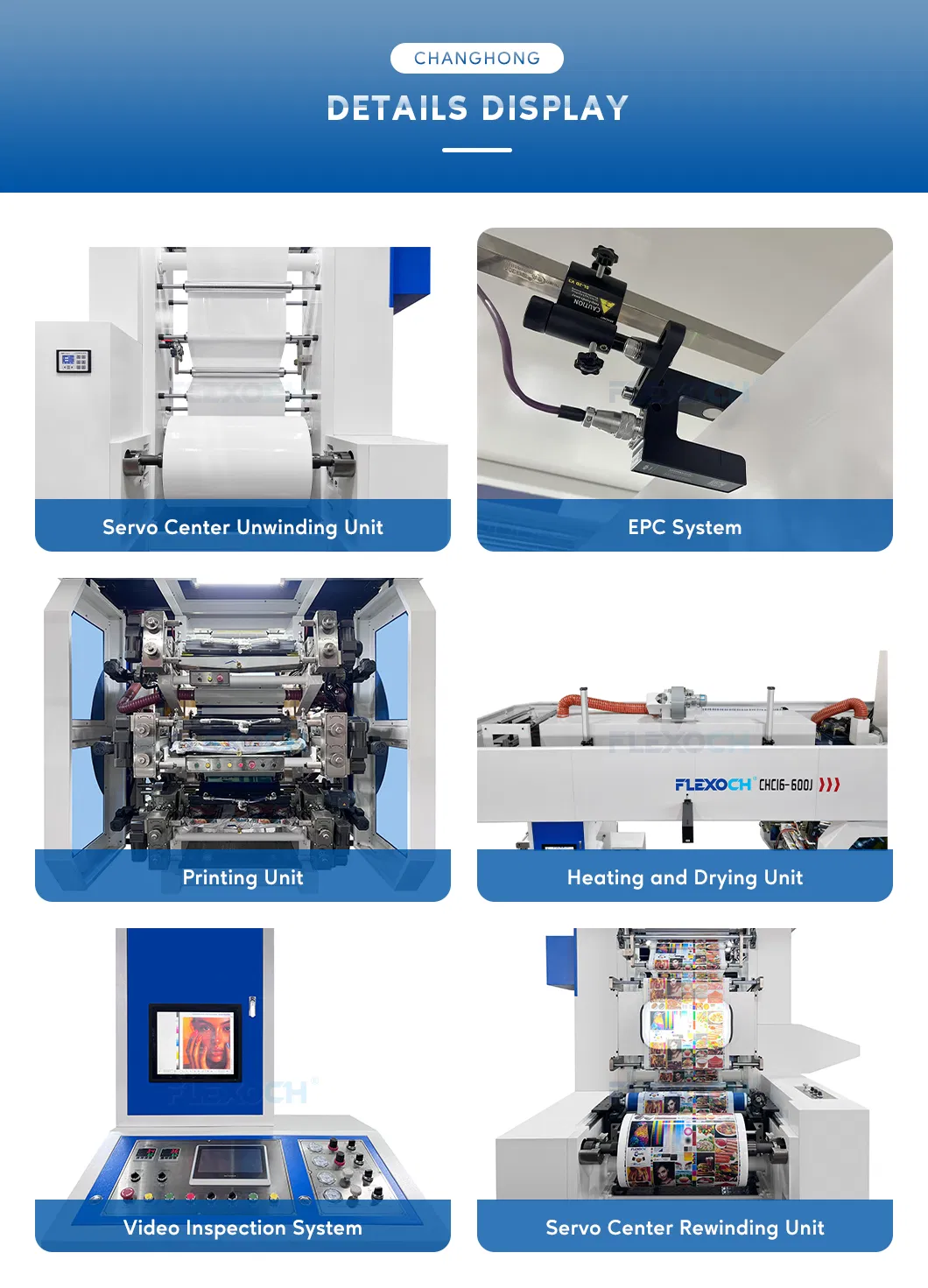

Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6

This 6-color CI flexographic printing machine is specially designed for high-precision printing on various plastic films such as PE, BOPP, CPP, PET, and laminated materials. Featuring a central impression drum and modular structure, it offers excellent color registration, stable web tension, and efficient operation within a small footprint. Ideal for short- to medium-run jobs, this press is perfect for packaging manufacturers seeking consistent quality and high productivity.

Frequently Asked Questions

Q1: What materials can the CI flexographic printing machine handle?
A1: The CI flexographic printing machine is suitable for various plastic films such as PE, BOPP, CPP, PET, and laminated substrates used in flexible packaging.
Q2: What is the maximum printing speed?
A2: The CI flexographic printing machine can reach speeds of up to 200 meters per minute, depending on the substrate and print design.
Q3: How does the machine ensure print quality?
A3: It features a central impression drum that stabilizes web tension and ensures accurate color registration during high-speed printing.
Q4: Is the operation user-friendly?
A4: Yes, the CI flexographic printing machine is equipped with a PLC control system and touchscreen HMI for intuitive operation and quick job setup.
Q5: What type of ink is compatible?
A5: The machine supports both water-based and solvent-based inks, depending on the application requirements.
Q6: How does the drying system work?
A6: It uses an energy-efficient hot air drying system to ensure fast and even ink curing for high-speed production.
