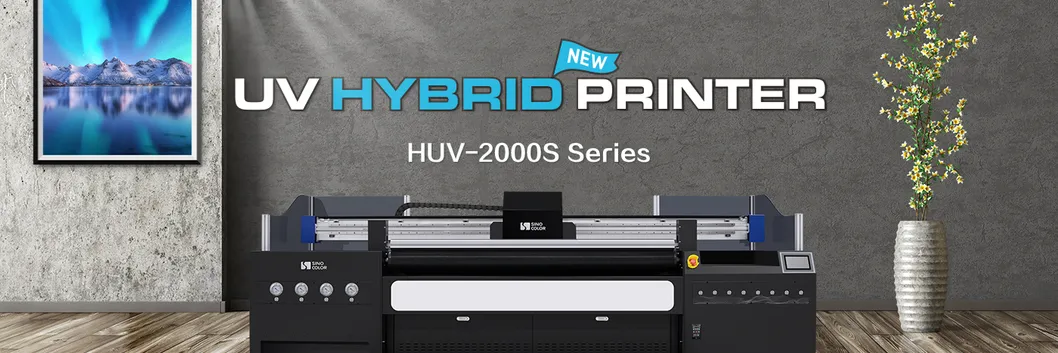

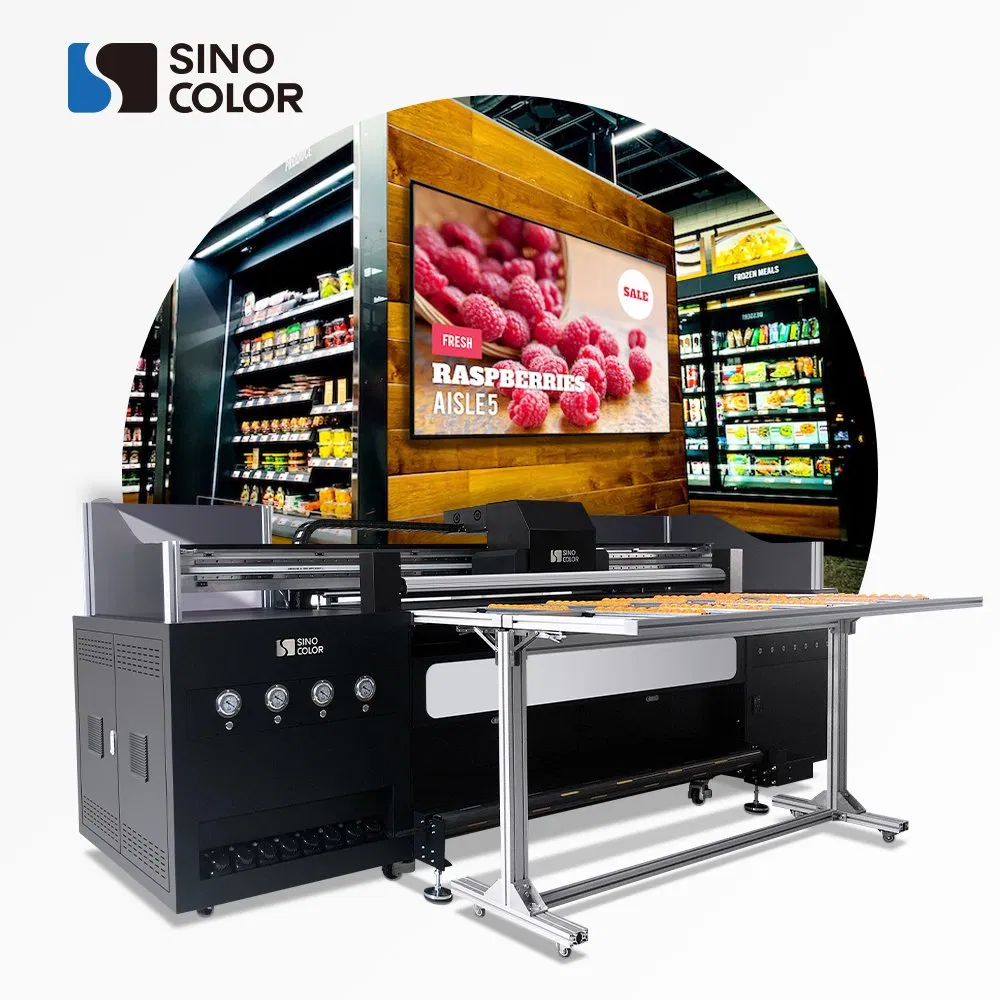

Commercial Wide Format 2m Banner Vinyl Mesh PVC Board Kt Board 2/4 I3200 Heads 2400dpi High Resolution UV Inkjet Printer with Negative Pressure System

i

Basic Specifications

Model NO.

HUV-2000S

Plate Type

UV I3200 Heads Large Format Printer

Structure

UV Sticker UV Color Printer

Color & Page

Multi-Colour Printing Press

Automatic Grade

Automatic

Printing Interface

USB3.0

Printing Speed

72 Sqm/H (Color+White)

System Supported

Windows 7, 10, XP

Printhead

2/4 Epson i3200 Heads

Resolution

Up to 2400dpi

Color Mode

CMYK / CMYK+W / CMYK+W+V

Ink Type

UV Ink

Vacuum Platform

High-Power Independent Vacuum

Production Capacity

300 Sets Per Month

P

Product Description

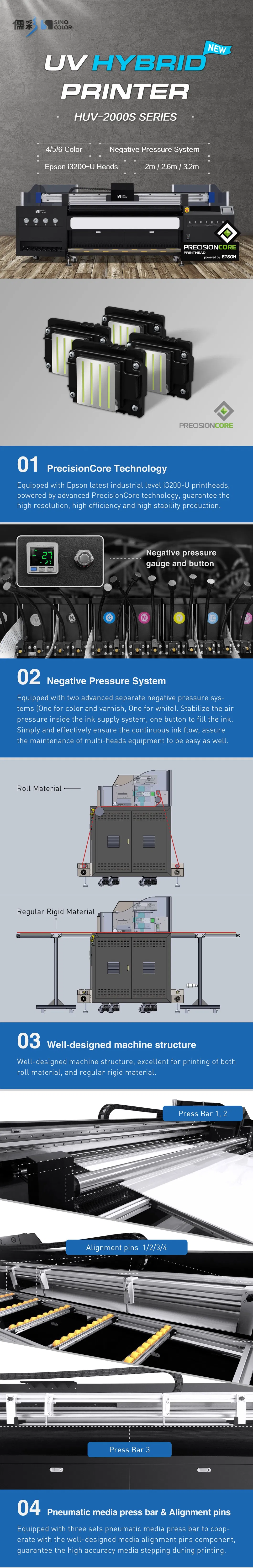

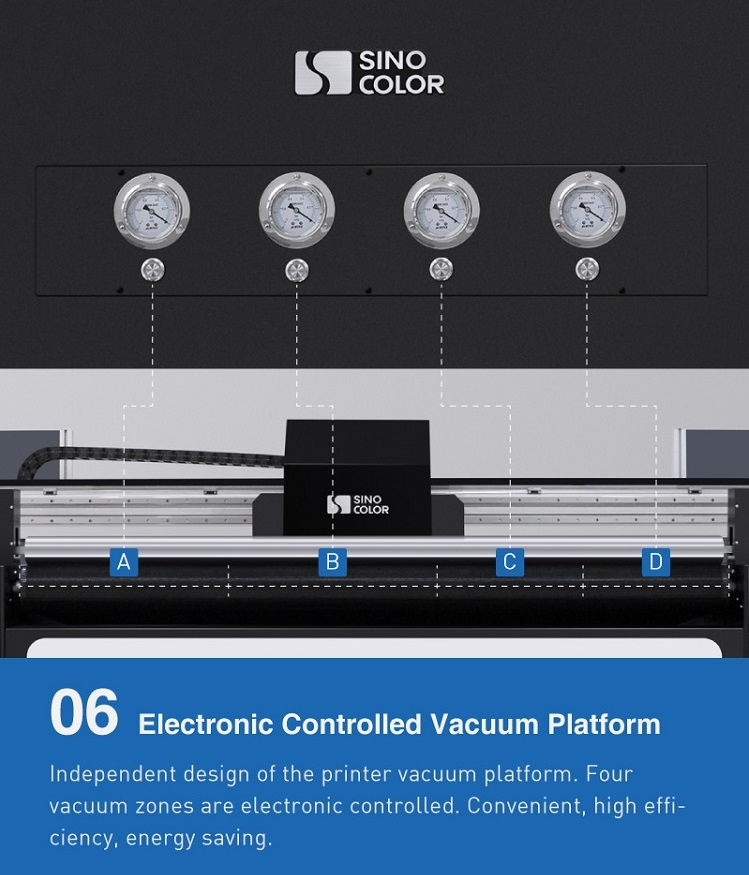

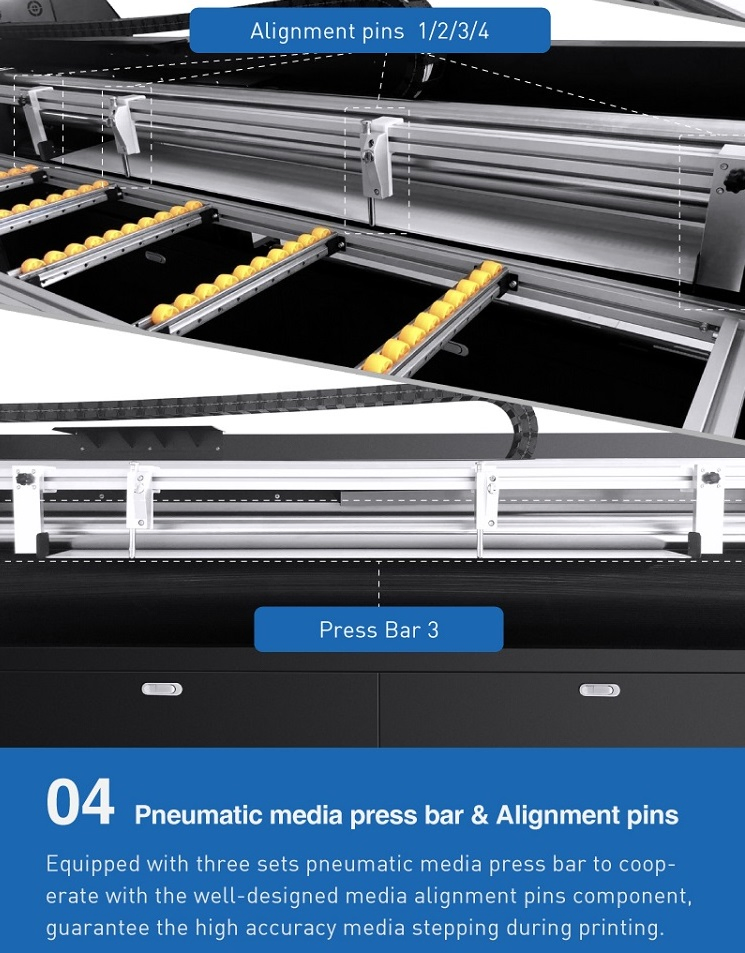

For traditional hybrid UV printers, the machine platform may come without any vacuum, making it difficult to handle both roll and rigid materials. The new HUV-2000S series features 4 zones of high-power electronically controlled vacuum platforms, tension-type media feeding systems, advanced media alignment pins, and 3 press bars. These features guarantee high-precision stepping and high-quality printing results.

Powered by the latest industrial-level Epson i3200-U heads, this series achieves exceptional speeds. The integrated negative pressure system simplifies machine maintenance, making it highly efficient for commercial wide-format printing on banner vinyl, mesh, PVC boards, and more.

S

Technical Parameters

Model No.		HUV-3200S	HUV-2600S	HUV-2000S
Printing Head		4 × Epson i3200-U	4 × Epson i3200-U	2 × Epson i3200-U (4 Optional)
Resolution		2400 dpi MAX
Media	Max Width	3200 mm	2600 mm	2000 mm
Media	Thickness	0-5 cm
Ink	Type	UV Ink
Ink	Color	CMYK+W+V	CMYK+W+V	CMYK+W
Speed	Draft	72 sqm/h	56 sqm/h	42 sqm/h
	Production	36 sqm/h	28 sqm/h	21 sqm/h
	Quality	20 sqm/h	16 sqm/h	13 sqm/h
Negative Pressure System		Two separate systems (Color/Varnish & White)

G

Application Gallery

?

Frequently Asked Questions

What materials can the HUV-2000S series print on?

The printer is highly versatile, supporting Glass, Metal, Ceramic Tile, Acrylic, Wood, Plastic, Aluminum, Canvas, Leather, Cardboard, Foam Board, Plywood, Vinyl, PVC, and more.

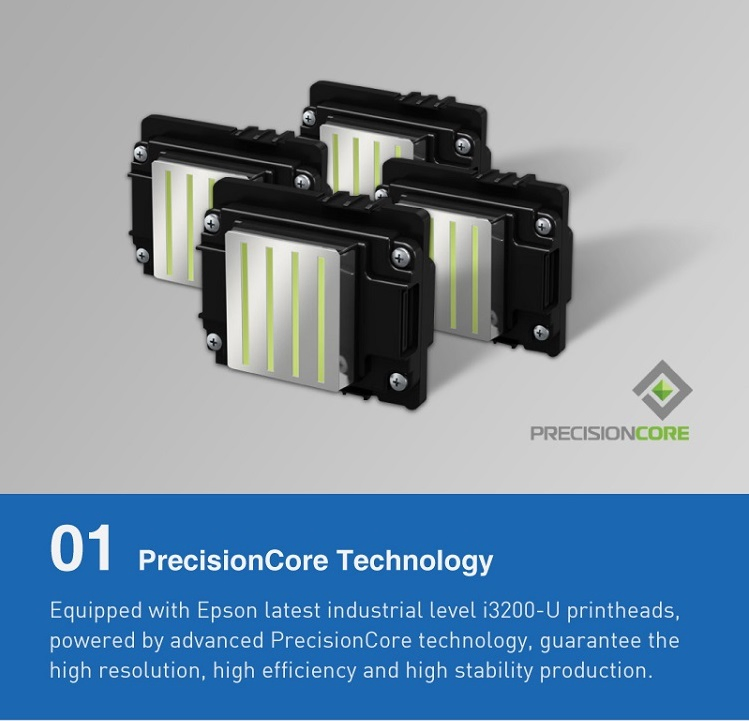

What is the advantage of the Epson i3200-U printheads?

Epson i3200-U heads are industrial-level components that provide high-resolution output (up to 2400dpi) and significantly faster printing speeds compared to entry-level models.

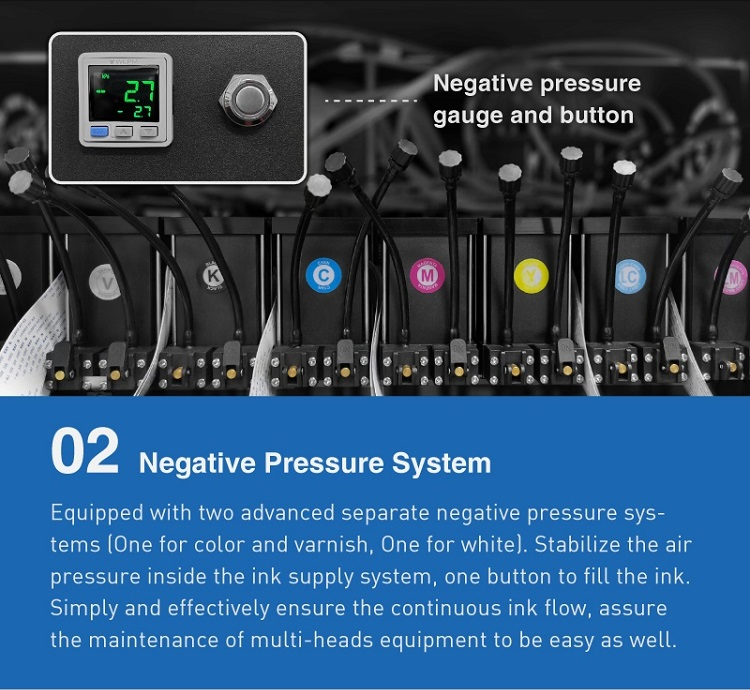

How does the negative pressure system help?

The machine features two separate negative pressure systems (one for color/varnish and one for white). This ensures consistent ink flow and makes printhead maintenance much easier.

Can this printer handle both roll and rigid materials?

Yes, as a hybrid UV printer with a high-power vacuum platform and specialized feeding/take-up systems, it is designed to handle both flexible roll media and rigid boards up to 5cm thick.

What ink colors are supported?

The series supports multiple color configurations, including CMYK, CMYK+White, and CMYK+White+Varnish (Varnish available on specific models like HUV-2600S/3200S).

What software and interfaces does the printer use?

The printer utilizes a high-speed USB 3.0 interface and supports standard Rip software such as MainTop, with Photoprint available as an optional upgrade.
