Desktop Constant-Temperature Drying Oven Vacuum Drying Oven Laboratory
Desktop Constant-Temperature Drying Oven Vacuum Drying Oven Laboratory
Desktop Constant-Temperature Drying Oven Vacuum Drying Oven Laboratory
Desktop Constant-Temperature Drying Oven Vacuum Drying Oven Laboratory
Desktop Constant-Temperature Drying Oven Vacuum Drying Oven Laboratory
1 / 5
Desktop Constant-Temperature Drying Oven Vacuum Drying Oven Laboratory
Desktop Constant-Temperature Drying Oven Vacuum Drying Oven Laboratory
Desktop Constant-Temperature Drying Oven Vacuum Drying Oven Laboratory
Desktop Constant-Temperature Drying Oven Vacuum Drying Oven Laboratory
Desktop Constant-Temperature Drying Oven Vacuum Drying Oven Laboratory

Desktop Constant-Temperature Drying Oven Vacuum Drying Oven Laboratory

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview & Basic Information
Model NO.
CD-20C
Material Status
Bulk
Drying Medium
Superheated Steam, Effluent Gas
Operational Method
Continuous
Type
Continuous Vacuum
Capacity
20L
Rated Power Supply
220V 50Hz
Temp. Control Range
Rt+10°C-300°C
Temp. Fluctuation
±1°C (at 100°C)
Inner Liner Material
304 Stainless Steel
Insulation Layer
Ceramic Fiber
Timing Function
0-9999min
Product Description

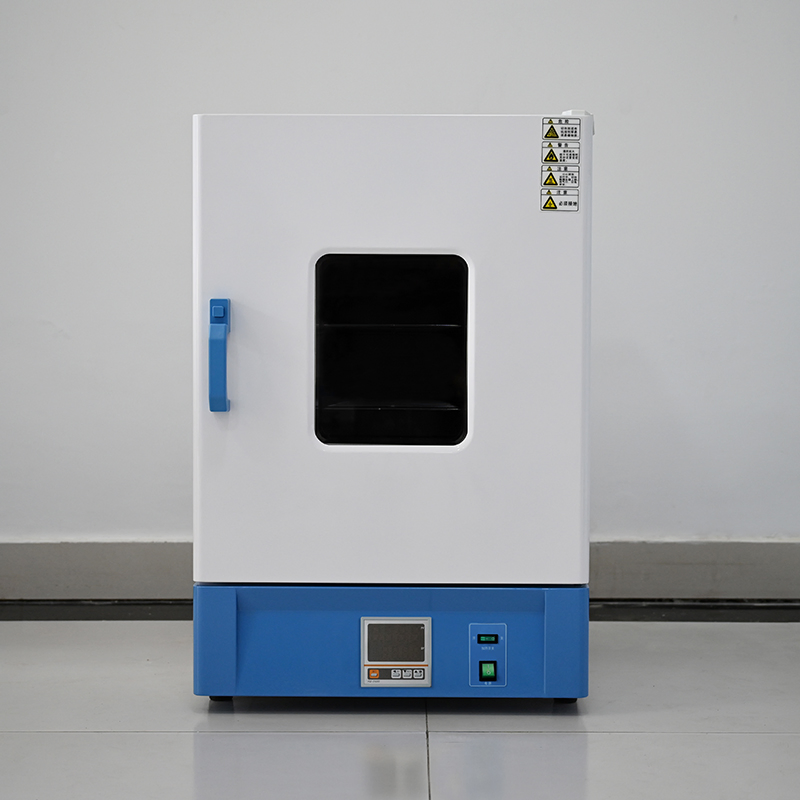

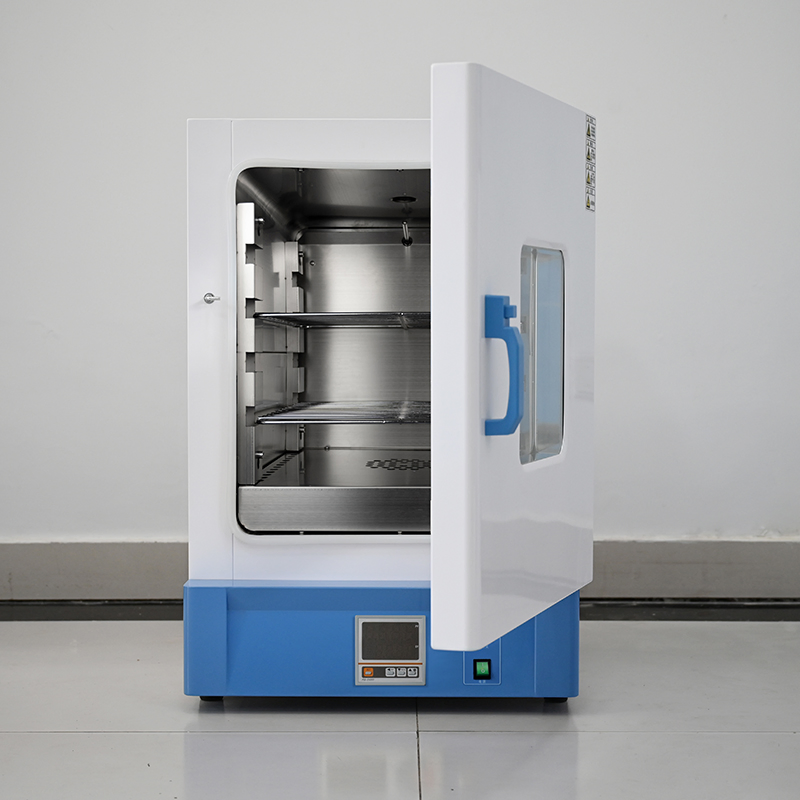

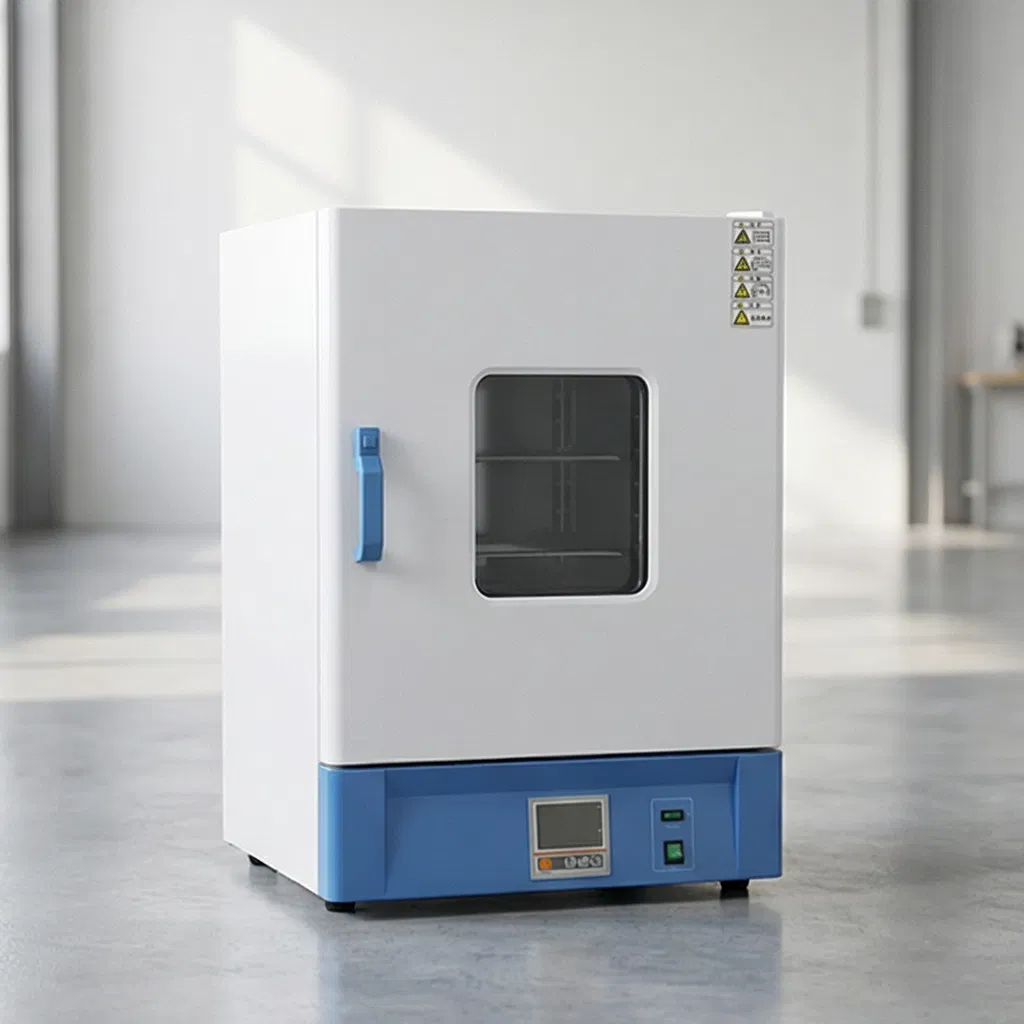

Drying Oven (Vertical) - Model CD-20C

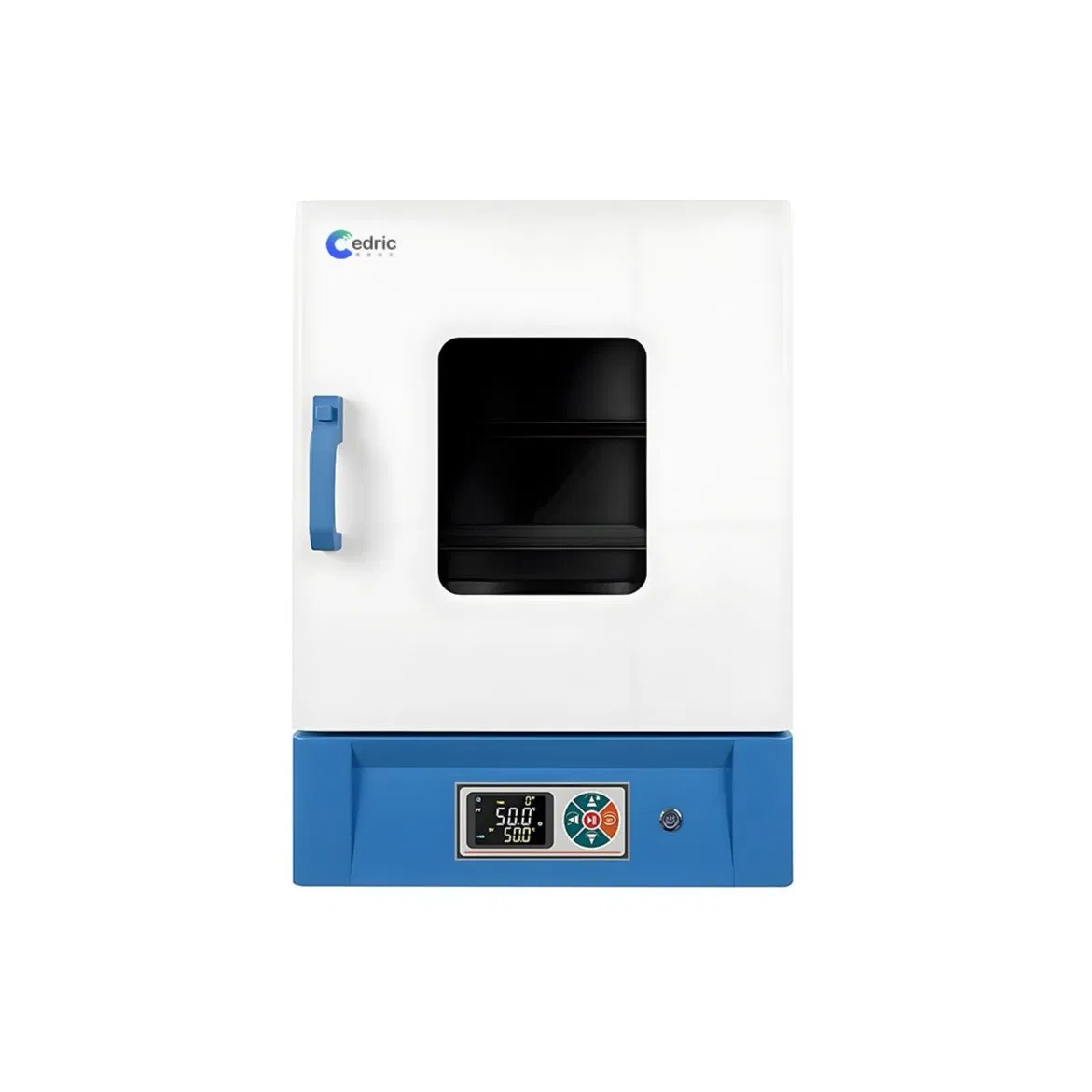

Constant-Temperature Drying Oven

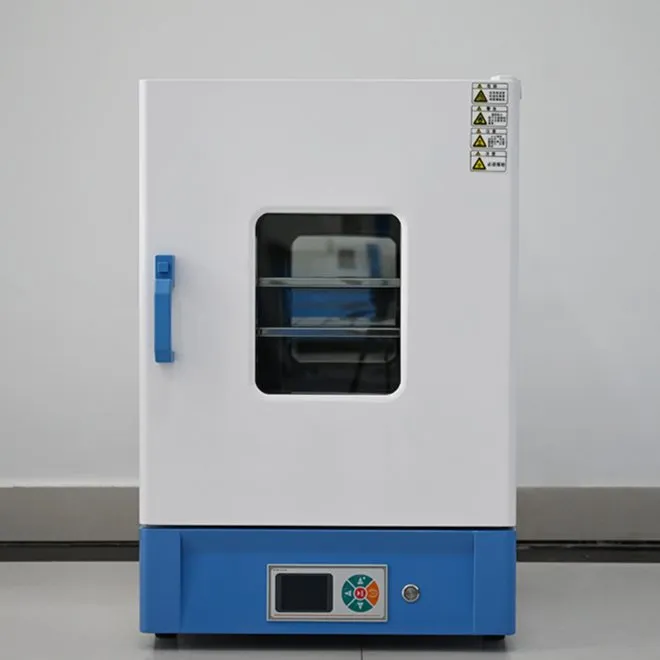

Laboratory Drying Oven Detail

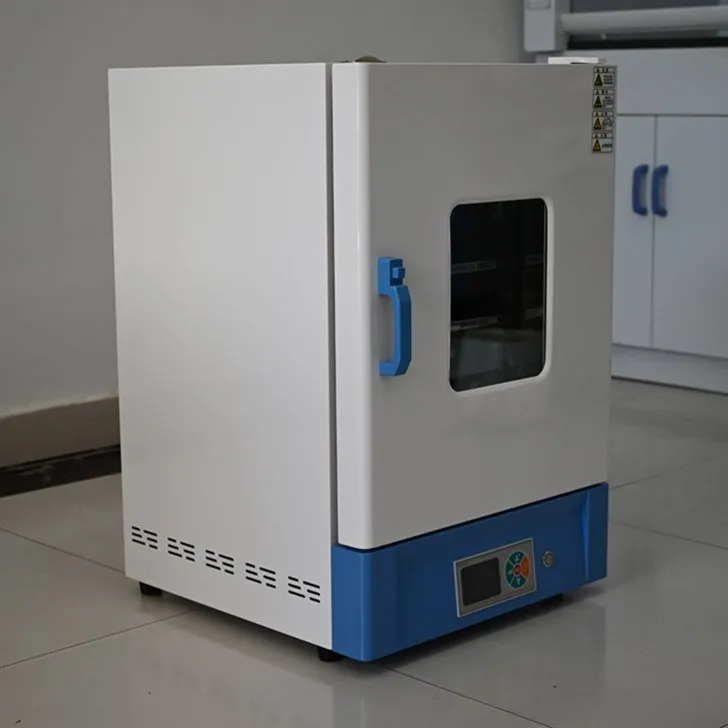

Vacuum Drying Oven View

Key Features

✔
High-quality galvanized sheet shell with electrostatic spraying for anti-corrosive durability.
✔
Inner liner made of 304 stainless steel with arc-shaped corners for easy cleaning.
✔
Double-layer tempered glass observation window for safe monitoring of experimental processes.
✔
Synthetic silicone rubber sealing strip capable of long-term high-temperature operation.
✔
Intelligent LCD temperature control instrument for precise and reliable thermal management.
✔
Standard wind speed adjustment function to meet diverse experimental requirements.

Introduction

This product is widely applicable to industrial and mining enterprises, universities, research institutes, and laboratories for drying, baking, and heat treatment of various items.

Technical Specifications
Model CD-20B/C CD-45B/C CD-72B/C
Capacity20L45L72L
Power Supply220V 50HZ
Temp. RangeRT+10°C-300°C
Temp. Fluctuation±1°C (At 100°C)
Inner MaterialB: 201 Stainless Steel; C: 304 Stainless Steel
Rated Power600W1000W1500W
Internal Size (mm)260*280*280360*350*350400*400*450
External Size (mm)430*410*550540*500*710580*540*810
Weight29kg38kg46kg
Related Products & Gallery

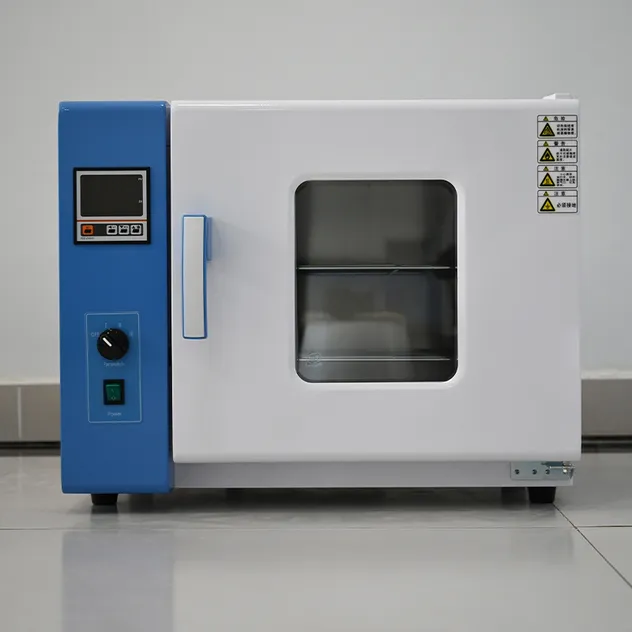

Lab Equipment 1

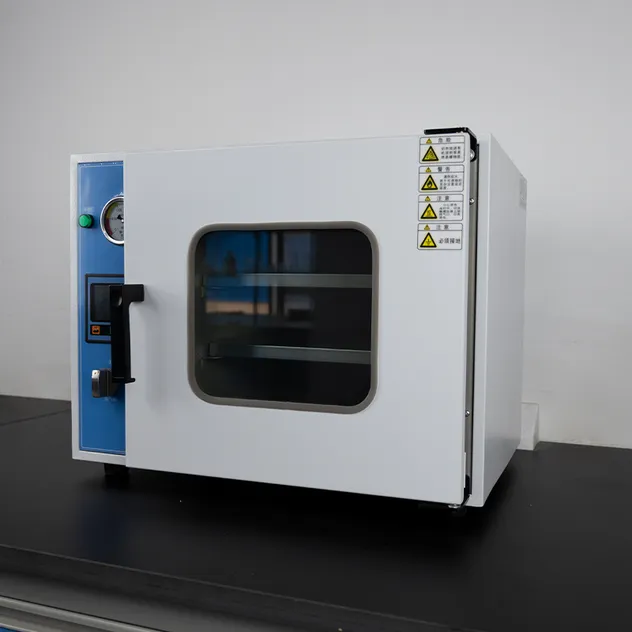

Lab Equipment 2

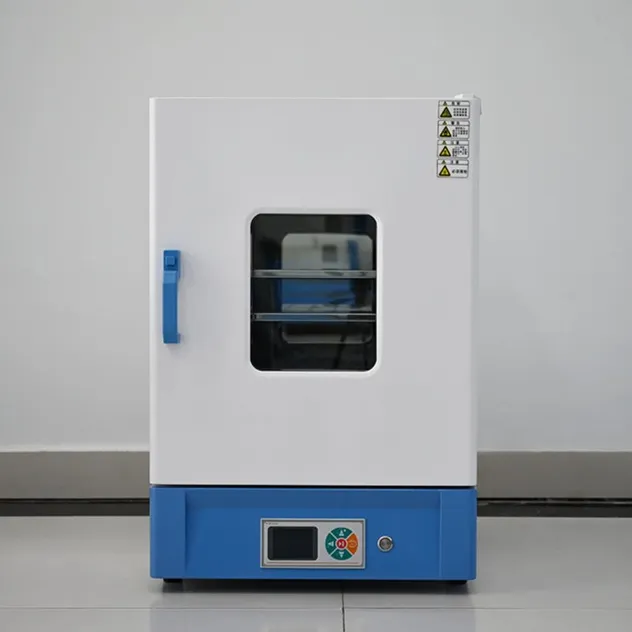

Lab Equipment 3

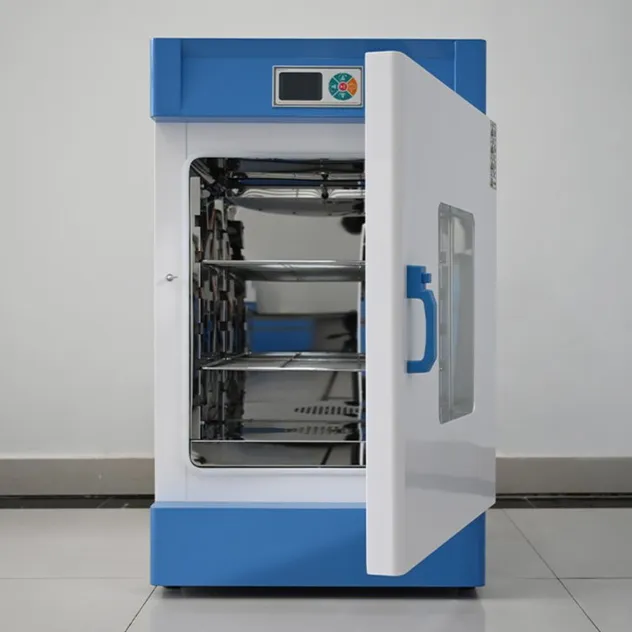

Lab Equipment 4

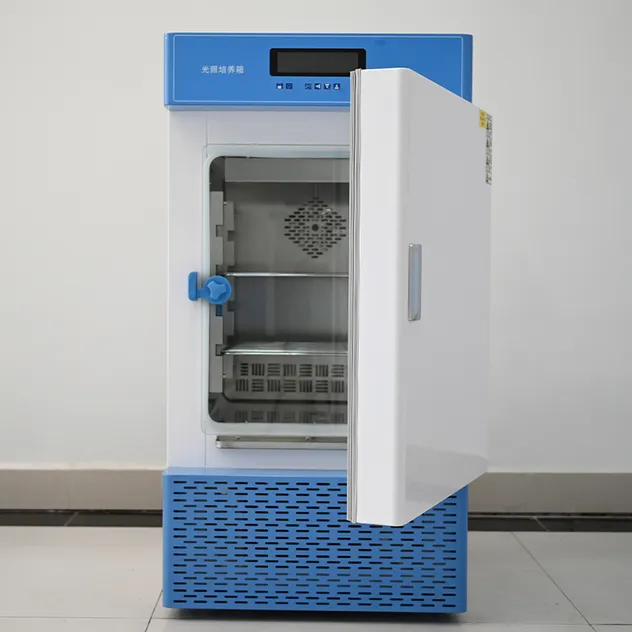

Lab Equipment 5

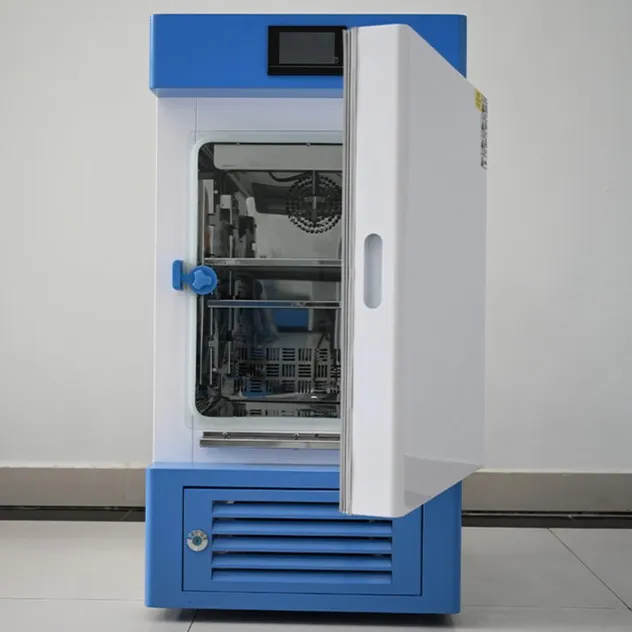

Lab Equipment 6
Process Detail Control Panel Detail Production Line View

Frequently Asked Questions

What is the maximum temperature of the CD-20C drying oven?
The CD-20C model features a temperature control range from RT+10°C up to 300°C with high precision.
What safety features are included in these ovens?
The unit includes over-temperature alarms, temperature deviation correction, and a double-layer tempered glass window for safe observation.
Is the inner chamber corrosion-resistant?
Yes, the inner liner is made of high-quality 304 stainless steel, which is highly resistant to corrosion and easy to clean.
Can the wind speed be adjusted manually?
Yes, the oven is equipped with a standard wind speed adjustment function, allowing users to set it manually or automatically.
Does the oven support timed operations?
Yes, the intelligent controller features a timing function ranging from 0 to 9999 minutes for automated processes.
Are there options for data output?
Optional functions include program-controlled instruments, printers, RS485 interfaces, and USB interfaces for data tracking.
