Digital Inkjet High Resolution Reliable Wall and Floor Printer

Product Overview

Model	LC-WF Printer	Interface	USB
Supply Mode	Automatic/Manual Integration	Style	Color
Usage	Card, Document, Barcode, POS, Photo, Vertical Plane Printer
Feature	Simple, Low Noise, Small Volume, Laptop Control
Printhead	Dx10/Dx7/I1600/I3200	Ink Type	UV Ink
Size	2500mm * 6000mm	Speed	5-15 M²/Hour

Core Advantages

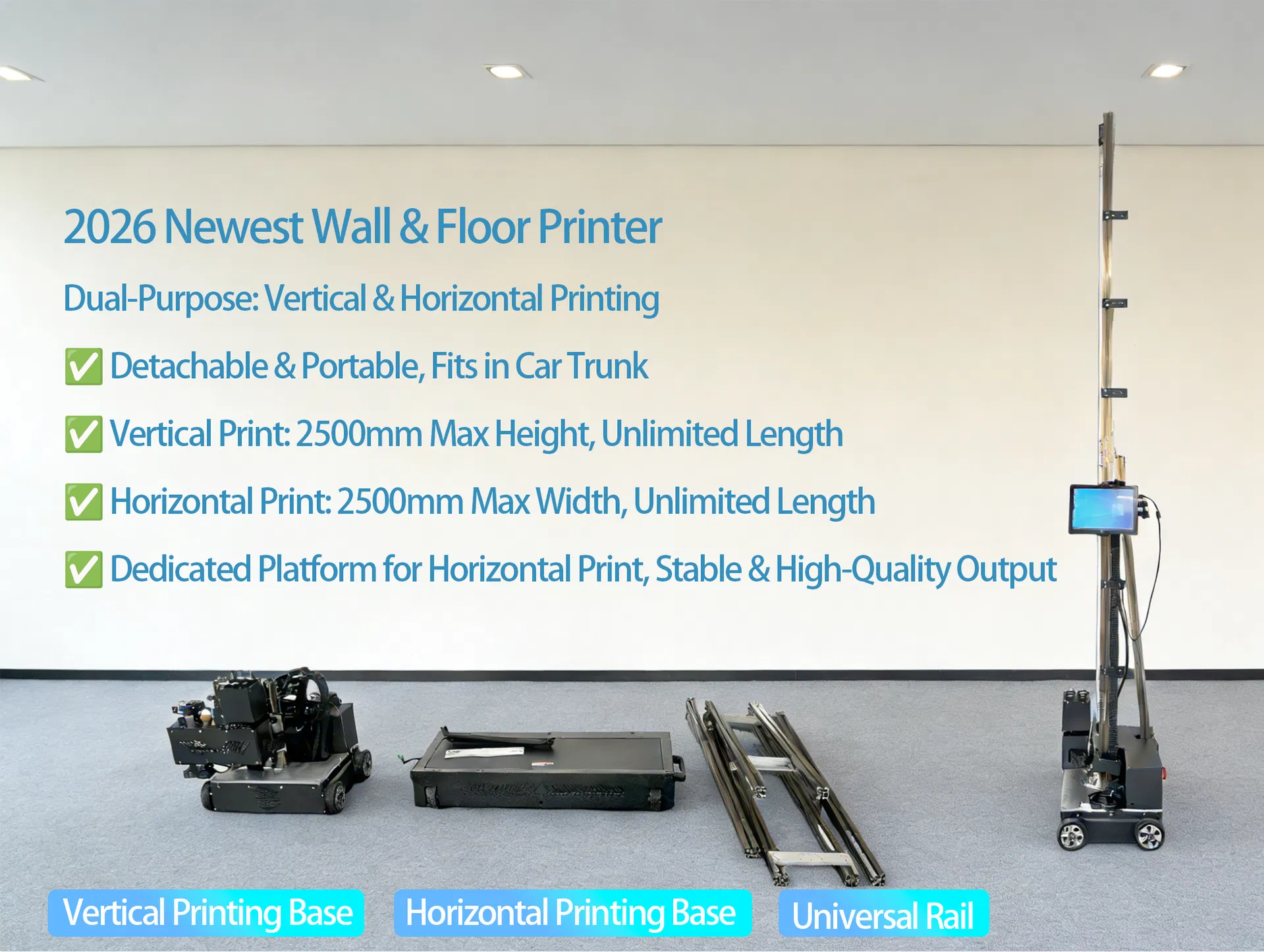

Detachable & Ultra-Portable

Features a user-friendly detachable structure for quick assembly. Compact size fits easily in a car trunk, ideal for on-site murals and mobile decoration tasks.

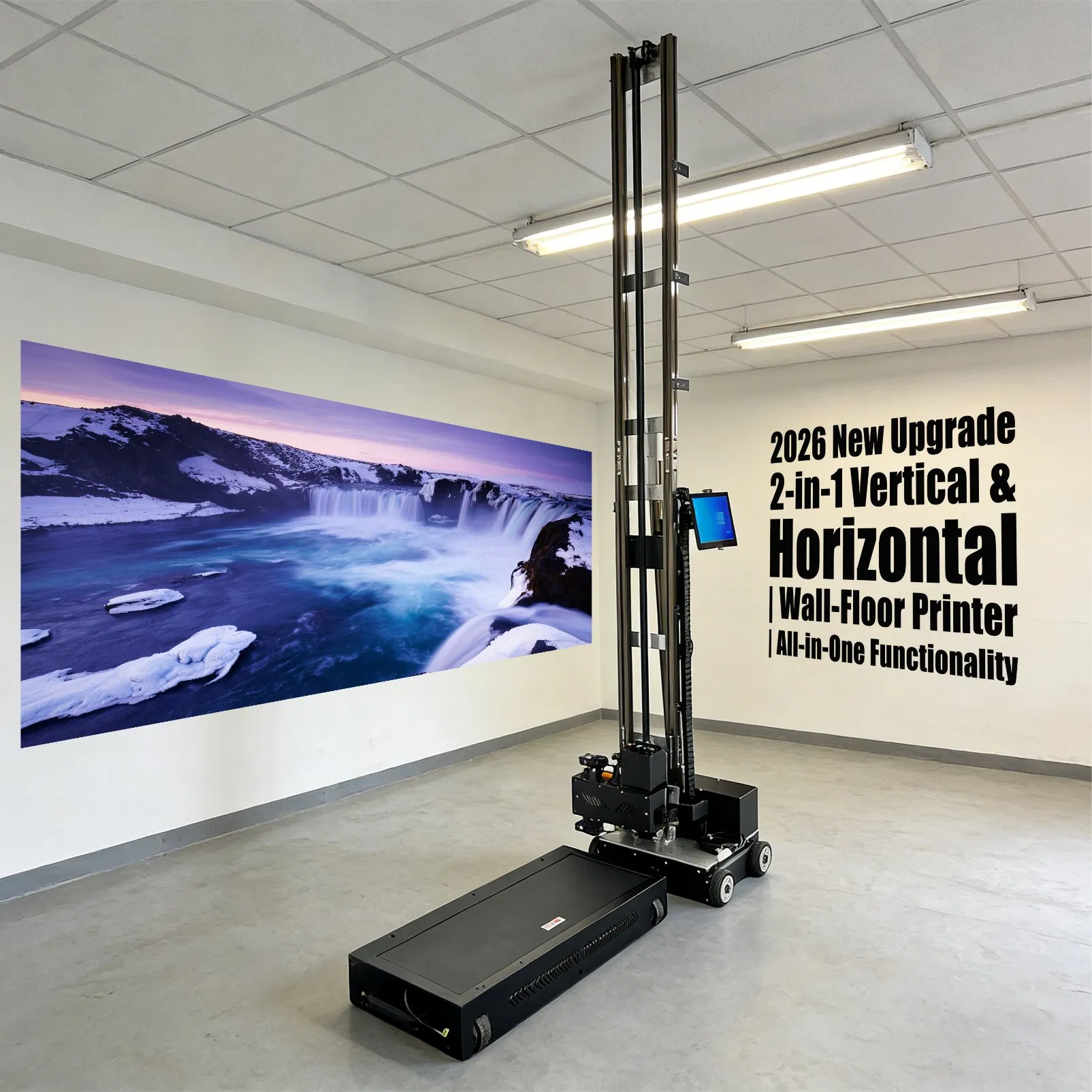

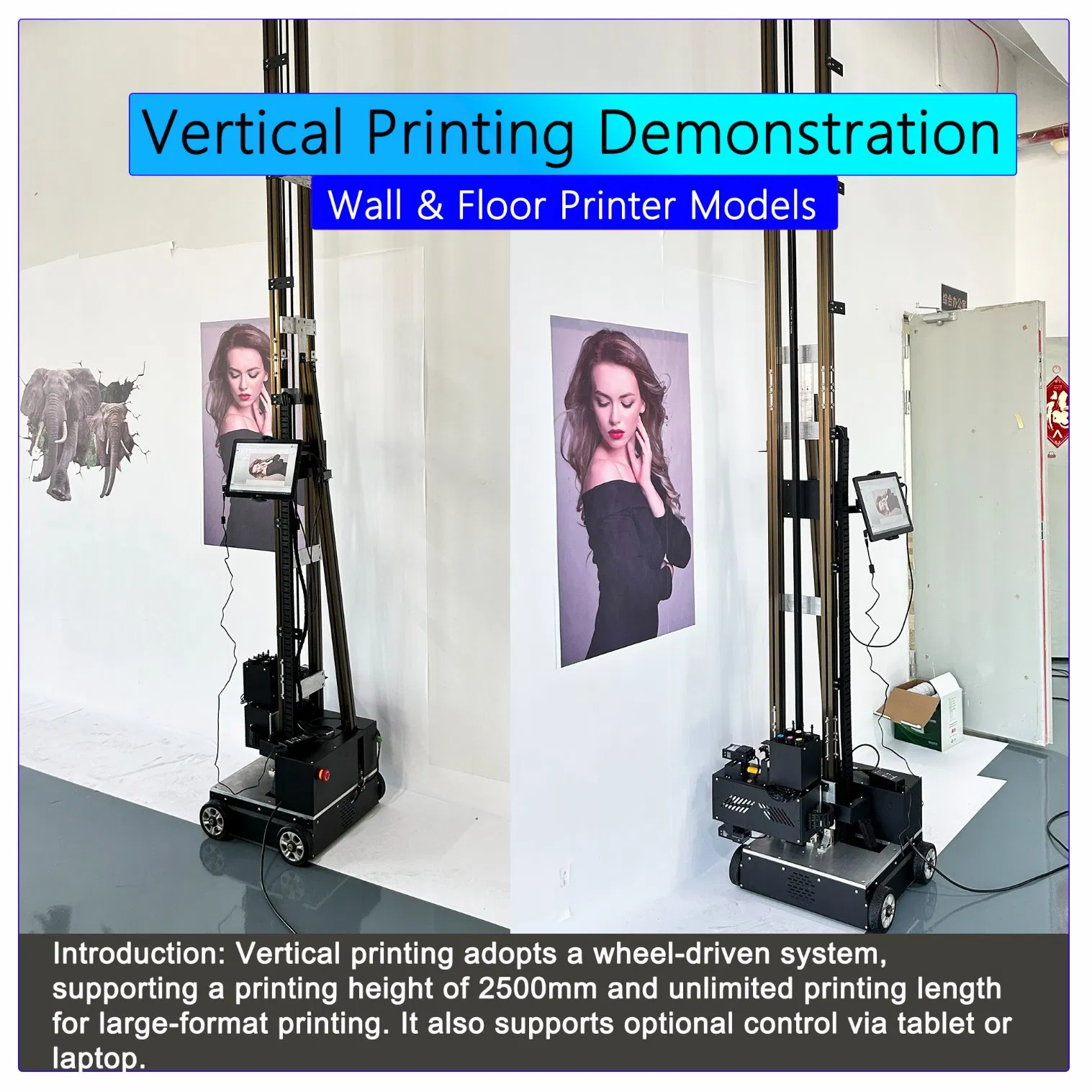

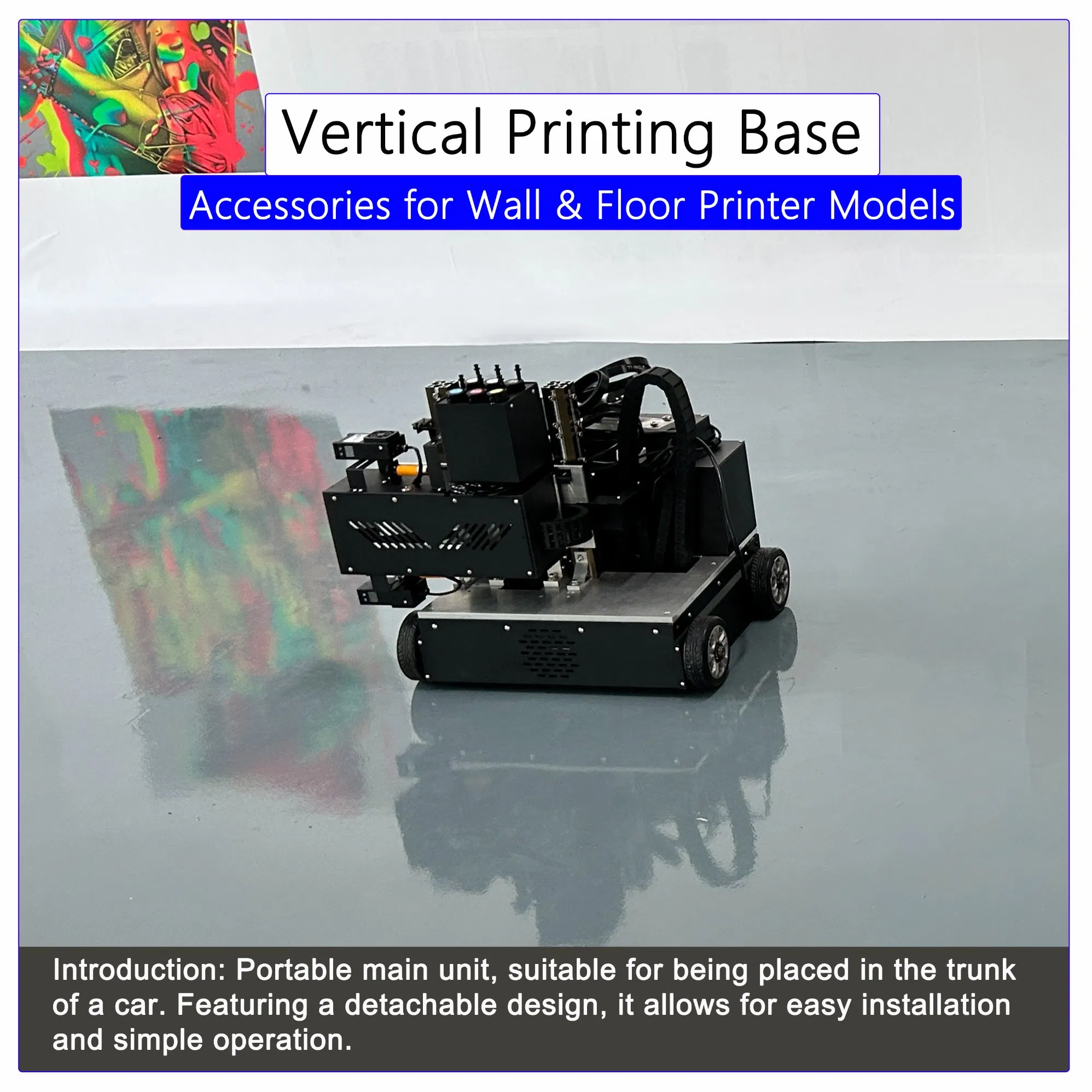

Vertical Printing System

Max height of 2500mm with unlimited length. Supports splicing printing to break height limitations for large-scale interior wall art.

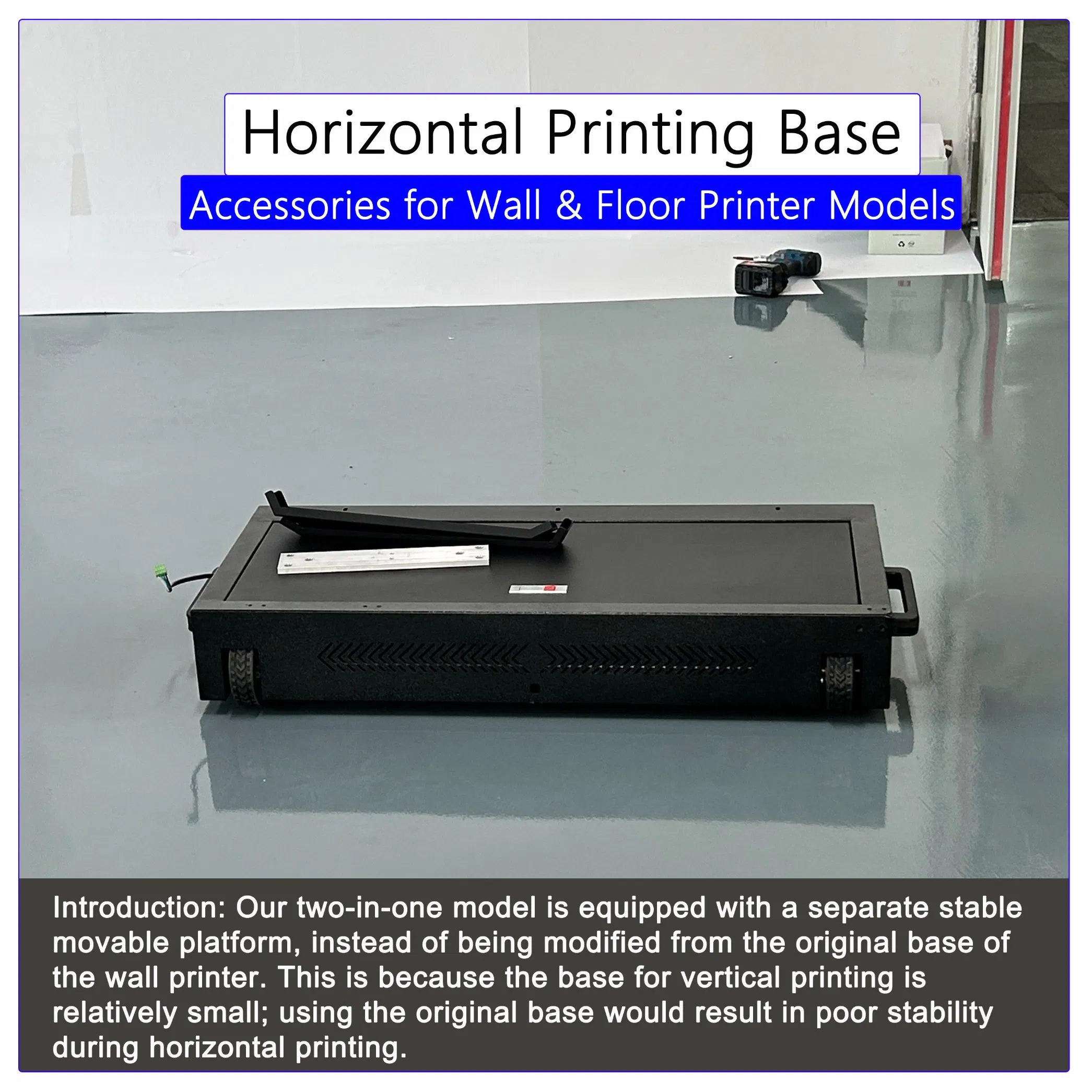

Horizontal Printing System

Wide-format system for floors and parking lots. 2500mm single-pass width with no length restriction.

Detailed Specifications

Model	LC-WF-TX800	LC-WF-DX7	LC-WF-1600S
Printhead	TX800	DX7-196	i1600-U1*2Pcs
Speed	3-8 m²/h	5-10 m²/h	6-15 m²/h
Materials	Any wall surface, tiles, glass, wood boards, PVC, metal, etc.
Resolution	Up to 1440x2880dpi
Price	3500 USD/set	4500 USD/set	5500 USD/set

Key Components

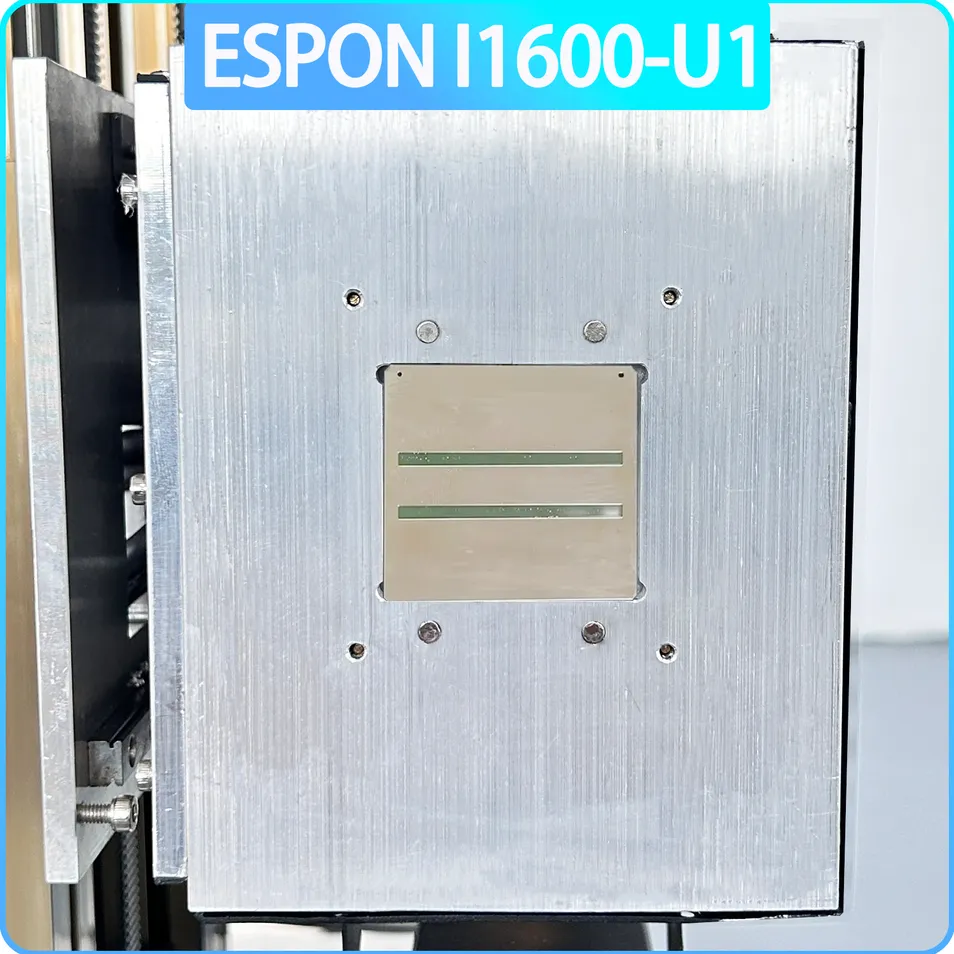

I1600-U1 Printhead

High-Speed: Frequency reaches 43.2kHz for enhanced efficiency.
VSDT Technology: Variable droplet size (3.8 to 12pl) for smooth color transitions.
Durability: Industrial-grade design optimized for UV inks.

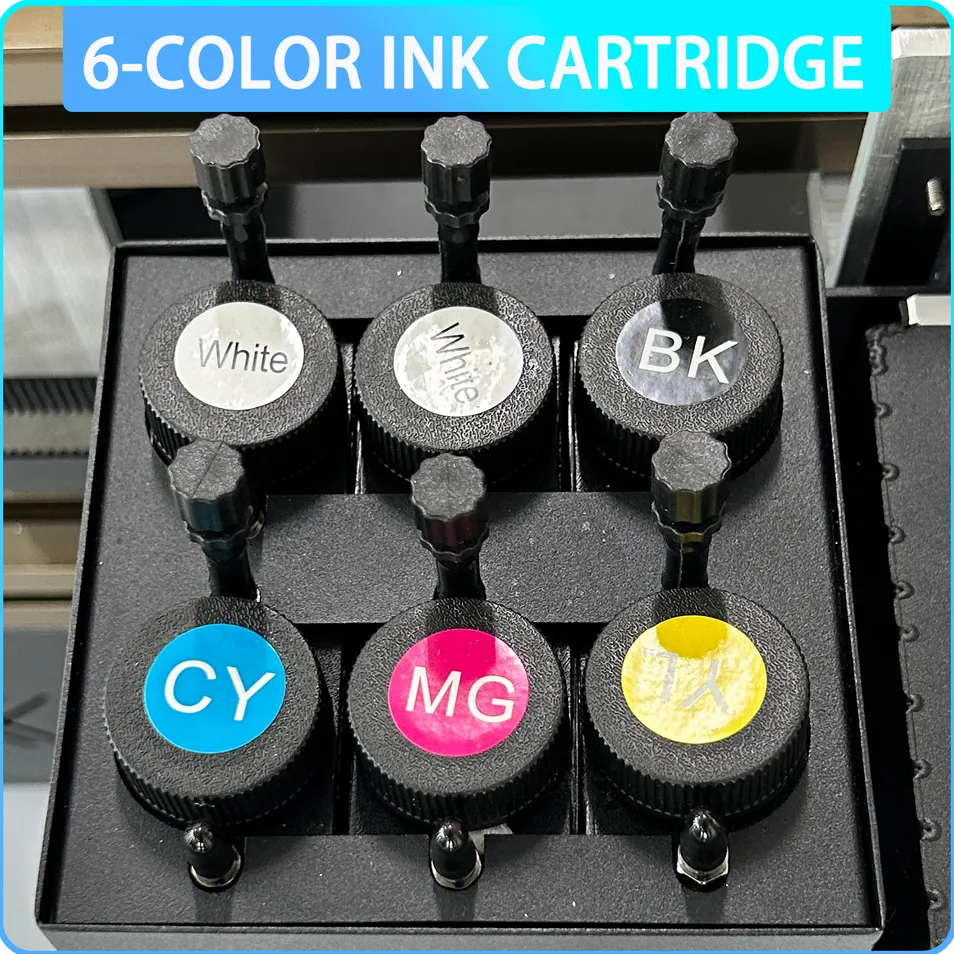

6-Color CMYKWW Ink System

Standard CMYK+W continuous ink supply. Features a white ink circulation system with stirring functions to prevent sedimentation, ensuring stable output on dark substrates.

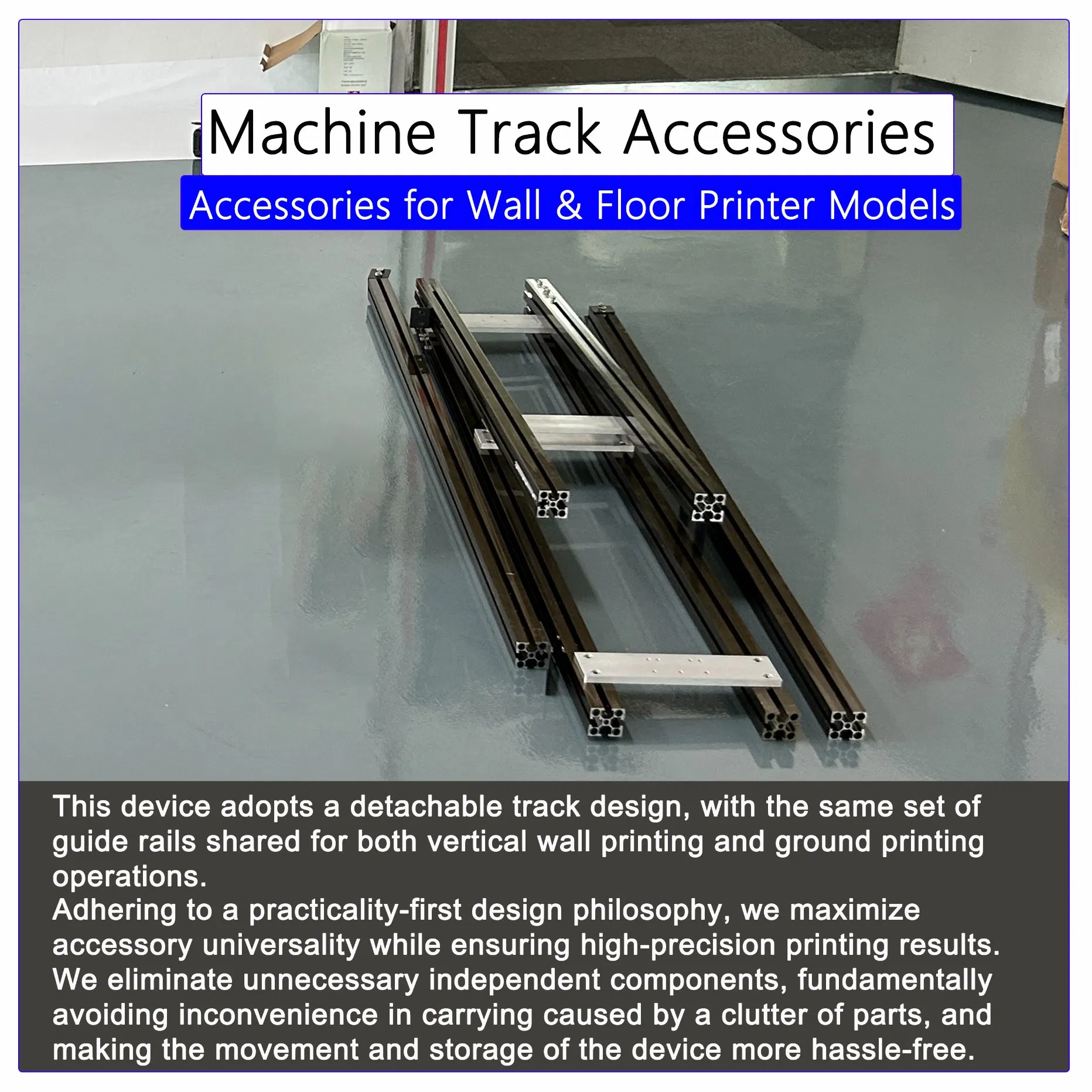

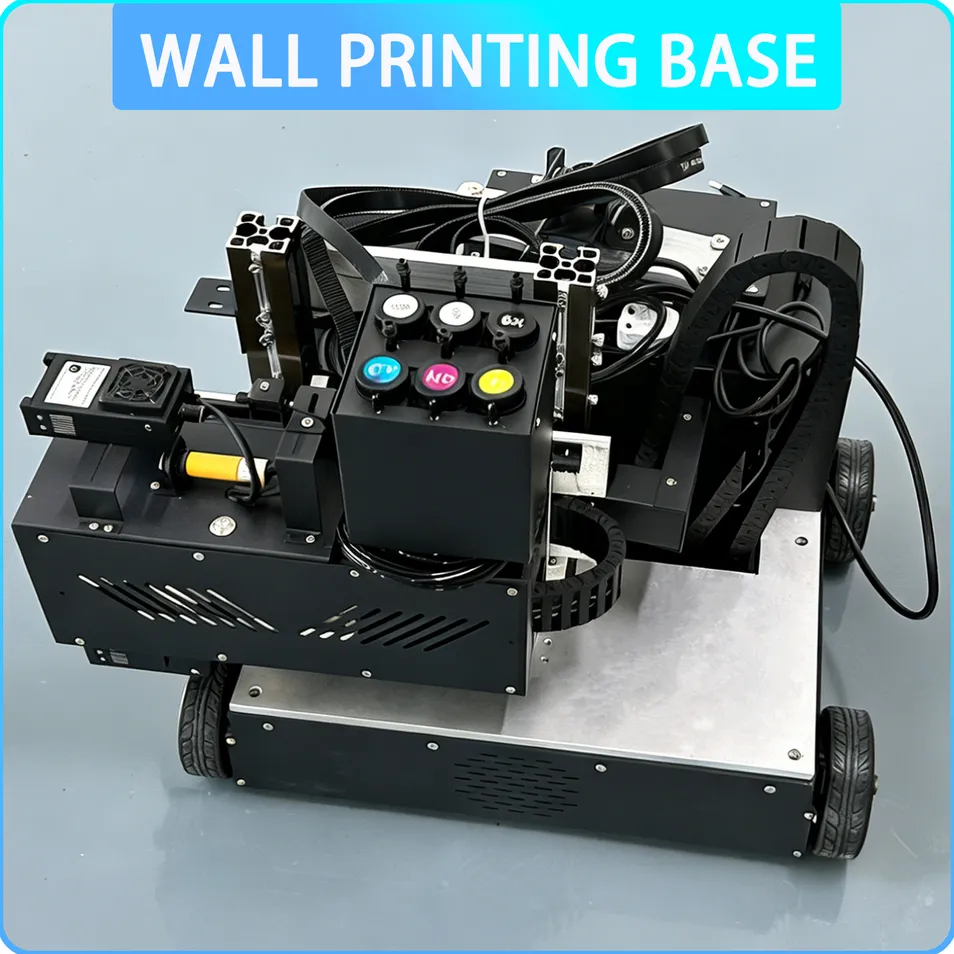

X-Axis Guide Rail Drive

High-precision guide rail design significantly reduces operational jitter compared to rubber wheels. Delivers dual guarantees of precision and 5+ years of service life.

Certifications

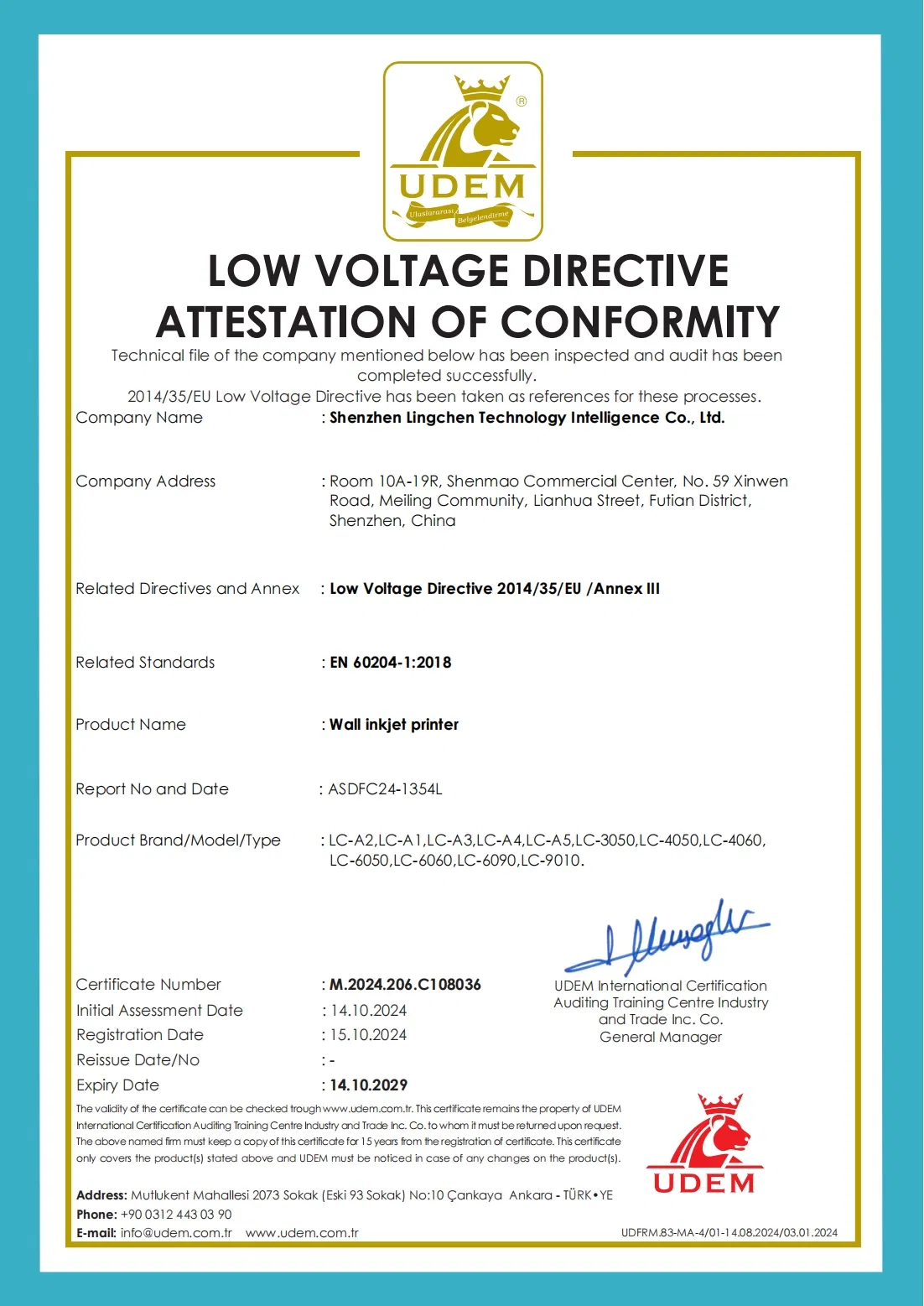

CE-LVD

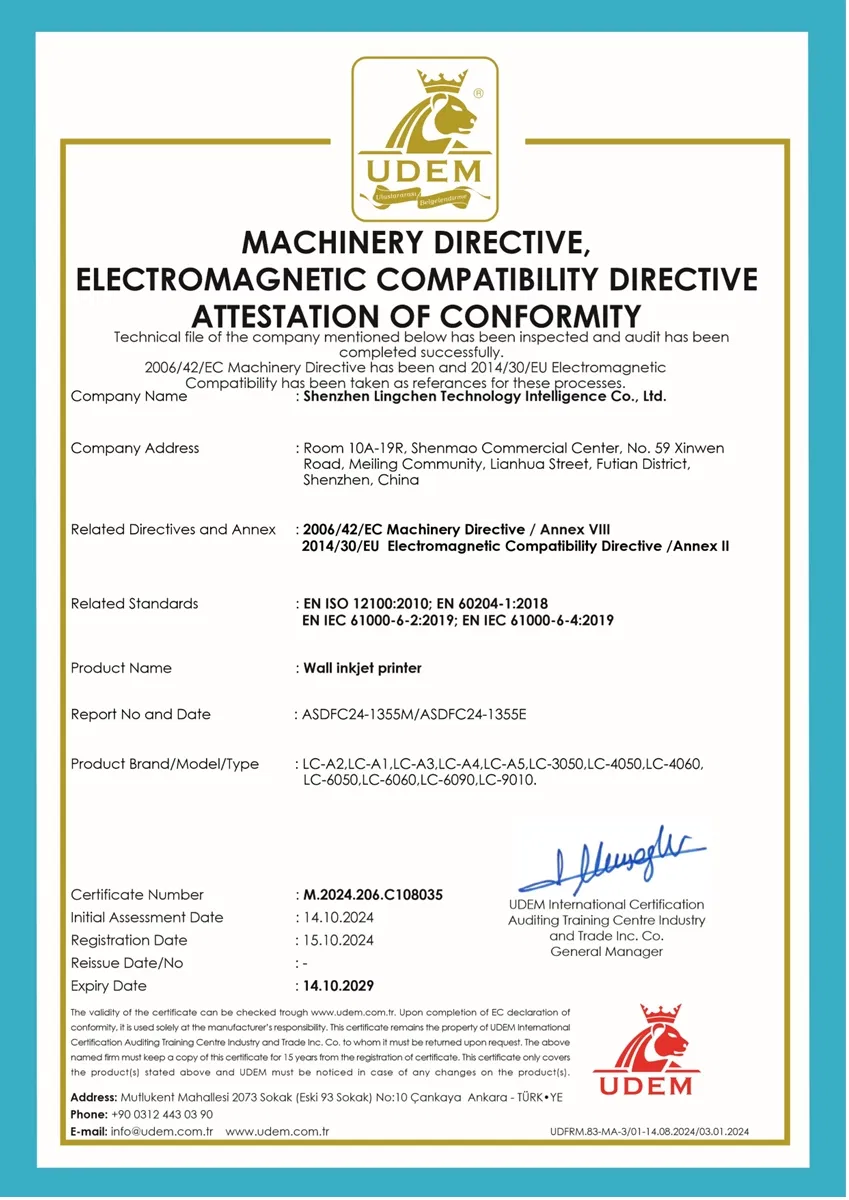

CE-MD-EMC

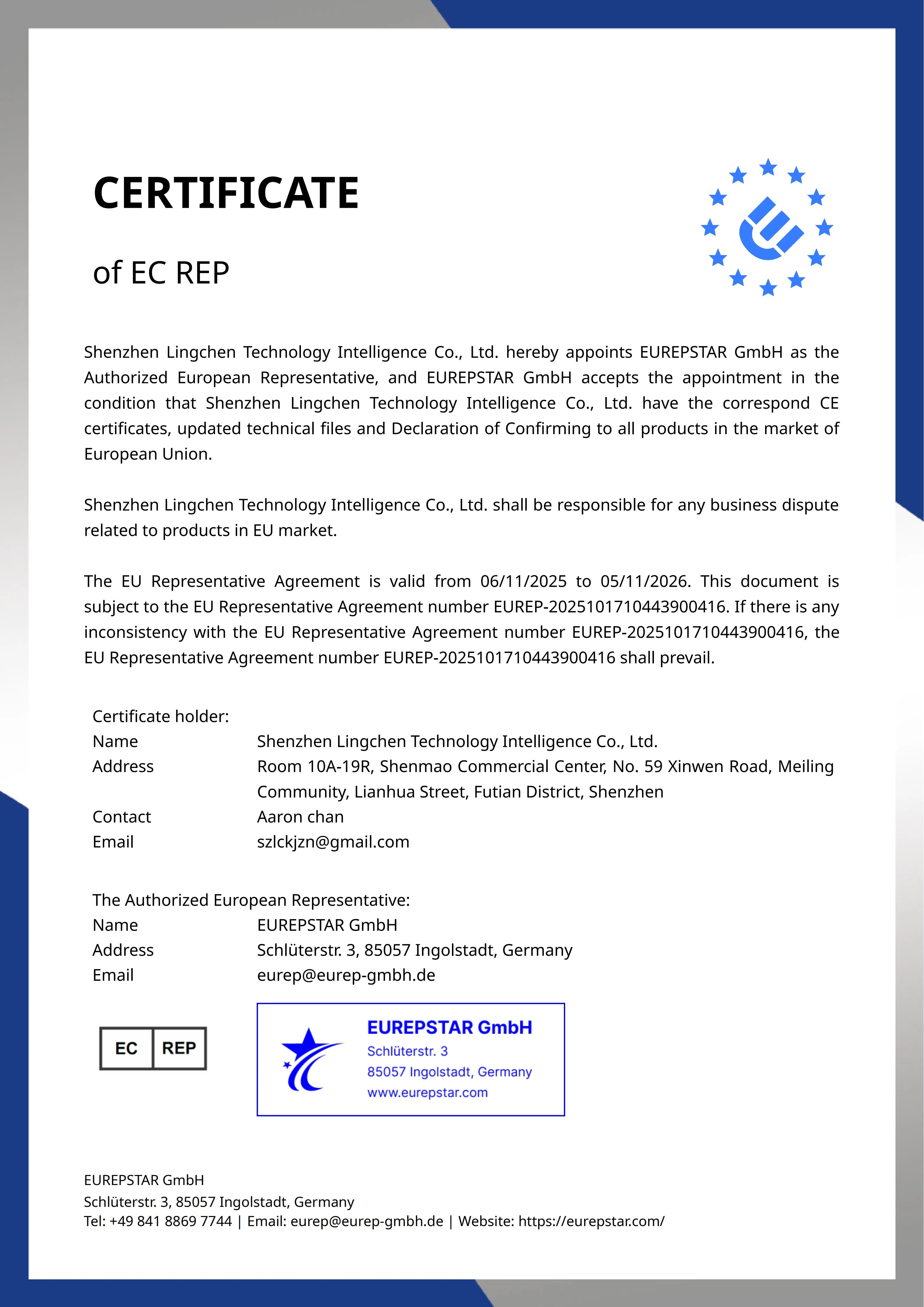

GPSR

Packing & Delivery

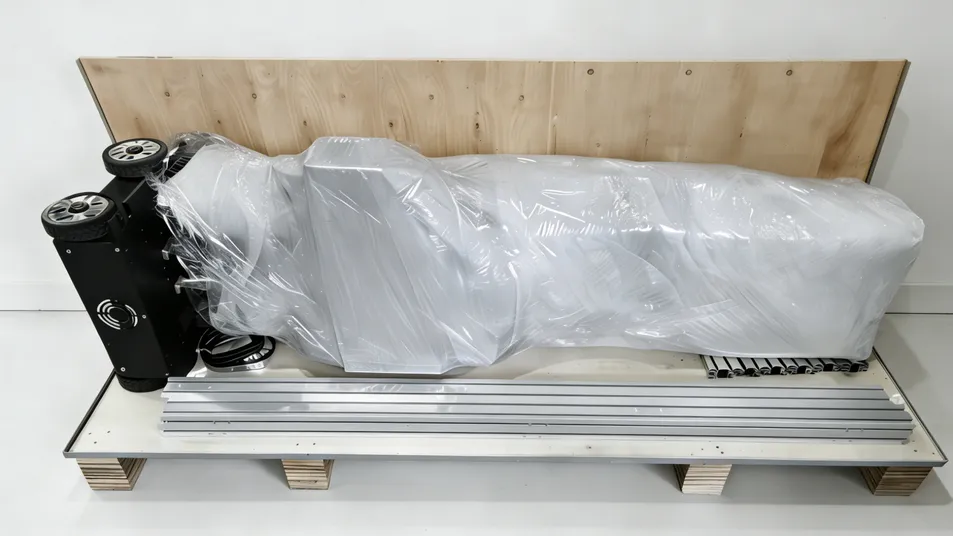

Reinforced Protection: High-strength wooden case with multi-layer shock absorption. Core components like printheads are secured with customized fixing designs.

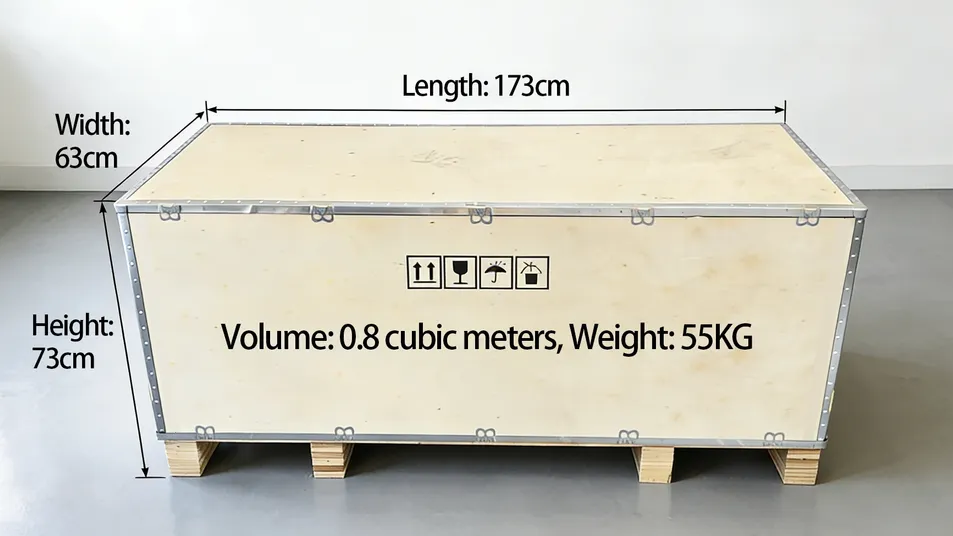

Logistics Parameters: Size 173×63×73cm | Volume 0.8m³ | Supports Air, Sea, and Courier shipping (DHL/FedEx/UPS).

Frequently Asked Questions

1. What is the printing precision and color reproduction?

The physical resolution reaches 1200dpi for pixel-level printing. With CMYK + White ink and PANTONE calibration, the color reproduction rate is ≥ 95%, matching design drawings accurately.

2. What is the maximum printing size?

The conventional height is 3.2 meters (customizable up to 4.5m), and the width is unlimited. Wheel-type models support continuous printing for 10m+ walls with minimal splicing error.

3. Which wall materials are compatible?

It works with cement walls, latex paint, wallpaper, glass, tiles, and wood. Rough walls should have a flatness error ≤ 3mm for optimal results.

4. Can it handle uneven surfaces?

Yes. The radar detection system identifies 1-20cm unevenness and adjusts the printhead distance in real-time (0.1mm precision) to prevent collisions.

5. Is the ink environmentally friendly?

Our UV ink has passed CE and ROHS certifications. It is non-toxic, odorless, and offers an indoor shelf life of ≥ 20 years and outdoor life of ≥ 3 years.

6. Is operation training provided?

The system features a visual touch control wizard. Non-professionals can learn to operate it in 1-2 hours. We provide full manuals and video tutorials.
