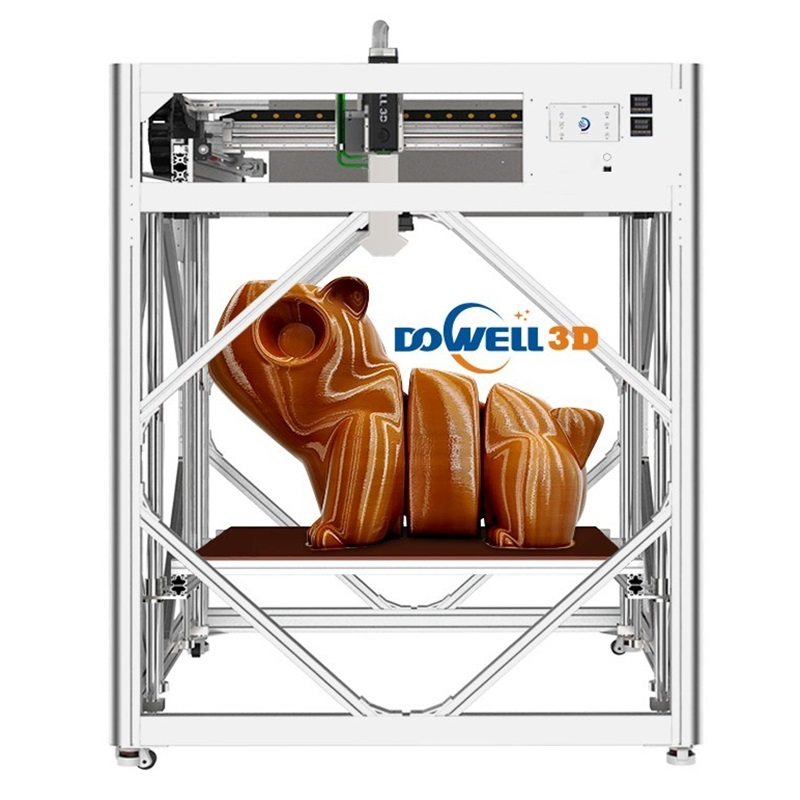

| Model NO. | DP-A10 |
| Molding Technology | Fused Granulate Fabrication (FGF) |
| Printing Size | 1000*1000*1000MM |
| File Format | STL, OBJ, GCODE, JPG |
| Nozzle Number | 1 |
| Precision | 0.02mm |
| Printer Material | PLA, Plastic, PP/PP+GF/PETG/ABS/TPE |
| Printing Speed | 0-350mm/s |
| Extruder | 3 Stage Screw Extrusion, Automatic Feeding System |
| Nozzle Diameter | 1.0 / 2.0 / 3.0mm |
| Extrusion Flow Rate | 4000-5000g/Hour |
| Cooling System | Water Cooling |
| Nozzle Temperature | 0-420°C |
| Platform | 0-100°C 6mm Tempered Glass |
| Transmission | Screw Drive & Servo Motor |
| Operating System | Industrial Controller |

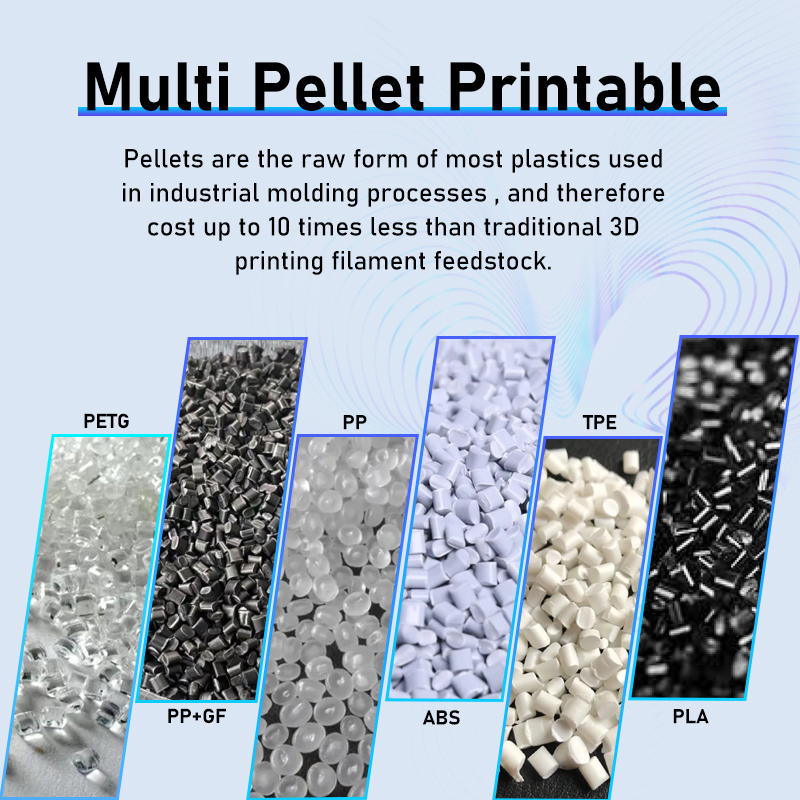

Pellets are the primary raw materials for industrial molding. This series enables rapid heating and extrusion for materials ranging from PLA to high-temperature engineering thermoplastics, supporting industrial composite printing.

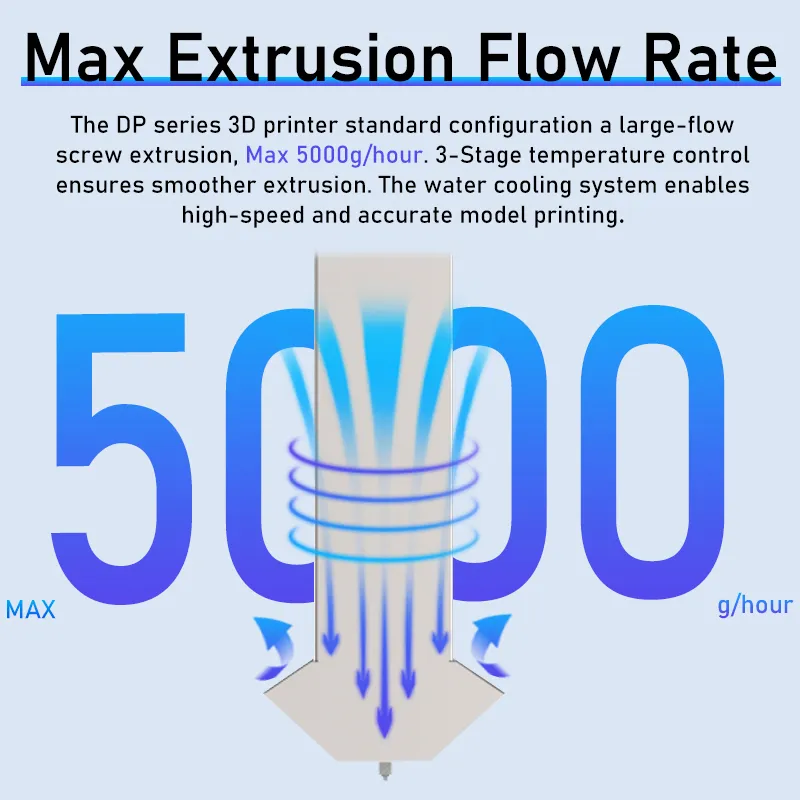

Featuring a pioneering screw extrusion system, it provides powerful, uniform extrusion force for material adhesion. Supports nozzle sizes from 1.2-3.0mm for both fine detail and high-volume flow.

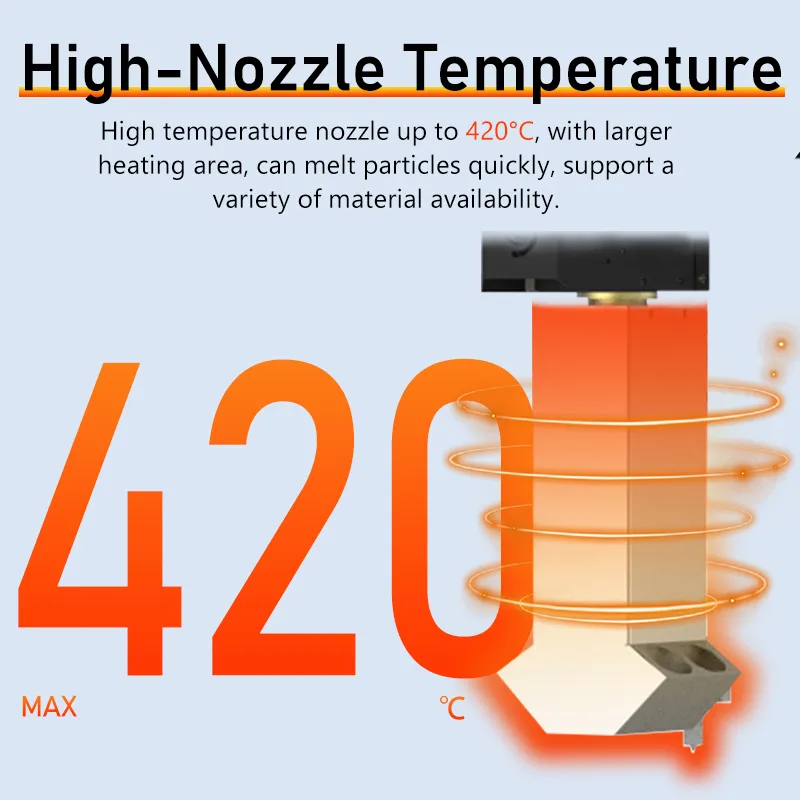

Designed to handle durable composite materials, the 420°C nozzle handles high-temperature thermoplastics with ease, broadening the horizon for industrial parts.

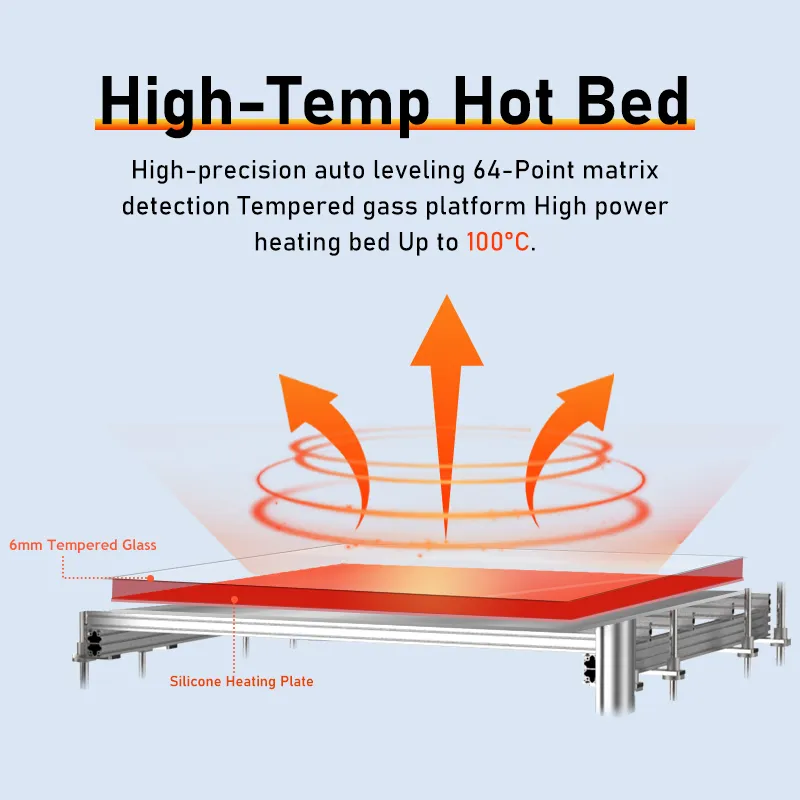

A 6mm tempered glass platform combined with a silicone heating plate ensures rapid and even heating, effectively preventing warping for large-scale prints.

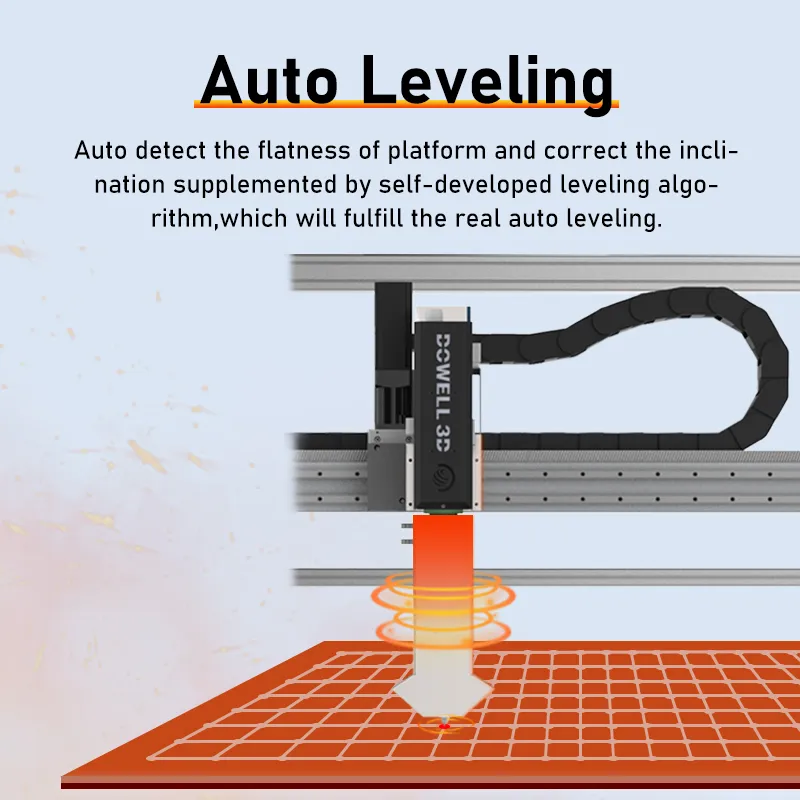

A high-precision sensor-based system automatically detects platform height. Real-time algorithm adjustments make the printing process effortless.

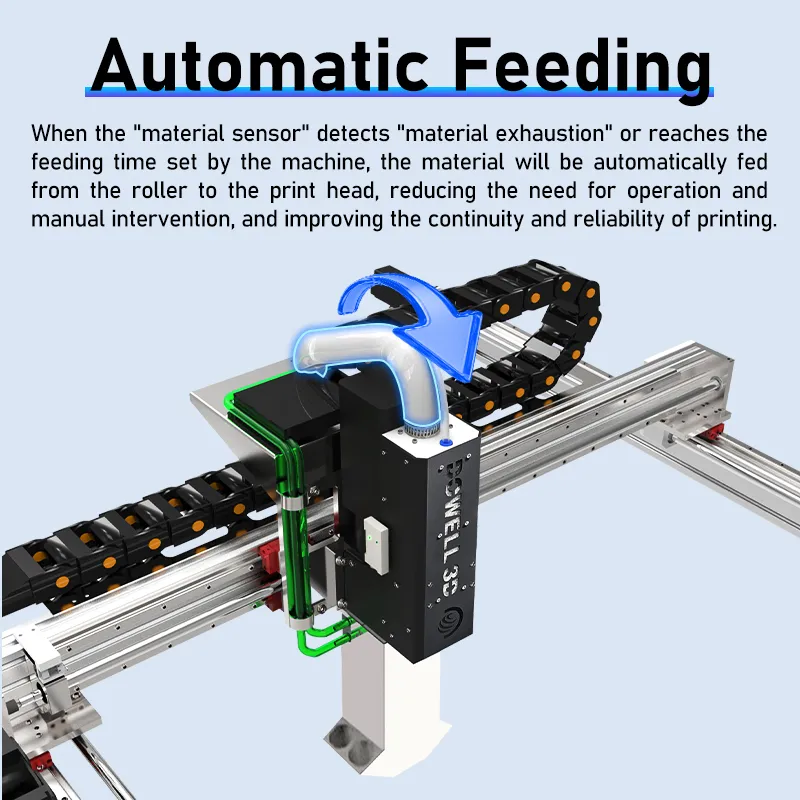

Sensors detect material levels and automatically feed pellets from the roller to the print head, ensuring continuity and reducing manual intervention.

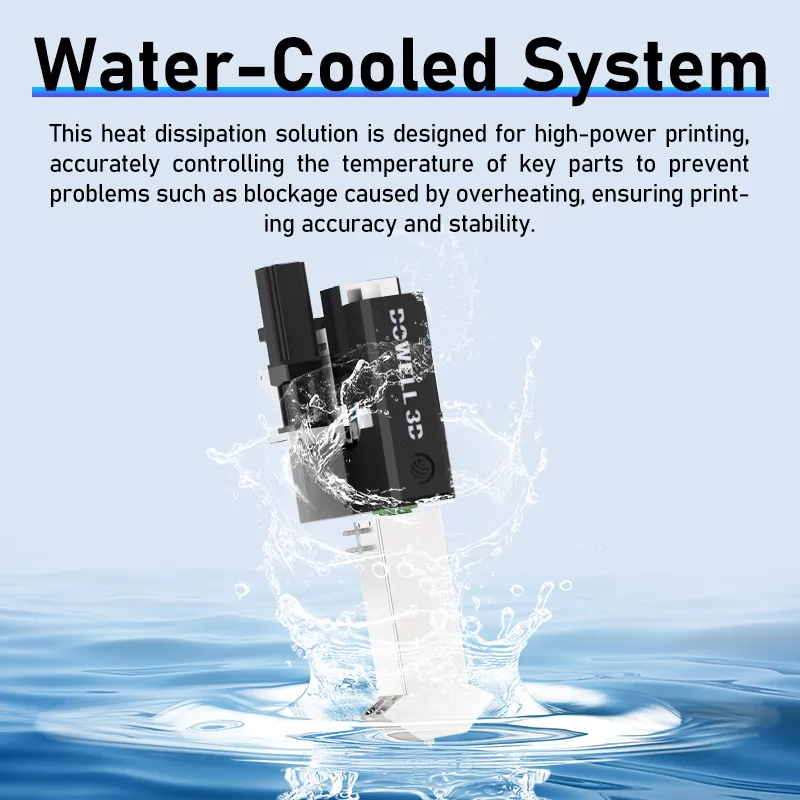

Designed for high-power printing, this system accurately controls the temperature of key components to prevent heat-induced blockages.

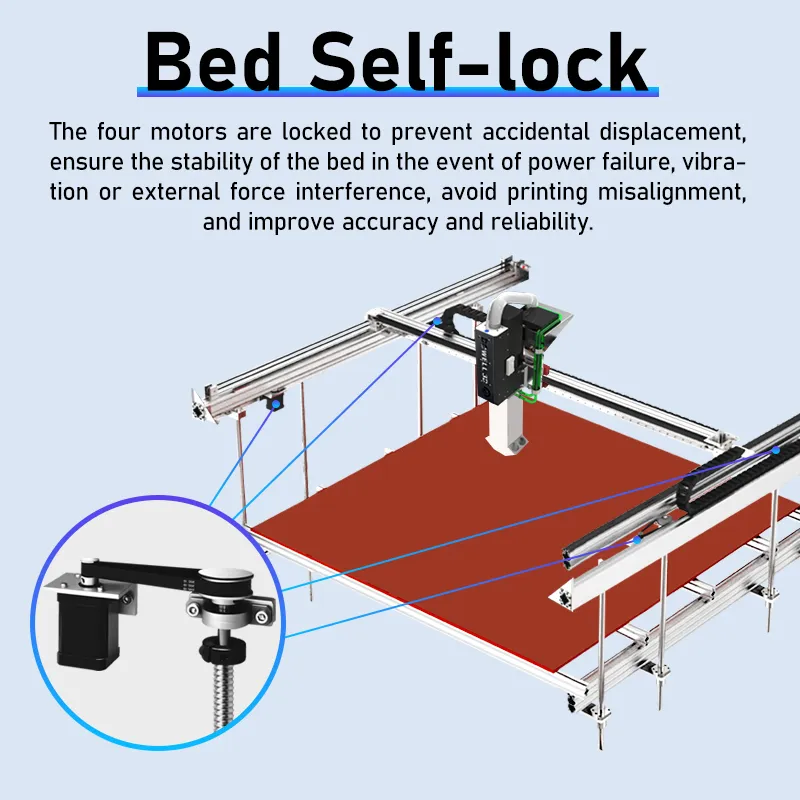

Motors are locked to prevent accidental displacement during power failures or vibrations, ensuring accuracy and preventing misalignment.
