Integrated Structure Dp-A1216-12 Fgf Industrial Pellet 3D Printer 1200mm Large Printer for Architectural Components

Customization: Available
After-sales Service: Online After Sale Support
Warranty: 1 Year

Product Description

i

Overview

Industrial Pellet 3D Printer

High-Flow Industrial Large-Format Pellet 3D Printer

The DP-A Series is purpose-built for high-throughput manufacturing and rapid prototyping applications. Constructed with a reinforced 80mm aluminum frame, triple-stage screw extrusion system, and integrated water cooling, this granule 3D printer delivers exceptional extrusion rates of 4000-5000g/hour.

Engineered for automotive, furniture, aerospace, and architectural sectors demanding large-scale additive manufacturing.

Technical Parameters

Model NO.
DP-A1216-12
Build Volume
1200*1600*1200mm
Extrusion Flow
4000-5000g/Hour
Print Speed
0-350mm/S
Nozzle Temp
0-420°C (Triple-Zone)
Bed Temp
0-100°C
Materials
PLA, ABS, PP, PP+GF, TPE
Nozzle Diameter
1.0 / 2.0 / 3.0mm
Interface
10" Full Color Touch Screen
Cooling System
Water Cooling
Frame
80mm Thickened Aluminum
Connection
SD / U Disk / WiFi / Camera

Key Features

Feature Overview

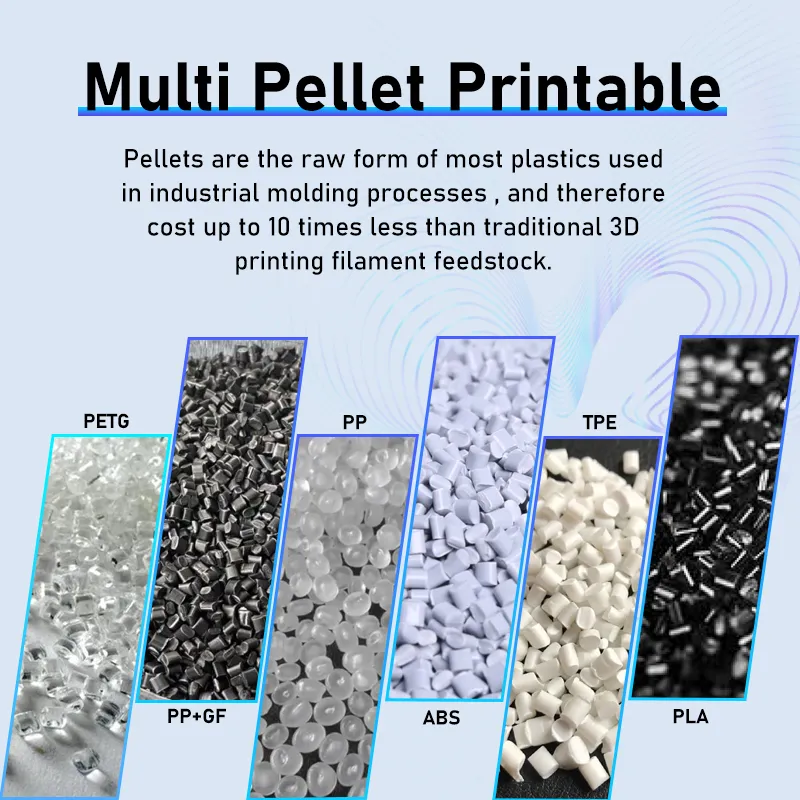

Materials

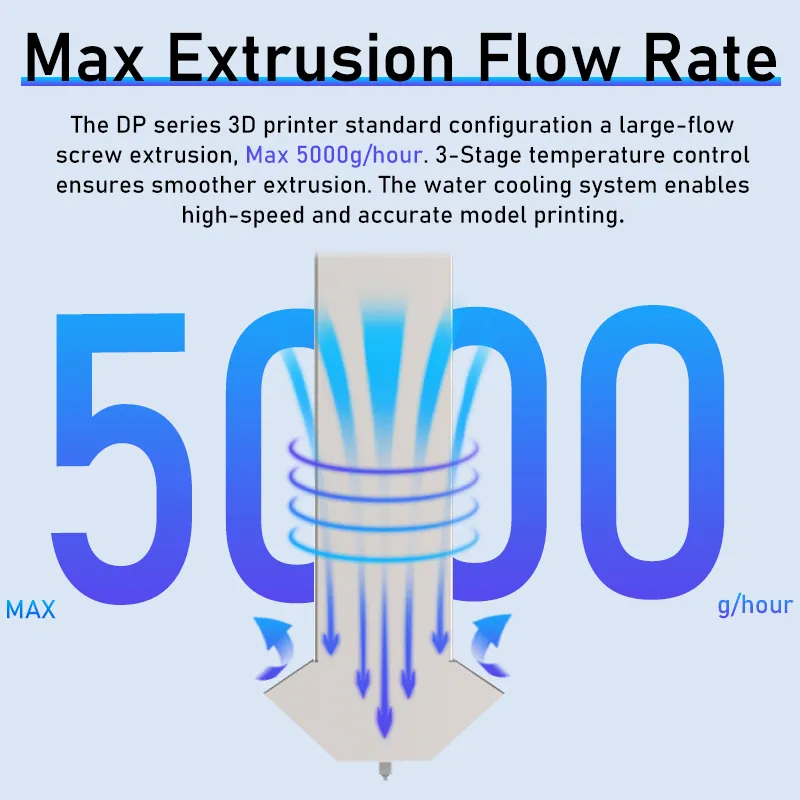

Extrusion
High Flow Screw Extrusion: Pioneering screw system provides even extrusion force for uniform flow and adhesion. Supports nozzle sizes up to 3.0mm and rates up to 5000g/h.
Nozzle

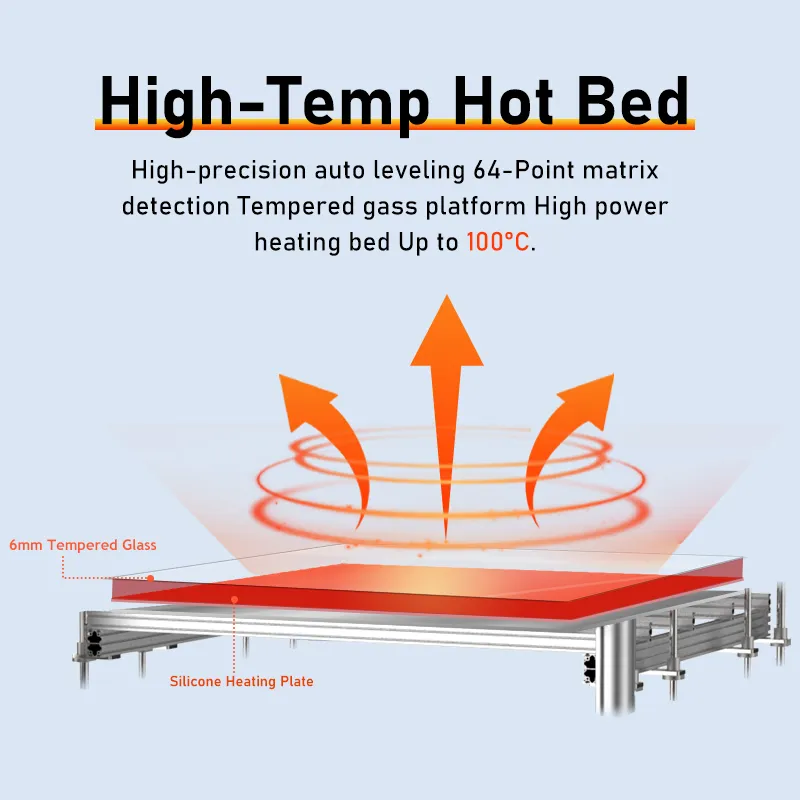

Hot Bed
Thermal Management: 420°C high-temp nozzle and 100°C silicone heating bed with tempered glass prevent warping and support engineering-grade thermoplastics.

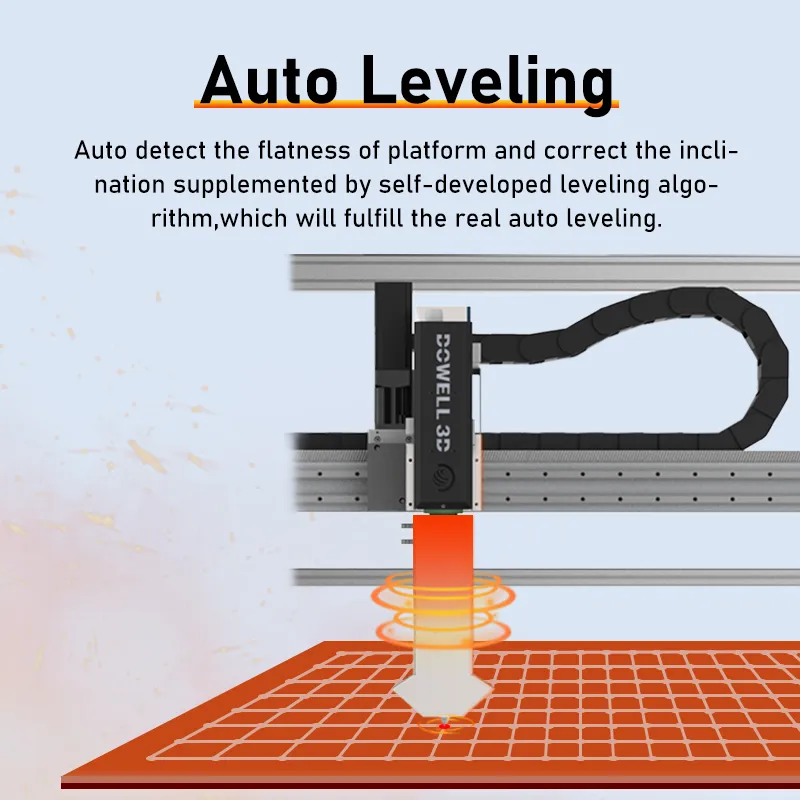

Auto Leveling

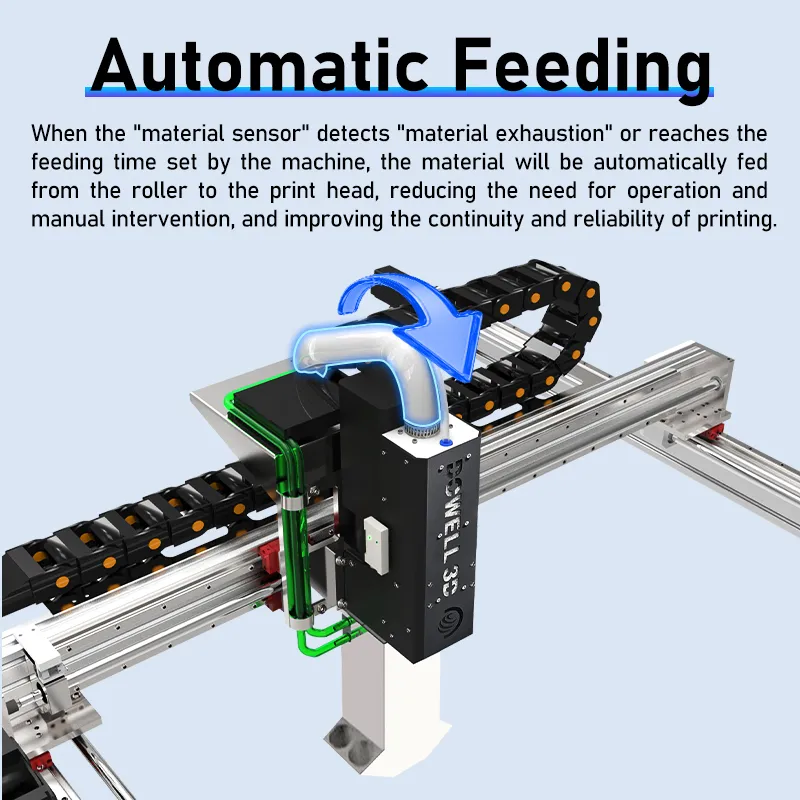

Auto Feeding
Intelligent Operation: High-precision auto-leveling and automatic pellet feeding systems reduce manual intervention and ensure printing continuity.

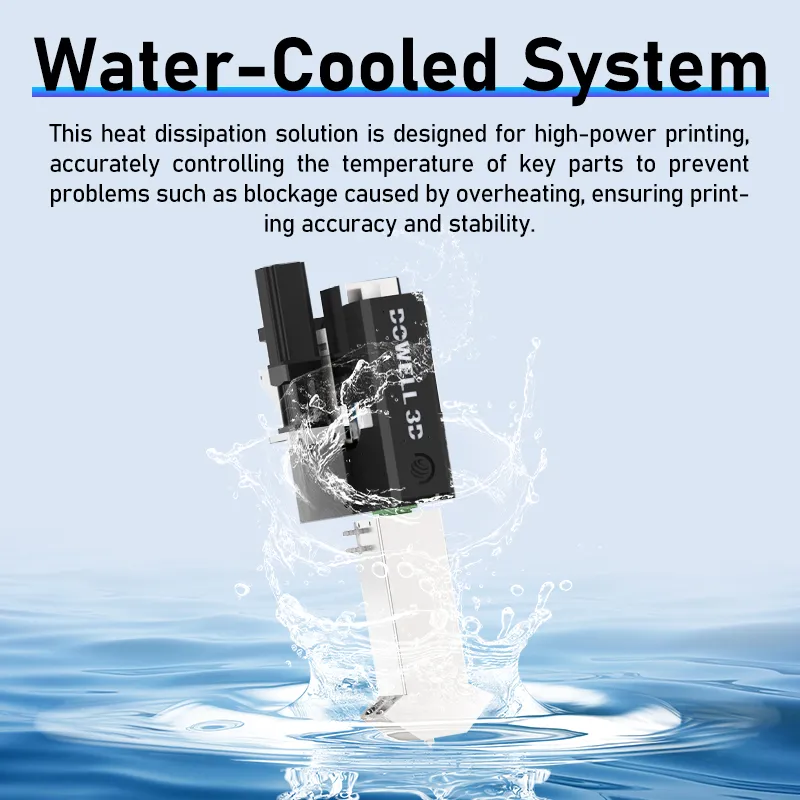

Water Cooled

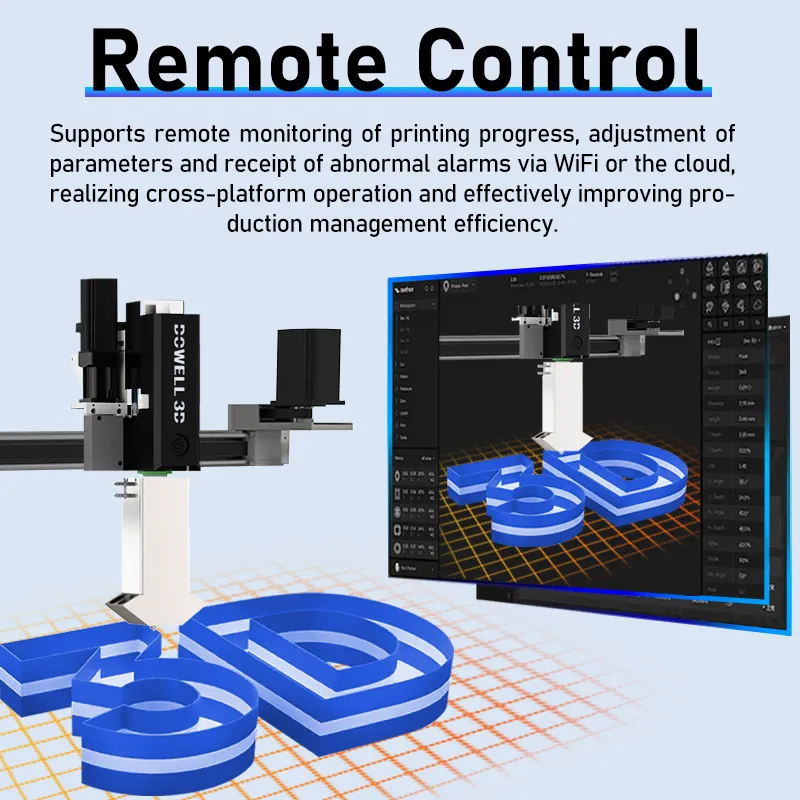

Monitoring
Advanced Stability: Water-cooled heat dissipation prevents blockages. Includes WiFi remote control and internal camera for real-time process monitoring.

Customization Options

Customization

Large Workspace: Standard sizes up to 1600 x 2400 x 1600 mm. We also offer fully customized build envelopes to meet specific industrial requirements.

Constant Temperature Enclosure: Optional 60°C heated chamber available to ensure process stability for high-shrinkage materials.

Printing Applications

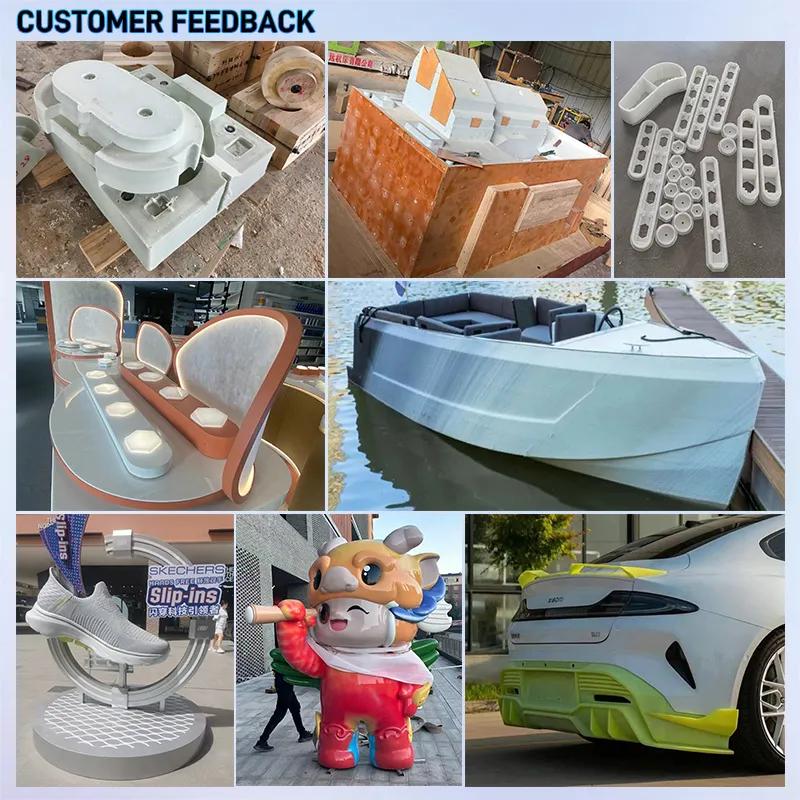

Case 1

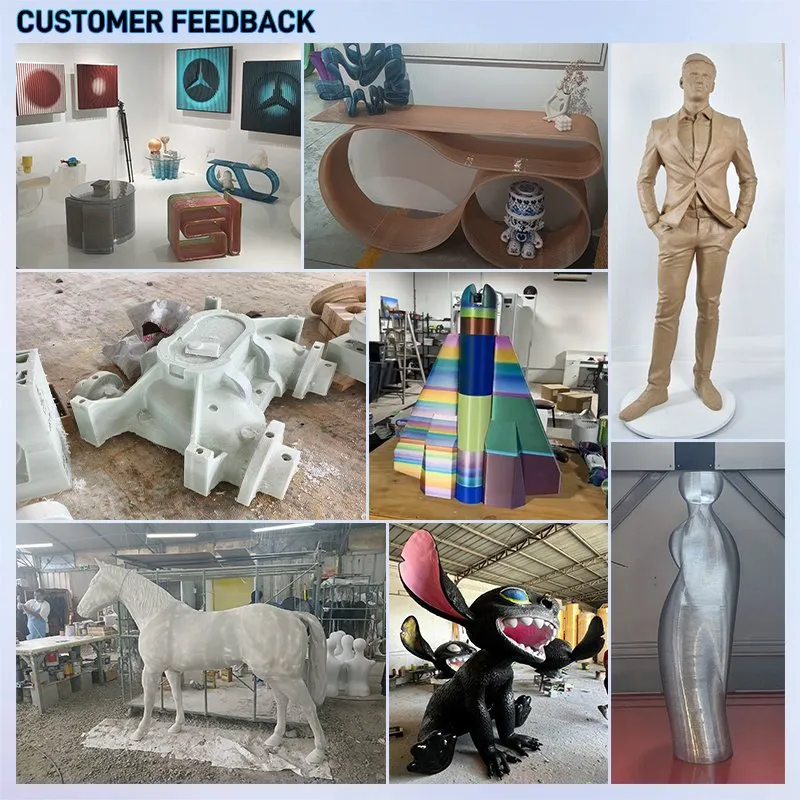

Case 2

Manufacturing Excellence

Factory

With over 11 years of expertise in R&D and production of large-scale industrial 3D printers, we offer a diverse range of space-efficient and intelligent systems. Our solutions are tailored for manufacturing factory tools, prototypes, and end-use components.

  • Highly Competitive Pricing
  • Project-based Product Recommendations
  • Comprehensive After-sales Technical Support
  • Efficient OEM and ODM services
?

Frequently Asked Questions

What materials can this pellet 3D printer use?
It is compatible with diverse 4mm industrial pellets, including PLA, ABS, PP, glass-fiber reinforced PP (PP+GF), and TPE.
What is the maximum nozzle temperature?
The printer features a triple-zone thermal management system that can reach up to 420°C, suitable for high-temperature engineering plastics.
Does the machine come with a warranty?
Yes, the machine includes a one-year warranty. We provide professional technical support via engineers and instructional videos for overseas customers.
Can the build size be customized?
In addition to our 14 standard sizes, we offer full customization services to build a machine according to your specific dimensions.
How do you ensure the quality before shipment?
We conduct 100% testing on all machines and provide test photos and videos to the customer for confirmation before arranging delivery.
What kind of software is used?
We utilize proprietary software optimized for our hardware and provide comprehensive guidance on how to use it for best results.
