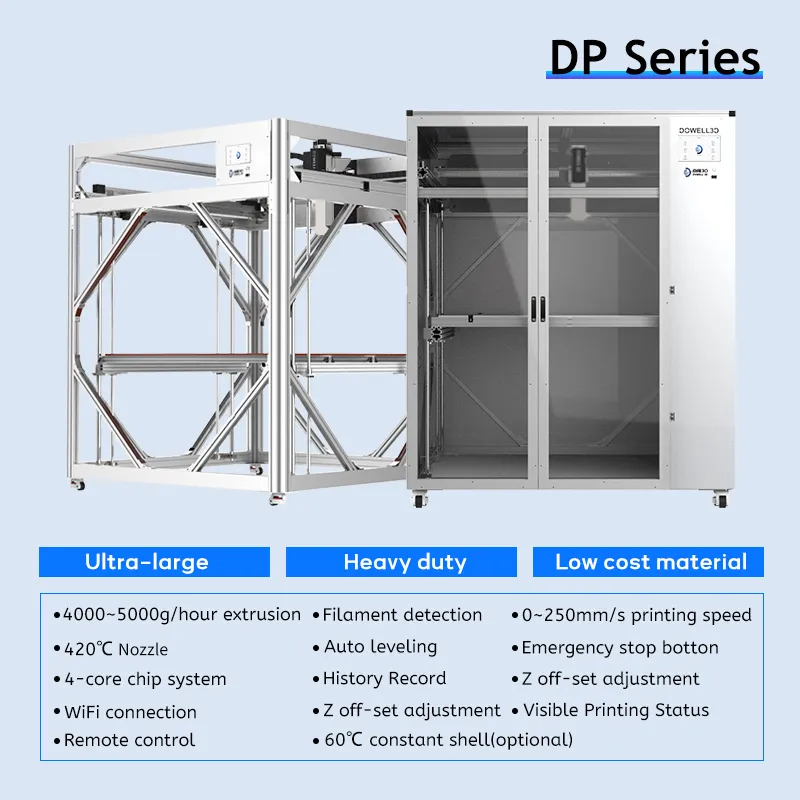

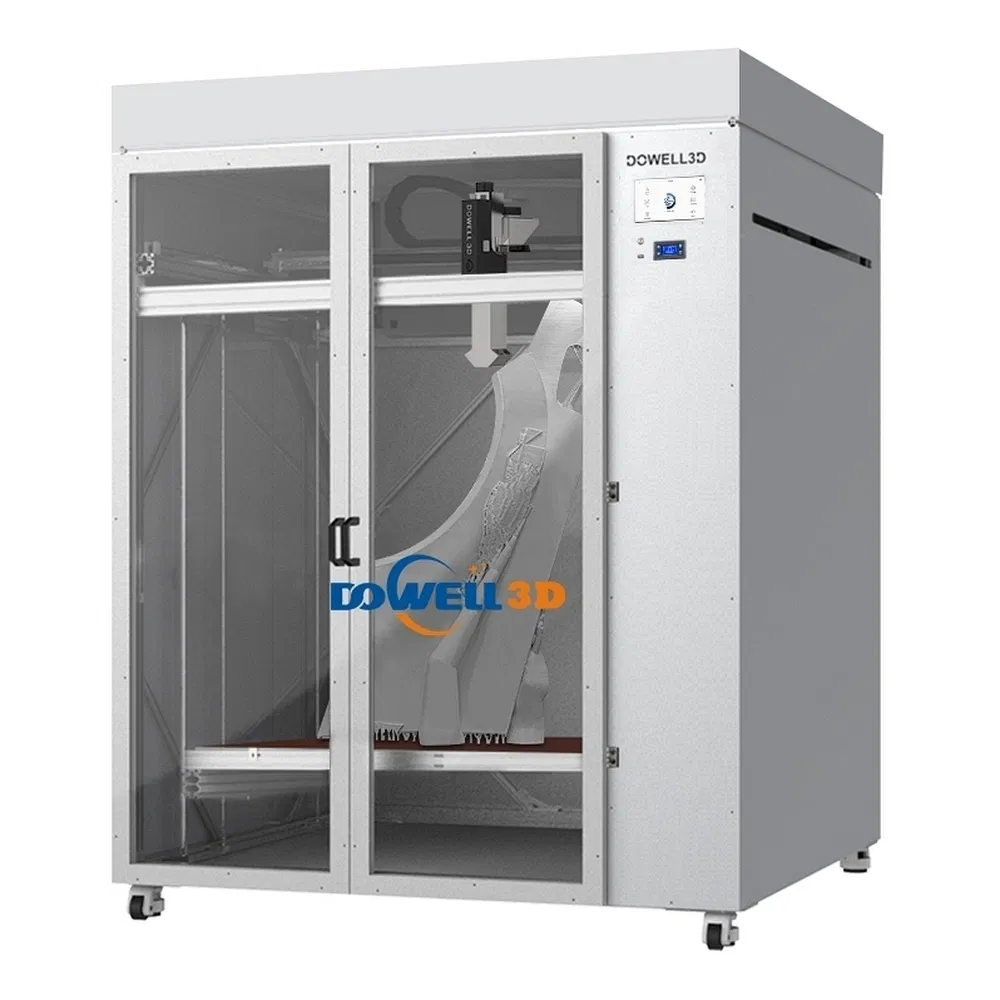

The DP-A Series is a high-flow industrial large-format pellet 3D printer purpose-built for high-throughput manufacturing and rapid prototyping applications.
Constructed with a reinforced 80mm aluminum frame, triple-stage screw extrusion system, and integrated water cooling, this granule 3D printer delivers exceptional extrusion rates of 4000-5000g/hour.
Engineered for automotive, furniture, aerospace, and architectural sectors demanding large-scale additive manufacturing.
| Parameter | Specification |
|---|---|
| Model | Dp-A1220-16 |
| Forming Technology | FGF (Fused Granulate Fabrication) |
| Build Volume | 1000×1000×1000mm to 1600×2400×1600mm |
| Print Speed | 0-350mm/s |
| Extrusion Flow Rate | 4000-5000g/hour |
| Nozzle Temperature | 0-420°C (Triple-Zone Control) |
| Bed Temperature | 0-100°C |
| Pellet Material | 4mm Pellet (PLA, ABS, PP, PP+GF, TPE) |
| Extruder | Triple-Stage Screw Extrusion with Automatic Feeding |
| Frame | 80mm Thickened Aluminum Section |
| Operation Interface | 10" Full Color Touch Screen |
Features a pioneering screw extrusion system for uniform material flow and adhesion. Supports high flow rates up to 5000g/h with interchangeable nozzles (1.2-3.0mm).
Uses raw plastic pellets instead of filament, significantly reducing material costs and allowing for engineering-grade thermoplastics like PP+GF and TPE.

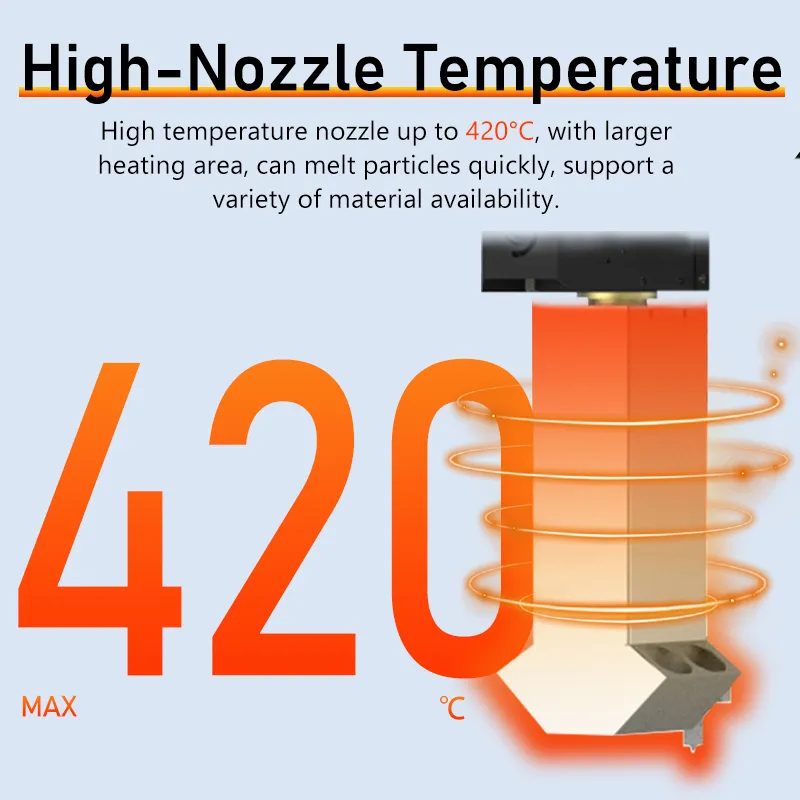

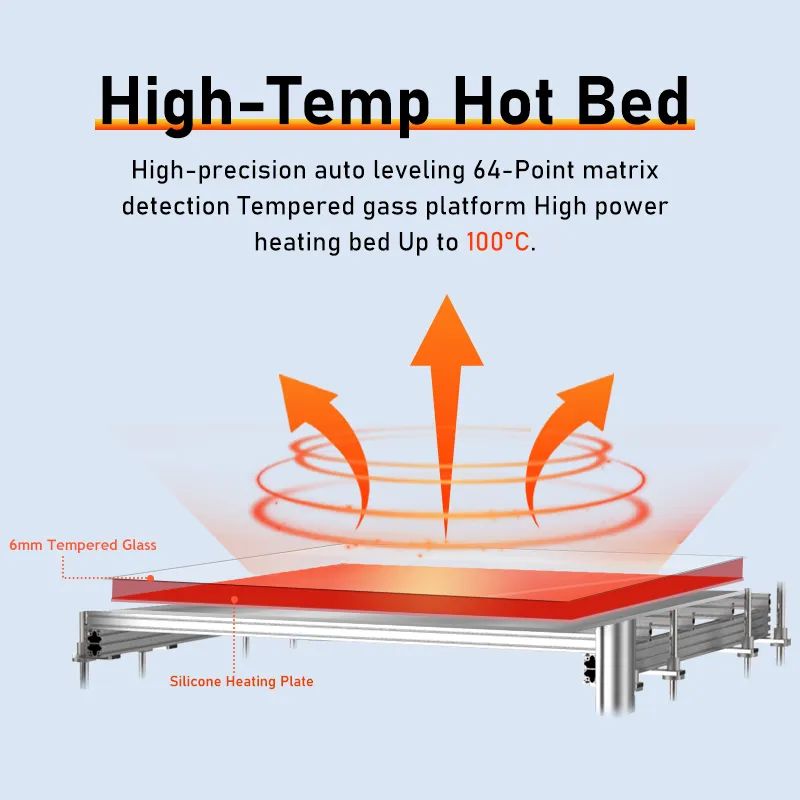

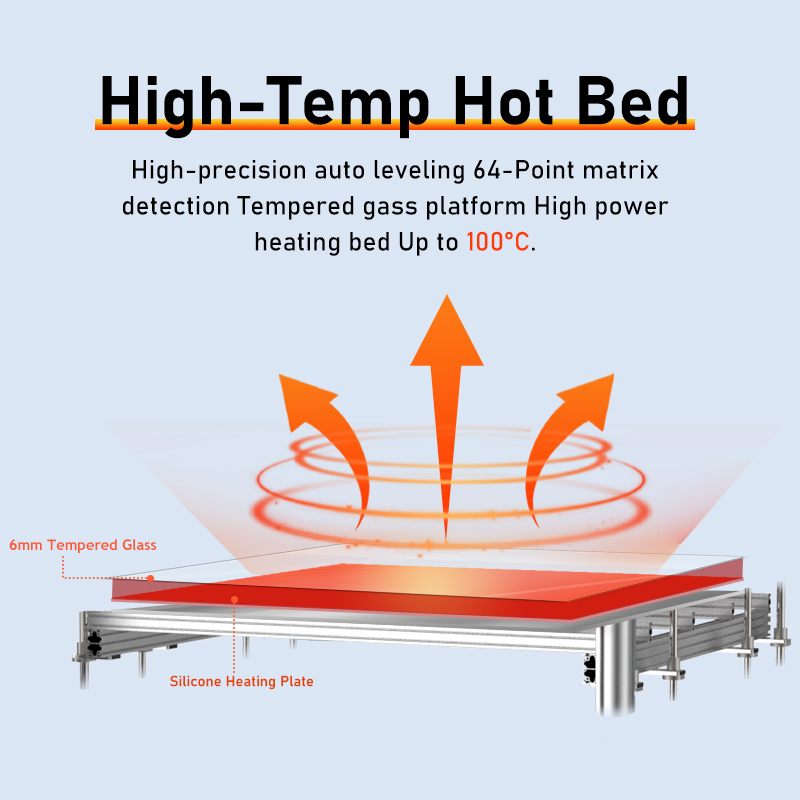

420°C high-temp nozzle and 100°C silicone heating bed ensure stability for complex industrial parts and prevent warping.
One-key auto-leveling and automatic material feeding systems reduce manual intervention and improve print continuity.
Our manufacturer has over 11 years of expertise in R&D and global export of large-scale industrial 3D printers. We offer a diverse range of user-friendly, large-format 3D printers tailored for industrial applications.

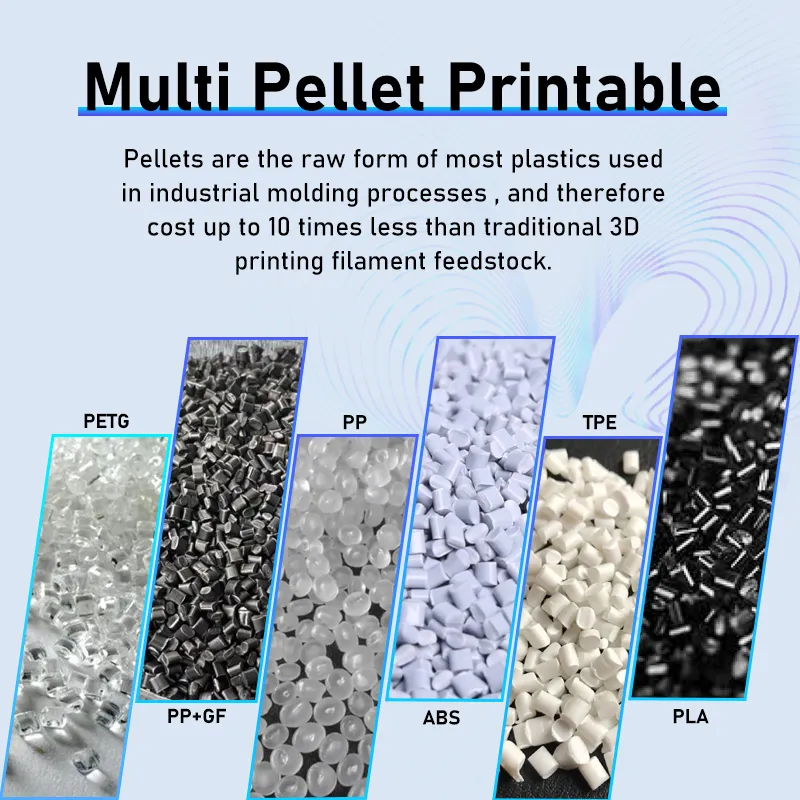

The printer is compatible with a wide range of 4mm pellets, including PLA, ABS, PP, glass-fiber reinforced PP (PP+GF), and TPE. It can handle most thermoplastics used in traditional molding.

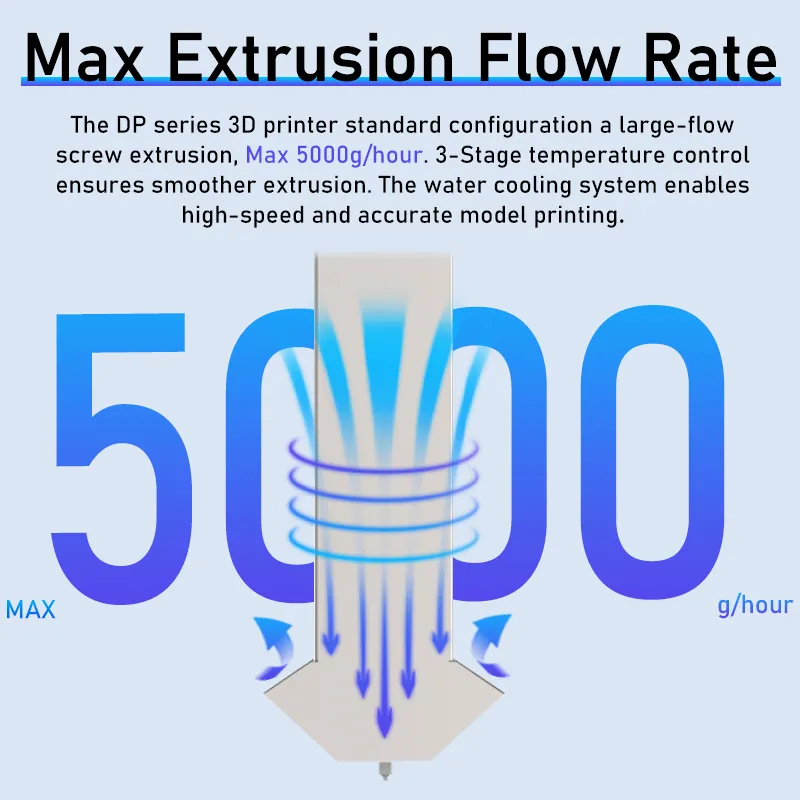

The triple-stage screw extrusion system provides a powerful and uniform extrusion force. This ensures superior layer adhesion and allows for high flow rates (up to 5000g/h), significantly speeding up the production of large parts.

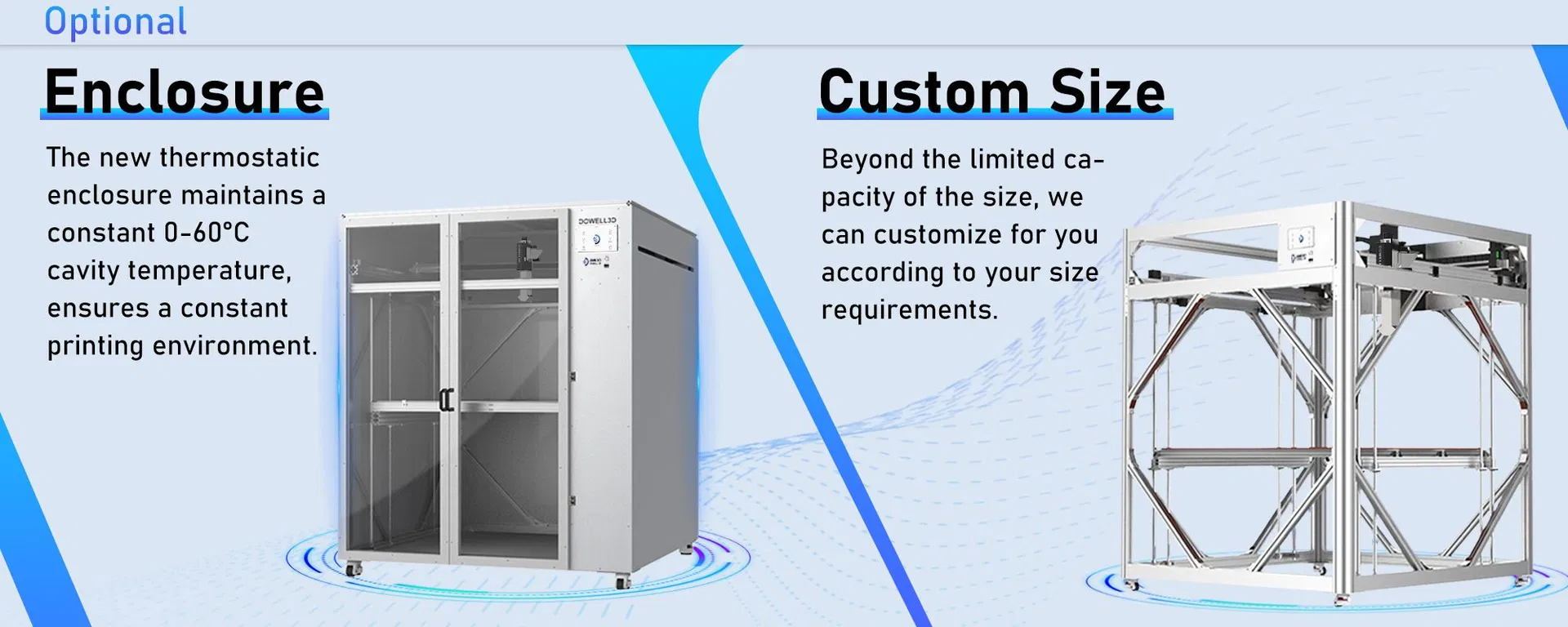

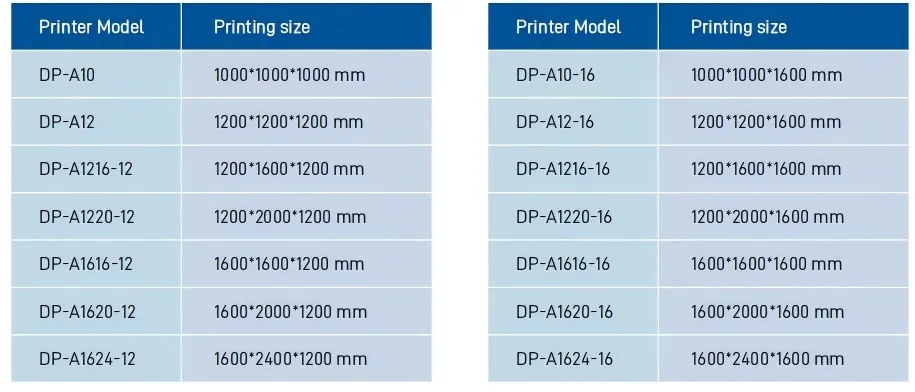

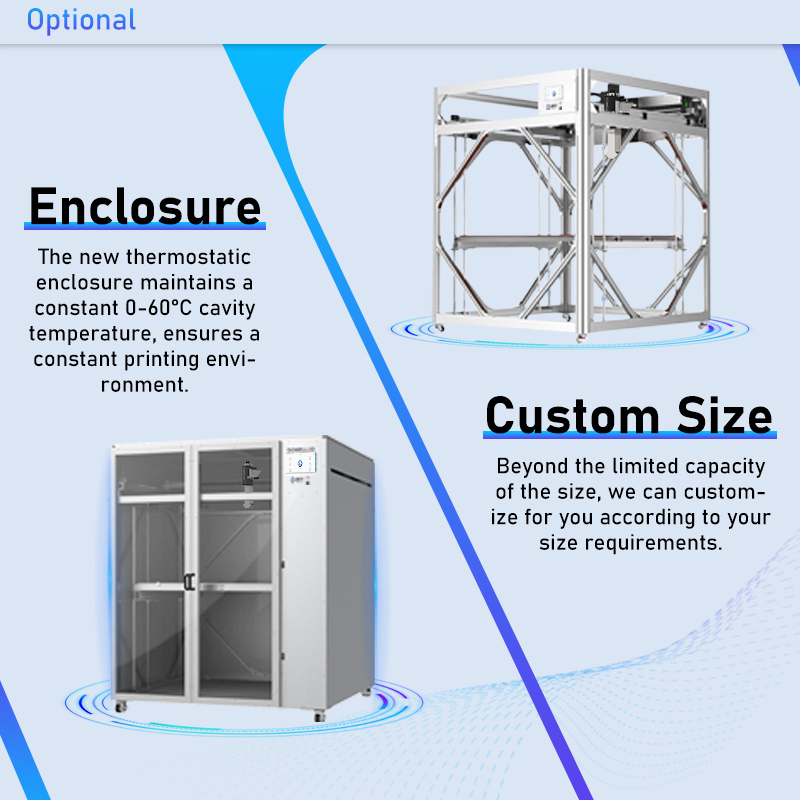

Yes, while we offer 14 standard sizes ranging up to 1600x2400x1600mm, we also provide custom size options to meet specific industrial workspace requirements.
Absolutely. The printer is equipped with WiFi connectivity, remote maintenance modules, and a camera for real-time monitoring and management via proprietary software.
Quality is maintained through high-precision sensor-based auto-leveling, a water-cooled dissipation system to prevent blockages, and a bed self-lock mechanism that ensures stability even during external interference.
We provide a one-year warranty along with 24/7 dedicated customer support. Users have access to professional technical engineers and comprehensive instructional videos to ensure smooth operation.
