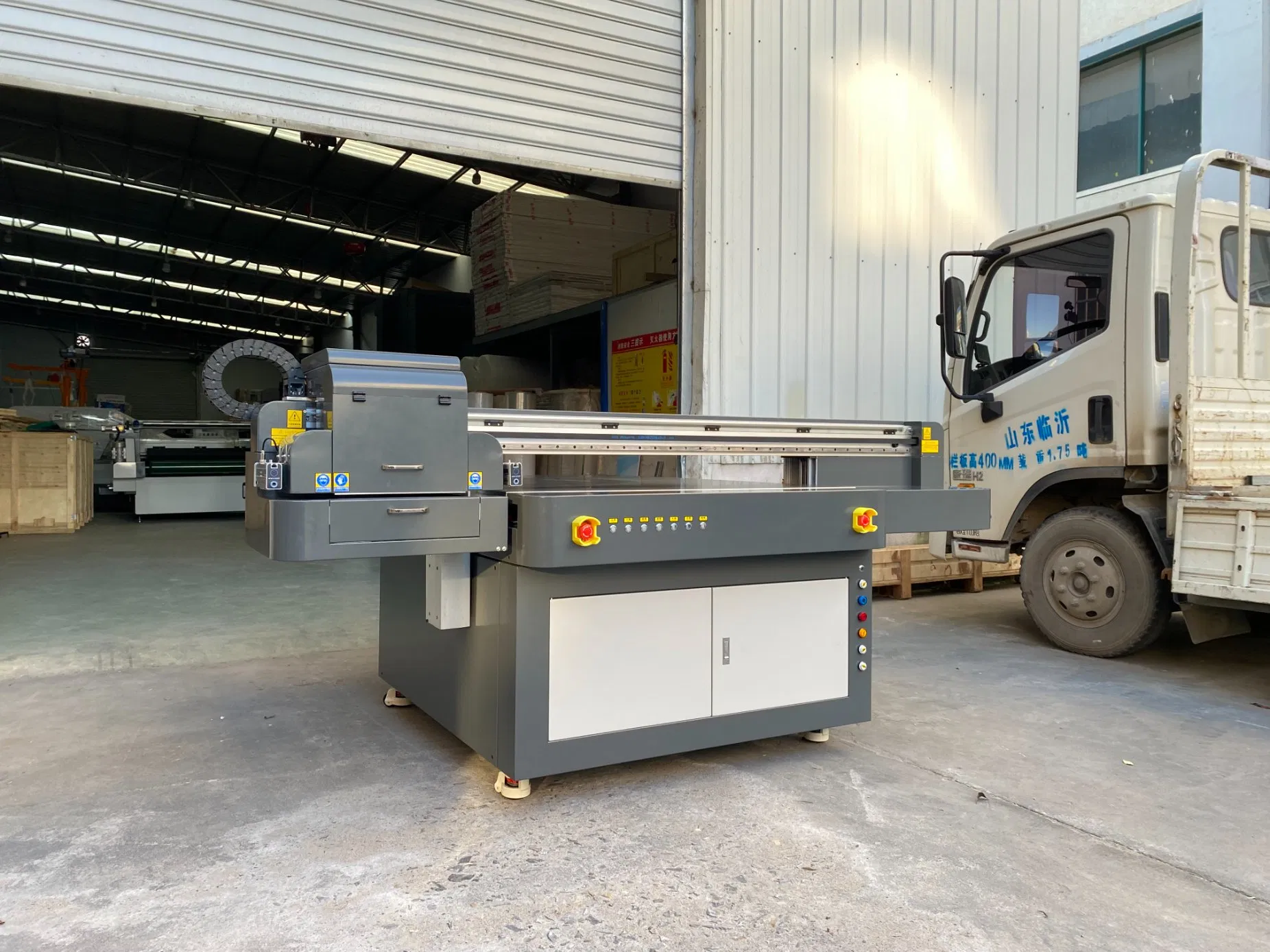

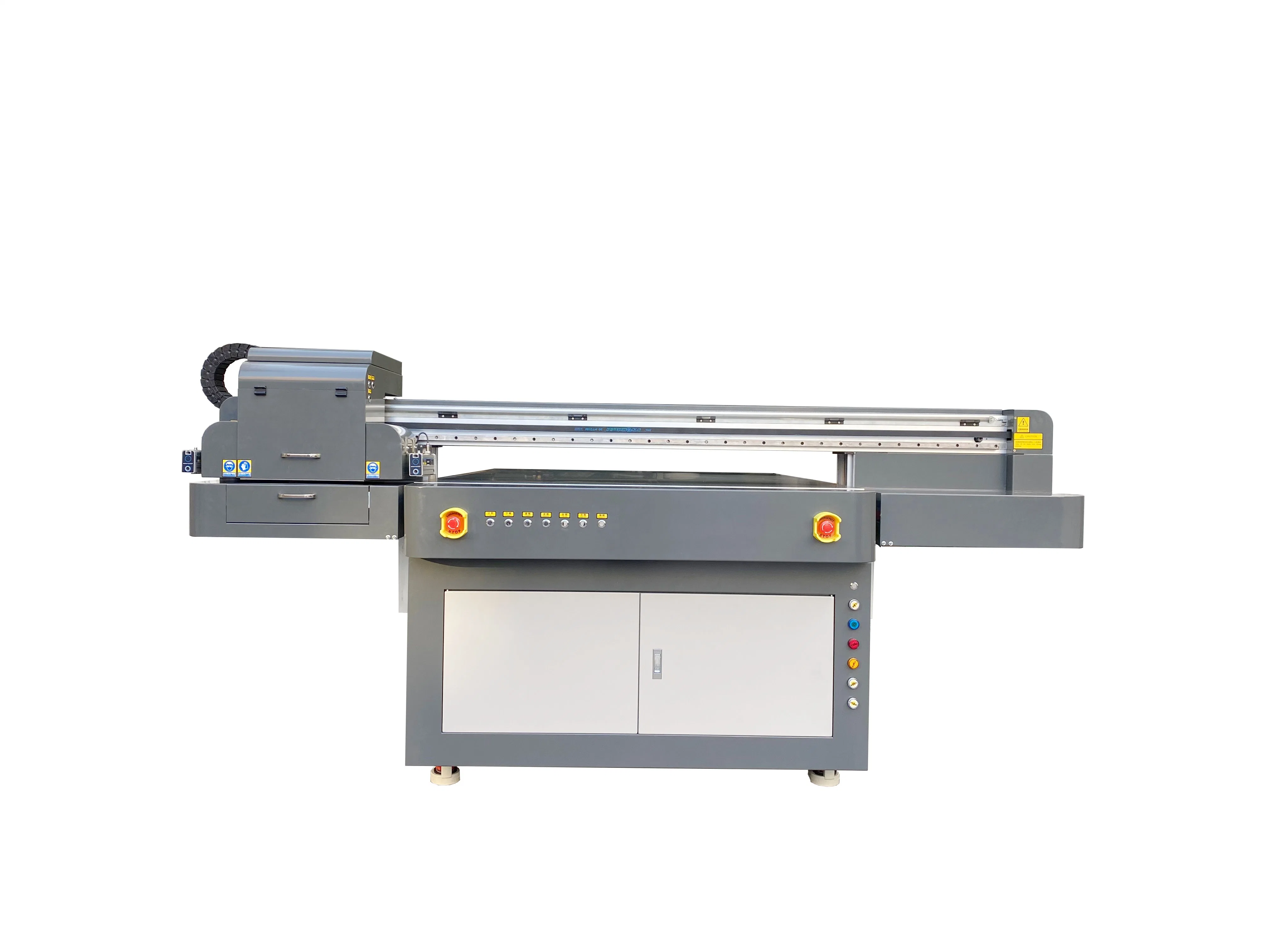

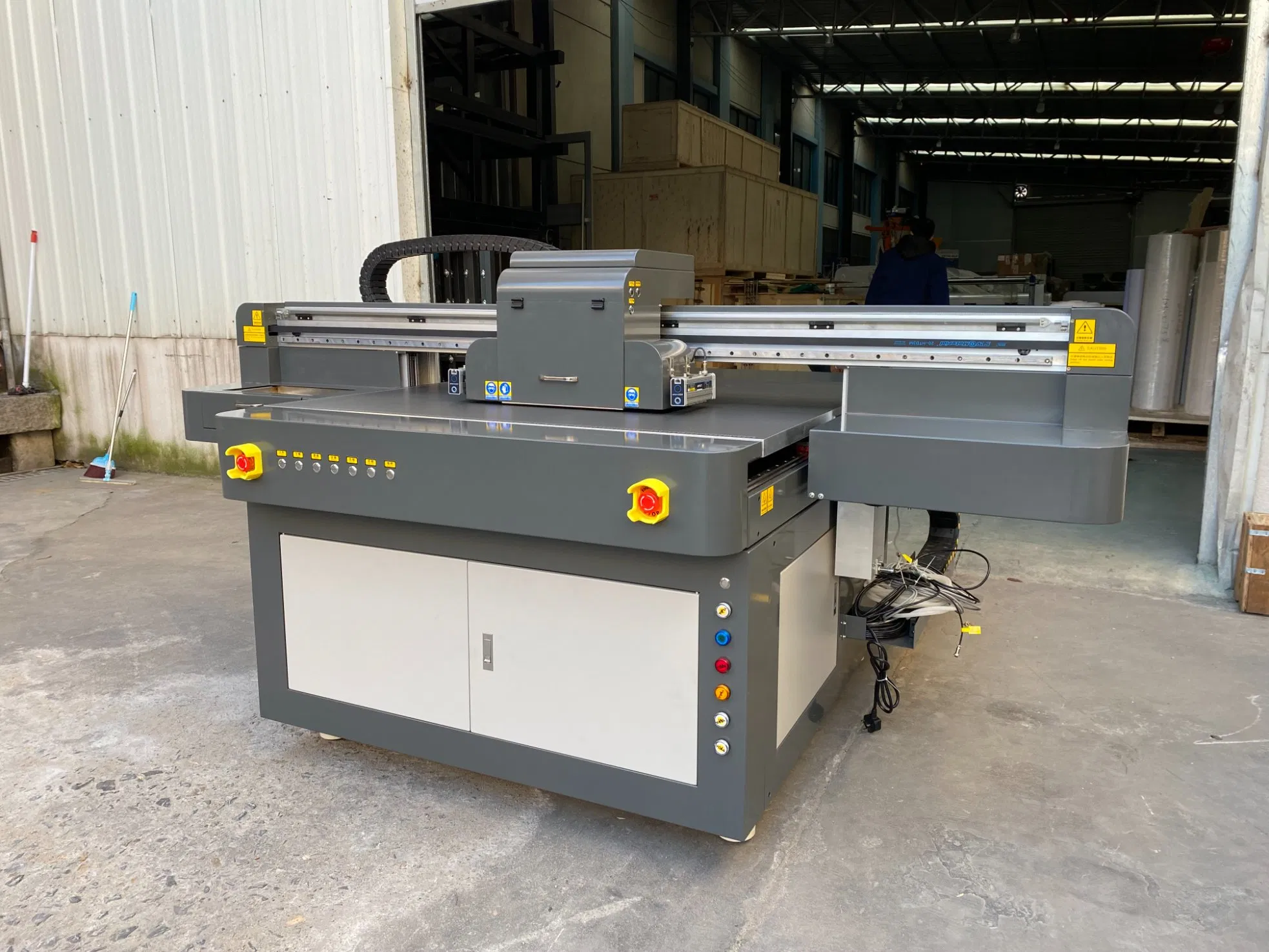

Magly Printer
1 / 5

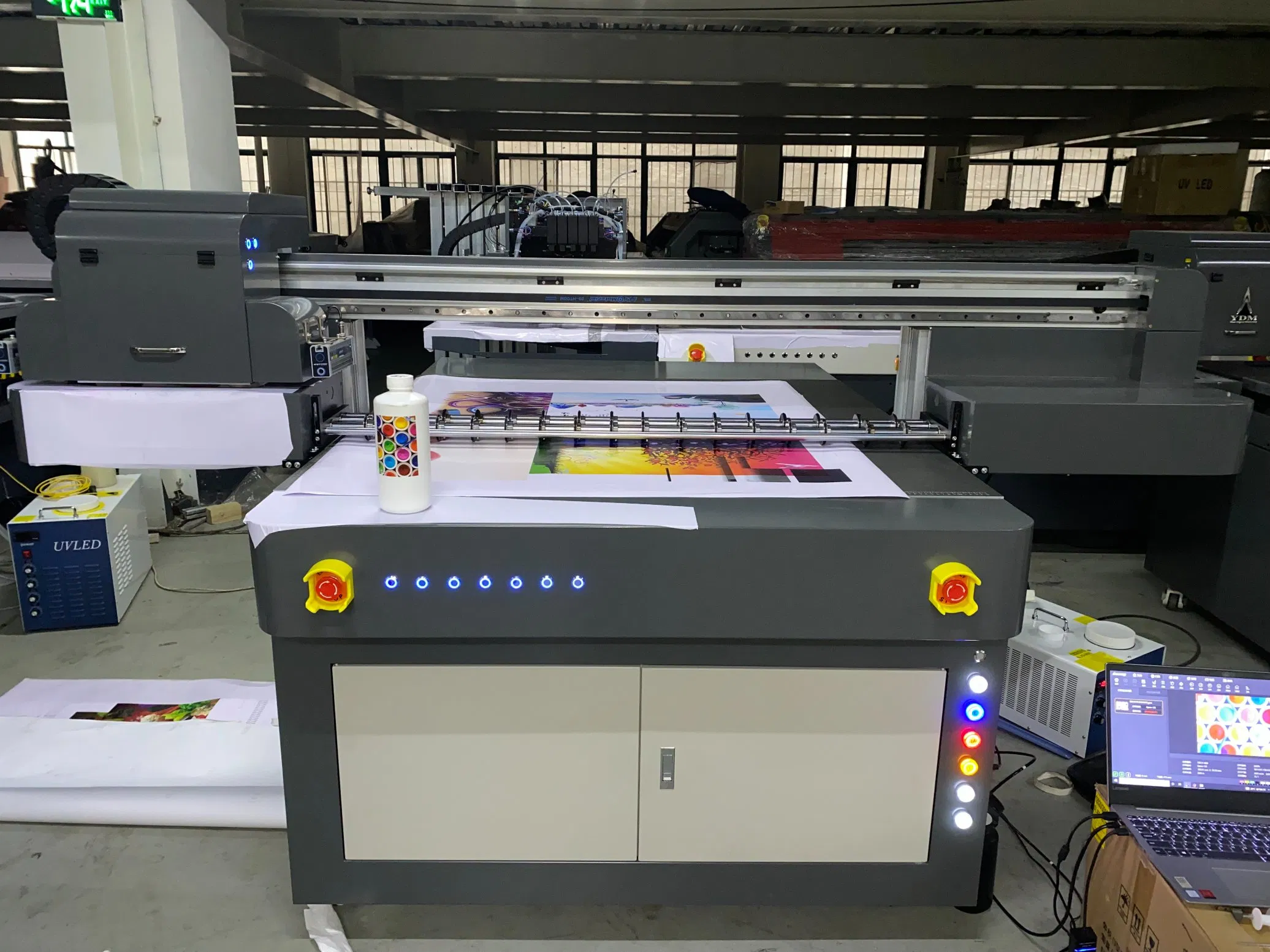

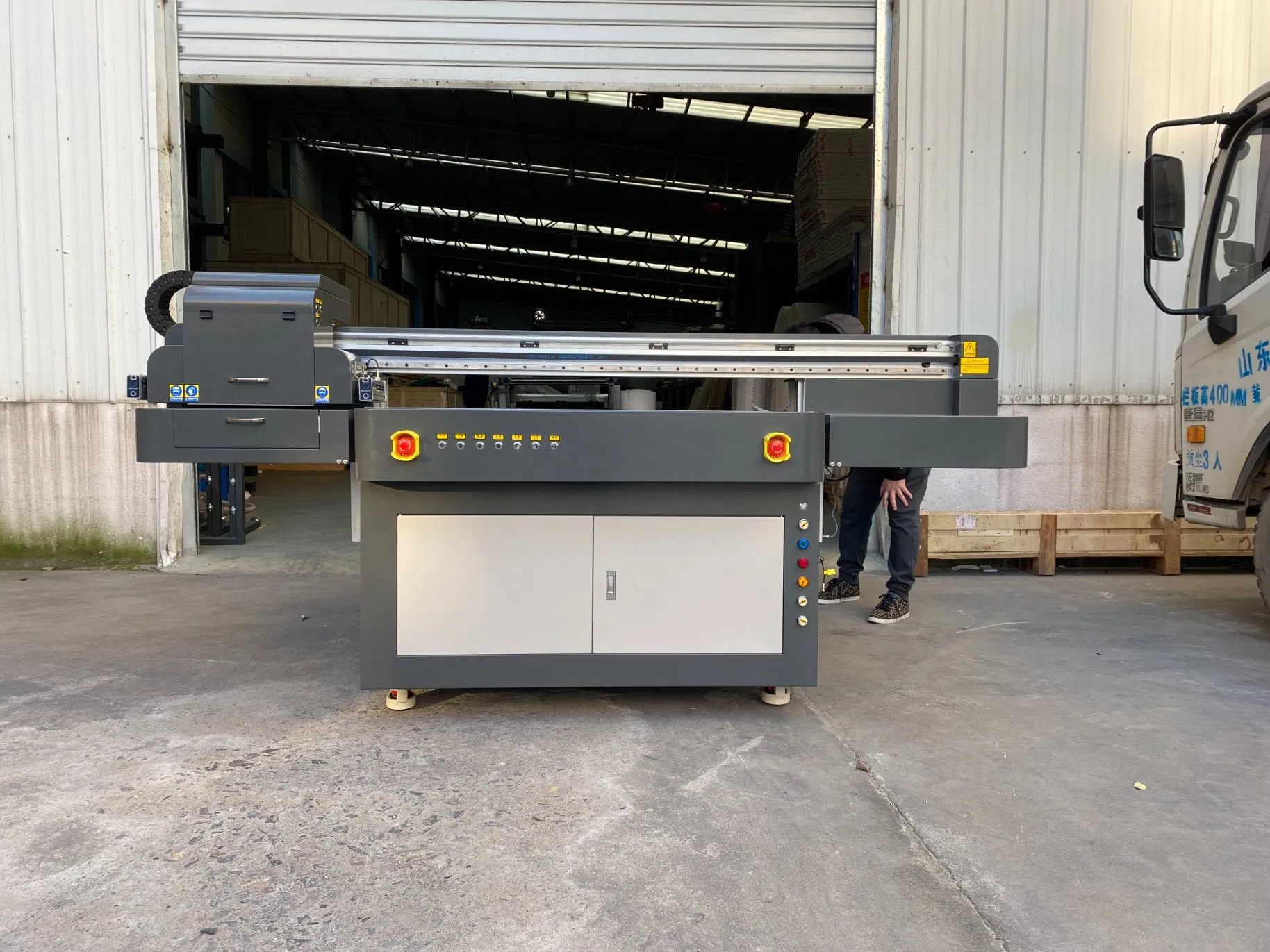

| Technical Feature | UV1313 Industrial Series |
|---|---|
| Print Technology | |
| Print Format | 1300 x 1300 mm |
| Print Height | 10 cm / 4 in (Max. 40 cm / 16 in) |
| Head Model | Toshiba CE4, Ricoh G5/G5i/G6, Epson 4720/I3200 |
| Color Set | CMYK+LM+LC+W+V; CMYK+W+V; CMYK+W+CMYK |
| Resolution | Up to 720 x 1440dpi (8 PASS) |
| Print Speed | Production mode: 12 sqm/h; Quality mode: 10 sqm/h |
| Machine Highlights | |
| Heavy Duty Frame | Strengthened aluminum beam + Thicken steel base |
| Driving Mode | HIWIN linear rail + Servo motor + IGUS Drag chain |
| Ink System | Negative pressure supply + White Ink stirring/circulation |
| Curing System | Imported UV lamp (30,000h Lifespan) + Water cooling |
Equipped with 1L ink carriage and low ink warning system.
Negative ink supply system to save ink and stabilize flow.

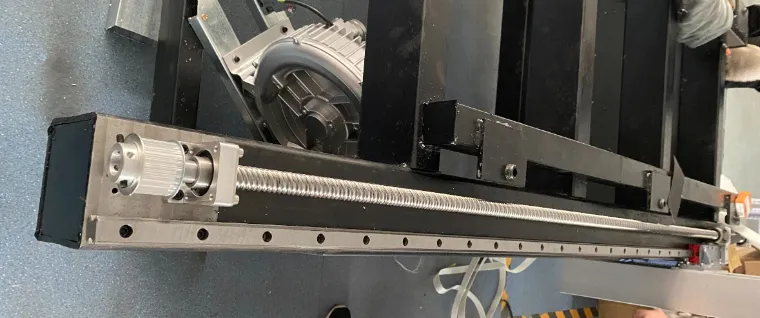

Double lead ball screw design for higher printing accuracy.
Suitable for Advertising, Decoration, and Industrial use. Prints on: Glass, Acrylic, Metal, Leather, Ceramic Tiles, Wood, PVC, and Furniture.
White ink creates high-quality graphics on non-white or transparent materials (like acrylic). Varnish provides a shiny finish and extends the life of UV ink by protecting against fading.
It supports all flatbed media, including PP/PVC board, Acrylic, Glass, Metal, Tiles, Phone cases, Wood, and even furniture or corrugated boxes.
The interface supports English, Chinese, Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, and Italian.
We provide comprehensive technical support and operator training until you master the machine. Technical teams are available for remote or on-site assistance.
We recommend powering it on once daily. If idle for more than 3 days, clean the print head with specialized liquid and use protective cartridges.
Yes, we are a direct factory, which allows us to provide competitive pricing and direct technical service.
