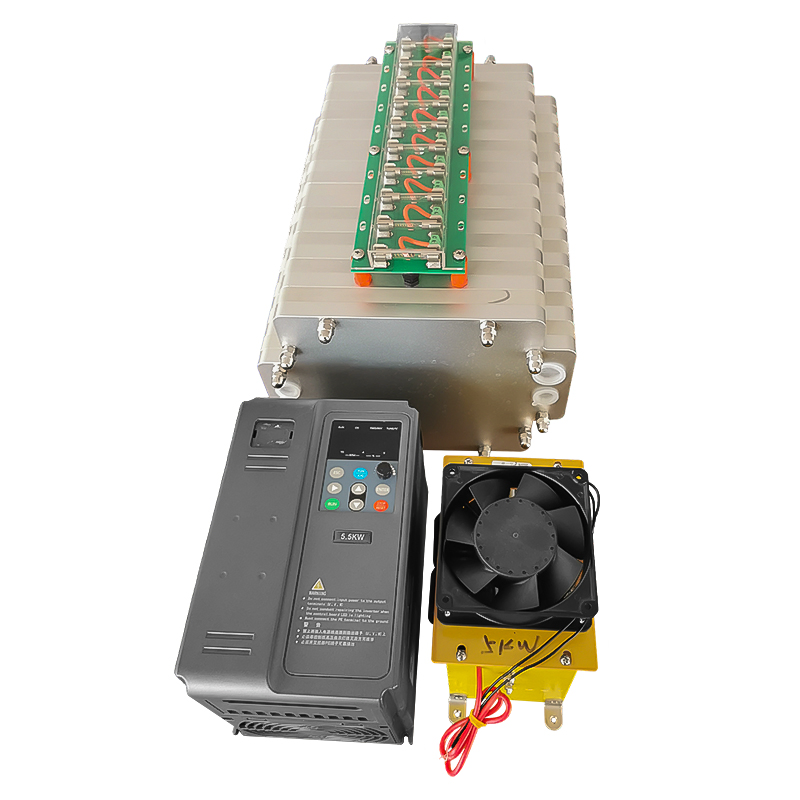

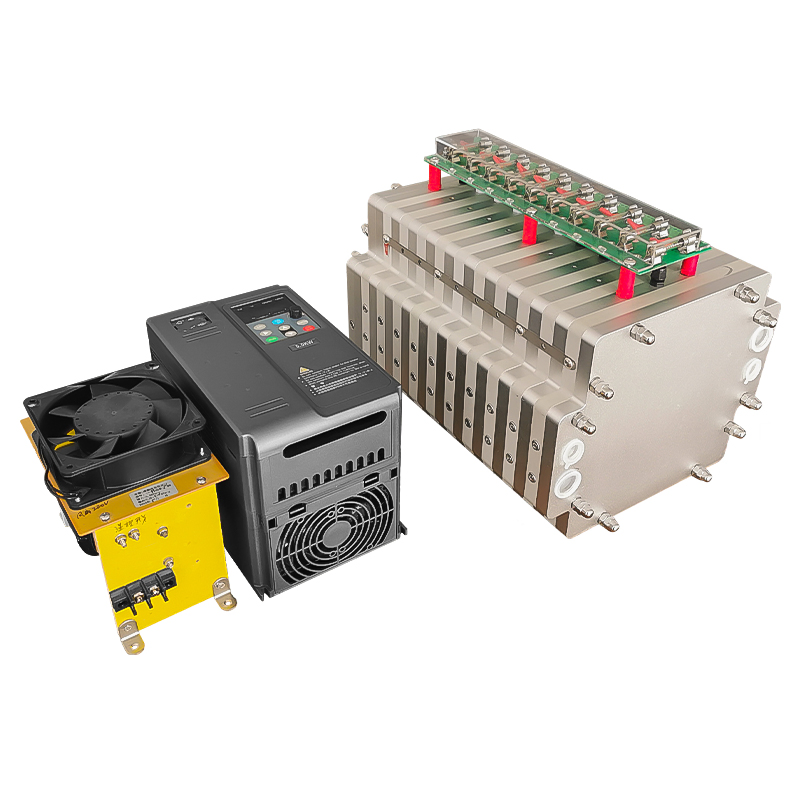

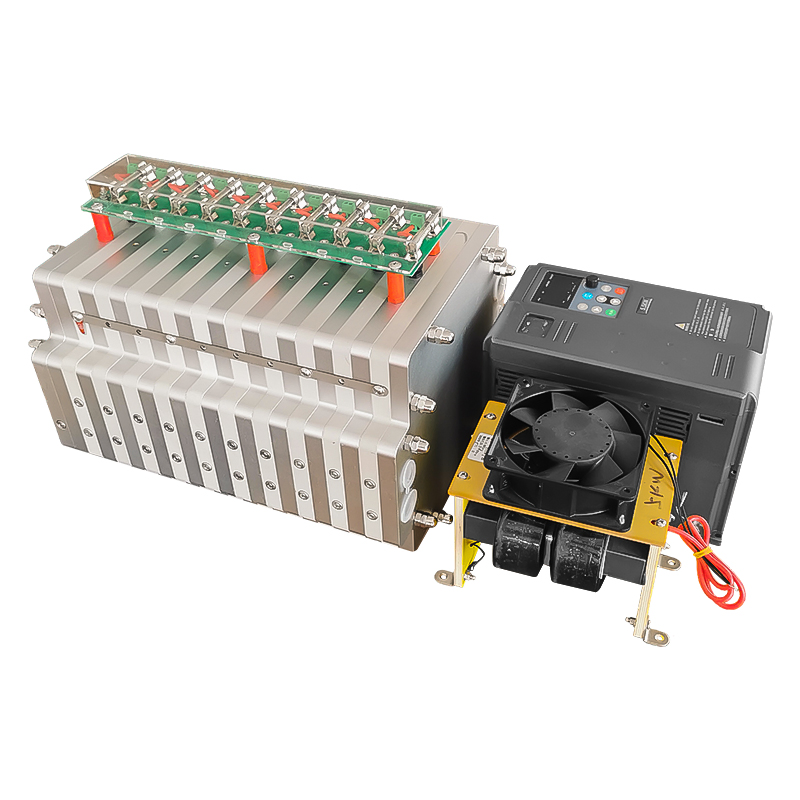

700g/H High Performance Water Treatment Plant Ozone Generating Machine Ozone Generator for Decolorization and Degradation of Dyeing and Printing Wastewater
700g/H High Performance Water Treatment Plant Ozone Generating Machine Ozone Generator for Decolorization and Degradation of Dyeing and Printing Wastewater
700g/H High Performance Water Treatment Plant Ozone Generating Machine Ozone Generator for Decolorization and Degradation of Dyeing and Printing Wastewater
700g/H High Performance Water Treatment Plant Ozone Generating Machine Ozone Generator for Decolorization and Degradation of Dyeing and Printing Wastewater
700g/H High Performance Water Treatment Plant Ozone Generating Machine Ozone Generator for Decolorization and Degradation of Dyeing and Printing Wastewater
1 / 5
700g/H High Performance Water Treatment Plant Ozone Generating Machine Ozone Generator for Decolorization and Degradation of Dyeing and Printing Wastewater
700g/H High Performance Water Treatment Plant Ozone Generating Machine Ozone Generator for Decolorization and Degradation of Dyeing and Printing Wastewater
700g/H High Performance Water Treatment Plant Ozone Generating Machine Ozone Generator for Decolorization and Degradation of Dyeing and Printing Wastewater
700g/H High Performance Water Treatment Plant Ozone Generating Machine Ozone Generator for Decolorization and Degradation of Dyeing and Printing Wastewater
700g/H High Performance Water Treatment Plant Ozone Generating Machine Ozone Generator for Decolorization and Degradation of Dyeing and Printing Wastewater

700g/H High Performance Water Treatment Plant Ozone Generating Machine Ozone Generator for Decolorization and Degradation of Dyeing and Printing Wastewater

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
BW-BSP700G
Certification
ISO9001, RoHS, CE, Co, Form E, Form F
Dielectric Material
Ceramic Plate
Cooling Method
Water-Cooling
Gas Supply
Oxygen
Ozone Output
700g/H
Ozone Concentration
140-300mg/L
Input Voltage
110V/220-240V/380V/50-60Hz
Installation
Portable, Pry-Type, Containerized
Material
Aluminum Alloy + Surface Coating
★

Product Description

Plate-type Ozone Generator Unit with Water Cooling

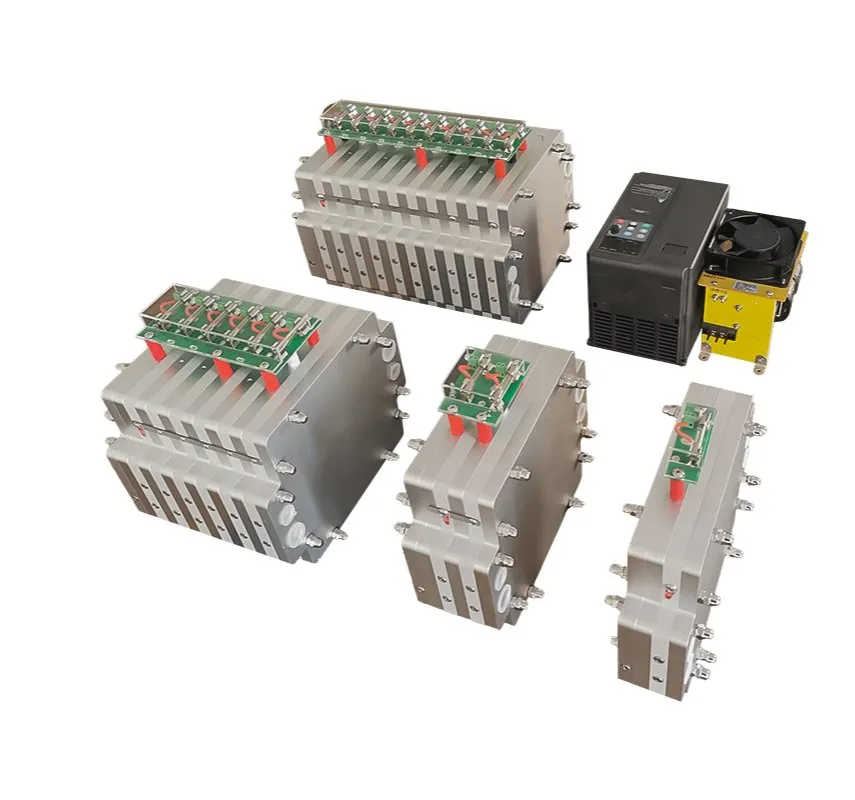

Ozone Generator Overview

🚀 Key Advantages

  • Lower energy consumption: Optimized discharge technology.
  • High ozone concentration: Reaches 140 - 300 mg/L.
  • Low attenuation: The ionization chamber is resistant to corrosion, ensuring stable production.
  • Durable and sturdy: Aluminum alloy exterior with no fragile glass tubes inside.
  • Small footprint: Volume is only 1/5 of tubular generators.
  • Low maintenance: Long lifespan with no need for frequent rust removal.
🖼

Product Display

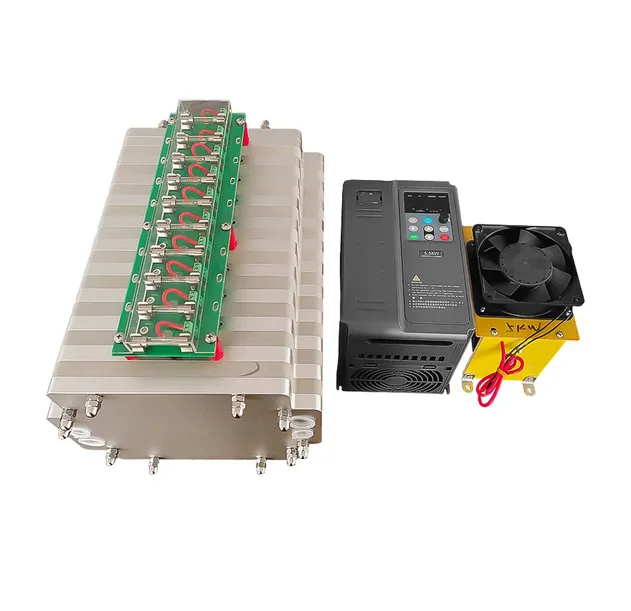

Ozone module options

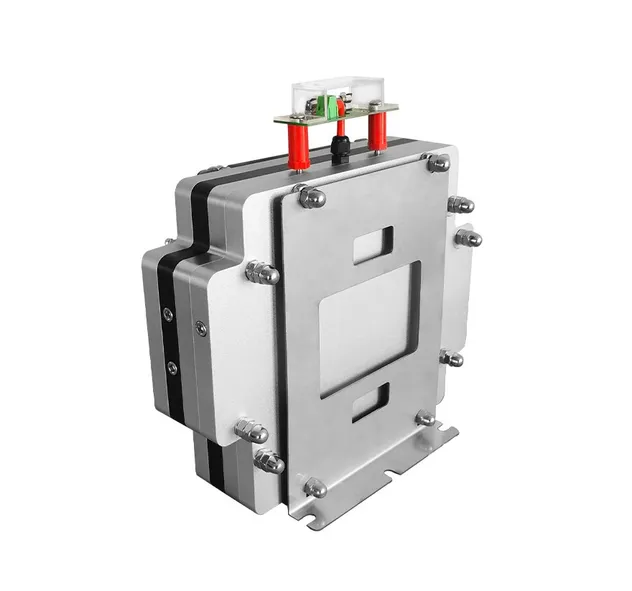

Ozone discharge board

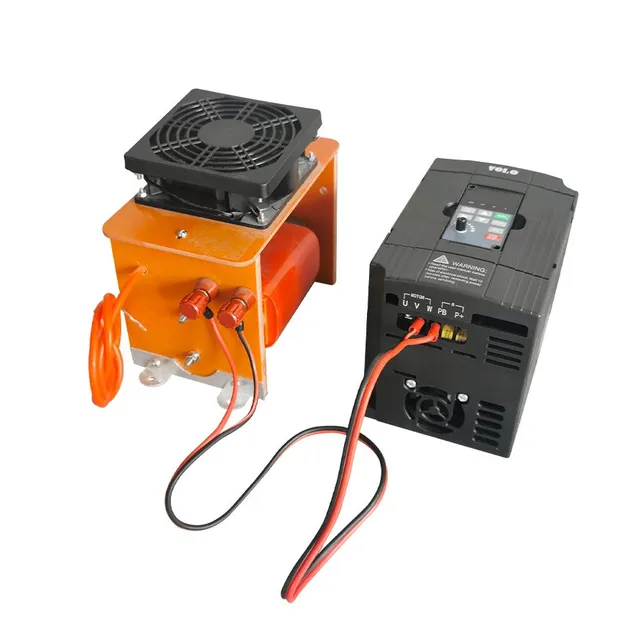

Power supply system

Modular Design

One ozone module ranges from 50g/h to 1kg/h. Easy to replace and maintain.

Heat Dissipation

Aluminum alloy material with anti-oxidation surface coating for longer service life.

Smart Power Supply

Equipped with frequency converters, overcurrent, and over-temperature protection.

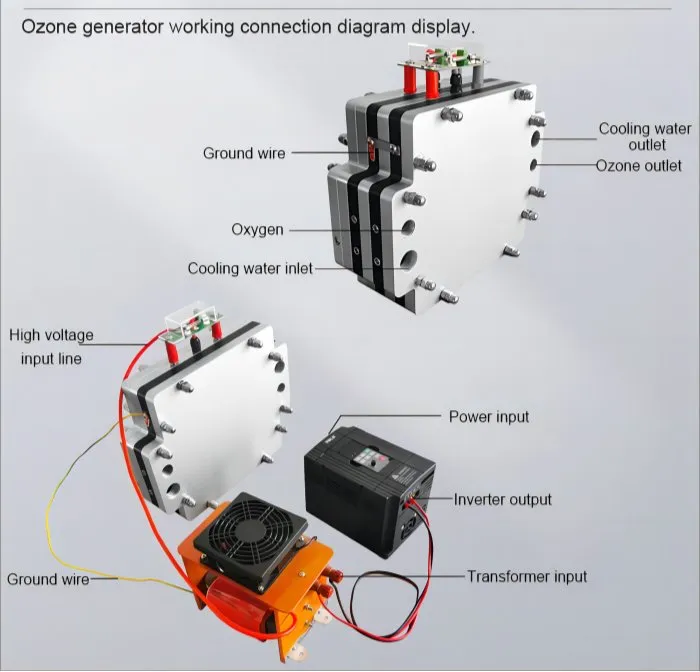

Internal components

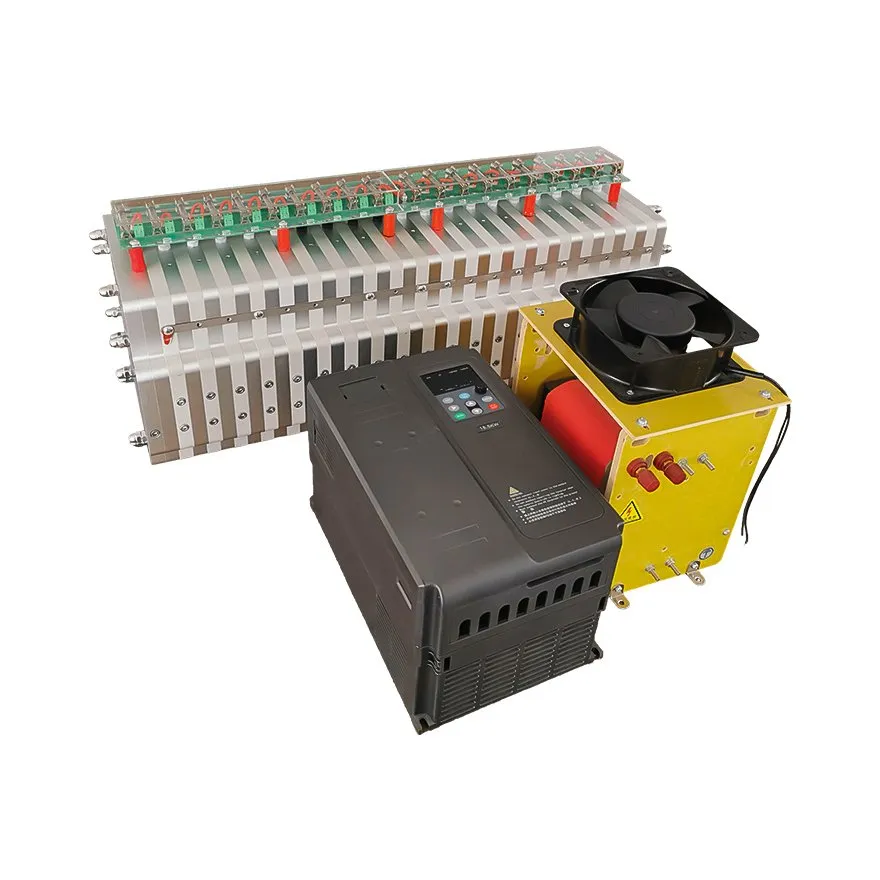

Fully assembled unit
📋

Technical Specifications

Model BW-BSP50G BW-BSP100G BW-BSP200G BW-BSP500G BW-BSP1KG
Ozone Output 50g/h 100g/h 200g/h 500g/h 1kg/h
Concentration 140-300mg/L
Input Voltage AC220V/380V/440V/50-60HZ
Oxygen Intake 5-7L/min 10-14L/min 20-30L/min 50-60L/min 100-110L/min
Power 0.4kw 0.8kw 1.6kw 4kw 8kw
Cooling Water 5L/min 10L/min 20L/min 50L/min 100L/min
⚙

Application Areas

Widely used in industrial sewage treatment, municipal water treatment, denitrification, food and pharmaceutical disinfection, and exhaust gas odor removal.

Ozone Applications
📦

Packing & Delivery

Wooden packing
Factory loading
Shipping options

Secure Packaging

Wooden boxes, cardboard boxes, and pallets are used based on product type to ensure safe transit.

Global Logistics

Support for EXW, FOB, CIF, DAP, and DDP via DHL, UPS, sea, air, or railway.

🛠

After Sales Service

After sales support

Warranty Terms

  • One-year warranty: Free replacement of accessories for quality issues within the first year.
  • Lifetime support: Technical support and maintenance offered beyond the warranty period.
  • Technical Assistance: Free technology consulting via email, video, and telephone.
📜

Certifications

Certification set 1
Certification set 2

Certified by CE, ROHS, and ISO9001

?

Frequently Asked Questions

Q1: What is the ozone concentration of this equipment?
The equipment provides a high ozone concentration ranging from 140 mg/L to 300 mg/L.
Q2: What cooling method is used?
It uses a water-cooling system (double-electrode water cooling) to ensure stable performance and protect components.
Q3: Is the ozone output adjustable?
Yes, the ozone output is 0-100% adjustable to meet various application requirements.
Q4: What gas supply is required?
The system requires an oxygen supply, which can come from an oxygen concentrator, oxygen cylinder, or liquid oxygen.
Q5: What is the warranty period for the ozone generator?
We offer a one-year warranty with free accessory replacement for quality issues, plus lifetime technical support.
Q6: How does the modular design benefit the user?
The modular design makes parts easy to replace, simplifies after-sales maintenance, and allows for flexible output capacities.
