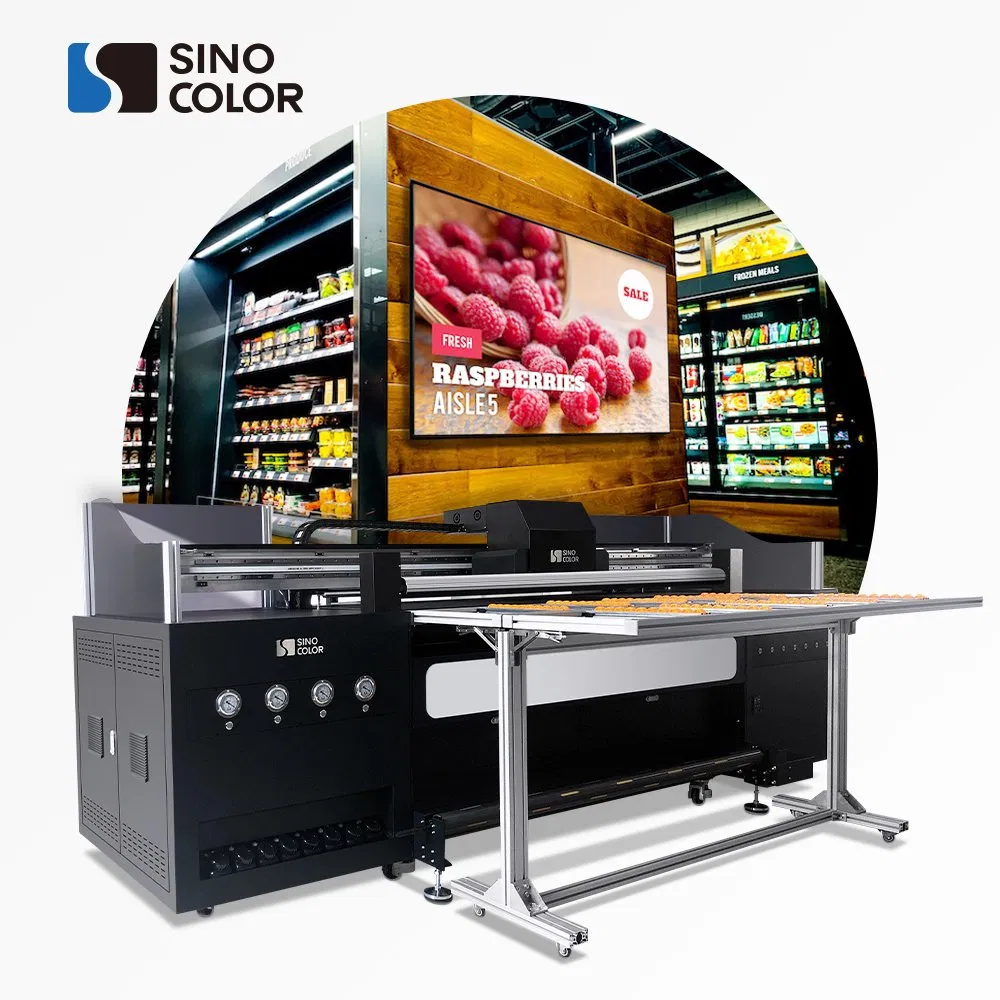

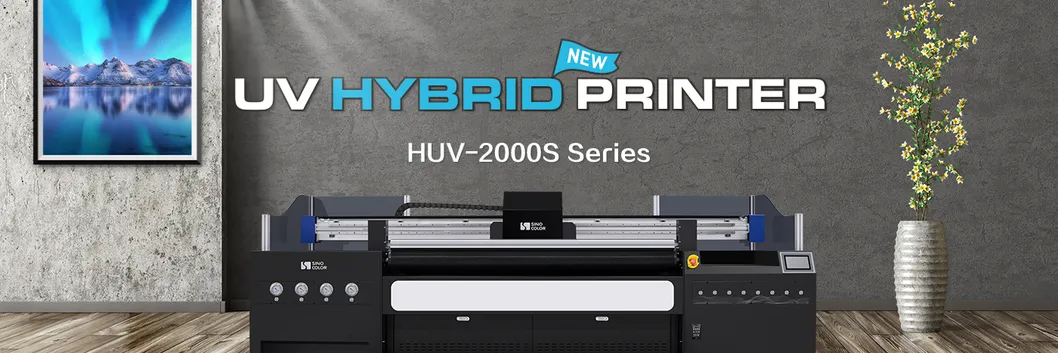

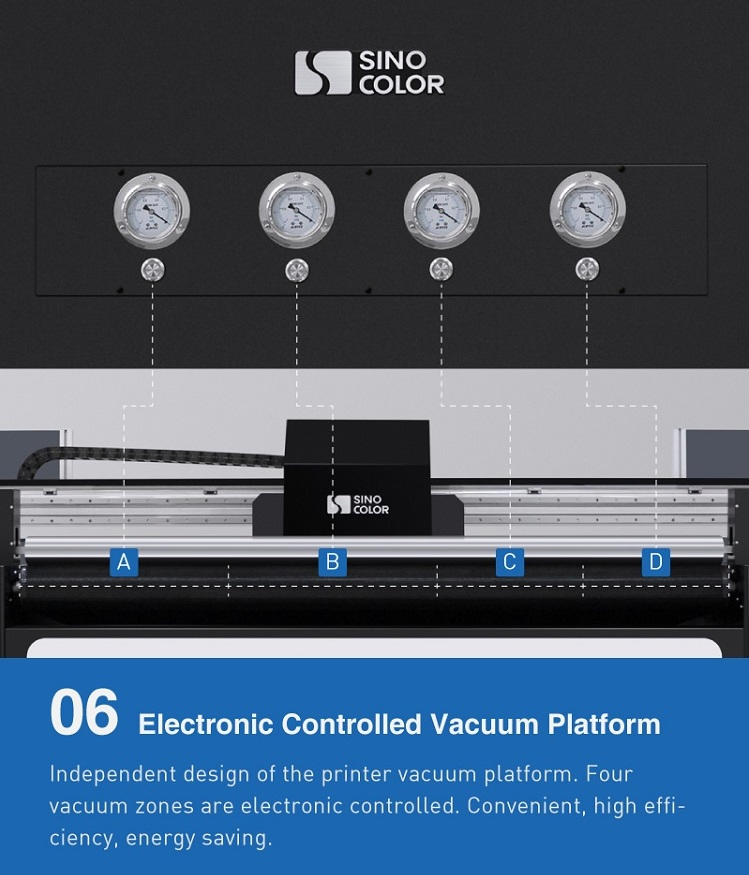

For traditional hybrid UV printer, the machine platform may come without any vacuum. And with simple media feeding and take-up system, which is not good to cope with both roll materials and rigid materials. For this new HUV-2000S series, with 4 zones high power electronic controlled vacuum platforms, tension type media feeding systems, advanced media alignment pins, 3 press bards... Guarantee the high precision stepping, and high quality printing result. What's more, the latest industrial level Epson i3200-U heads, powered the machine to be super fast. The negative pressure system, make the machine maintenance to be a piece of cake.
| Model No. | HUV-3200S | HUV-2600S | HUV-2000S | |
|---|---|---|---|---|
| Printing Head | 4 × Epson i3200-U | 4 × Epson i3200-U | 2/4 × Epson i3200-U | |
| Resolution | 2400 dpi MAX | |||
| Media | Width | 3200 mm MAX | 2600 mm MAX | 2000 mm MAX |
| Type | Glass, Metal, Ceramic, Acrylic, Wood, Plastic, Aluminum, Canvas, Leather, Cardboard, PVC, MDF, etc. | |||
| Ink | Color | CMYK/W/V | CMYK/W/V | CMYK/W |
| Curing | Water Cooling UV-LED Lamp | |||
| Speed | Draft | 96 sqm/h | 84 sqm/h | 36 sqm/h |
| Production | 72 sqm/h | 62 sqm/h | 26 sqm/h | |
| Quality | 48 sqm/h | 42 sqm/h | 18 sqm/h | |

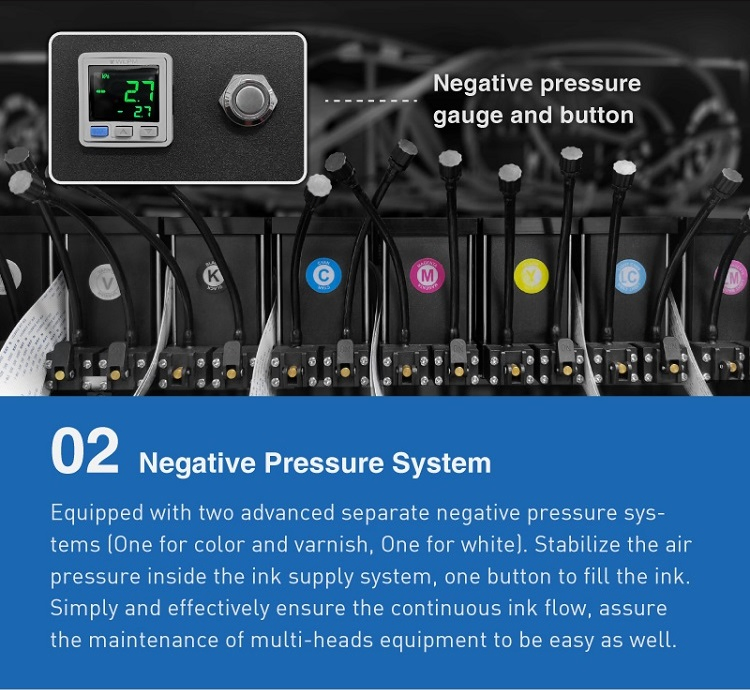

| Ink Supply | Two separate negative pressure systems (Color/Varnish and White) | |||
| Cleaning | One-button automatic flush | |||
