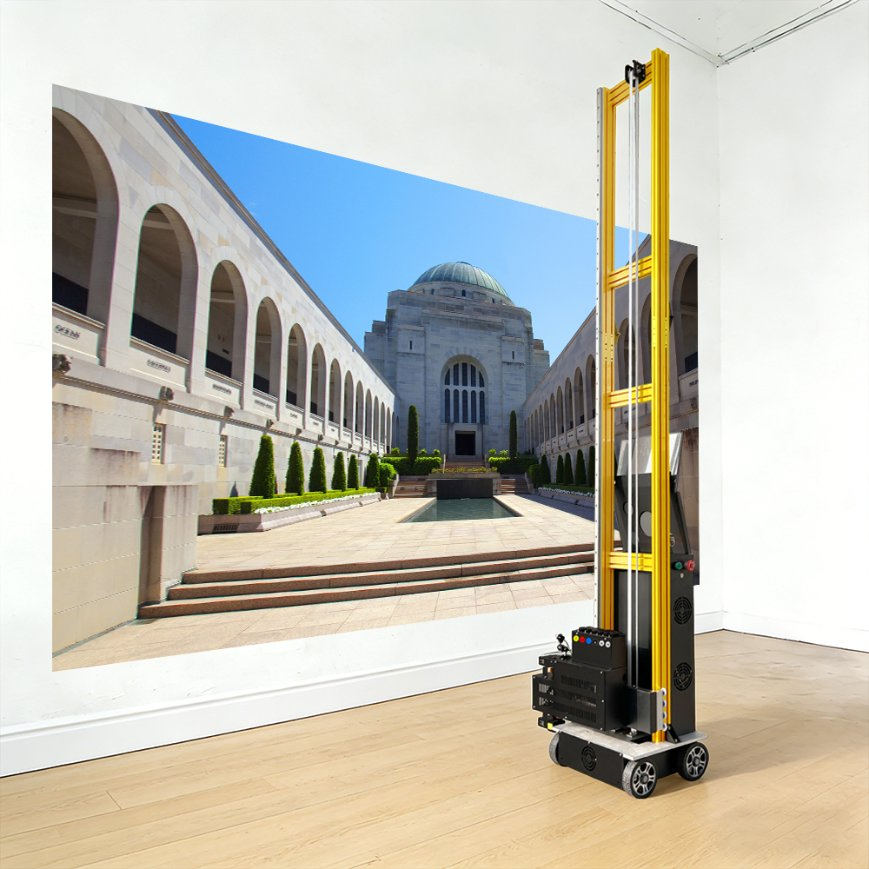

LC-A2 UV Airport Terminal Decor Digital Wall Printer

Product Overview

Model: LC-A2C / LC-A2S / LC-A2Pro
Interface: USB / Fiber Optic
Ink Type: UV Ink (CMYK+WW)
Technics: Continuous Inkjet

Printhead: DX10 / DX7 / I1600-U1

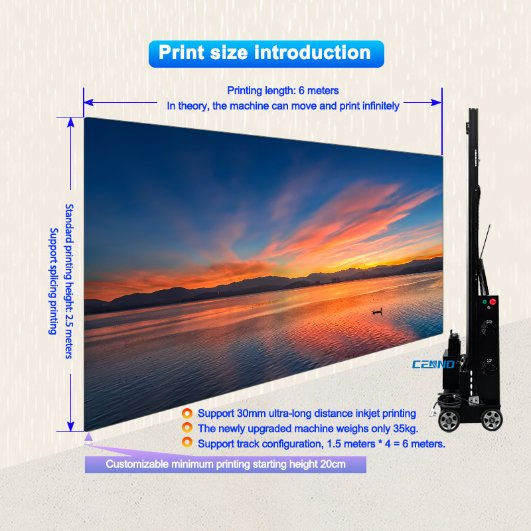

Print Size: 2500mm * 6000mm
Speed: 5-15 M²/Hour
Resolution: Up to 1440x2880dpi

Core Advantages

⚡

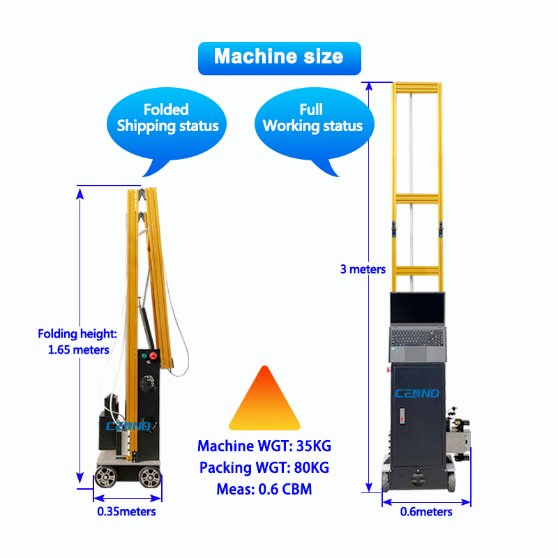

1. Lightweight & Foldable Design

With a total weight of only 35KG, the foldable structure simplifies installation. Deploy and start printing in just 5 minutes.

🔄

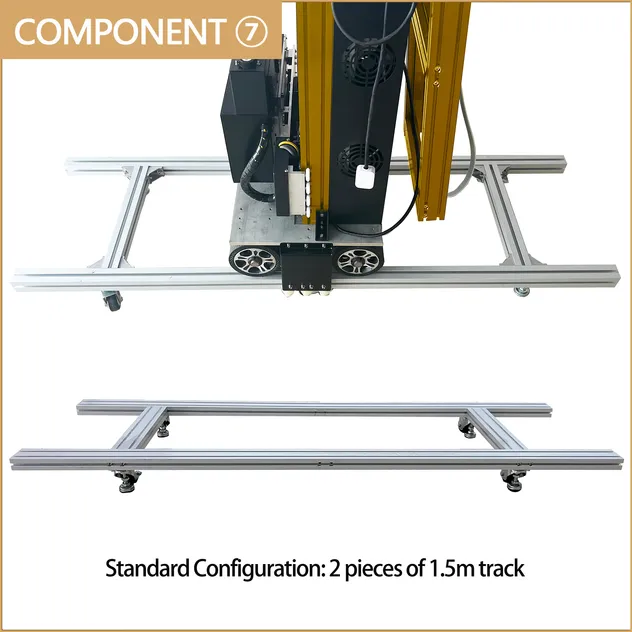

2. Dual Wheel & Rail Mode

Wheeled mobile printing for flat indoor floors and matching rails for outdoor or uneven ground, ensuring maximum stability.

💻

3. Detachable Laptop Configuration

High-performance laptops provide faster processing than tablets. The detachable design allows for multi-functional use.

📏

4. X-Axis Guide Rail Drive

Precision control of the print head movement reduces jitter and supports high-speed printing with excellent accuracy.

Technical Specifications

Parameter	LC-A2C	LC-A2S	LC-A2Pro
Printhead	DX10	DX7	I1600-U1
Printhead Qty	1	1	2
Printing Speed	3-8 m²/h	4-10 m²/h	5-15 m²/h
Laptop Config	Win10-8G-256GB	Touch Win11-16G-512GB	Touch Win11-16G-1TB
Motherboard	Fiber 2.0	Fiber 3.0	Fiber 3.0
Ink Heating	None	None	Supported
Track System	3 meters	4.5 meters	6 meters

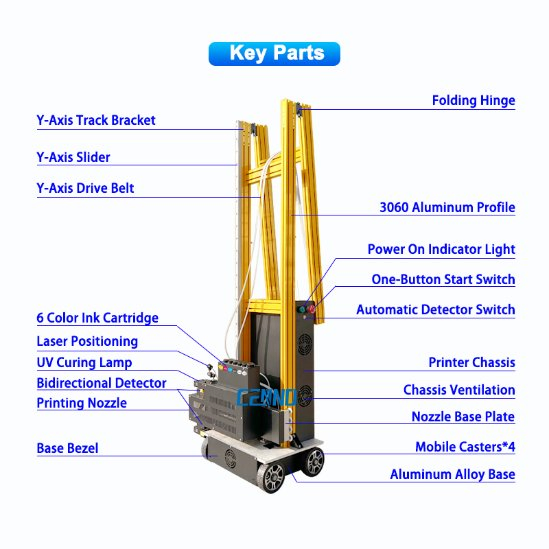

Key Components

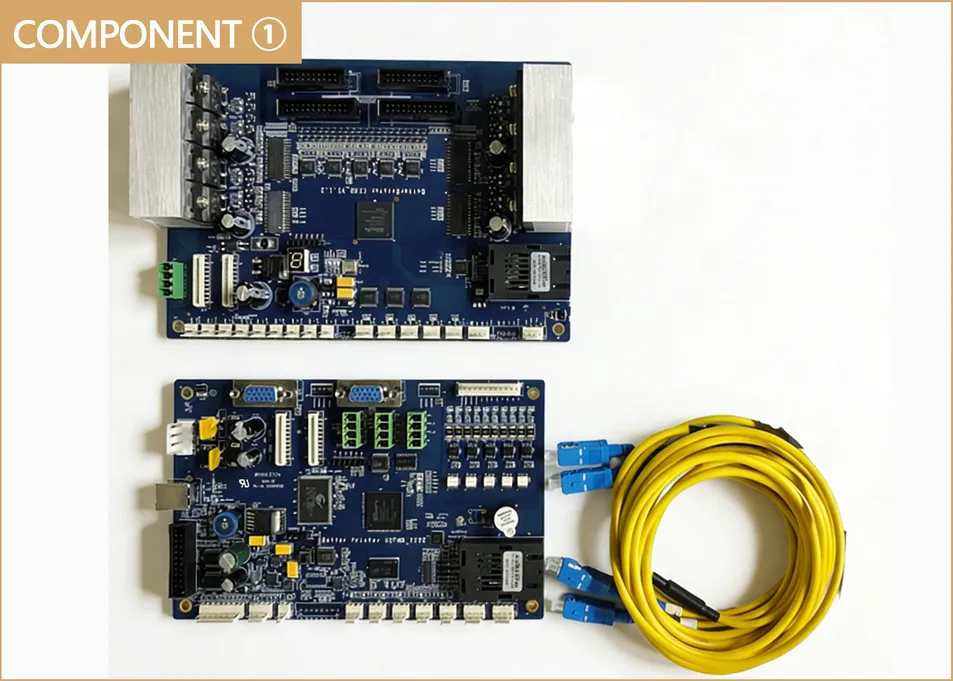

Customized Fiber Motherboard

Provides faster signal transmission and significantly lower failure rates compared to traditional cables.

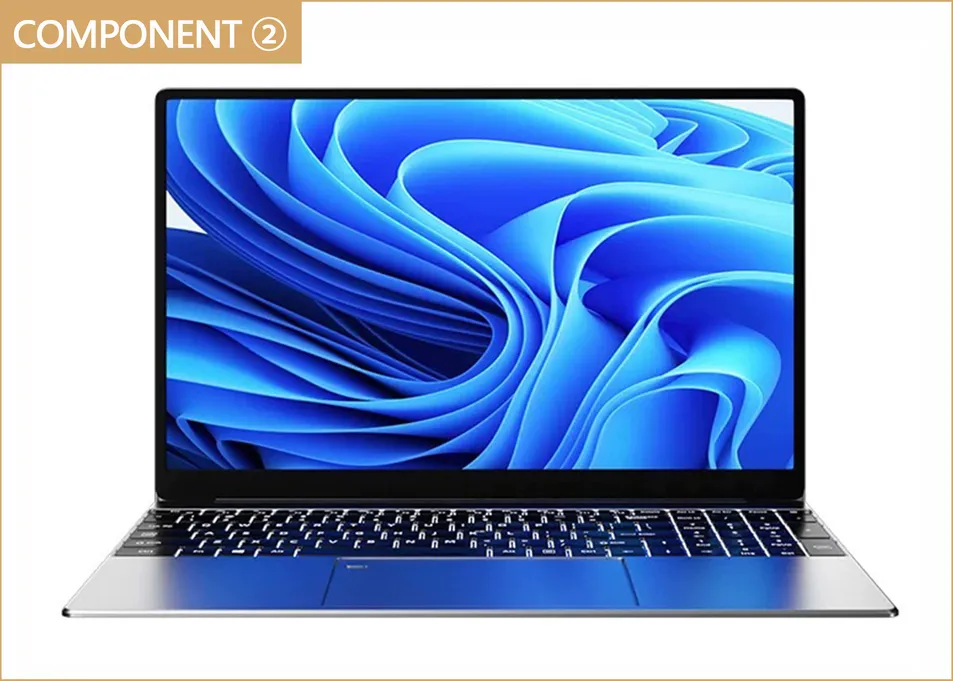

Ultra-thin Laptop Control

Pre-installed with 3D images and HD materials for smooth operation and professional design editing.

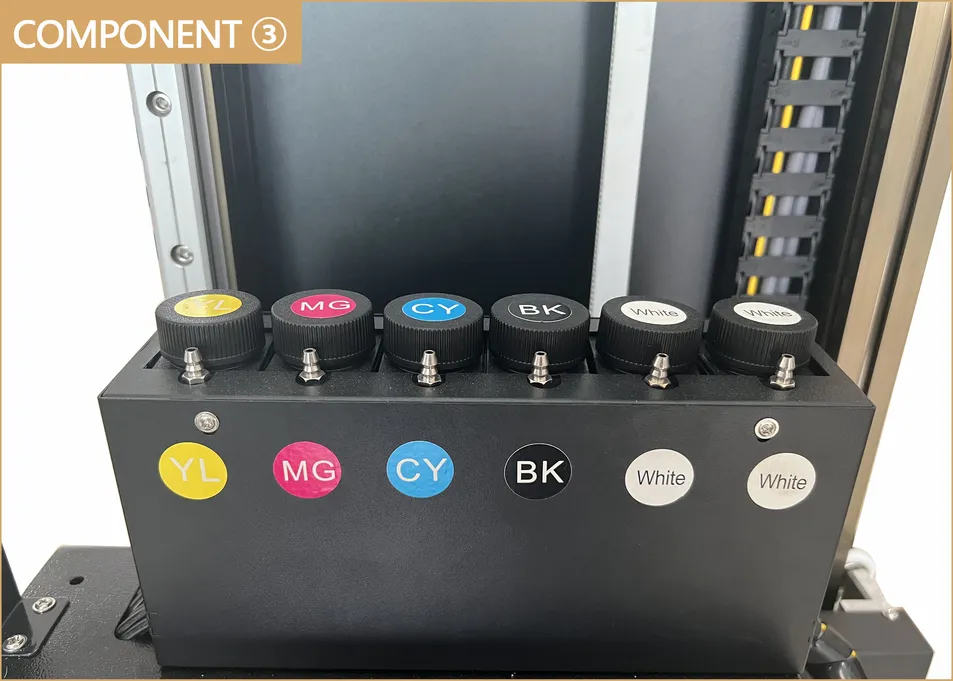

6-Color CMYKWW Ink

Supports white ink printing on dark or transparent substrates with excellent adhesion and water resistance.

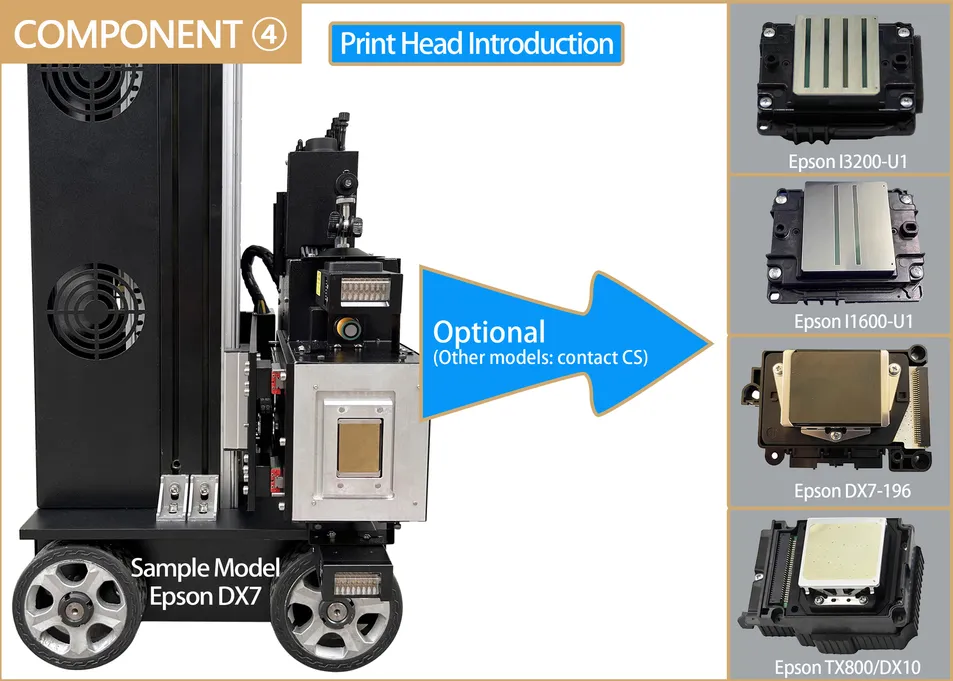

Industrial Printheads

Available with I3200-U1, I1600-U1, or DX7 options to balance speed, precision, and cost-effectiveness.

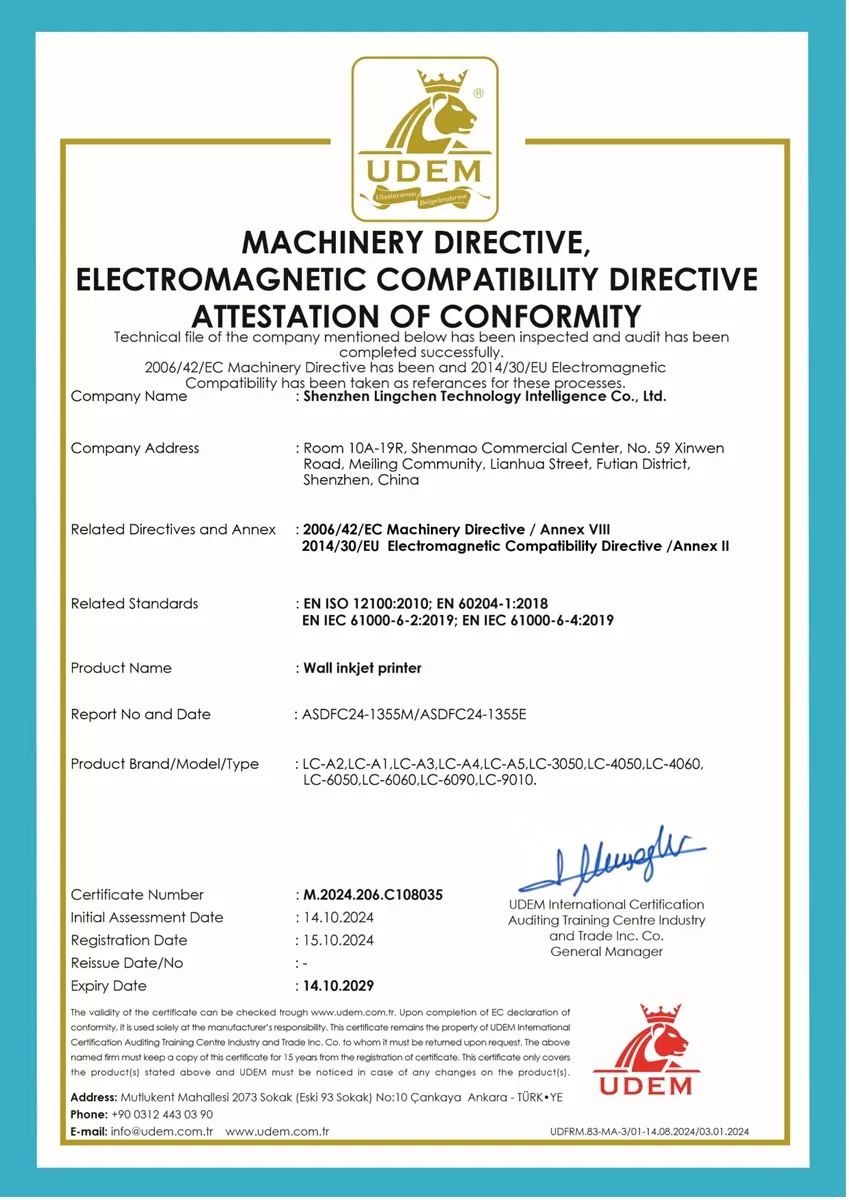

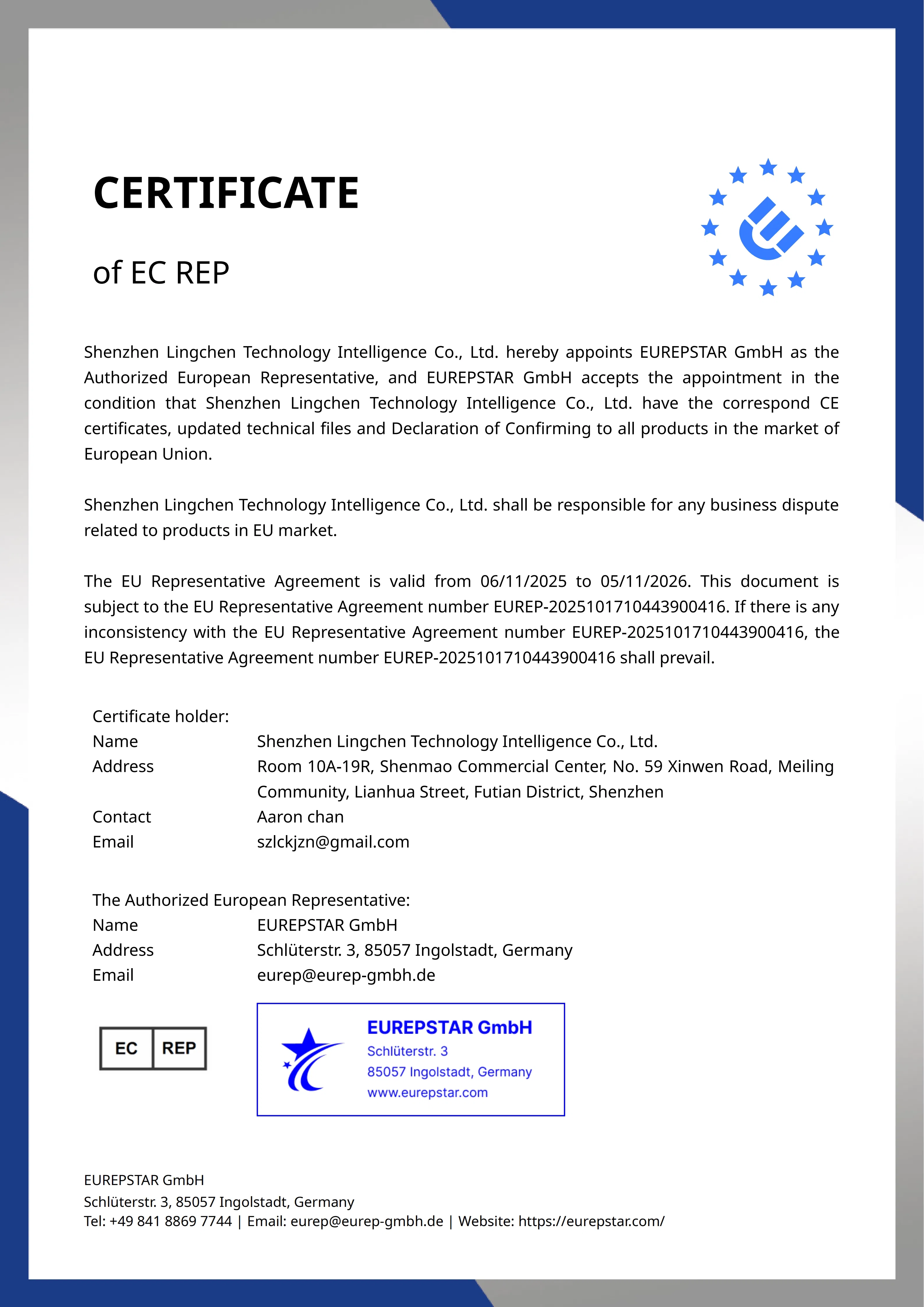

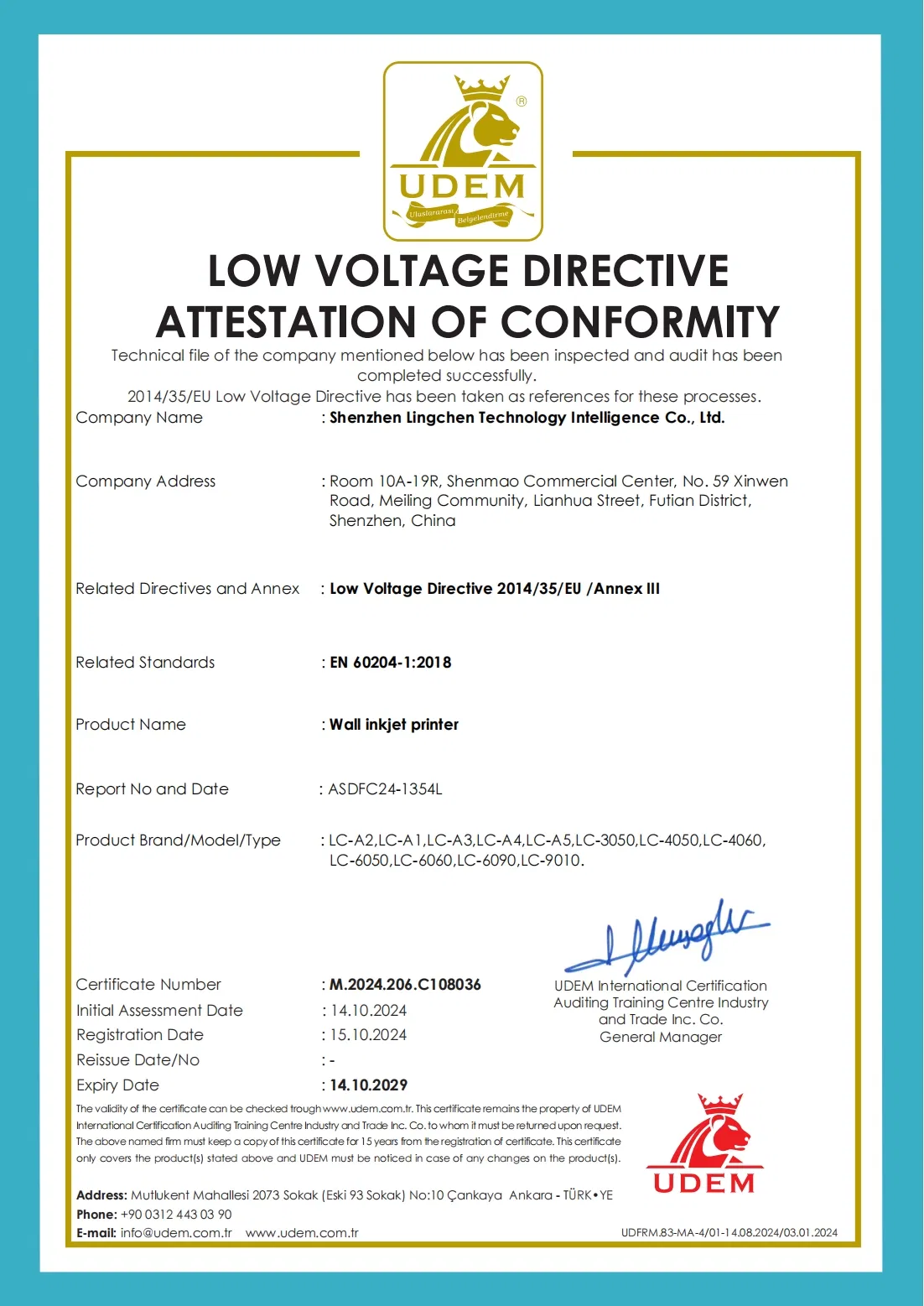

International Certifications

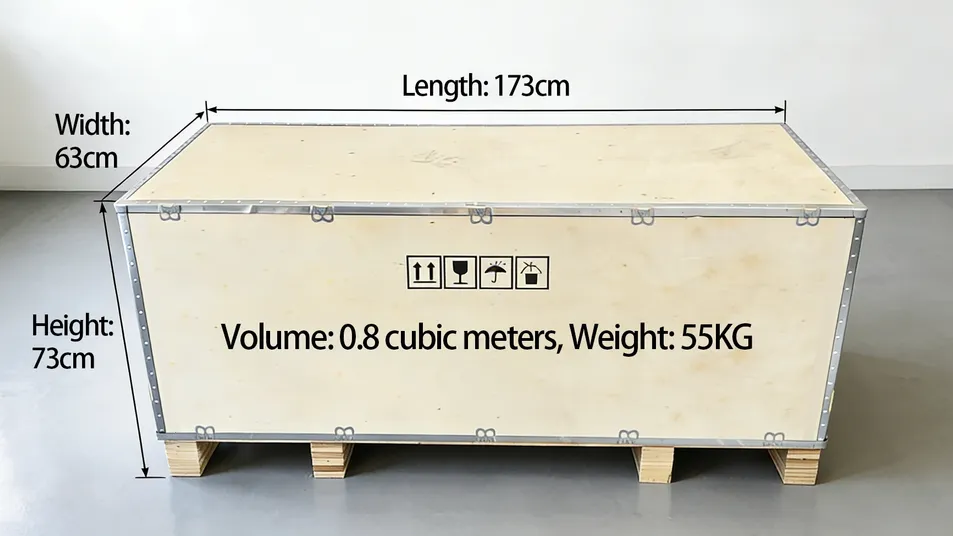

Packaging & Delivery

Package Size: 173cm * 63cm * 73cm | Gross Weight: 120kg

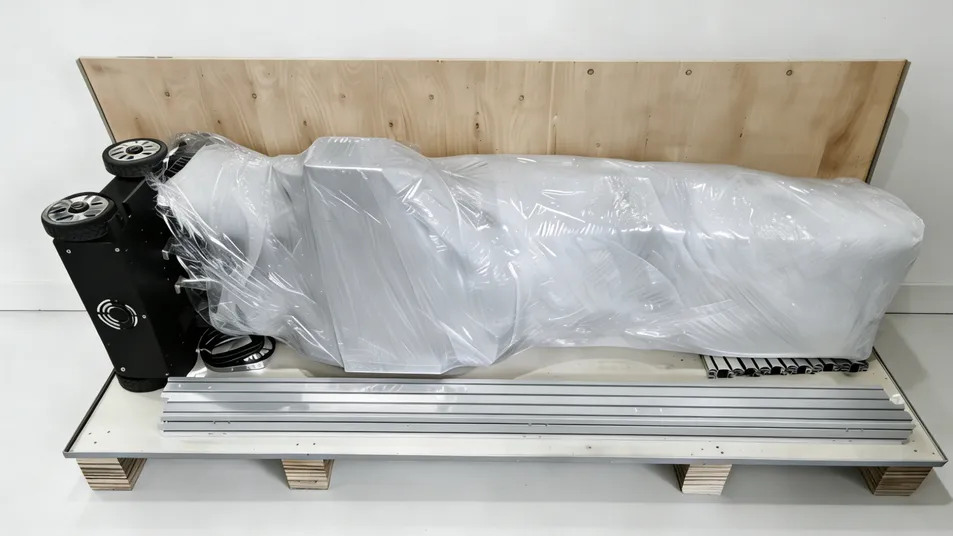

Equipment is packaged in high-strength reinforced wooden cases with multi-layer shock absorption protection for precision components.

Frequently Asked Questions

1. What is the printing precision and color reproduction?

The resolution reaches 1200dpi, supporting pixel-level printing. With CMYK + White ink, the color reproduction rate is ≥ 95%, accurately matching design drawings.

2. Which wall materials are supported for printing?

It is compatible with cement walls, latex paint, wallpaper, glass, tiles, wood boards, and metal. Smooth surfaces can be printed directly or with a preprocessing fluid for better adhesion.

3. Can it work on uneven walls or floors?

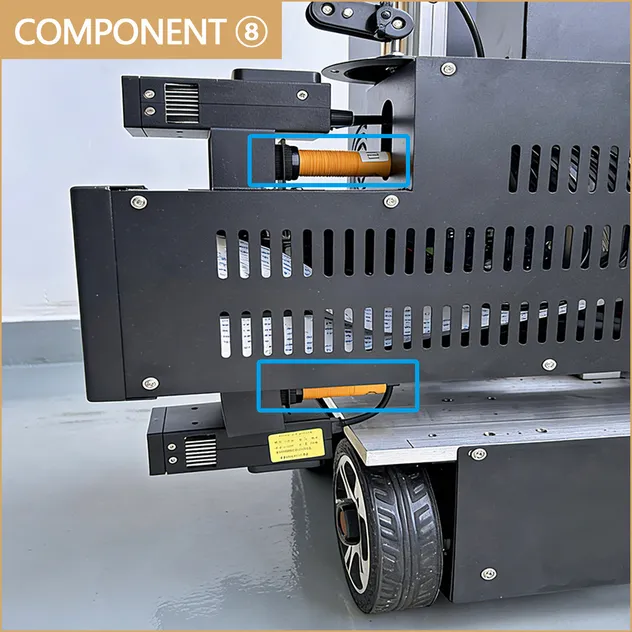

Yes. The built-in radar detection system identifies 1-20cm of unevenness and adjusts the printhead distance in real-time. For floors, standard 3-meter tracks are provided to ensure stability.

4. Is the operation difficult for non-professionals?

The system features a visual touch control and a simple 3-step process. Most users can get started within 1-2 hours of training using our video tutorials and manuals.

5. What is the cost of the UV ink consumables?

UV ink costs approximately $0.40 - $0.60 per square meter depending on color density. Our ink is CE/ROHS certified, non-toxic, and odorless.

6. What is the warranty and after-sales policy?

We offer a whole-machine warranty (excluding consumables like ink and printheads) with 24/7 online remote support and fast accessory delivery.
