LC-A2 UV Custom Pattern Digital Commercial Wall Printer

Basic Information

Model NO.	LC-A2C
Interface Type	USB
Supply Paper Mode	Automatic and Manual Integration
Usage	Card, Document, Barcode, POS, Photo Printer
Technics	Continuous Inkjet
Ink Type	UV Ink (CMYKWW)

Printhead Model	Dx10 / DX7 / I1600-U1
Printing Size	2500mm * 6000mm
Printing Speed	5-15 M²/Hour
Printable Materials	Any Wall, Ceramic Tile, Glass, Wood, etc.
Detection	Automatic Distance Adjustment within 6cm
Software Language	English/Russian/French/Chinese

Product Description & Core Advantages

LC-A2 UV Custom Pattern Digital Commercial Wall Printer

1

Lightweight & Foldable Design

Total weight of only 35KG. Deploy and start printing in just 5 minutes with our foldable structure, perfectly combining portability and high efficiency.

2

Dual Wheel & Rail Mode

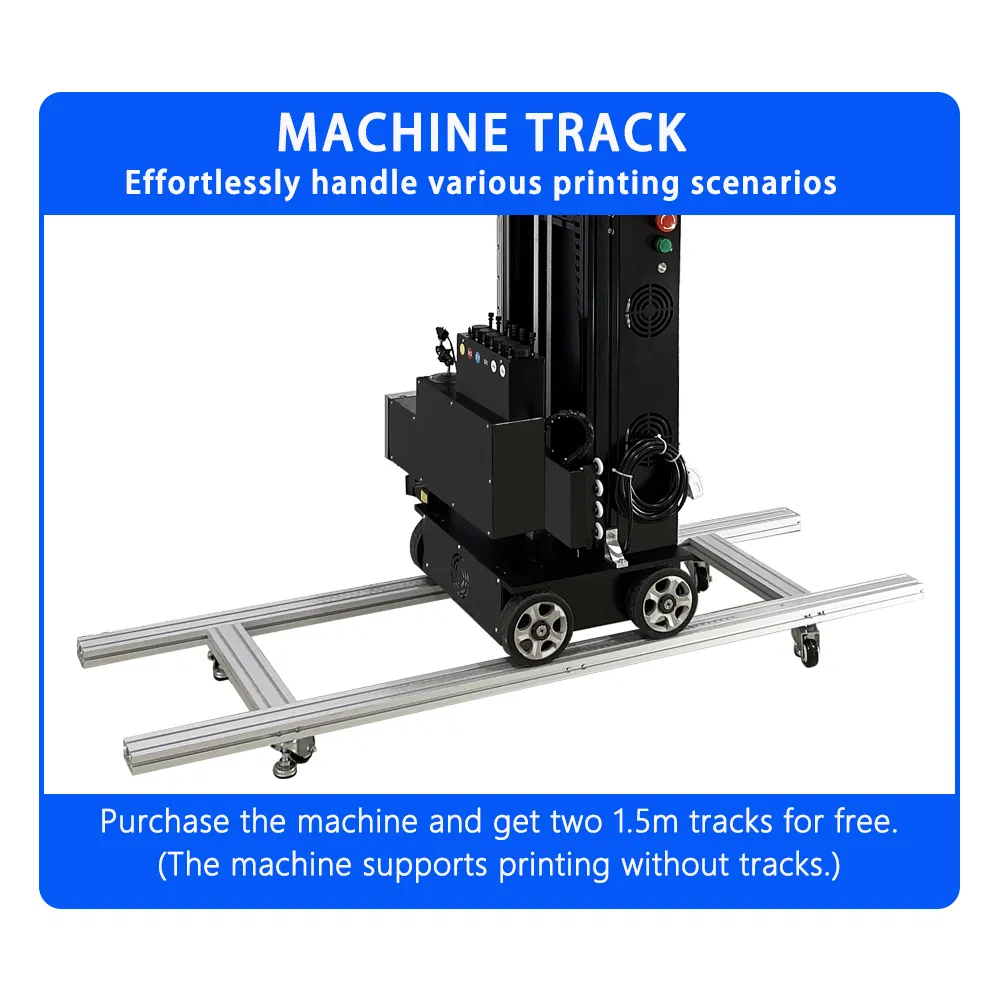

Direct wheeled mobile printing on flat floors without additional rails. For uneven ground, use matching rails to ensure stability across all scenarios.

3

Detachable Laptop Configuration

Features a high-speed laptop for superior image processing. Detachable design allows for multi-functional use after work.

4

X-Axis Guide Rail Drive

High-precision guide rail design accurately controls print head movement, reducing jitter and supporting high-speed printing modes.

5

Factory Direct Sales

Competitive pricing by eliminating middlemen. Direct and efficient after-sales response for full equipment protection.

Technical Specifications

Machine Model	LC-A2C	LC-A2S	LC-A2Pro
Printhead Model	DX10	DX7	I1600-U1
Number of Printheads	1	1	2
Printing Speed	3-8 m²/h	4-10 m²/h	5-15 m²/h
Laptop	Win10-8G-256GB	Touch Win11-16G-512GB	Touch Win11-16G-1TB
Machine Ink	UV CMYKW	UV CMYKW	UV CMYKW
Motherboard	Fiber 2.0	Fiber 3.0	Fiber 3.0
UV Lamp / Detector	2 / 2	2 / 2	2 / 2
Supported Formats	JPG, BMP, TIFF, PDF, AI, PSD, CDR, etc.

Key Components

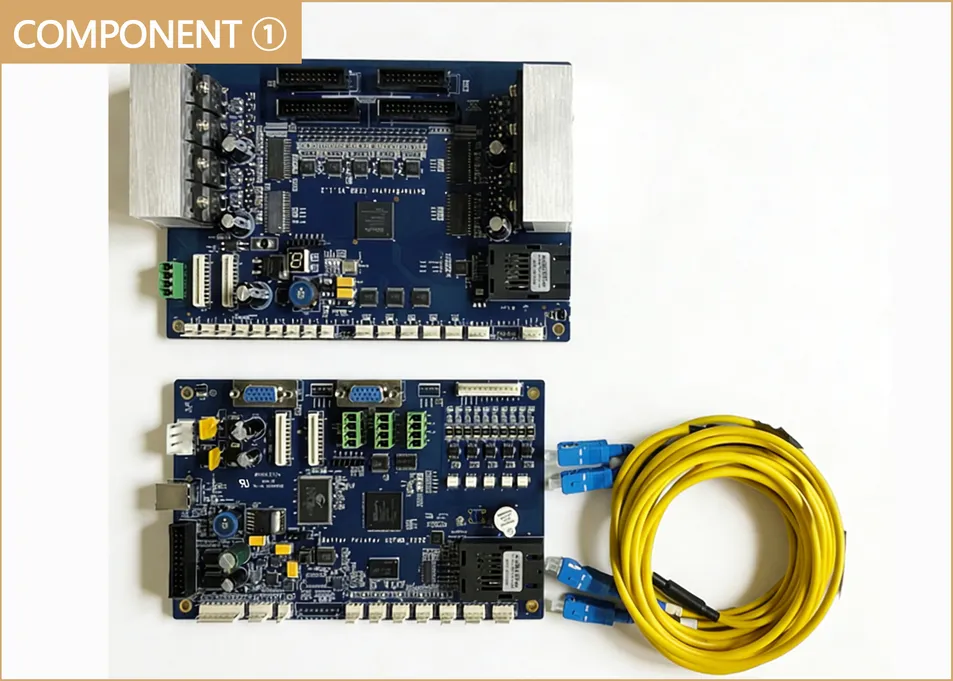

Fiber Optic Motherboard

Strong anti-interference, faster transmission speed, and significantly lower failure rate compared to traditional cables.

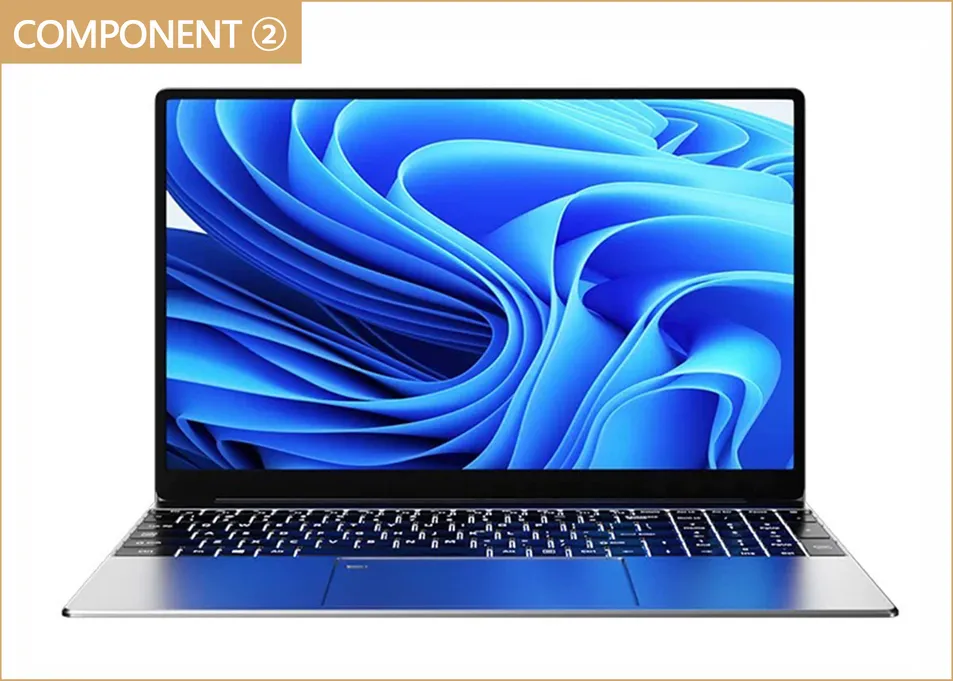

Ultra-thin Laptop

Pre-installed 3D images and HD materials. Optimized for Photoshop design and smooth printer control software operation.

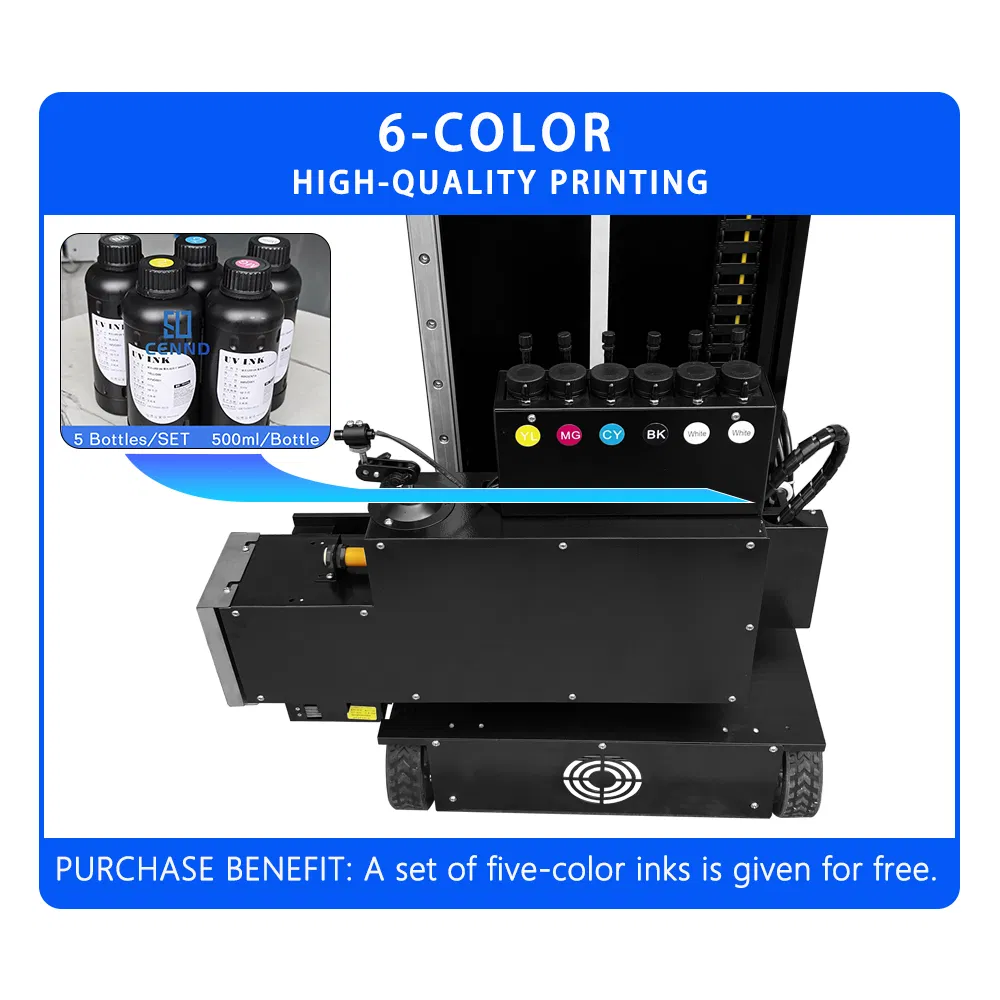

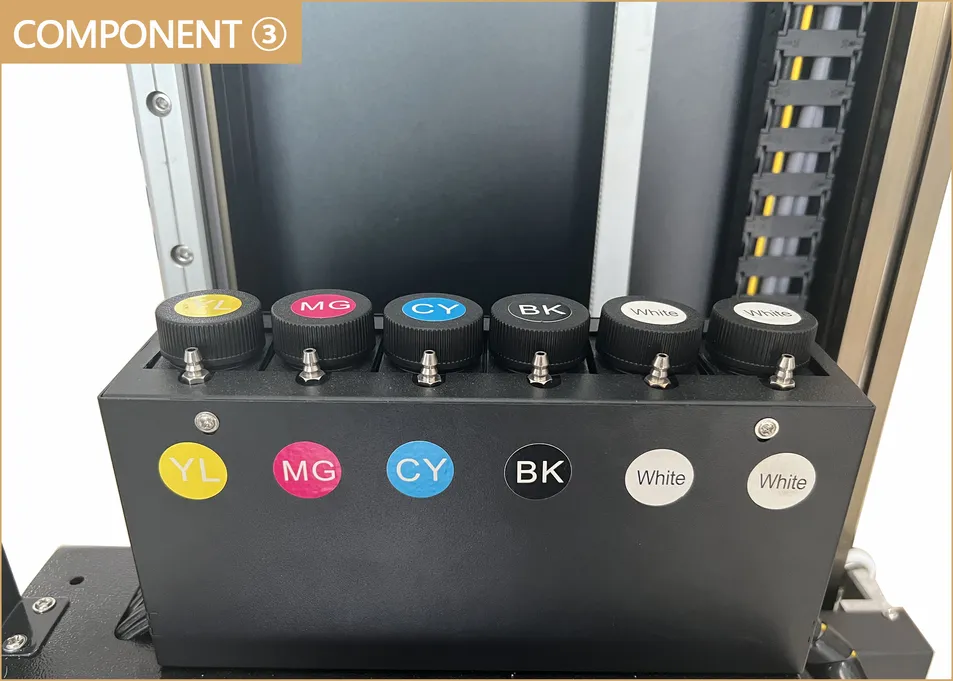

CMYKWW Ink System

Supports white+color mixed printing on dark or transparent substrates. UV ink ensures rapid curing and water/sun protection.

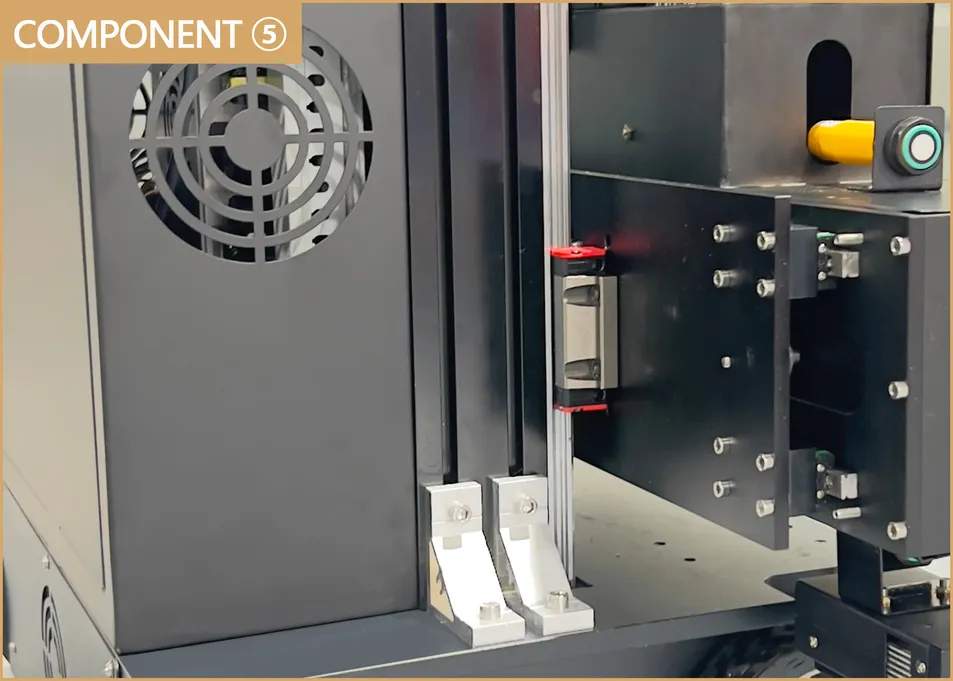

Precision X-Axis Rail

High-precision guidance for stable movement. Lasts up to 5 years compared to low-quality rubber wheels.

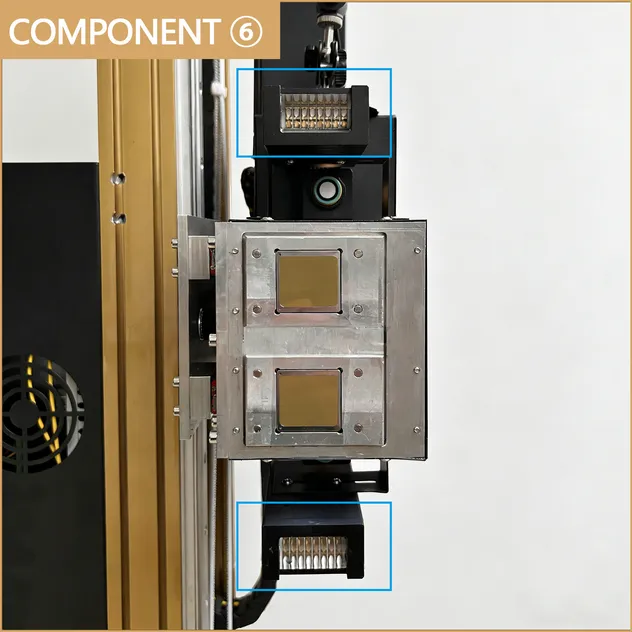

Bi-directional UV Lamp

Instant ink solidification during bidirectional printing, ensuring strong adhesion and increased effective printing height.

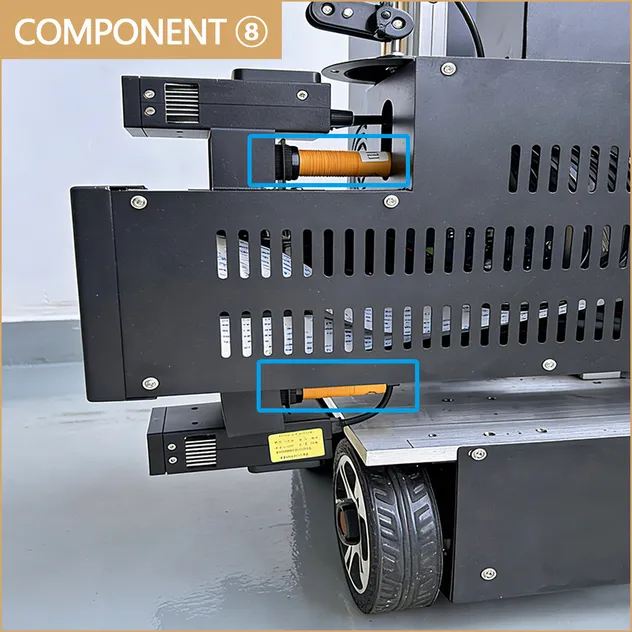

Radar Detector System

Dual detectors identify wall irregularities (1-20cm), adjusting printhead distance in real-time to avoid collisions.

Authoritative Certifications

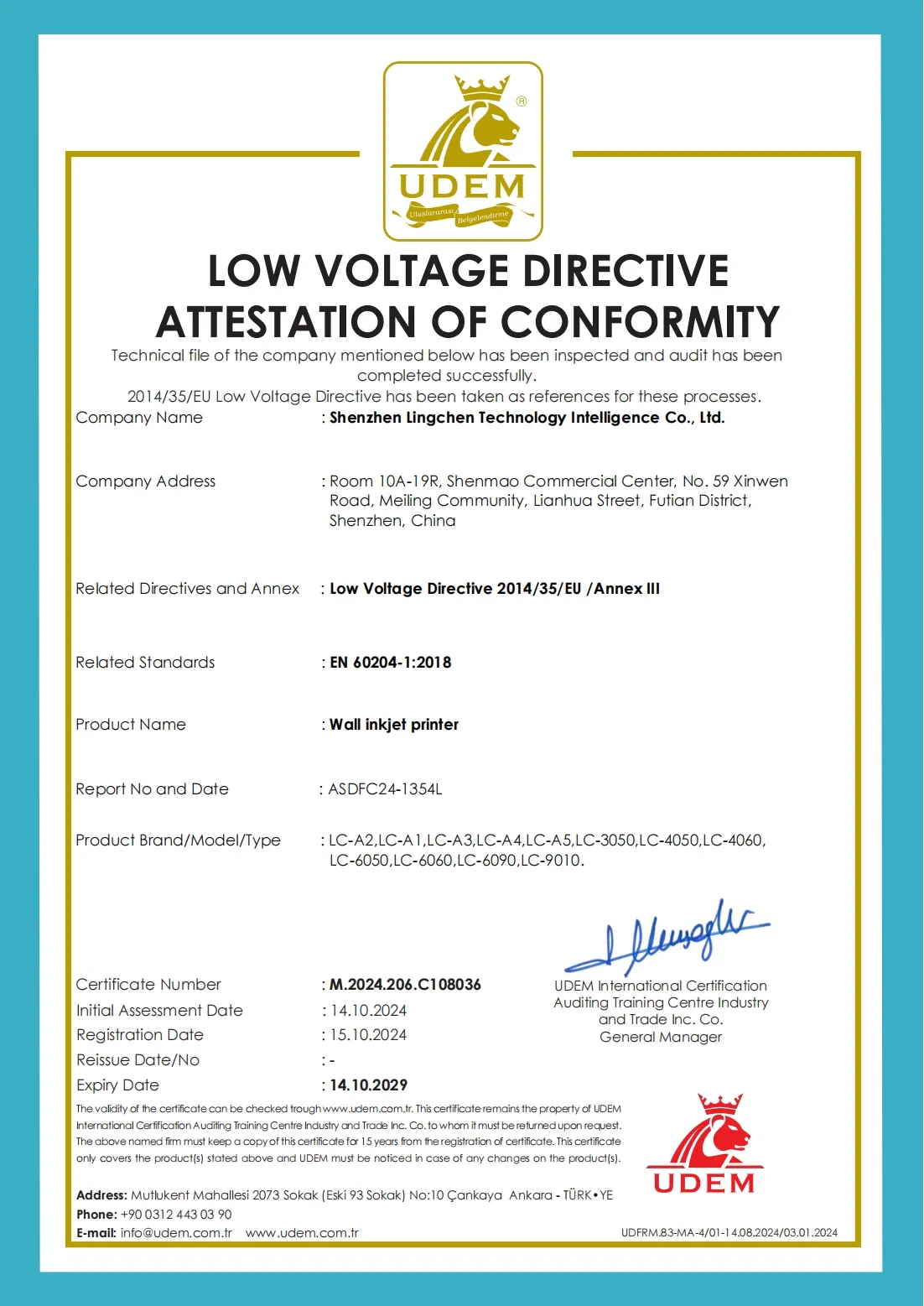

CE-LVD

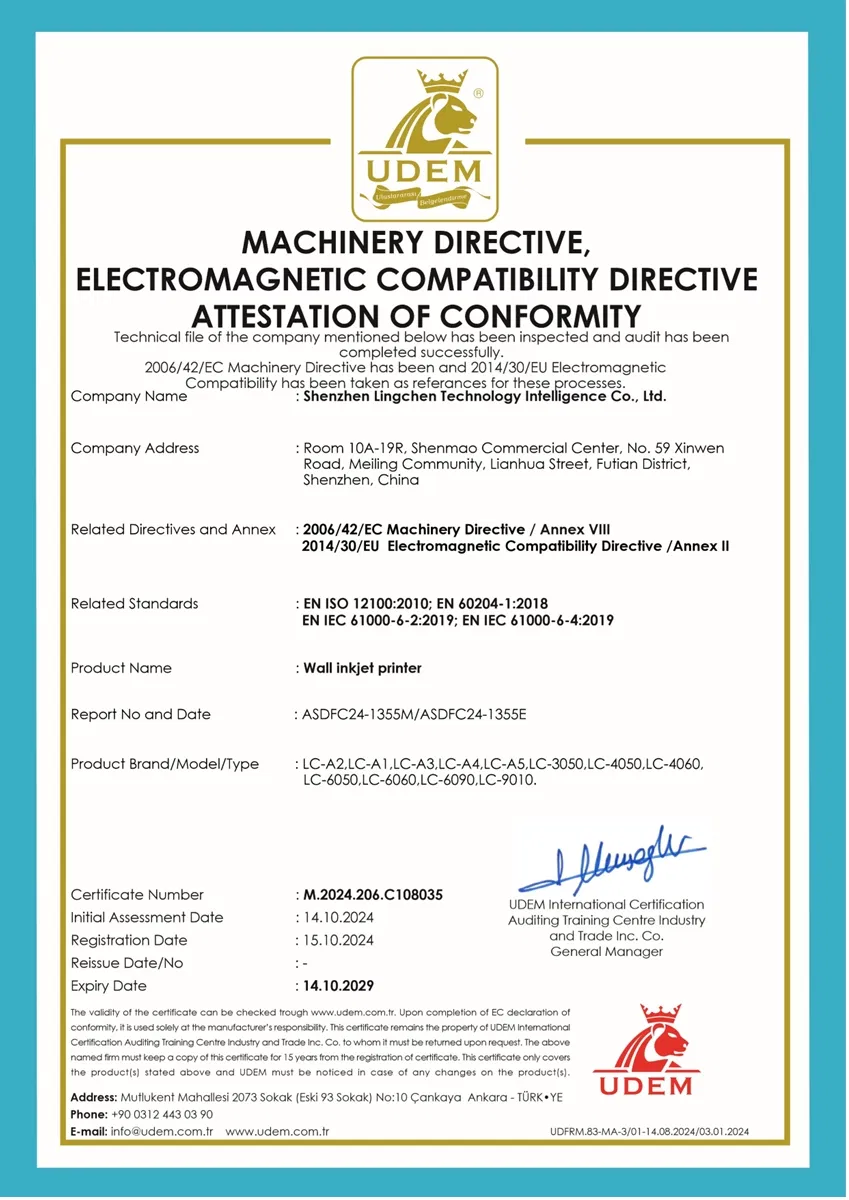

CE-MD-EMC

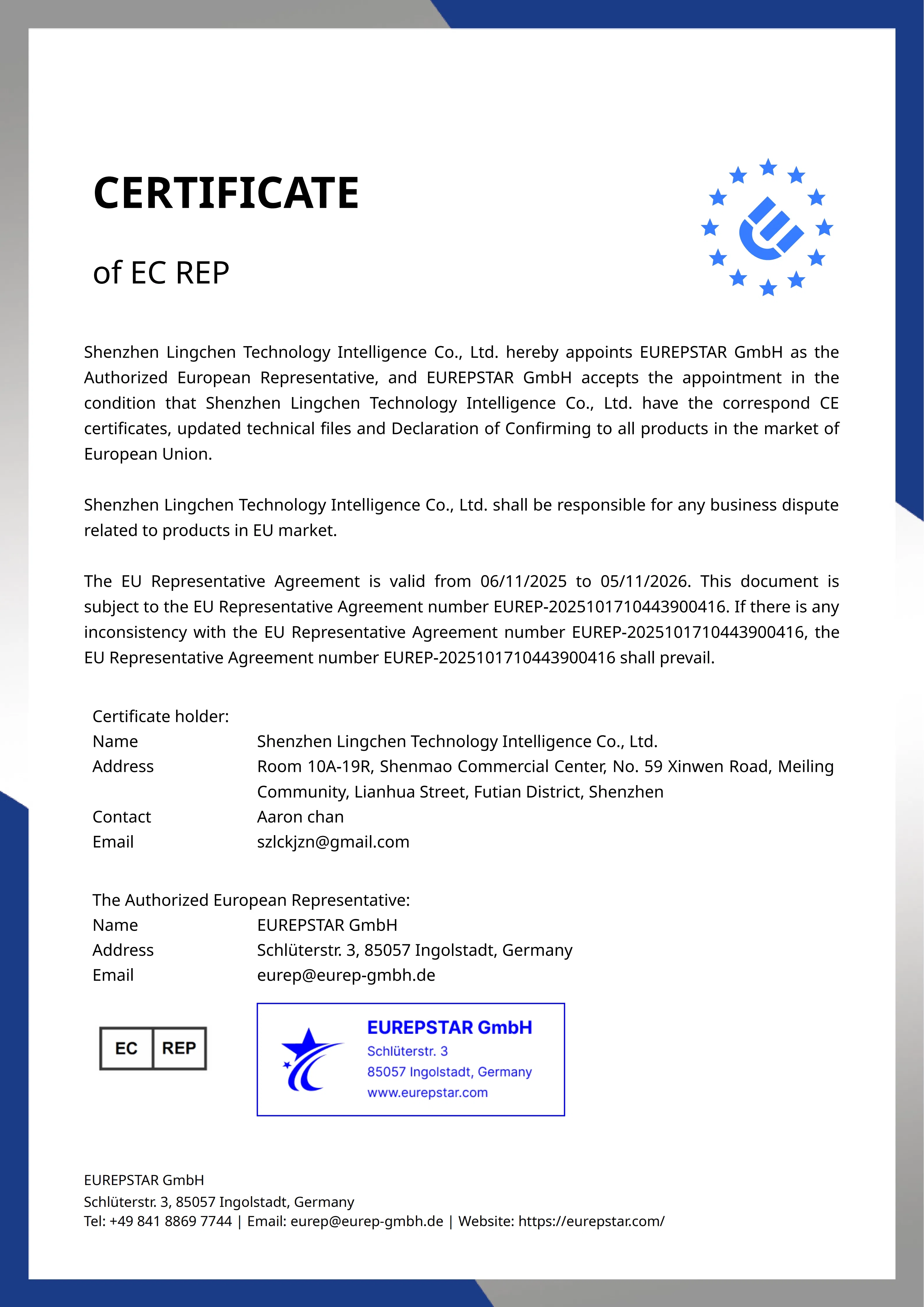

GPSR

Professional Capability

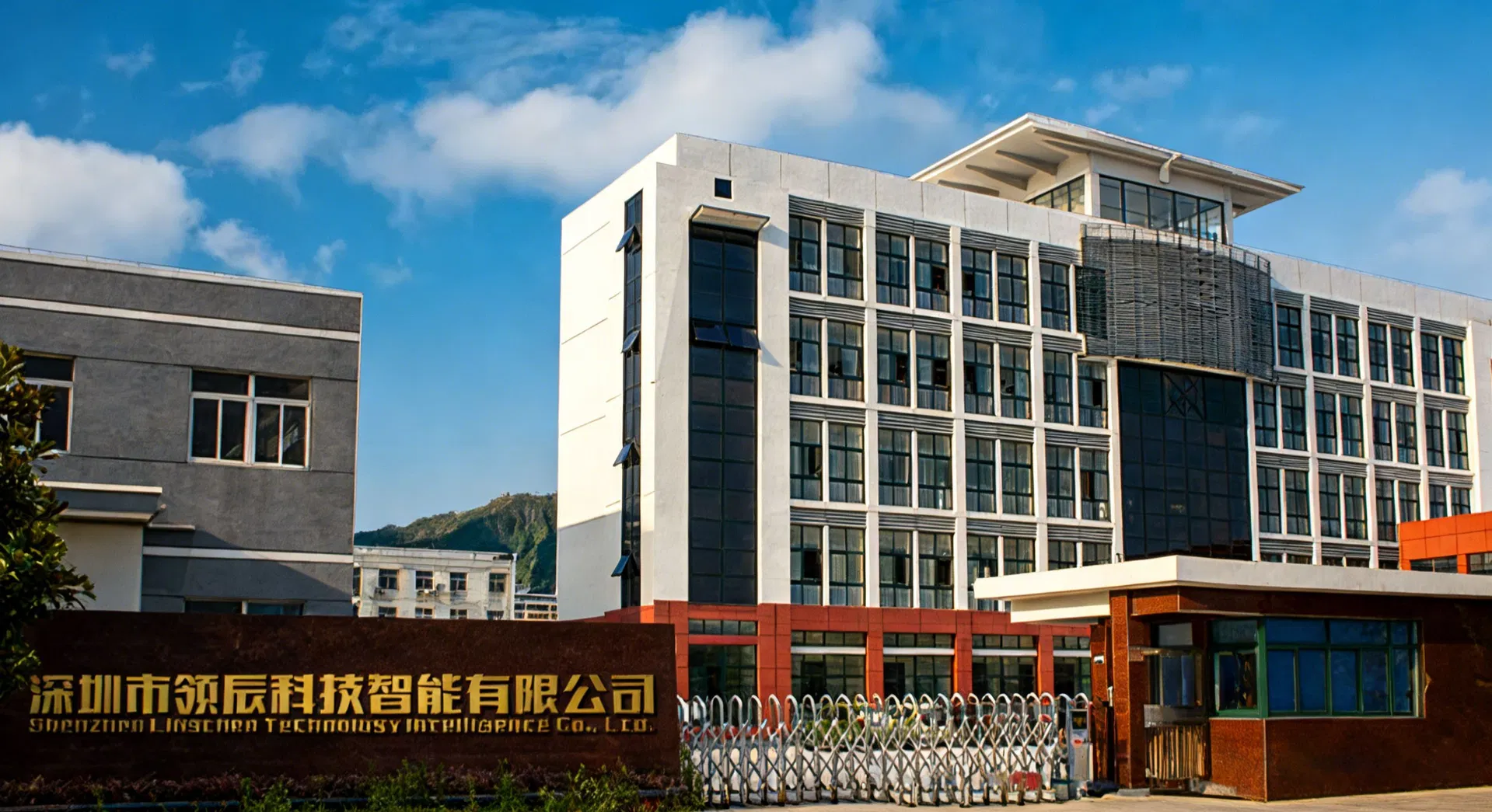

Our company is an innovative technology enterprise deeply engaged in intelligent printing equipment and industrial automation. We cover the entire industrial chain of R&D, design, production, and maintenance services. Equipped with a modern production base and strict quality control systems, we ensure stable quality for every product exported globally.

We provide full-range international compliance certifications including CE, FCC, and RoHS, seamlessly matching global power standards (110V-240V) and offering multi-language interfaces for an optimized user experience.

Packing & Delivery

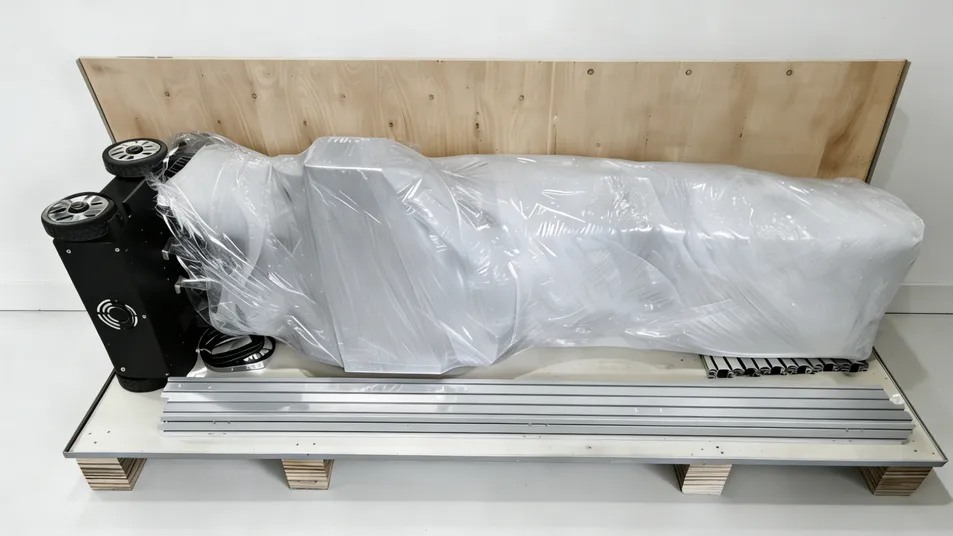

Reinforced Protection

Packaged in high-strength reinforced wooden cases with multi-layer shock absorption for precision components like printheads and mainboards.

Shipping Details

Standard Case: 173×63×73cm | Weight: 120kg (Gross). We support Air, Sea, and International Courier. DDP service available for selected regions.

Frequently Asked Questions

1. What is the printing precision and color reproduction?

The physical resolution reaches 1200dpi for pixel-level printing. With CMYK + White ink, the color reproduction rate is ≥ 95%, accurately matching design drawings via PANTONE calibration.

2. What is the maximum printing size and height?

Maximum height is 3.2 meters (customizable up to 4.5m). The width is unlimited. Wheel-type models support continuous printing for walls over 10 meters with minimal splicing error.

3. Which wall materials are supported?

Compatible with cement, latex paint, wallpaper, tiles, glass, and wood. Rough walls should have a flatness error ≤ 3mm. We provide preprocessing fluid to improve adhesion on smooth surfaces.

4. How does the printer handle uneven walls?

Our radar detection system identifies 1-20cm of unevenness, adjusting the printhead distance in real-time (0.1mm precision). For uneven floors, standard 3-meter tracks ensure stable movement.

5. Is the operation difficult for non-professionals?

No. It features a visual touch control system and a 3-step printing wizard. Most users can get started after 1-2 hours of training. We provide full video tutorials and remote guidance.

6. Is the UV ink environmentally friendly?

Yes, our UV ink has passed CE and ROHS environmental certifications. It is non-toxic and odorless, with an indoor shelf life of ≥ 20 years and outdoor shelf life of ≥ 3 years.
