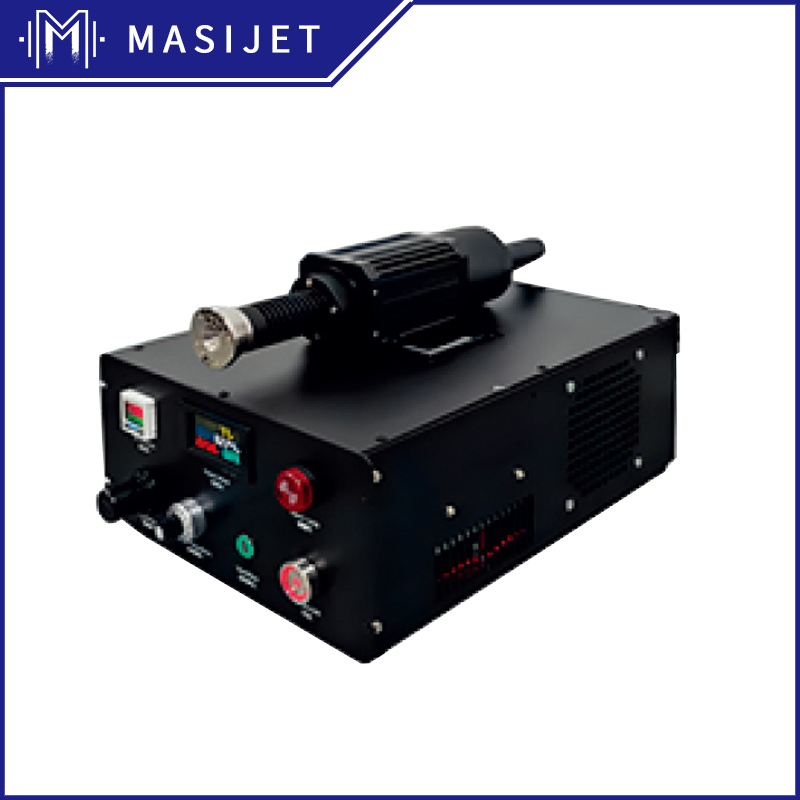

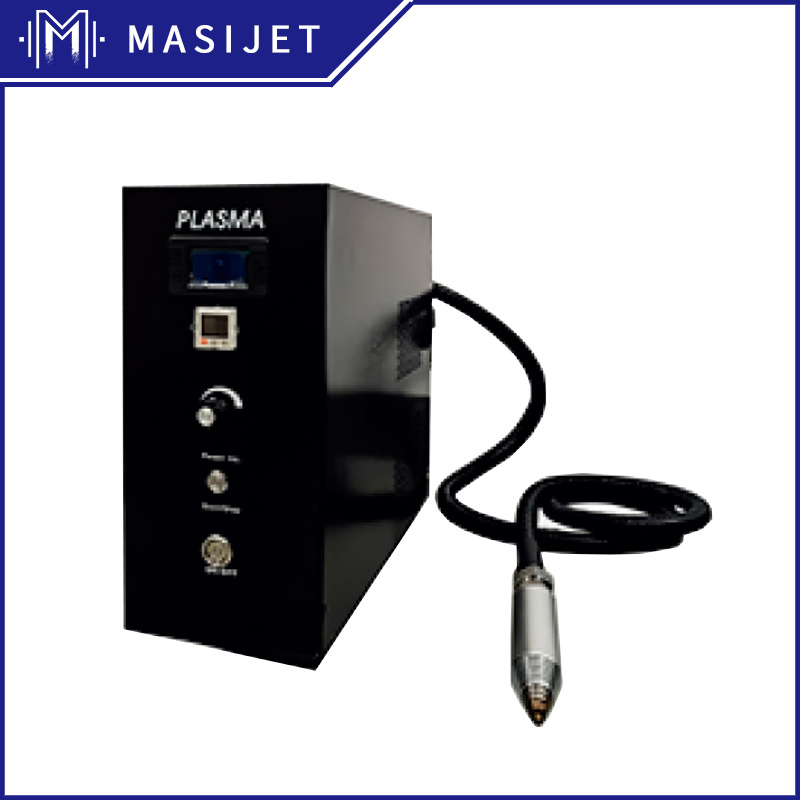

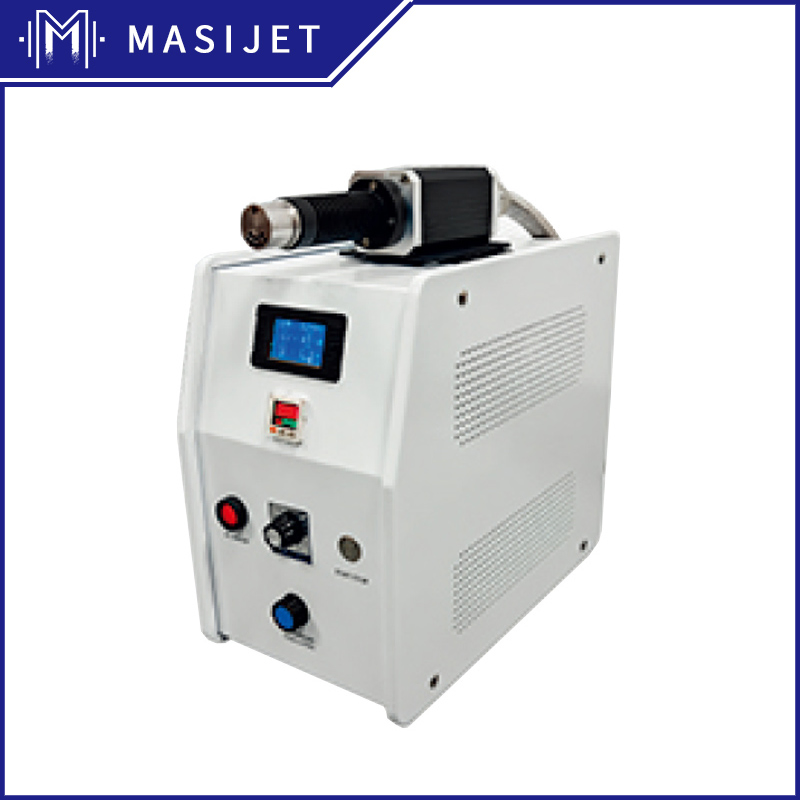

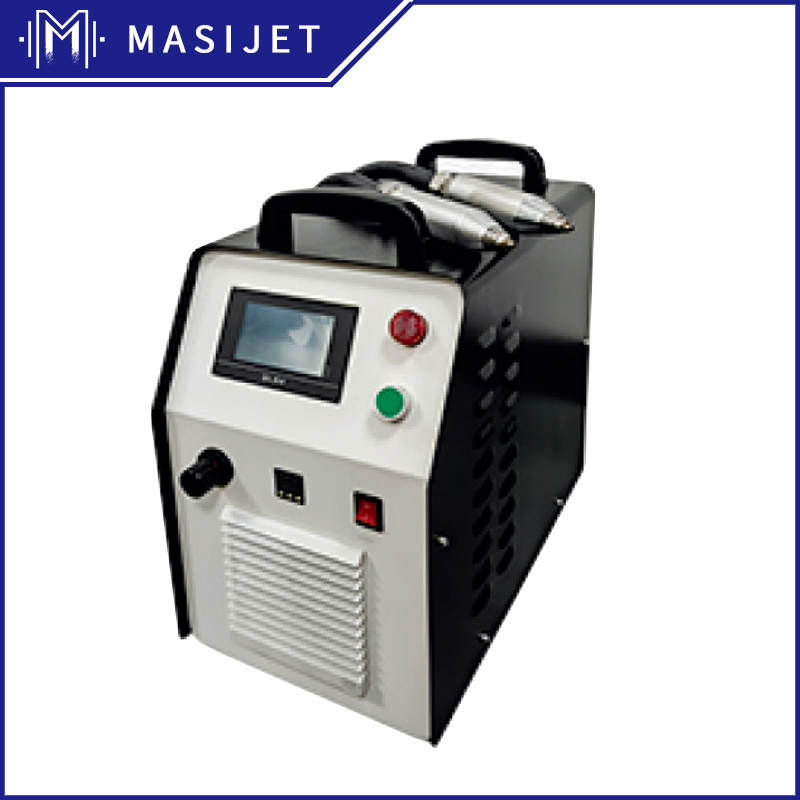

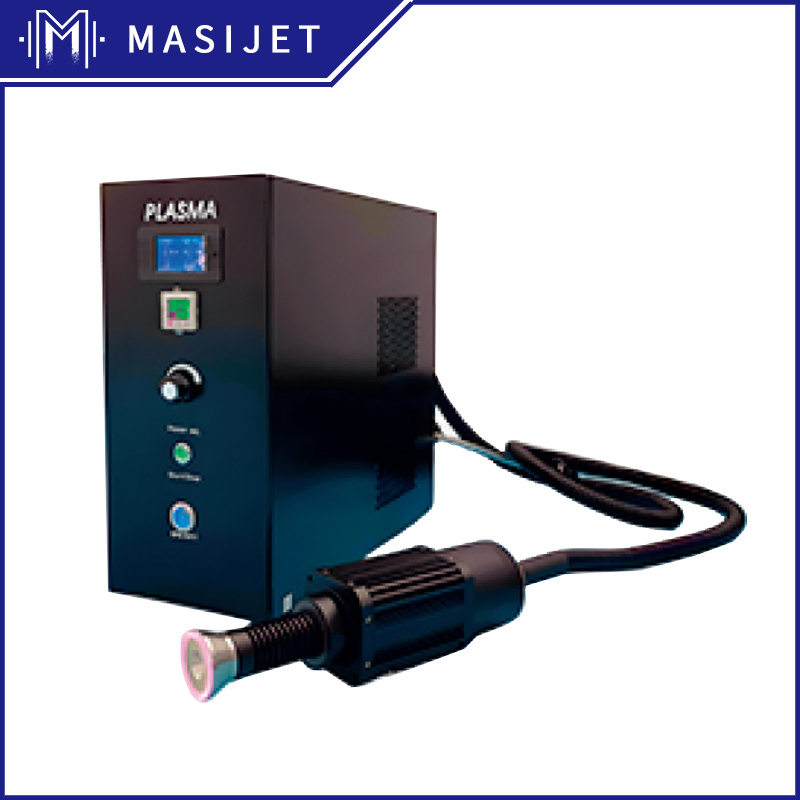

Plasma Surface Treatment Machine, Activated Corona Machine, Direct Spray Rotating Platform Cleaning Machine
Plasma Surface Treatment Machine, Activated Corona Machine, Direct Spray Rotating Platform Cleaning Machine
Plasma Surface Treatment Machine, Activated Corona Machine, Direct Spray Rotating Platform Cleaning Machine
Plasma Surface Treatment Machine, Activated Corona Machine, Direct Spray Rotating Platform Cleaning Machine
Plasma Surface Treatment Machine, Activated Corona Machine, Direct Spray Rotating Platform Cleaning Machine
1 / 5
Plasma Surface Treatment Machine, Activated Corona Machine, Direct Spray Rotating Platform Cleaning Machine
Plasma Surface Treatment Machine, Activated Corona Machine, Direct Spray Rotating Platform Cleaning Machine
Plasma Surface Treatment Machine, Activated Corona Machine, Direct Spray Rotating Platform Cleaning Machine
Plasma Surface Treatment Machine, Activated Corona Machine, Direct Spray Rotating Platform Cleaning Machine
Plasma Surface Treatment Machine, Activated Corona Machine, Direct Spray Rotating Platform Cleaning Machine

Plasma Surface Treatment Machine, Activated Corona Machine, Direct Spray Rotating Platform Cleaning Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
HT1500
Certification
CE
Category
Surface Plasma Corona Treatment Machine
Power Range
900W-1500W (Adjustable)
Processing Width
8mm to 70mm
Input Voltage
AC220V, 50-60Hz
Usage
For Man Roland, Komori, Heidelberg Printers
Pressure Range
0.2MPa-0.35MPa

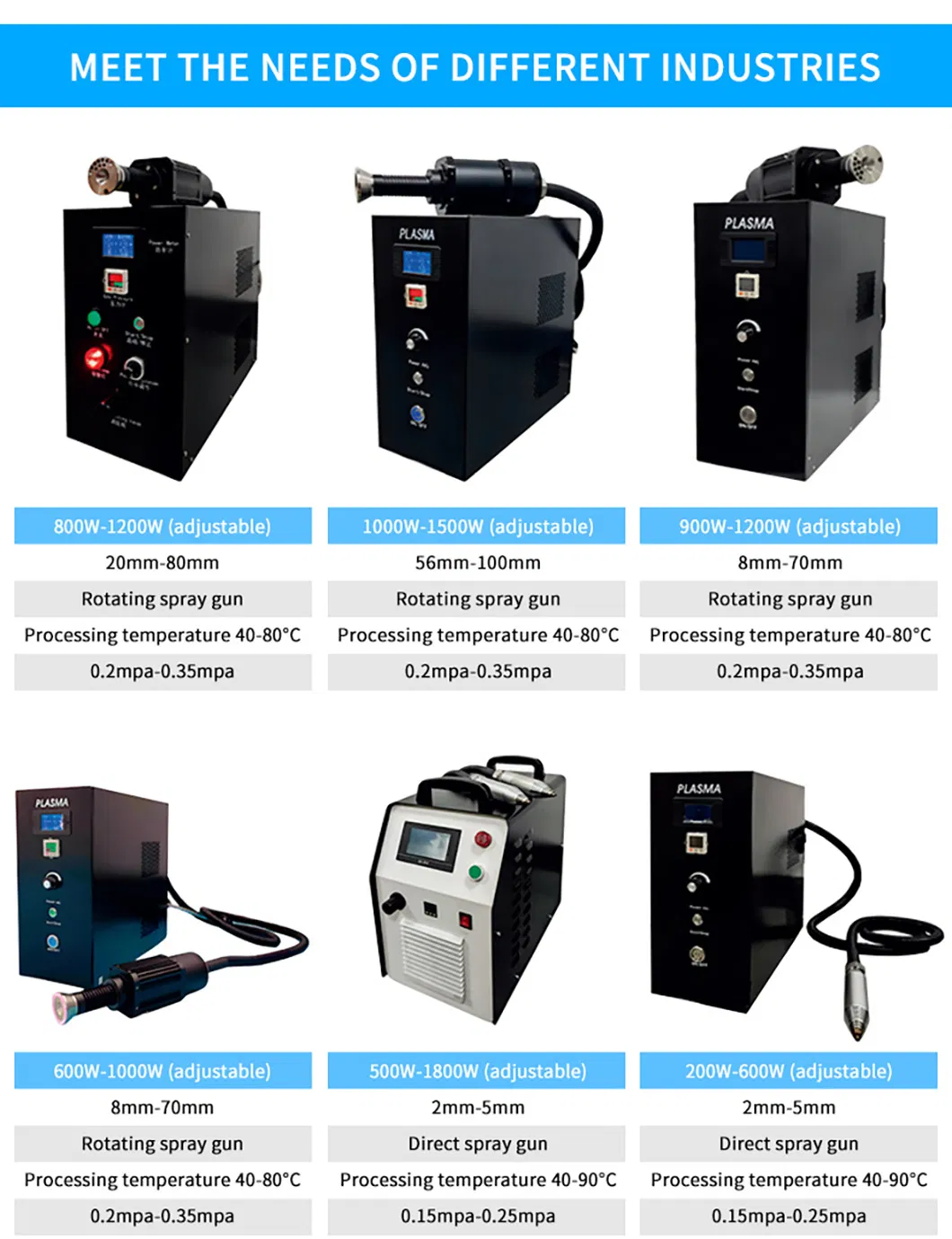

Plasma Surface Treatment Machine Banner
⚙

Technical Parameters

ModelHT1500
Power Range1000W-1500W (adjustable)
Processing Width8mm to 70mm (depending on nozzle selection)
Spray Gun TypeRotating spray gun
Processing Temp40-80°C
Input VoltageAC220V, 50-60Hz (Grounding required)
Pressure Range0.2mpa-0.35mpa
Gas RequirementsClean and dry / Anhydrous and oil-free
📷

Product Gallery

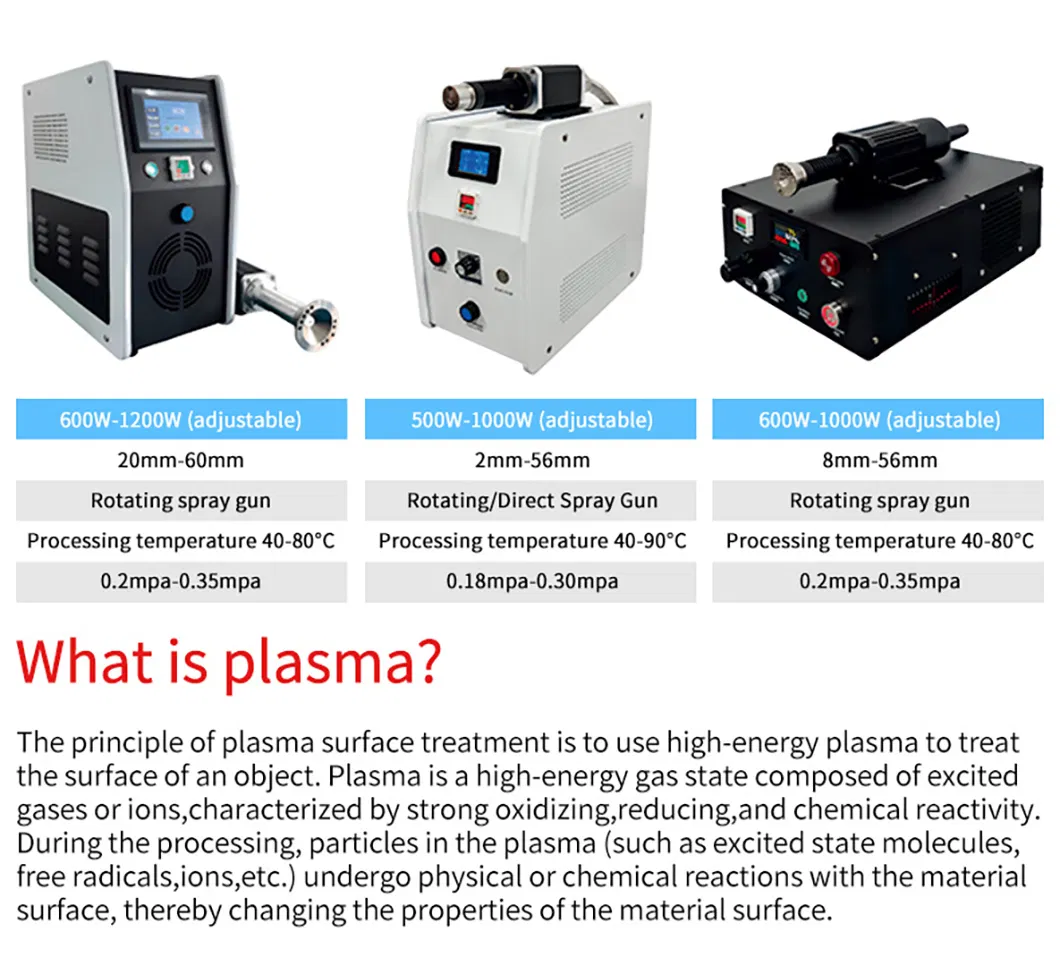

Feature 1

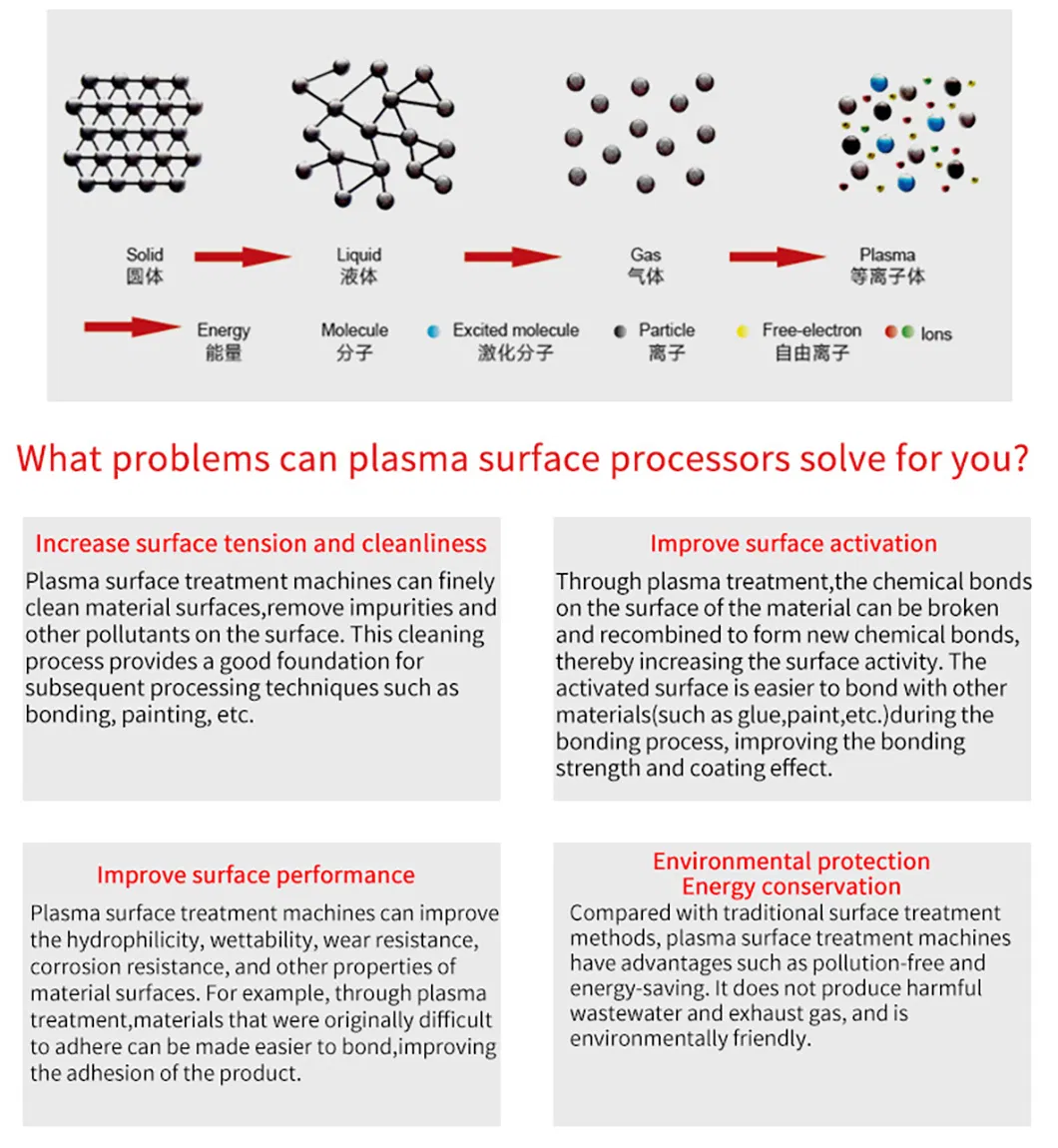

Feature 2

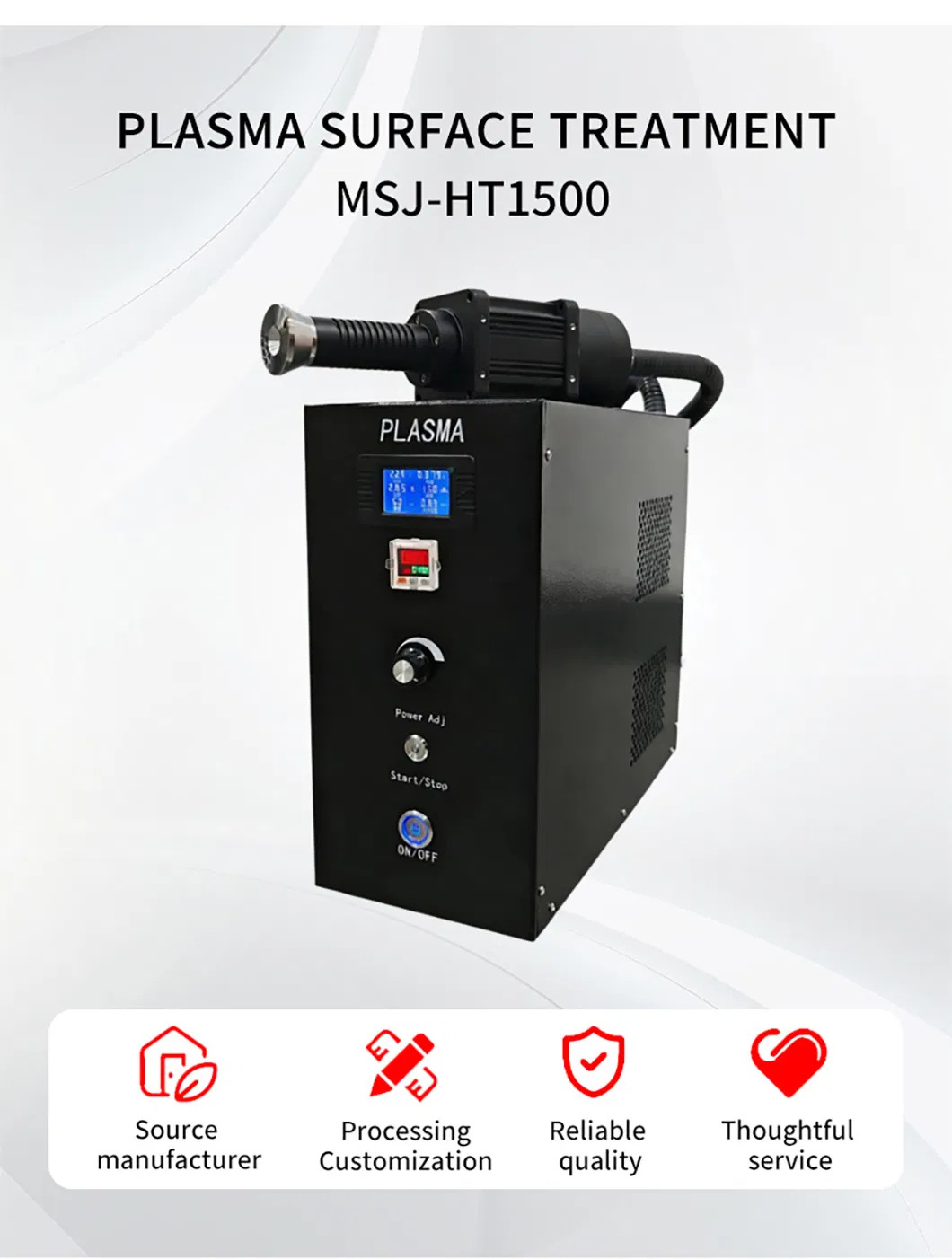

Feature 3

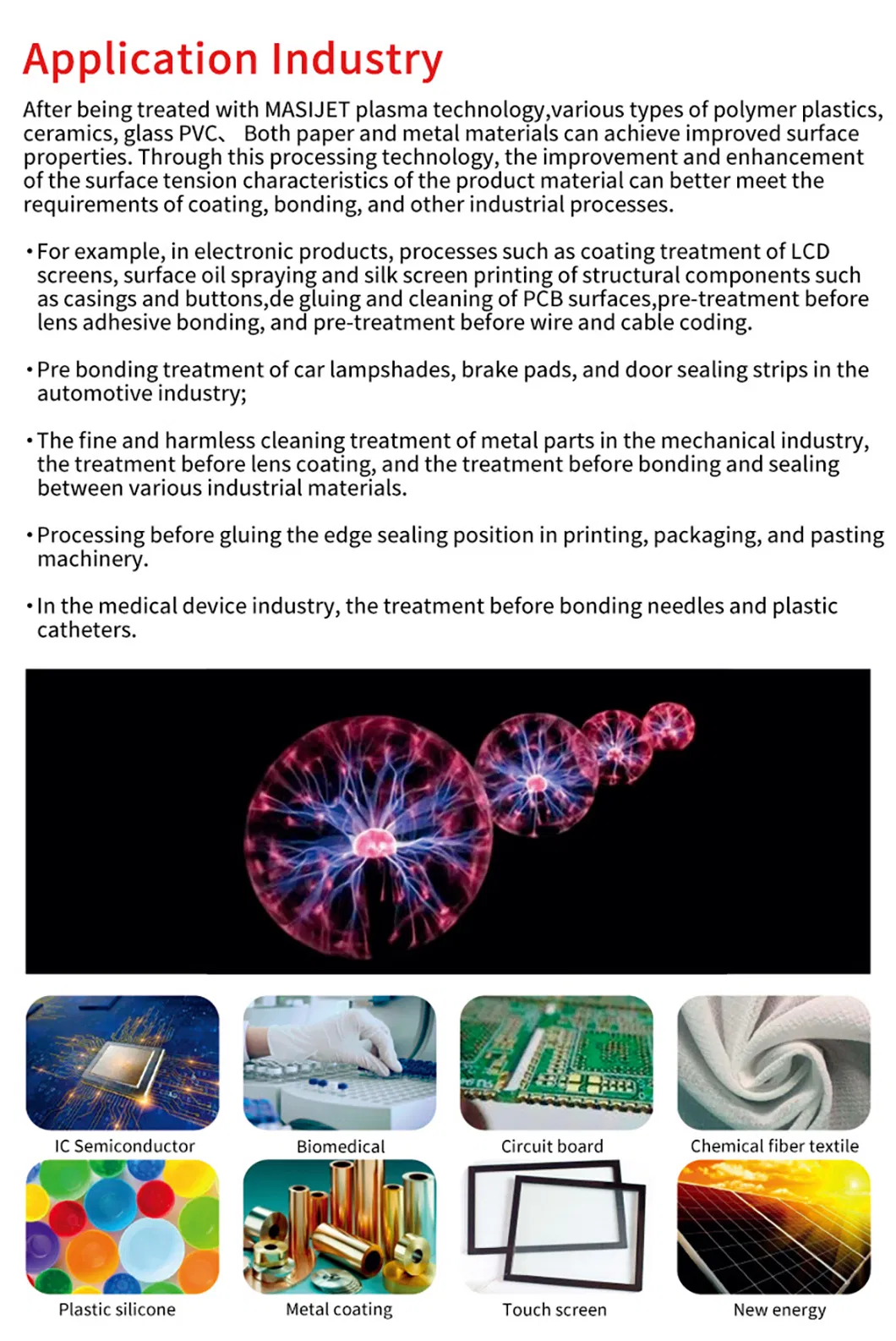

Feature 4

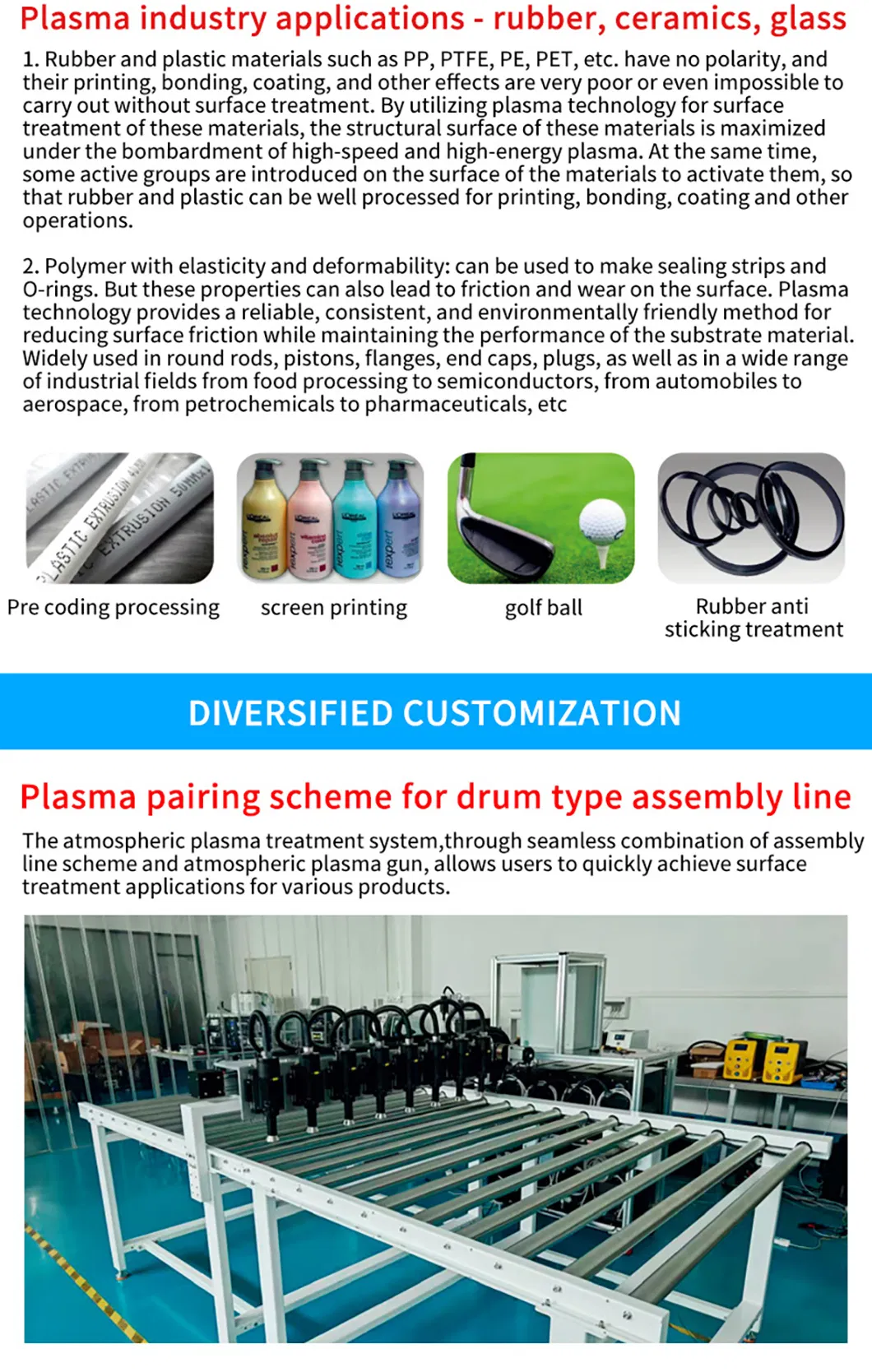

Feature 5

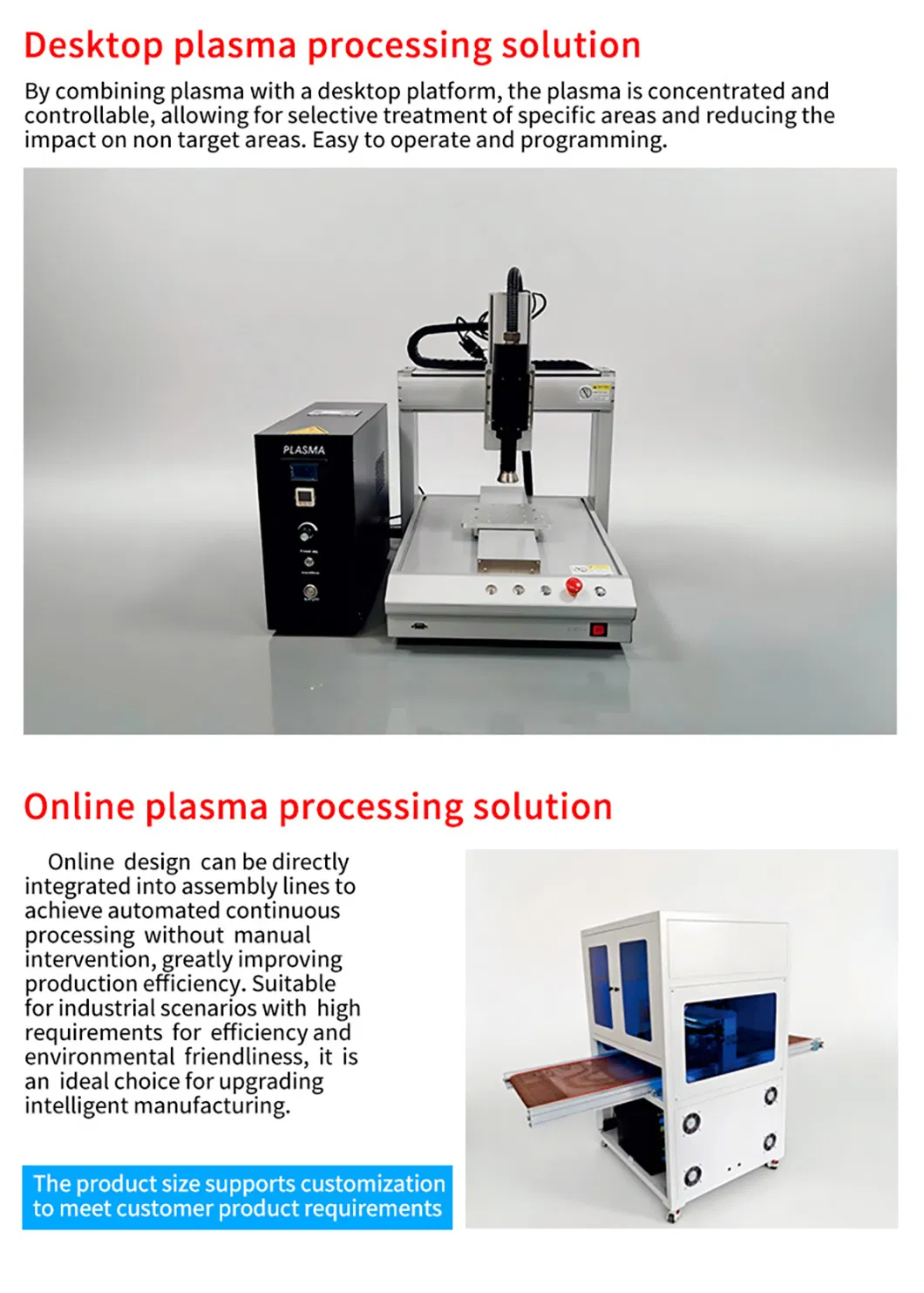

Feature 6
Feature 7

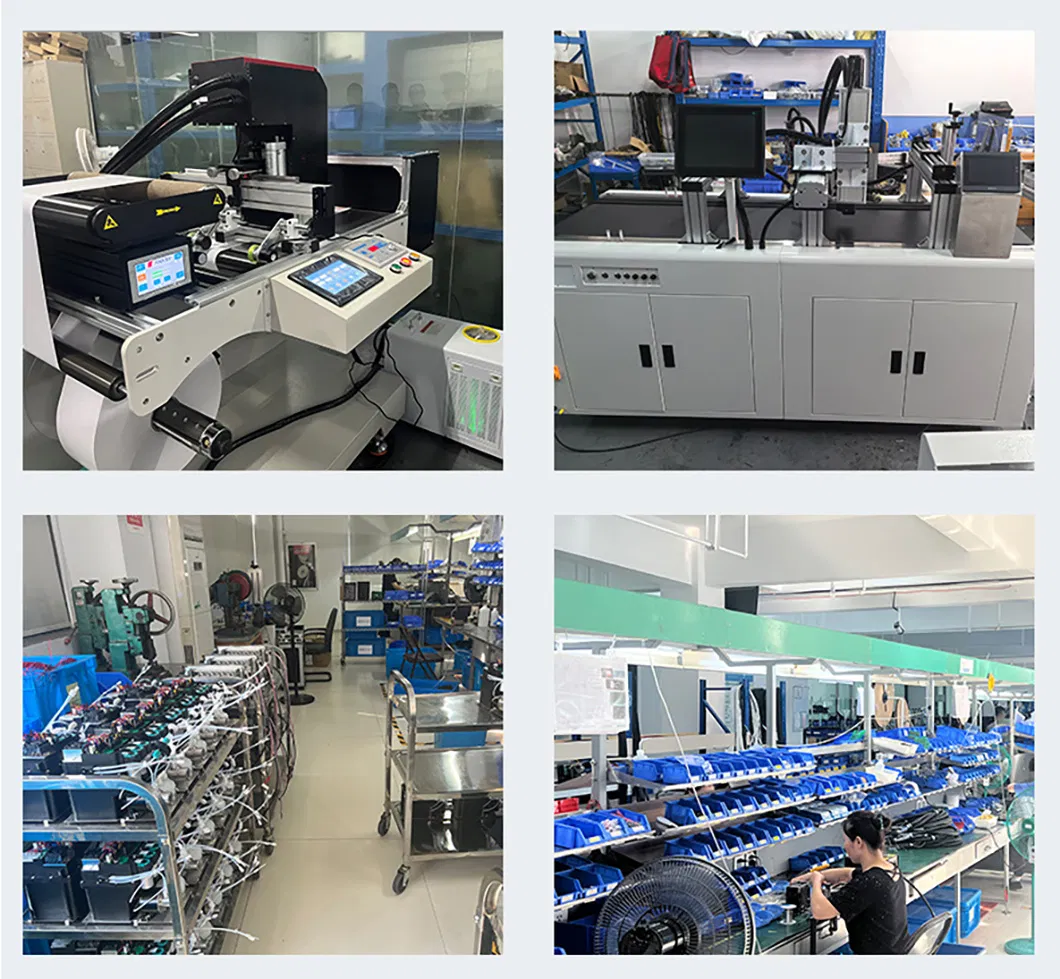

Feature 8
Plasma Machine Application
?

Frequently Asked Questions

Can this machine treat my specific product material?
The HT1500 is designed for various materials. We offer different settings to suit water-based and quick-dry requirements. Most surfaces can be treated for better adhesion of dates, codes, logos, and other information.
Is the plasma treatment permanent?
The treatment significantly increases surface energy. Unless the surface is physically scraped with hard tools or contaminated, the activation provides a long-lasting base for printing or bonding.
How fast does the surface dry after treatment?
Typically, the activation effect is immediate, and subsequent ink applications dry within 3-5 seconds depending on the ink type used.
How do I ensure the machine is operating at its best condition?
Every machine is tested and adjusted to optimal parameters before delivery. We can also provide specific adjustments based on your unique production environment.
What are the gas source requirements?
The system requires a clean, dry, anhydrous (water-free), and oil-free gas source to ensure the stability of the plasma discharge and the longevity of the nozzle.
Are there different color options for subsequent marking?
Yes, while the machine handles the surface treatment, paired marking systems can use white, yellow, red, green, blue, or black inks.
