UV Industrial Concrete Surface Digital Wall Printer

1 / 5

UV Industrial Concrete Surface Digital Wall Printer

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

LC-A2C

Interface Type

USB

Style

Black and White

Technics

Continuous Inkjet

Printhead Model

Dx10

Printing Size

2500mm * 6000mm

Ink Type

UV Ink

Ink Color

Cmykww

Printing Speed

5-15 M²/Hour

UV Lamp

Bidirectional Configuration

Product Description

★

Lightweight & Foldable Design: Total weight of 35KG, foldable structure allows startup in just 5 minutes.

★

Dual Wheel & Rail Mode: Direct wheeled printing for flat floors and rails for uneven outdoor scenarios.

★

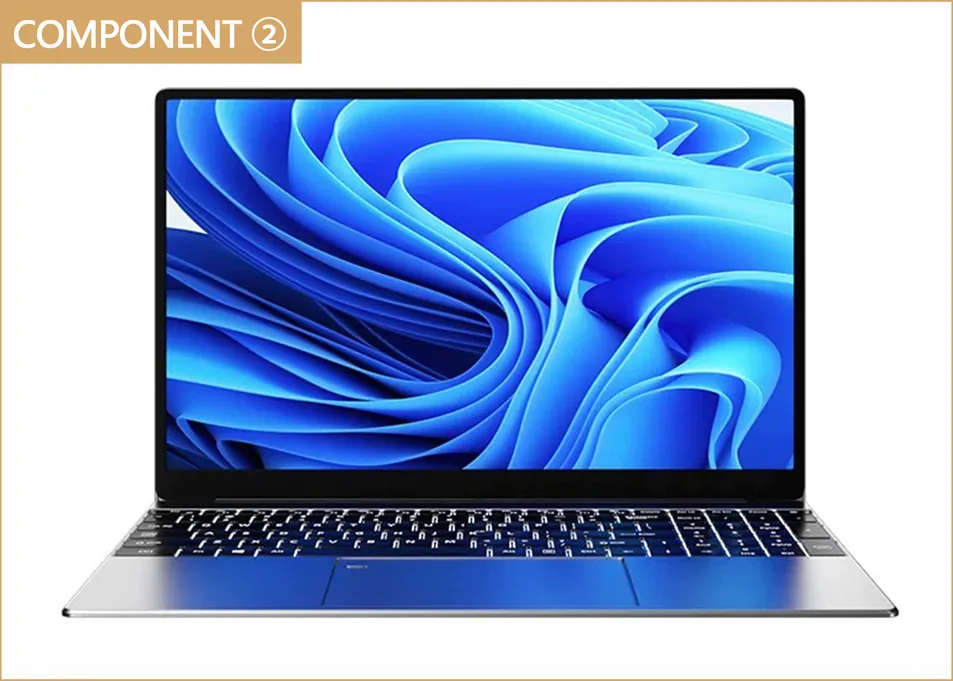

Detachable Laptop Configuration: High-efficiency image processing with a removable design for versatile use.

★

X-Axis Guide Rail Drive: Precise control of print head movement, significantly reducing jitter.

★

Factory Direct Advantage: High cost-effectiveness with professional direct technical support.

Technical Specifications

Parameters	LC-A2C	LC-A2S	LC-A2Pro

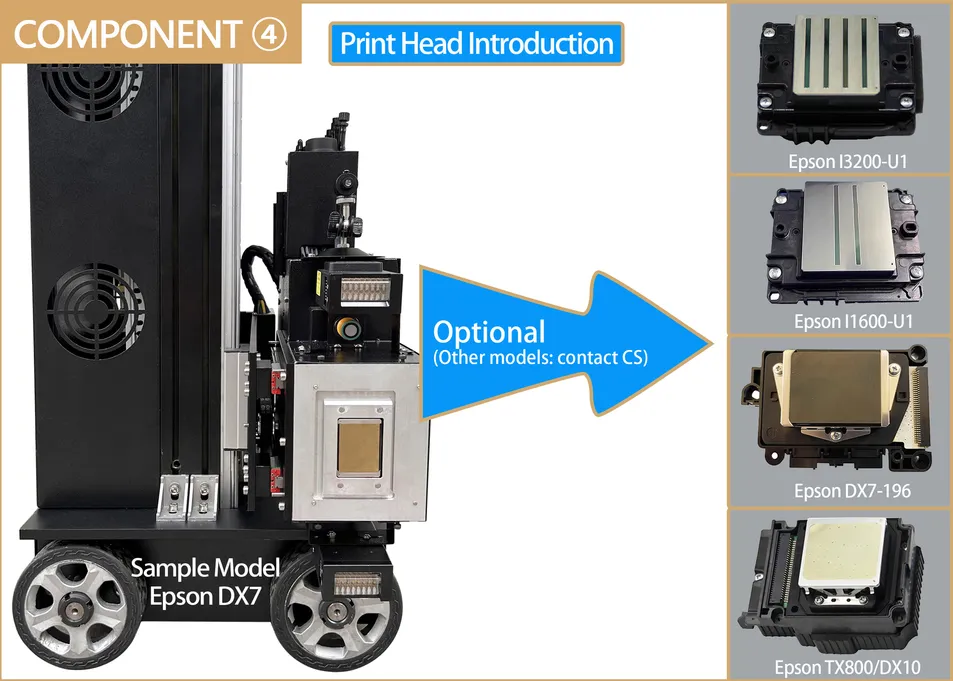

Printhead Model	DX10	DX7	I1600-U1
Number of Printheads	1	1	2
Printing Speed	3-8 m²/h	4-10 m²/h	5-15 m²/h
Printing Size	2500mm * 6000mm
Laptop	8G-256GB	Touch Win11-16G-512GB	Touch Win11-16G-1TB
Machine Ink	UV CMYKW
White Ink Printing	Supported
Power-off Memory	Supported

Key Components

Customized Fiber Optic Motherboard: Provides faster signal transmission and strong anti-interference capabilities, ensuring a significantly lower failure rate compared to traditional cable motherboards.

CMYKWW UV Ink System: Supports white ink printing on dark or transparent substrates. Rapid curing ensures waterproof, sunproof, and wear-resistant results.

Operational Features

The machine includes a Bi-directional Detector with radar wall detection system to identify wall irregularities (1-20cm) and automatically adjust the printhead distance to prevent collisions.

International Certifications

Company Overview

As an innovative technology enterprise deeply engaged in intelligent printing equipment and industrial automation, the company covers the entire industrial chain of R&D, design, production, and maintenance. Backed by a high-quality R&D team and numerous patented technologies, we provide global customers with one-stop procurement and professional cross-border services.

Packing & Delivery

Reinforced Wooden Case: High-strength packaging with multi-layer shock absorption protects precision components.
Size: 173×63×73cm | Weight: 55KG | Volume: 0.8m³.

Frequently Asked Questions

1. What is the printing precision and color reproduction quality?

The resolution reaches 1200dpi for pixel-level printing. With CMYK + White ink and PANTONE calibration, the color reproduction rate is ≥ 95%, matching design drawings accurately.

2. What wall materials are compatible with the printer?

It works on cement, latex paint, wallpaper, tiles, glass, and wood. Smooth surfaces can be printed directly, while oil-based walls may need degreasing.

3. Can it handle uneven walls or floors?

Yes. The radar detection system identifies 1-20cm unevenness and adjusts the printhead distance in real-time. For uneven floors, a 3-meter standard track ensures stability.

4. Is the operation difficult for non-professionals?

No. It features a visual touch control system and a 3-step process. Most users can operate the machine independently after 1-2 hours of training.

5. What are the costs and durability of the UV ink?

Consumable cost is approximately $0.4 - $0.6 per m². The UV ink is non-toxic, eco-friendly, and lasts ≥ 20 years indoors and ≥ 3 years outdoors.

6. What is the warranty and after-sales policy?

We offer a warranty of up to 3 years for the entire machine (excluding consumables/human error). We provide 24/7 online remote support and fast accessory delivery.
