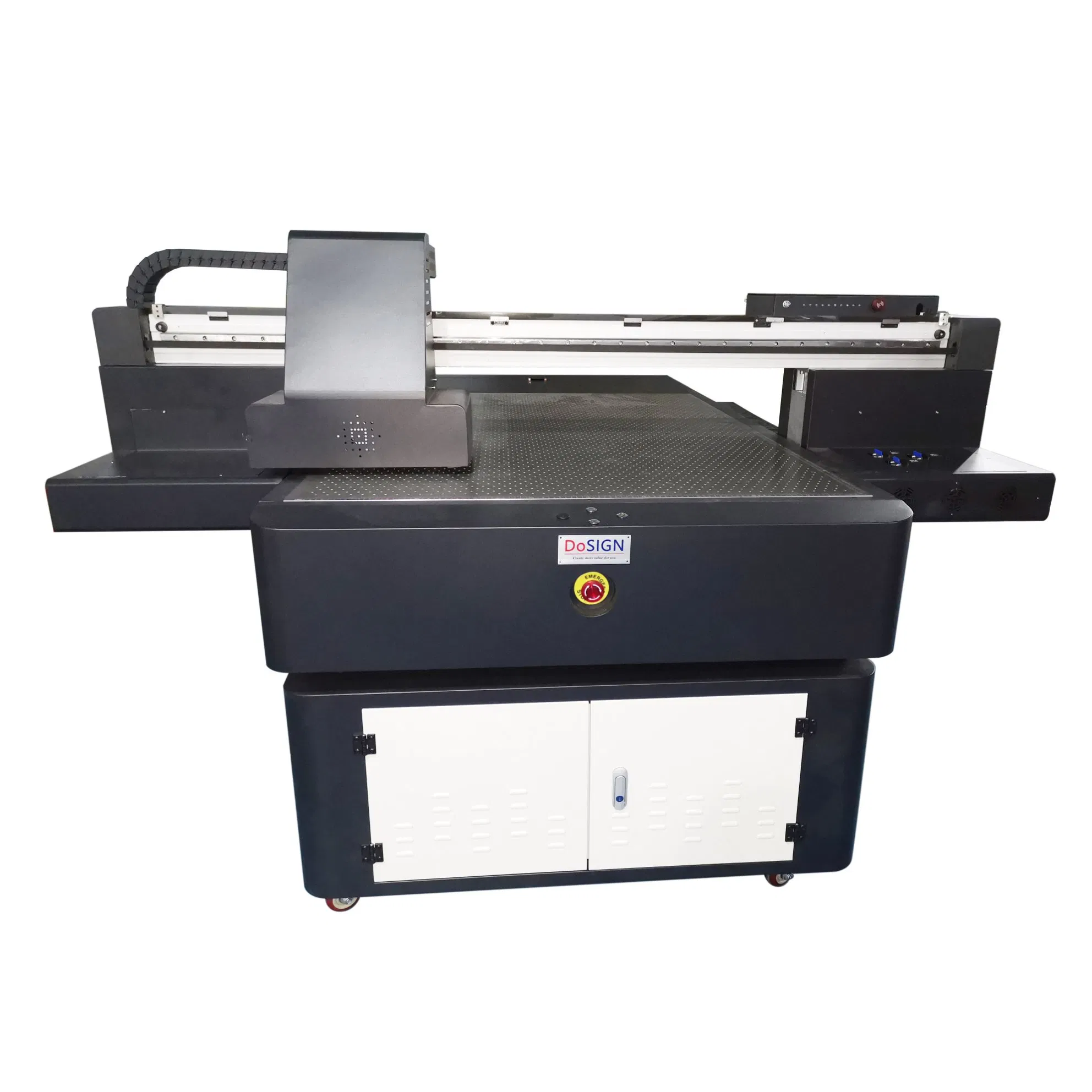

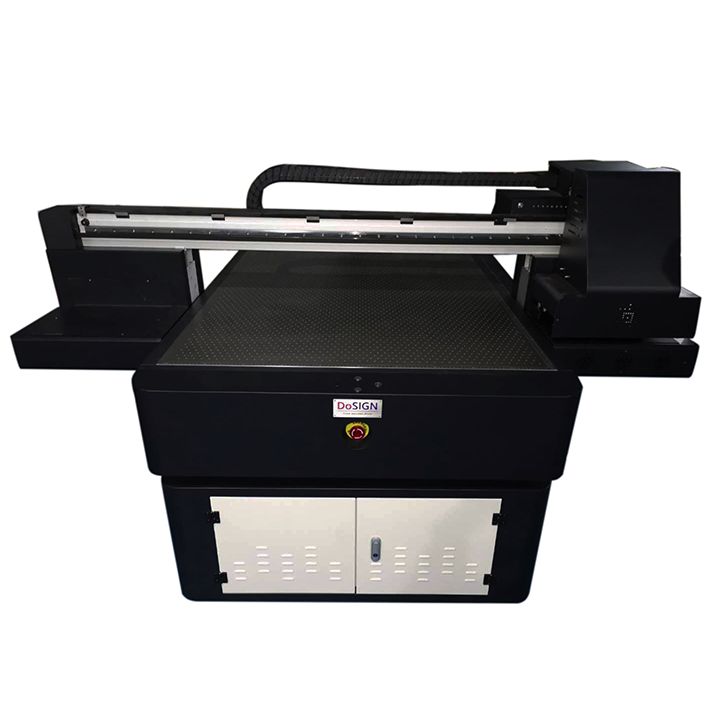

Print on Any Surface Metal UV Printer Yoga Mat Food Packaging Bags Jute Bag Digital Printing Machine

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model:DS-1015U
Printing Type:Digital Inkjet Printer
Usage:Card, Wood, Glass Printer
Automatic Grade:Automatic
Printing Speed:18 Sqm/H
Printing Size:100cm X 150cm (3.28FT*4.92FT)
Printhead:2 or 3 Pieces Epson Tx800
Ink Type:UV Curing Ink
Dry System:UV LED Lamp Drying System
Resolution:Up to 2880 dpi

Product Overview

Practical UV Flatbed Printer for Versatile Surfaces

Multi-Surface: Print on Glass, Wood, Acrylic, Metal, Plastic, PVC, Ceramic, Stone, and more.

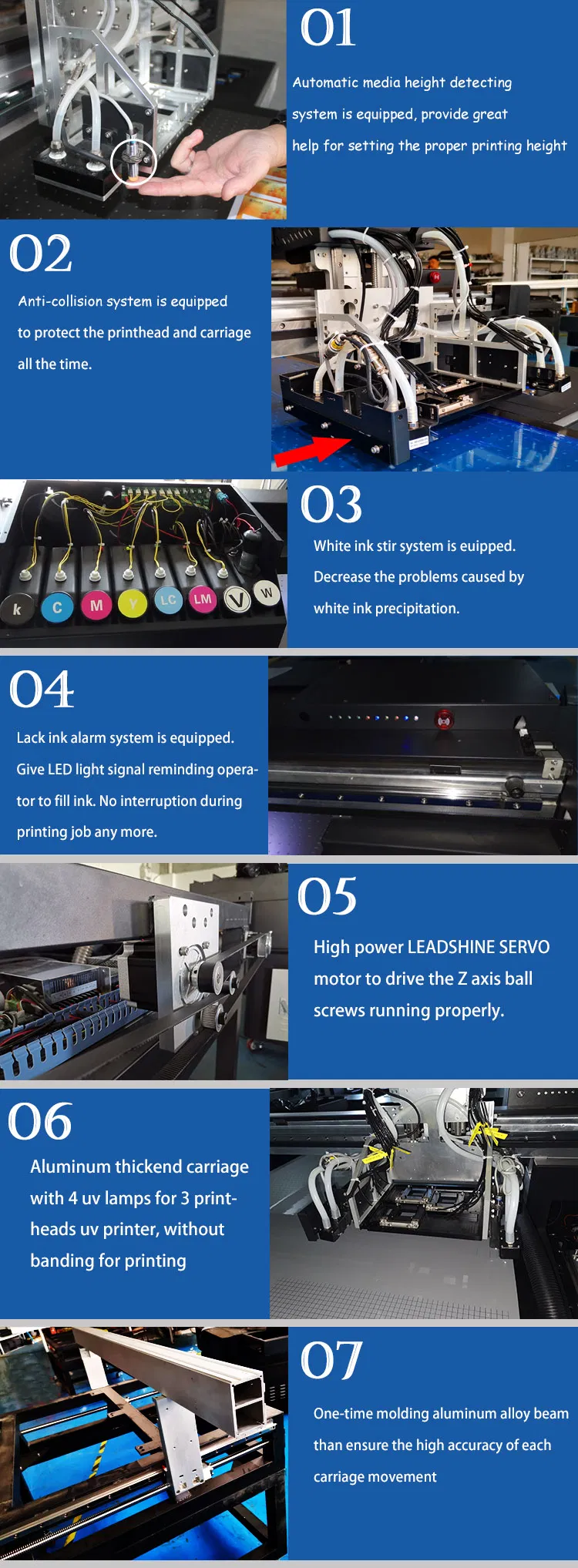

Smart System: Anti-crash carriage with auto height measurement and auto cleaning.
Reliability: White ink stir system to protect the printhead from clogging.

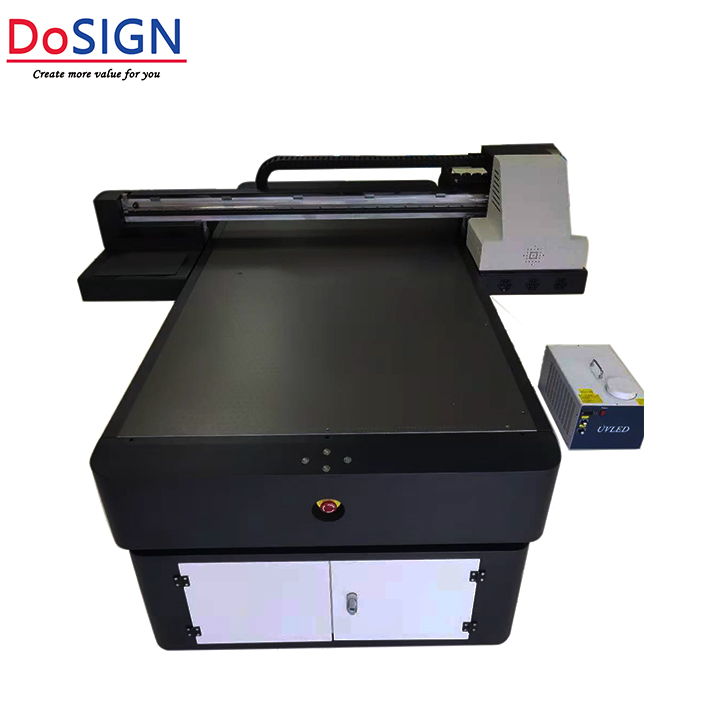

UV Printer Overview

The DS-1015U UV Printer is an excellent choice for starting a medium-scale business. This small-size UV flatbed printer supports continuous white ink printing and is designed for both rigid and flexible materials including leather, crystal, rubber, aluminum, and copper. Ideal for custom gifts, promotional items, and 3D textured effects.

Technical Specifications

Feature Details
ModelDS-1015U
PrintheadPiezoelectric Printhead DX8 (2-3 pcs)
Color RangeCMYK / CMYKLcLm / White / Varnish
Accepted Height80mm (Customizable to 17cm)
Printing SpeedNormal: 12 sqm/h | Standard: 8 sqm/h | Photo: 6 sqm/h
Drying SystemUV LED Light System
Platform4 Air Draft Divisions
Ink Capacity250ML/Bottle (Auto detect alarm)
RIP SoftwareMainTop / PhotoPrint
Media TypeGlass, PMMA, Ceramic, Metal, Marble, Paper, Wood, Leather, PVC, etc.
Gross Weight400KG

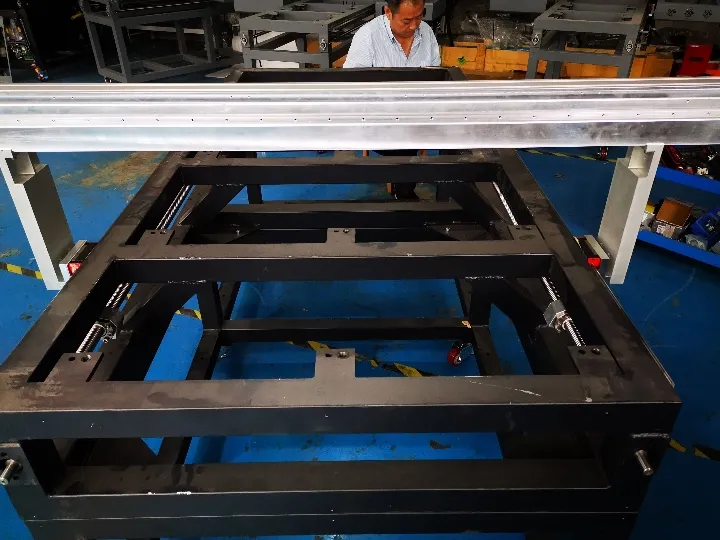

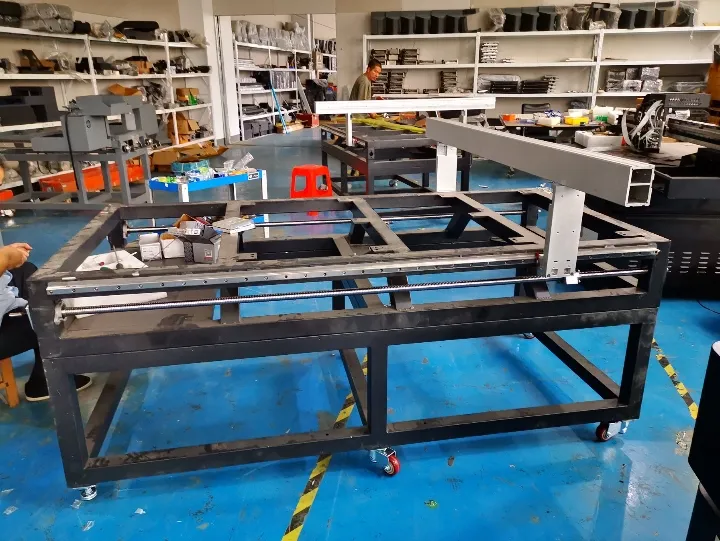

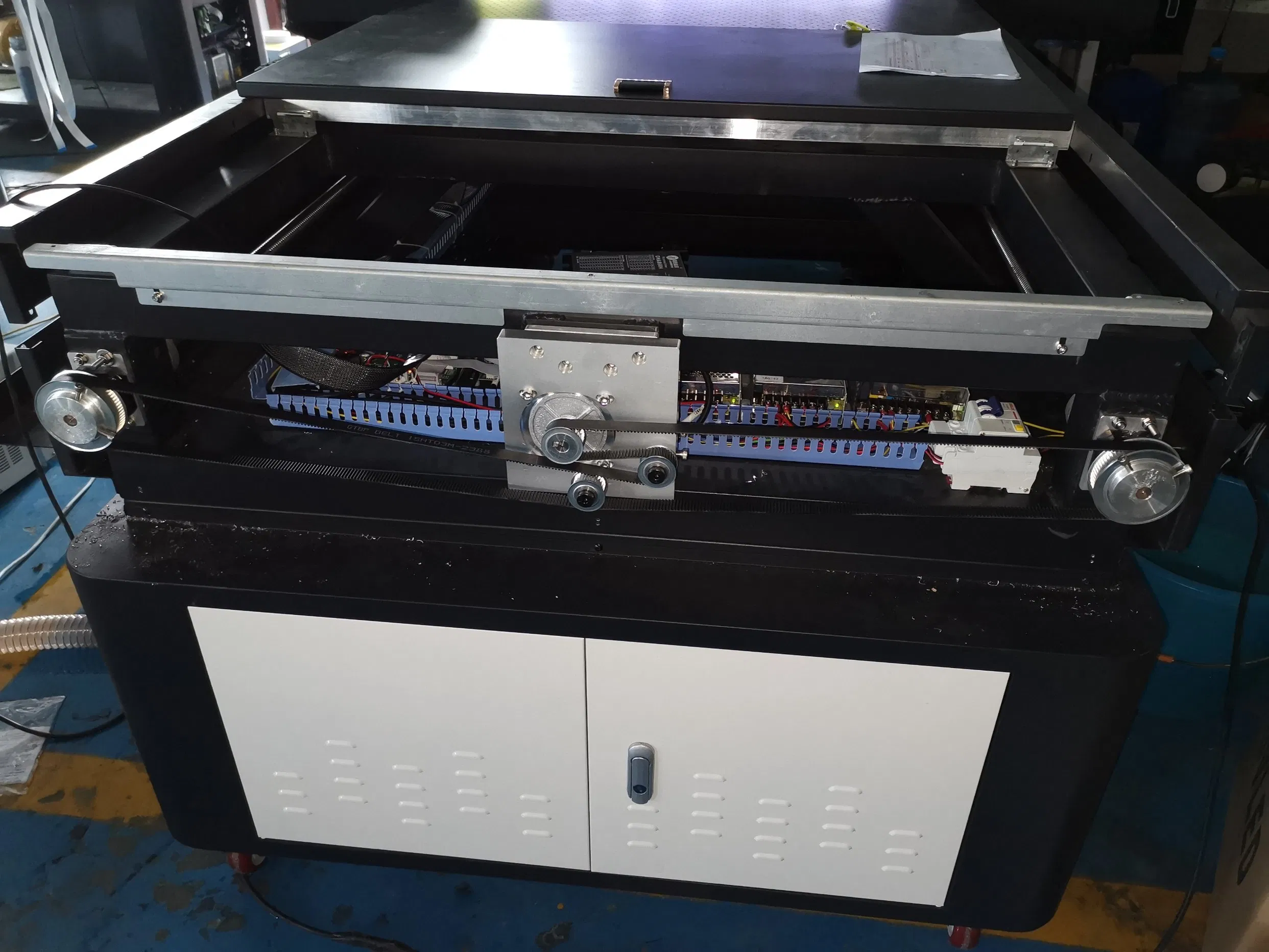

Product Details

Applications & Service

Global Presence

Selling is not the ending, the SERVICE is just the beginning!

Frequently Asked Questions

Q1: What materials can the DS-1015U print on? It can print on almost any flat surface, including glass, wood, acrylic, metal, plastic, PVC, ceramic tiles, stone, leather, and even flexible materials like yoga mats or jute bags.
Q2: Does this printer support 3D embossed effects? Yes, the LED UV ink technology allows for the creation of amazing 3D textured and raised (embossed) printing effects by layering ink.
Q3: What is the maximum printing size and height? The standard printing size is 100cm x 150cm (approx. 39in x 59in). The standard media height is 80mm, which can be customized up to 160mm.

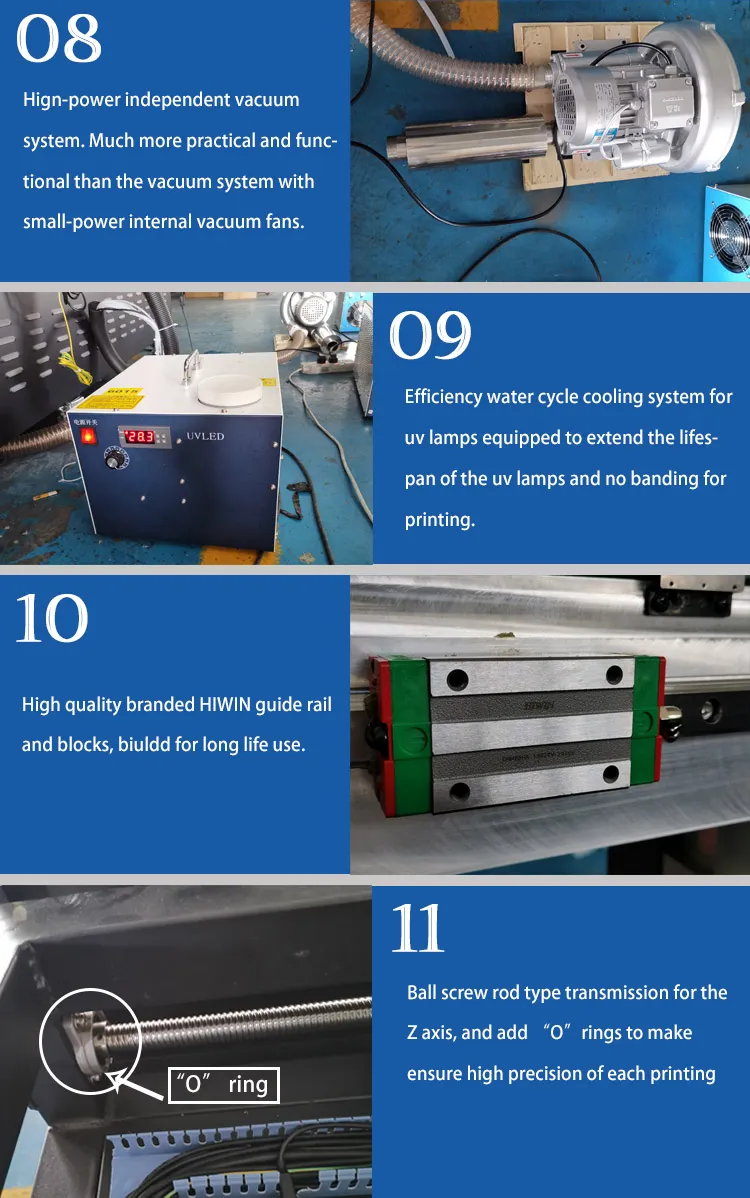

Q4: How does the cooling system work? The machine uses an efficient water circulation cooling system to ensure the UV LED lamps operate at a stable temperature, extending their lifespan.
Q5: What software is compatible with the printer? The printer supports professional RIP software such as Maintop or Photoprint, running on Windows systems (XP/7/10 32/64 bit).

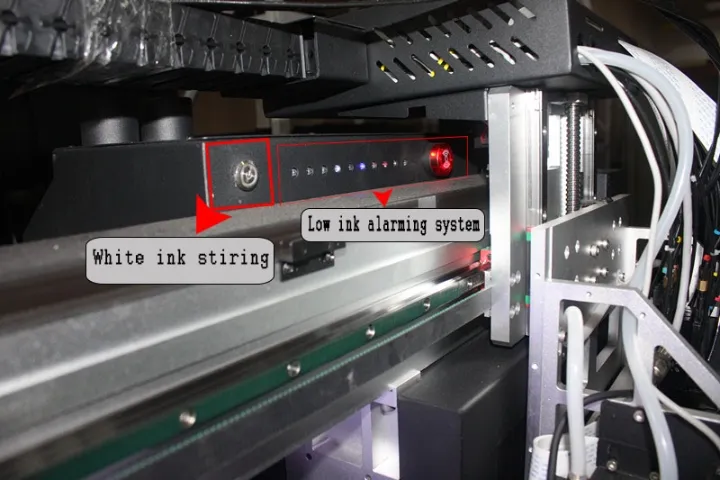

Q6: Is the white ink system prone to clogging? No, the printer features a white ink stir system and an automatic up-and-down capping system to protect the printheads and prevent clogging during downtime.
