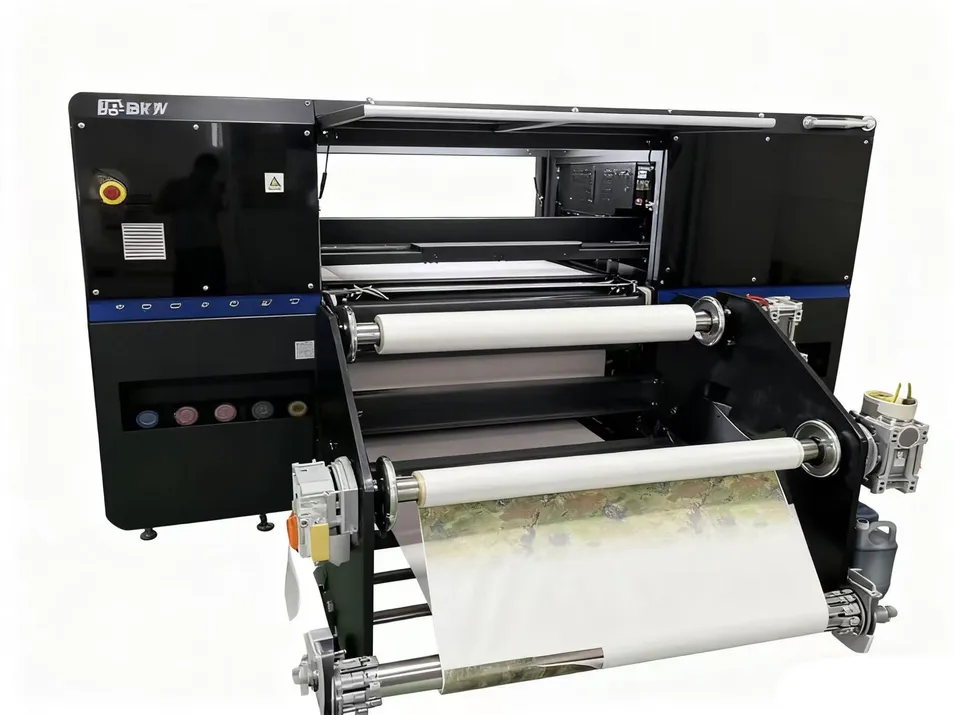

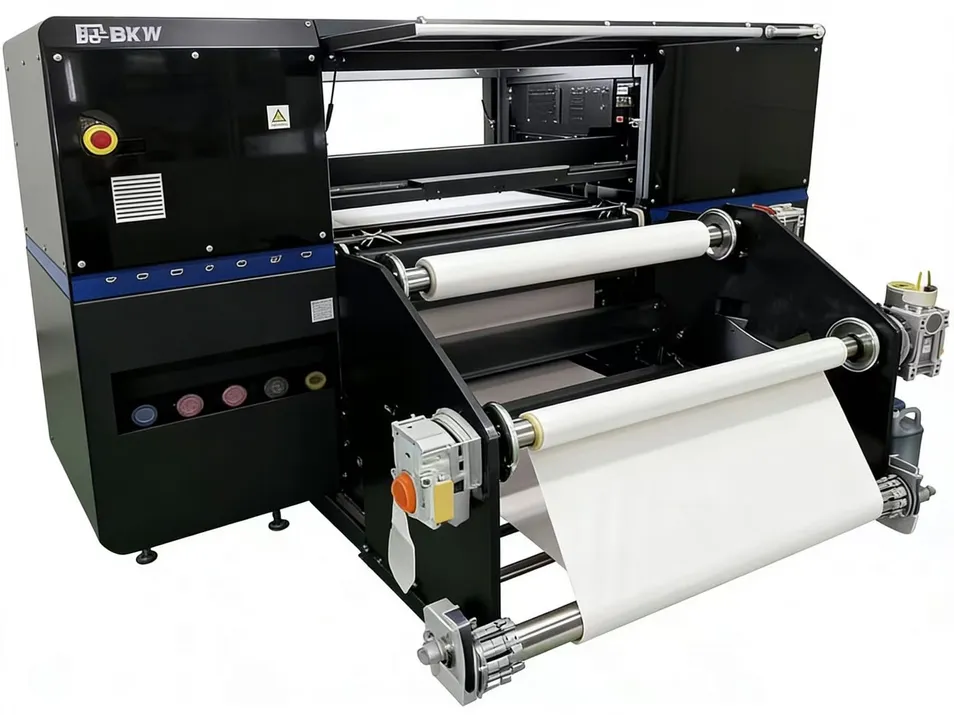

Magly Printer
1 / 5

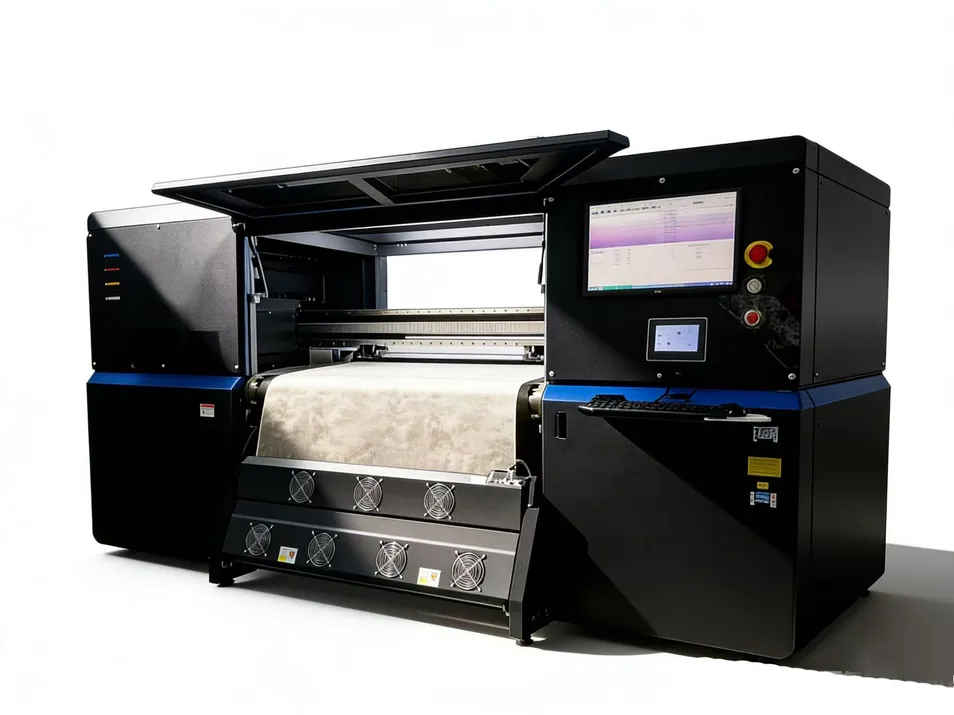

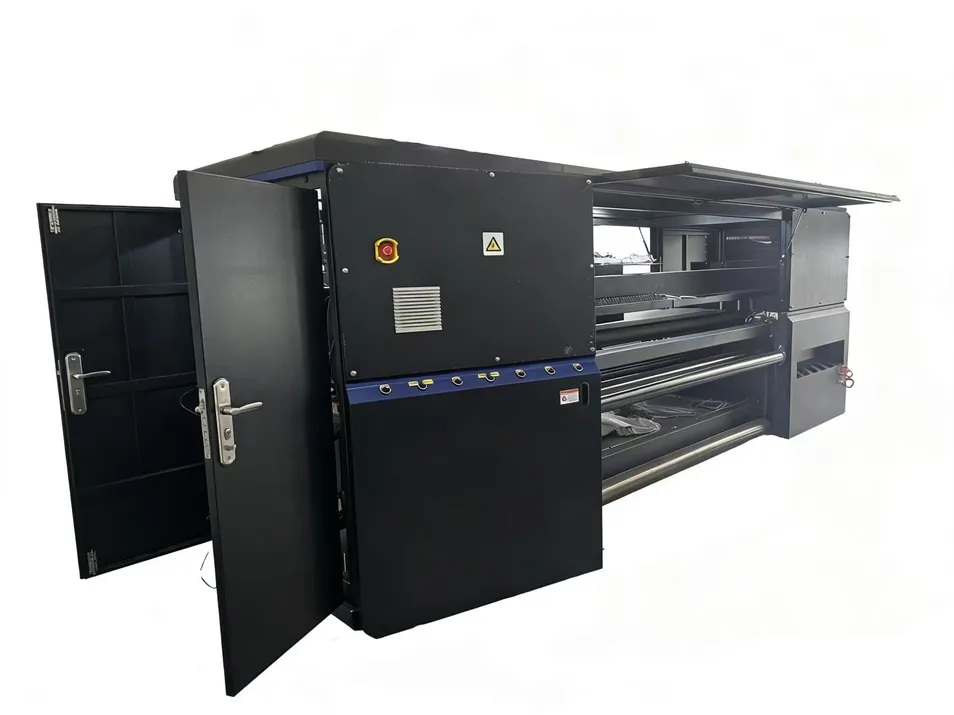

The integrated architecture ensures stable operation by minimizing connection points and potential failure risks between modules. This robust design significantly reduces maintenance frequency and downtime.

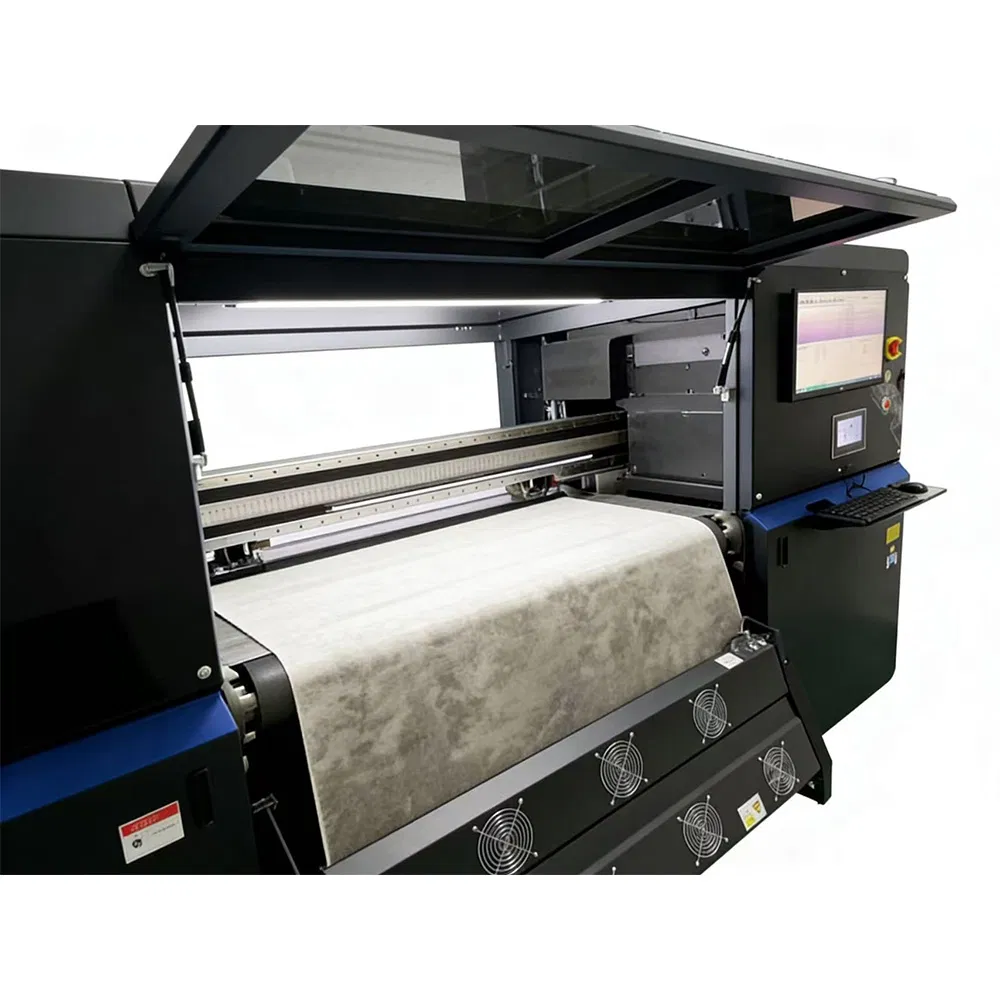

Utilizes high-rigidity Japanese-made linear guide rails and precision ball screws to ensure exceptional motion stability and positioning accuracy during printing, minimizing vibration for high-speed operation.
Advanced servo control enables seamless switching between functions with precision. It automatically adjusts parameters for different printing modes, ensuring optimal quality consistency.
The interface is designed for simplicity. One-touch operation features eliminate complicated manual setups, allowing operators to start jobs quickly and effortlessly.
| Parameter | Details |
|---|---|
| Printer Model | Jep-V15 |
| Spray Heads | 8 / 12 / 16 / 24 units |
| Print Width | 1350mm |

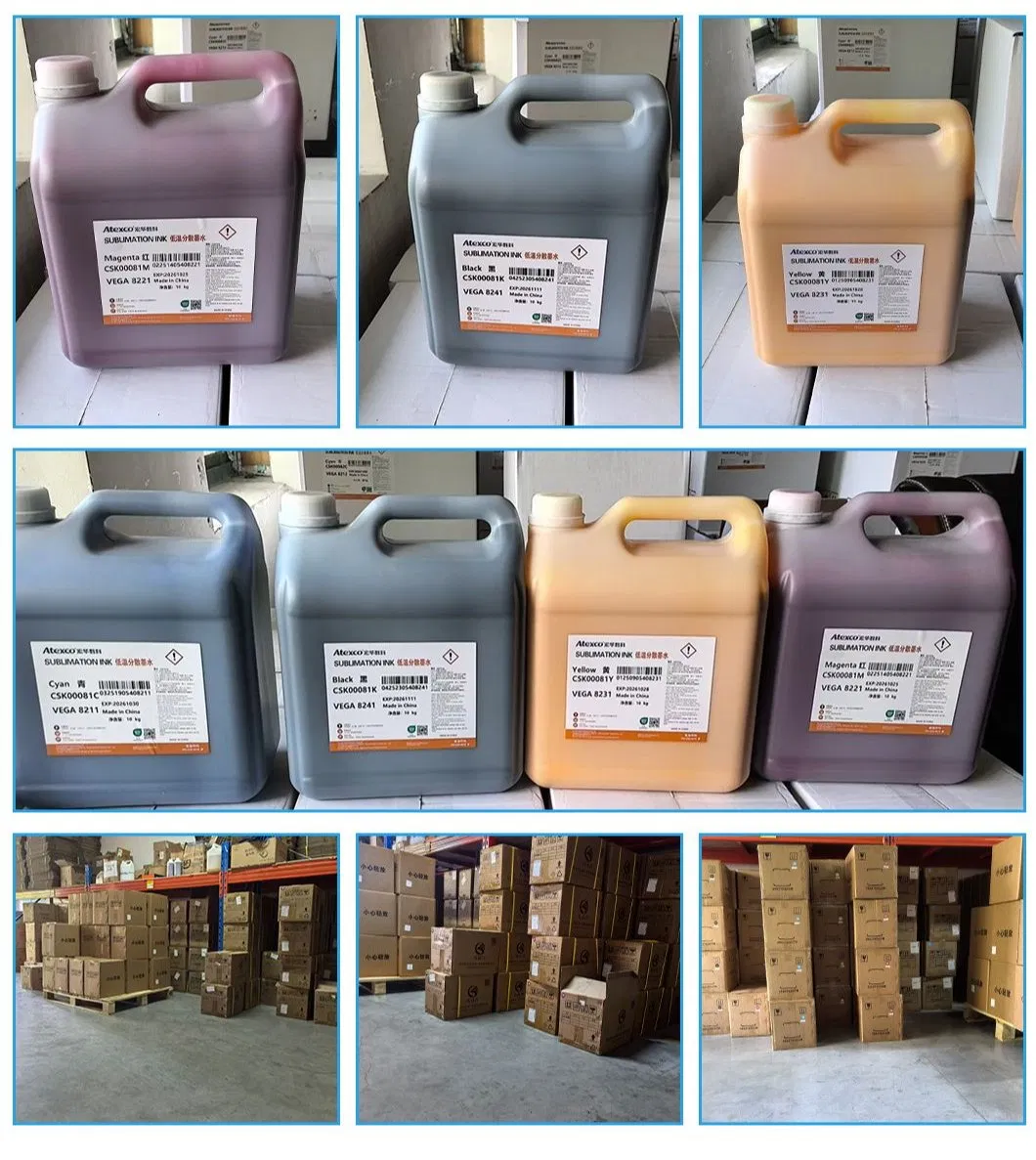

| Ink Type | Water-based pigment / Mild solvent ink |
| Pigment Colors | Red, Yellow, Blue, Black, Gray, Light Gray |
| Ink Supply System | Negative pressure system, 15 liters/color |
| Production Mode Speed | 80 / 120 / 160 / 240 m²/h |

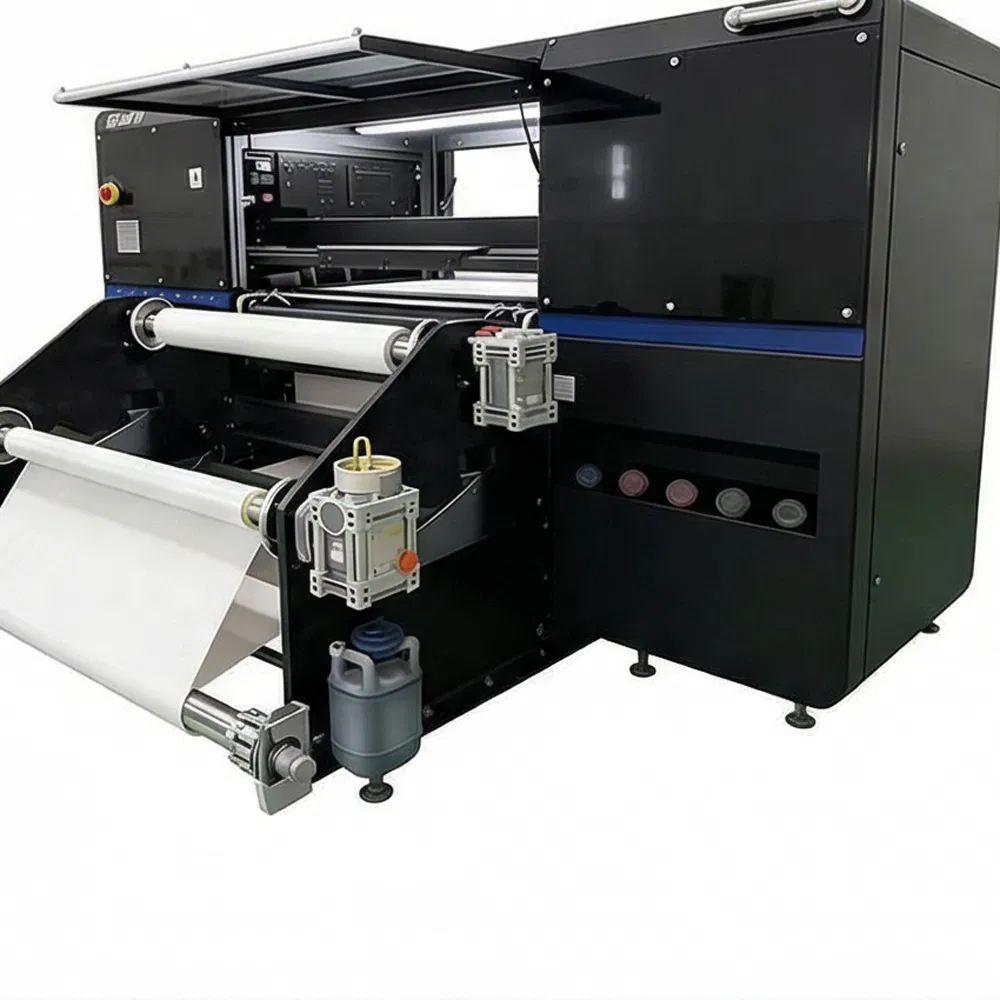

| Roll Diameter / Weight | 800mm / 1000KG |
| Operating System | Windows 7/10 (64-bit) |
| Interface | Gigabit Network or USB 3.0 |
| RIP Software | Maintop, Print Factory, Photoprint, Onyx, NeoStampa, etc. |
| Dimensions | 3550 x 1300 x 1900 mm |
